Chapter 31 Configuring Cisco IOS IP SLAs Operations
on the type of IP SLAs operation, it responds with time-stamp information for the source to make the
calculation on performance metrics. An IP SLAs operation performs a network measurement from the
source device to a destination in the network using a specific protocol such as UDP.

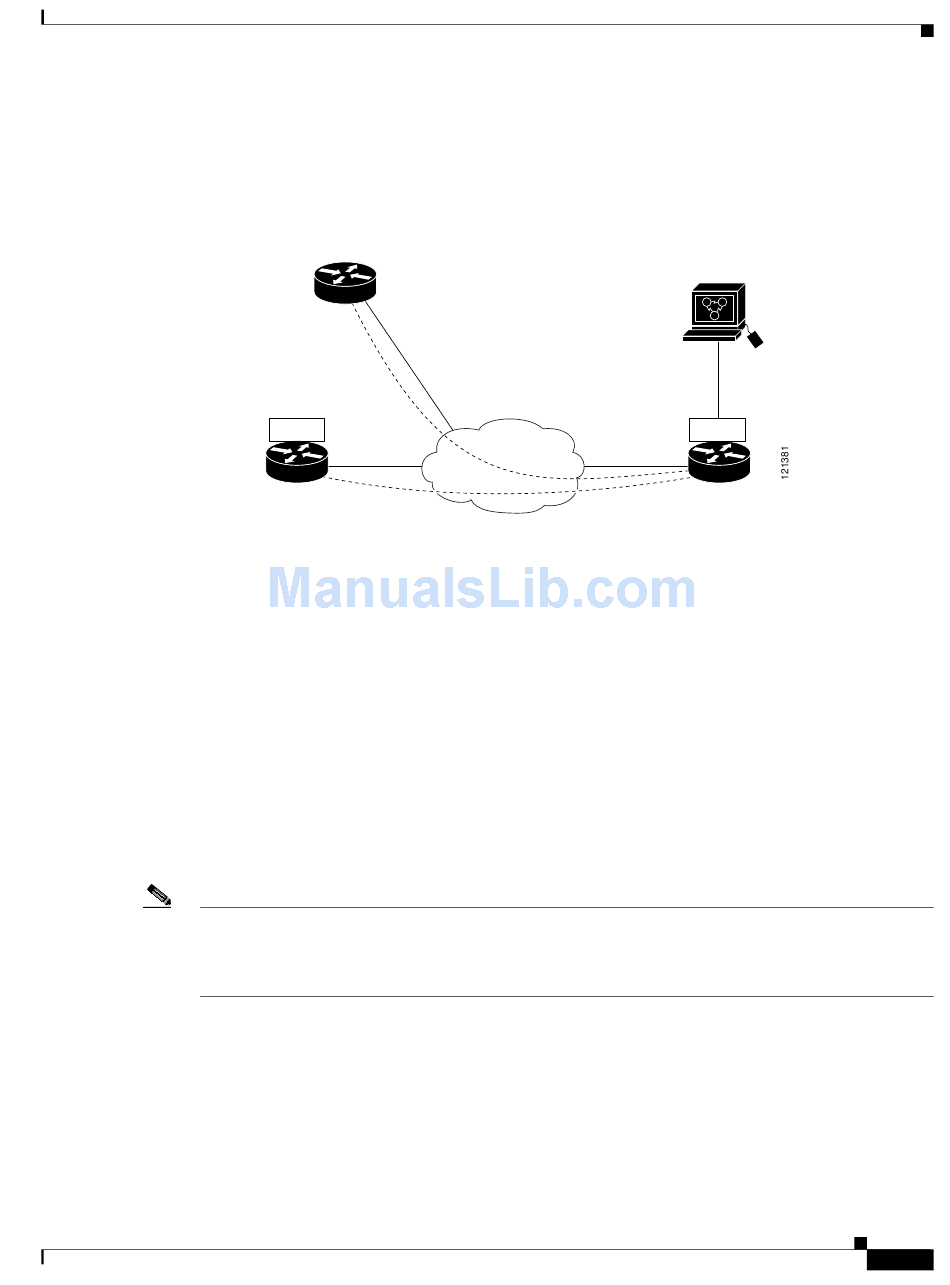

Figure 31-1
IP SLA measurement
and IP SLA responder to
To implement IP SLAs network performance measurement, you need to perform these tasks:
For more information about IP SLAs operations, see the operation-specific chapters in the Cisco IOS IP
SLAs Configuration Guide at this URL:
The switch does not support IP SLAs Voice over IP (VoIP) service levels using the gatekeeper
Note
registration delay operations measurements. Before configuring any IP SLAs application, you can use
the show ip sla application privileged EXEC command to verify that the operation type is supported on
your software image.

IP SLAs Responder and IP SLAs Control Protocol

The IP SLAs responder is a component embedded in the destination Cisco device that allows the system
to anticipate and respond to IP SLAs request packets. The responder provides accurate measurements
without the need for dedicated probes. The responder uses the Cisco IOS IP SLAs Control Protocol to
provide a mechanism through which it can be notified on which port it should listen and respond. Only
a Cisco IOS device can be a source for a destination IP SLAs Responder.
OL-23400-01
Cisco IOS IP SLAs Operation
Any IP device
IP SLA Responder
IP SLA
IP SLA responder
IP SLA measurement IP SLA measurement
and IP SLA responder to and IP SLA responder to
IP SLA Responder IP SLA Responder
1. Enable the IP SLAs responder, if required.
2. Configure the required IP SLAs operation type.
3. Configure any options available for the specified operation type.
4. Configure threshold conditions, if required.
Schedule the operation to run, then let the operation run for a period of time to gather statistics.
5.
Display and interpret the results of the operation using the Cisco IOS CLI or a network
6.
management system (NMS) system with SNMP.
http://www.cisco.com/en/US/docs/ios/ipsla/configuration/guide/12_4t/sla_12_4t_book.html
IP network
Cisco ME 3800X and 3600X Switch Software Configuration Guide
Understanding Cisco IOS IP SLAs
Performance
management
application
SNMP
IP SLA
IP SLA source
31-3
