The following graphics provides an example of a Windows 2003 server with TWO NICs teamed and
connected to the network. One NIC will be active, in the event of an Uplink, switch or VC module failure;
the teaming software will fail the NIC over to the alternate path, if required.

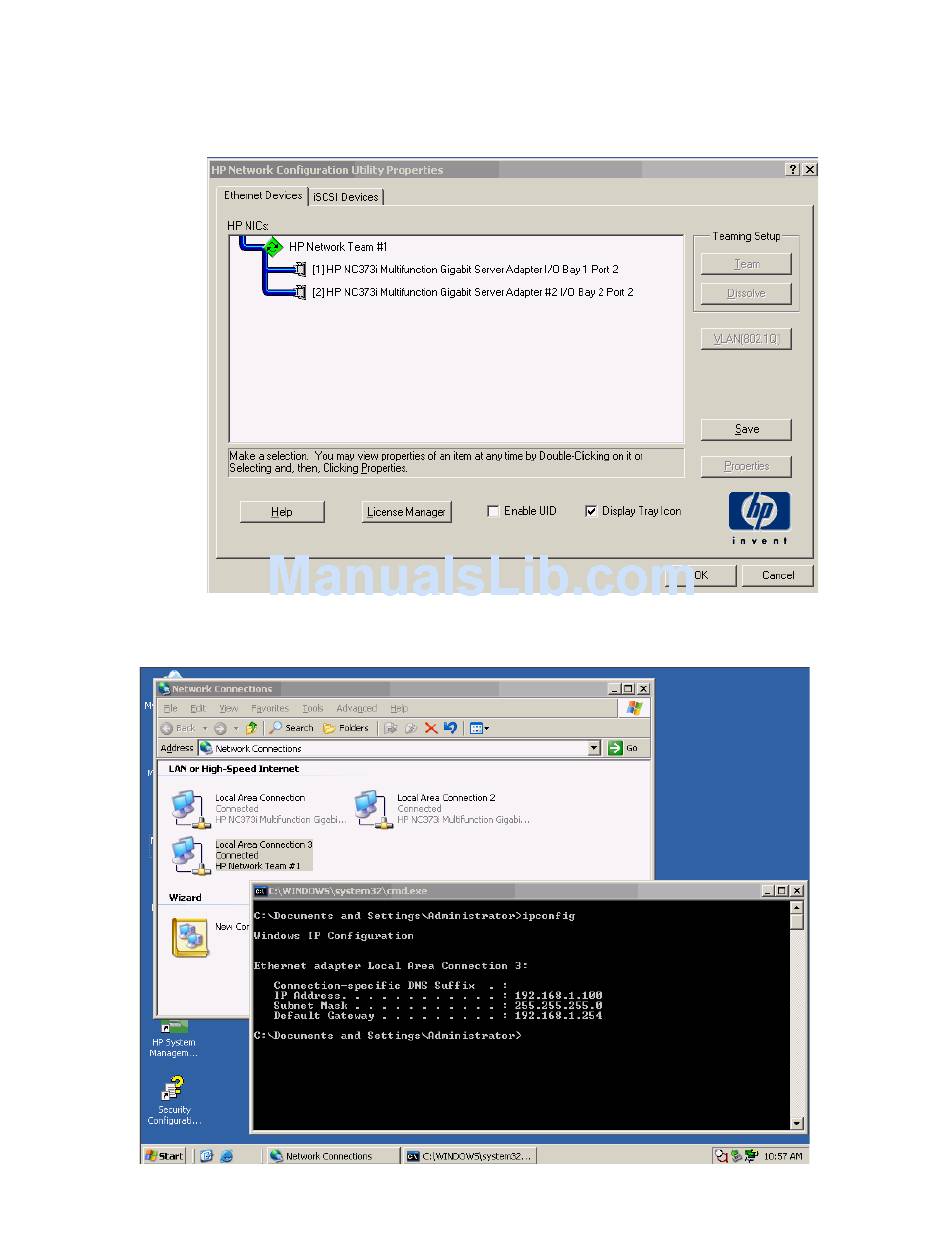

Figure 1-86 Team both NICs, using the HP Network Configuration Utility.
Figure 1-87 Both NICs for Profile Web-1are teamed and connected to the network through vNet-PROD.
Scenario 1:7 – Private Networks (Simple vNet) 97
