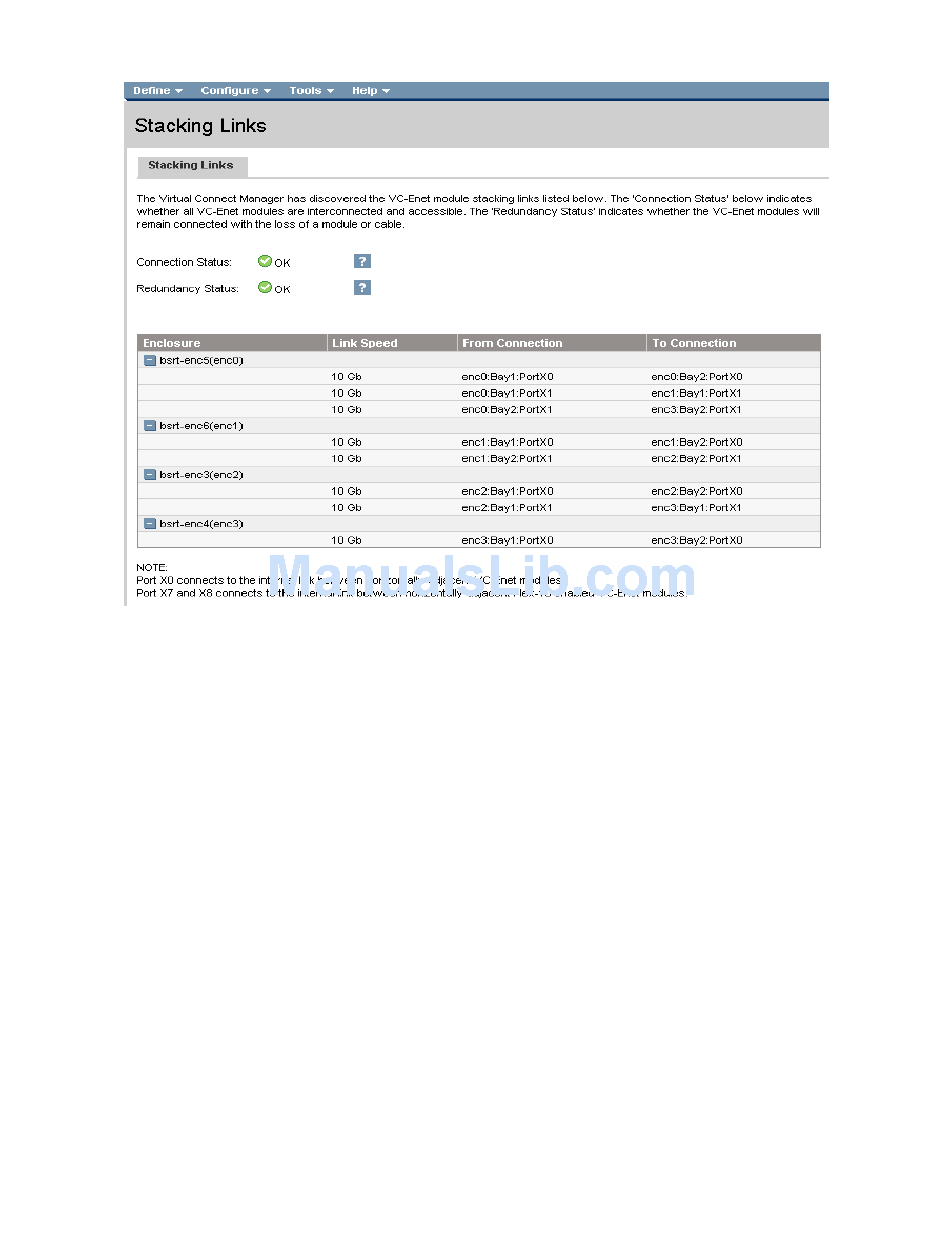

Figure 3-22 VC Domain Stacking Links.
Defining a new Shared Uplink Set (VLAN-Trunk-1)
Connect Port X2 of VC module 1, enclosure 1 to Port 1 on switch 1
Create a SUS named "VLAN-Trunk-1" and connect it to Flex-10 Port X2 on Module 1, enclosure 1
•
On the Virtual Connect Home page, select Define, Shared Uplink Set
•
Insert Uplink Set Name as VLAN-Trunk-1
•
Select Add Port, then add the following port;
Enclosure 1, Bay 1, Port X2
a.
•
Add Networks as follows;
PROD-A-1 = VLAN ID=101
a.
PROD-B-1 = VLAN ID=102
b.
PROD-C-1 = VLAN ID=103
c.
PROD-D-1 = VLAN ID=104
d.
PROD-E-1 = VLAN ID=105
e.
•
Enable Smart Link on each network
•
Click Apply
Scenario 3:2 - Flex-10 with Multi-Enclosure stacking - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) - VMware
ESX - (4 Enclosures) 190
