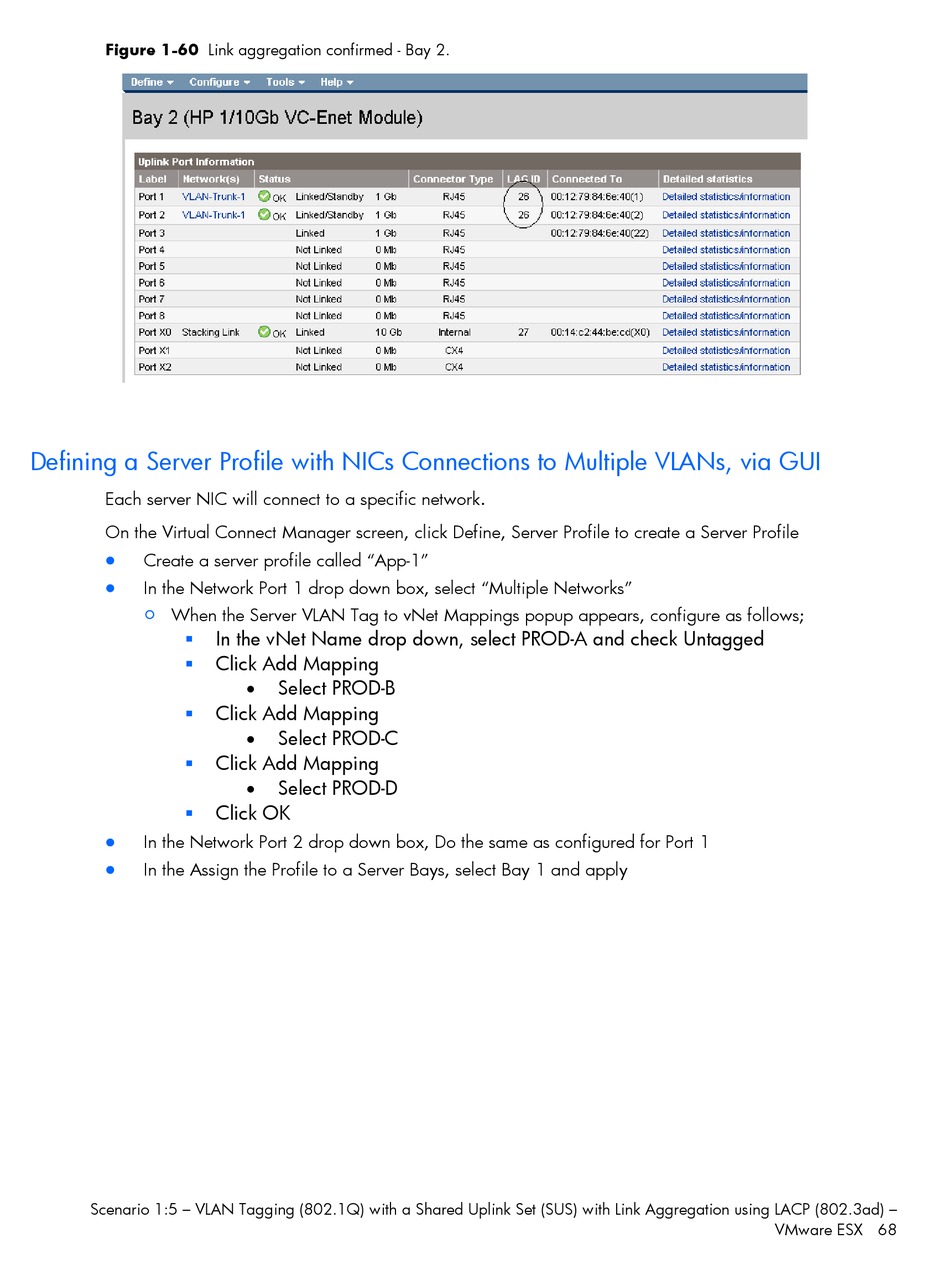

Figure 1-60 Link aggregation confirmed - Bay 2.
Defining a Server Profile with NICs Connections to Multiple VLANs, via GUI
Each server NIC will connect to a specific network.
On the Virtual Connect Manager screen, click Define, Server Profile to create a Server Profile
•
Create a server profile called "App-1"
•
In the Network Port 1 drop down box, select "Multiple Networks"
○
When the Server VLAN Tag to vNet Mappings popup appears, configure as follows;





•
In the Network Port 2 drop down box, Do the same as configured for Port 1
•
In the Assign the Profile to a Server Bays, select Bay 1 and apply
Scenario 1:5 – VLAN Tagging (802.1Q) with a Shared Uplink Set (SUS) with Link Aggregation using LACP (802.3ad) –
In the vNet Name drop down, select PROD-A and check Untagged
Click Add Mapping
Select PROD-B
•
Click Add Mapping
• Select PROD-C
Click Add Mapping
• Select PROD-D
Click OK
VMware ESX 68
