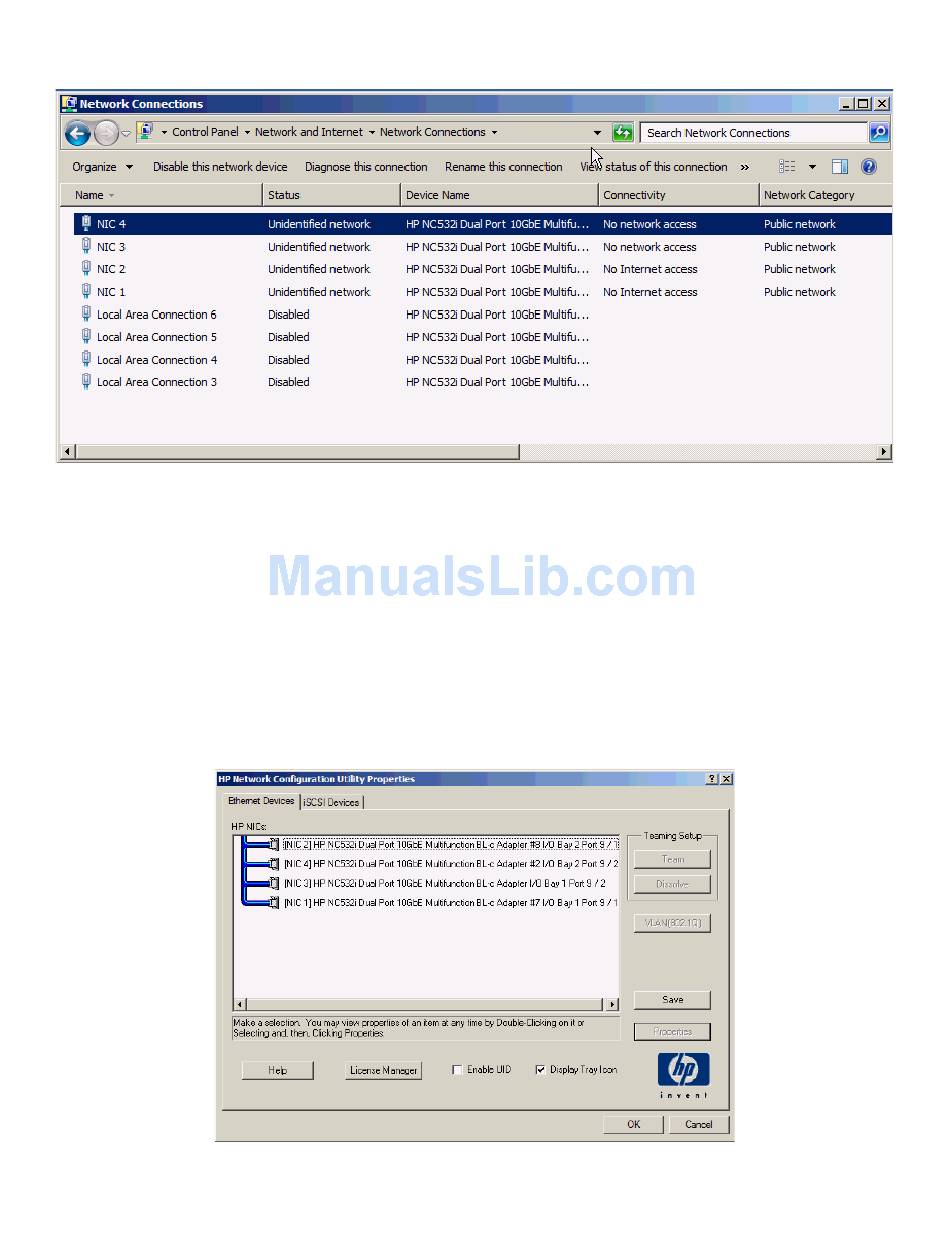

Figure 2-39 Windows 2008 Network Connections (4 Active Connections – Renamed).
Ensure that the Hyper-V role has been installed and configured, then install the latest version of the HP
ProLiant Network Teaming Software and run the utility. Notice the NIC Names that were set earlier. You
can also highlight each NIC and select properties to verify the MAC address of the NIC before creating
the team.
Configuring NIC teaming
To create the NIC team for the Management network, Select NIC 1 and NIC 2, click TEAM, Click on the
TEAM name and rename it to Management, then save the TEAM. Click on the remaining two NICs and
team these separately and rename this team to Production. Click OK.
Figure 2-40 HP ProLiant Network Configuration Utility.
Scenario 2:2 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - Windows 2008
Hyper-V 135
