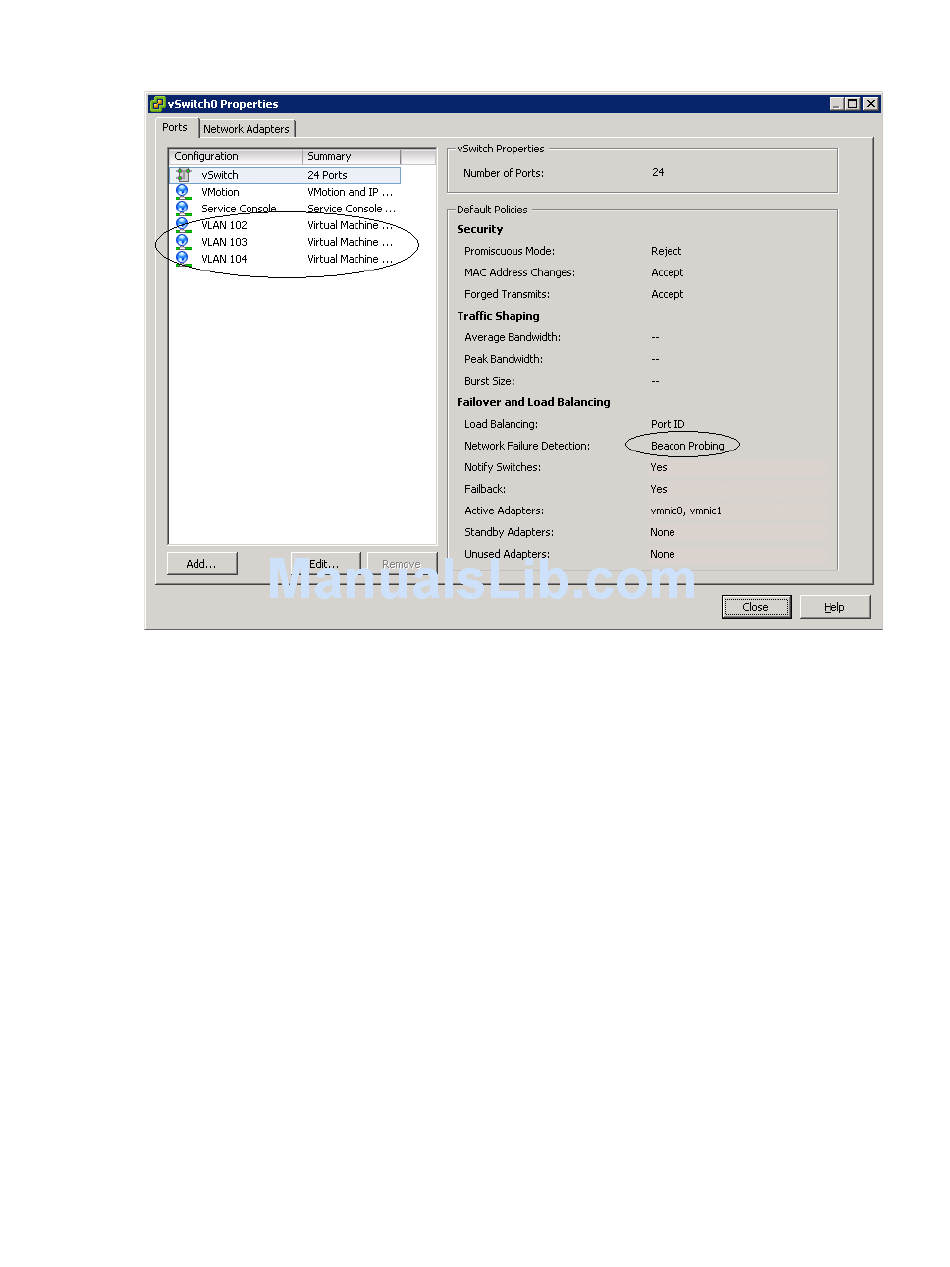

Figu re 1-42 Configuring the ESX vSwitch for Multiple Networks / VLANs. If additional VLANs need to be supported, simply
configure the upstream switch ports for those VLANs, then configure the vSwitch as below to support those additional VLANs.
When configuring the virtual guest, edit the Network Adapter configuration and select which VLAN this guest will
connect to.
Scenario 1:3 – Multiple Simple Networks Providing Redundancy and Link Aggregation 802.3ad (LACP) with VLAN Tunneling –
VMware ESX 50
