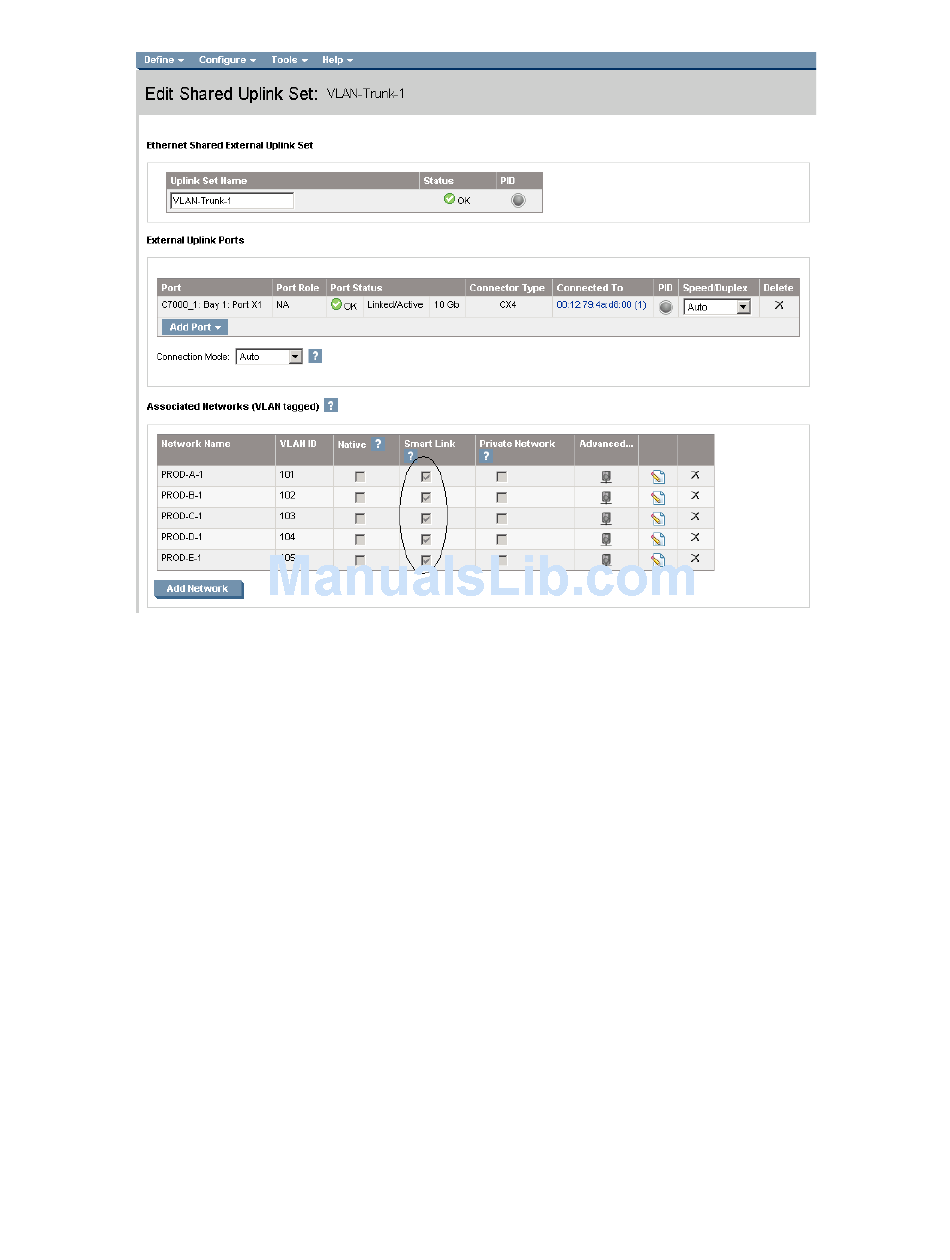

Note: The "Connected to" field in the graphic above displays the MAC address and port number of the
switch this uplink is connected to. This information is provided through LLDP discover and is not available in
all switch products. This information can be very helpful when determining which switches and ports VC is
connected to.
Scenario 2:3 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - ESX 4 146
