VMWARE ESX Host Networking configuration Example
When configuring the ESX virtual switch, add virtual networks for each VLAN this ESX host will support.

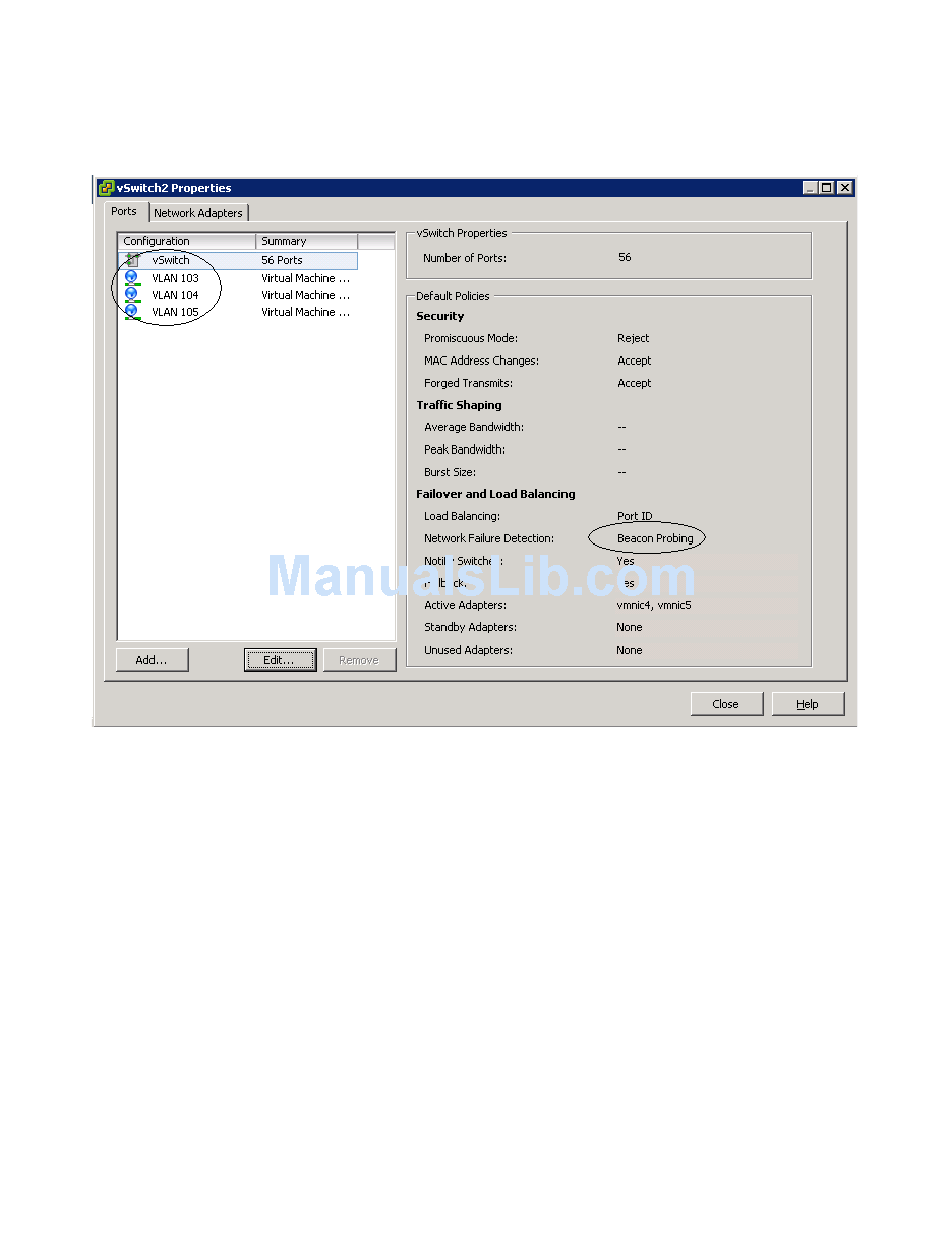

Figure 2-58 Configuring the ESX vSwitch for Multiple Networks / VLANs.
Note: That vSwitch2 has two NICs configured to redundantly, support VLANs 103, 104 and 105.
Note: If implementing ESX 3.5 on Flex-10, first review VMWARE KB 1007982 and ensure Network
Failure Detection is set to Beacon Probing.
When configuring the guest NIC simply chose which VLAN this guest will reside on.
Note: If implementing ESX 4.0 on Flex-10 ensure that ESX driver version 1.52 is installed, also ensure
that NIC firmware 5.2.7 is also installed.
Scenario 2:3 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - ESX 4 153
