Note: By connecting two Uplinks from each vNet we have provided additional bandwidth and redundant
paths to the network.
Adding uplinks to an existing vNet via CLI
The following command(s) can be copied and pasted into an SSH based CLI session with Virtual Connect
# Edit the vNet "vNet-PROD-1" and configure uplinks as discussed above
add uplinkport enc0:1:2 Network=vNet-PROD-1 speed=auto
# Edit the vNet "vNet-PROD-2" and configure uplinks as discussed above
add uplinkport enc0:2:2 Network=vNet-PROD-2 speed=auto

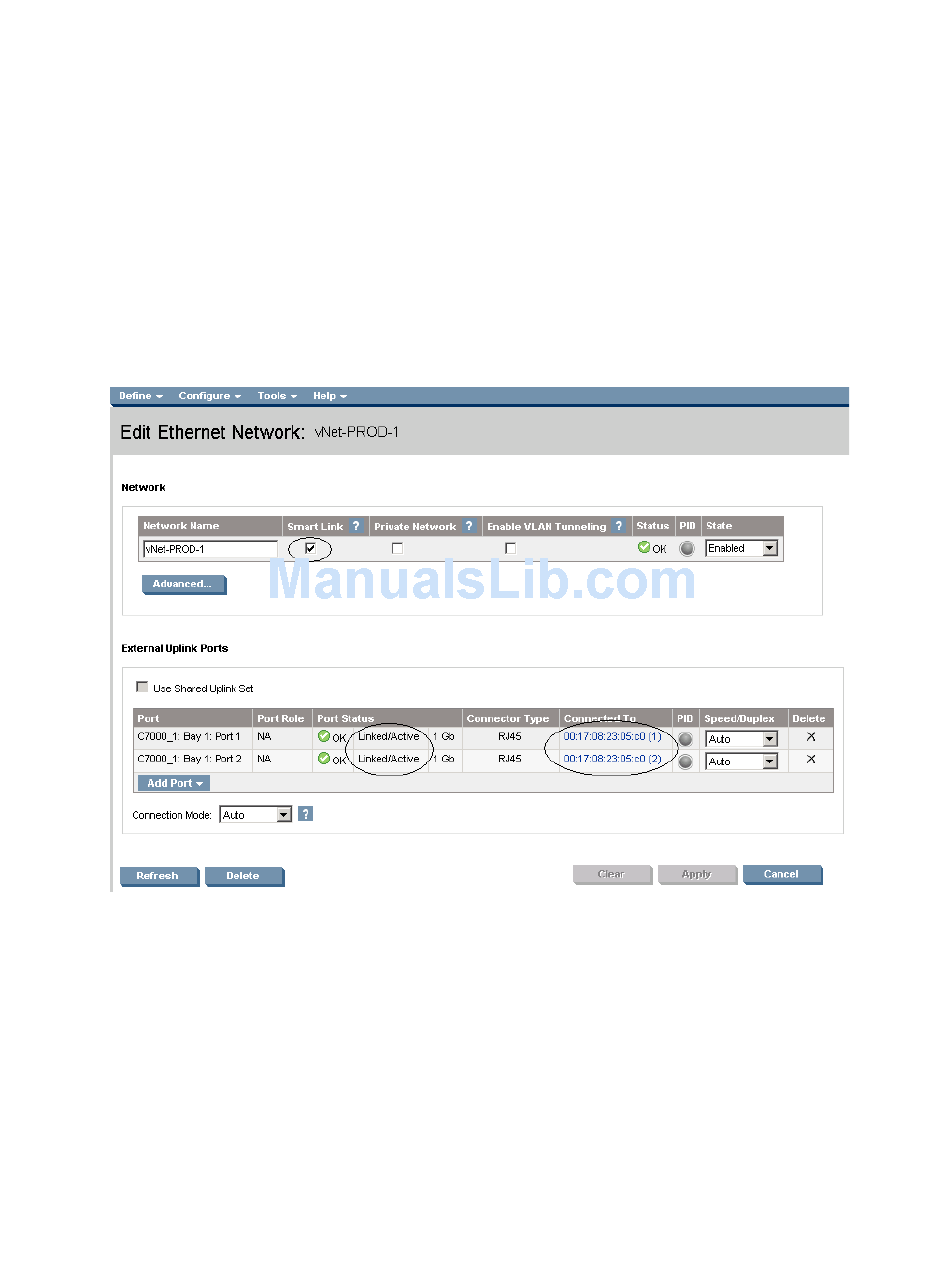

Figure 1-23 Adding uplinks to an existing vNet (vNet-PROD-1).
Note: The Port Status and Connected to information. If the connected switch supports LLDP, the connected to
information should be displayed as below
Scenario 1:2 – Multiple Simple Networks with Active\Active Uplinks and Optional Link Aggregation 802.3ad (LACP) - Windows
