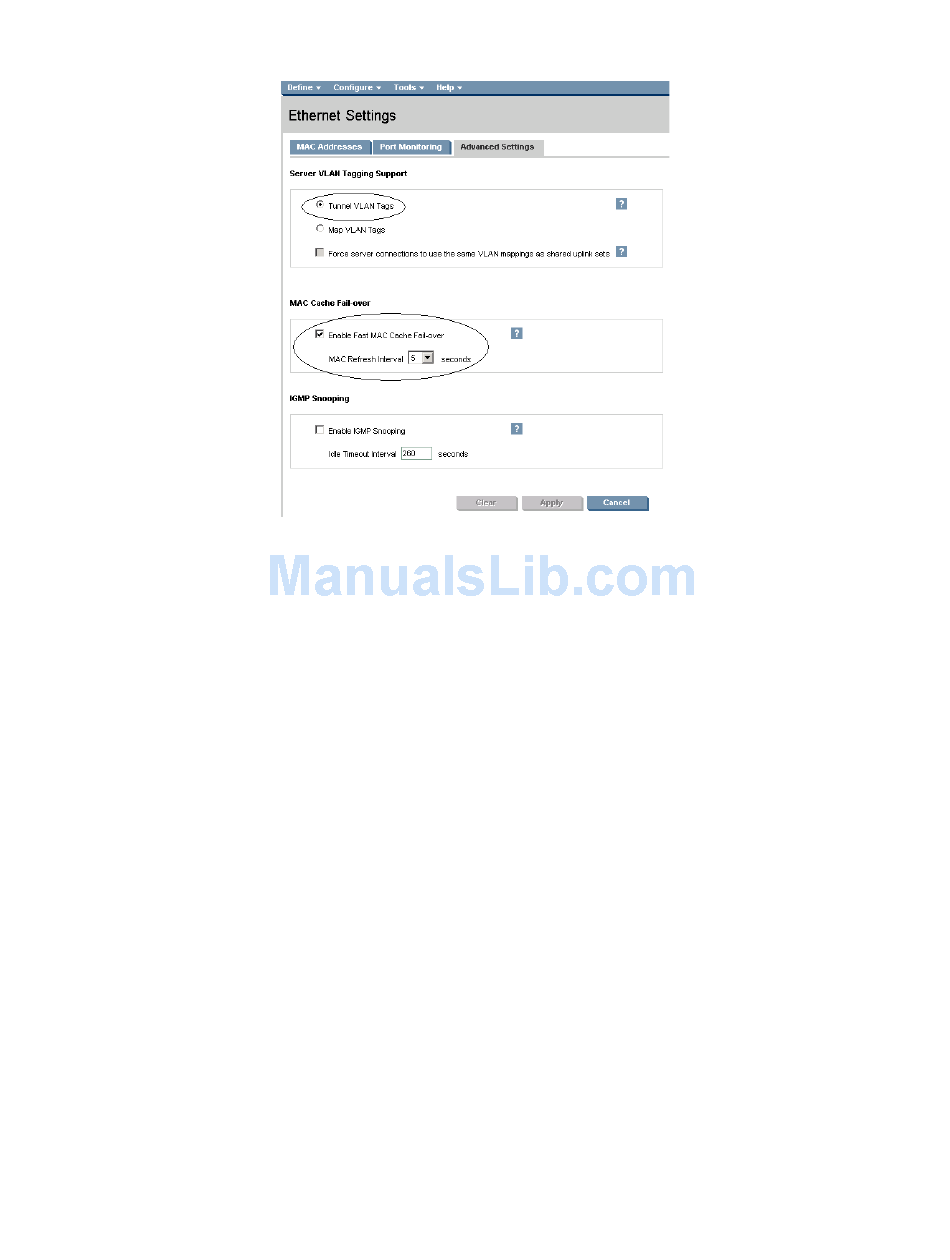

Figure 2-62 Ethernet Settings.
Defining a new Shared Uplink Set (VLAN-Trunk-1)
Connect Port X1 of VC module 1 to Port 1 on switch 1
Create a SUS named "VLAN-Trunk-1" and connect it to Flex-10 port X1 on Module 1
•
On the Virtual Connect Home page, select Define, Shared Uplink Set
•
Insert Uplink Set Name as VLAN-Trunk-1
•
Select Add Port, then add the following port;
•
Add Networks as follows;
•
Enable SmartLink on ALL Networks
•
Click Apply
Defining a new Shared Uplink Set (VLAN-Trunk-2)
Connect Port X1 of VC module 2 to Port 1 on switch 2
Create a SUS named "VLAN-Trunk-2" and connect it to Flex-10 Port X1 on Module 2
•
On the Virtual Connect Home page, select Define, Shared Uplink Set
•
Insert Uplink Set Name as VLAN-Trunk-2
•
Select Add Port, then add the following port;
a.
Scenario 2:4 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Tunneled VLANs - ESX 4 159
a. Enclosure 1, Bay 1, Port X1
a. PROD-A-1 = VLAN ID=101
b. PROD-B-1 = VLAN ID=102
c. PROD-C-1 = VLAN ID=103
Enclosure 1, Bay 2, Port X1
