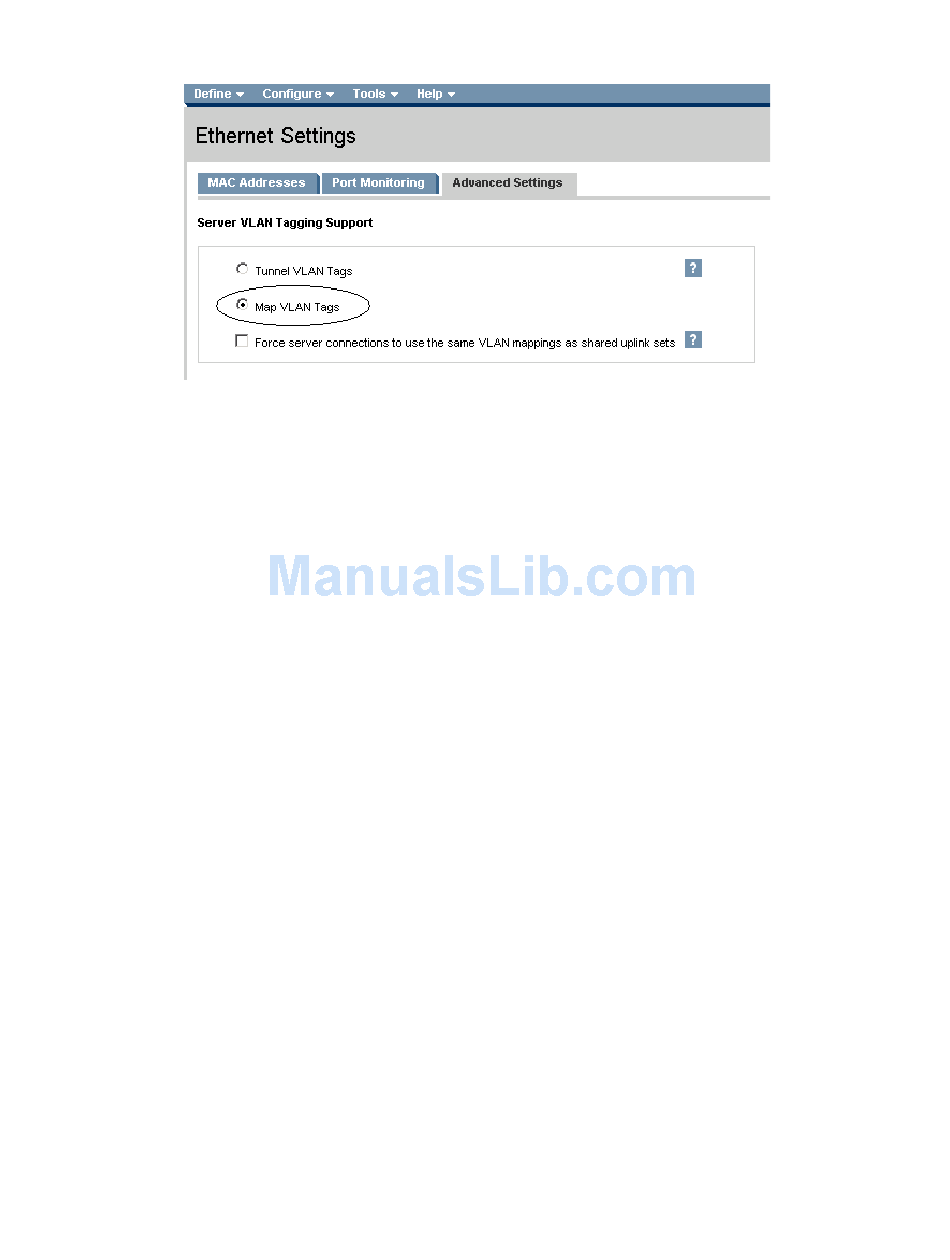

Figure 2-30 Ethernet Settings.
Defining a new Shared Uplink Set (VLAN-Trunk-1)
Connect Port X1 of VC module 1 to Port 1 on switch 1
Create a SUS named "VLAN-Trunk-1" and connect it to Flex-10 Port X1 on Module 1
•
On the Virtual Connect Home page, select Define, Shared Uplink Set
•
Insert Uplink Set Name as VLAN-Trunk-1
•
Select Add Port, then add the following port;
Enclosure 1, Bay 1, Port X1
a.
•
Add Networks as follows;
PROD-A-1 = VLAN ID=101
a.
PROD-B-1 = VLAN ID=102
b.
PROD-C-1 = VLAN ID=103
c.
PROD-D-1 = VLAN ID=104
d.
PROD-E-1 = VLAN ID=105
e.
•
Enable Smartlink on ALL Networks
•
Click Apply
Defining a new Shared Uplink Set (VLAN-Trunk-2)
Connect Port X1 of VC module 2 to Port 1 on switch 2
Create a SUS named "VLAN-Trunk-2" and connect it to Flex-10 Port X1 on Module 2
•
On the Virtual Connect Home page, select Define, Shared Uplink Set
•
Insert Uplink Set Name as VLAN-Trunk-2
•
Select Add Port, then add the following port;
Enclosure 1, Bay 2, Port X1
a.
•
Add Networks as follows;
PROD-A-2 = VLAN ID=101
a.
PROD-B-2 = VLAN ID=102
b.
PROD-C-2 = VLAN ID=103
c.
PROD-D-2 = VLAN ID=104
d.
