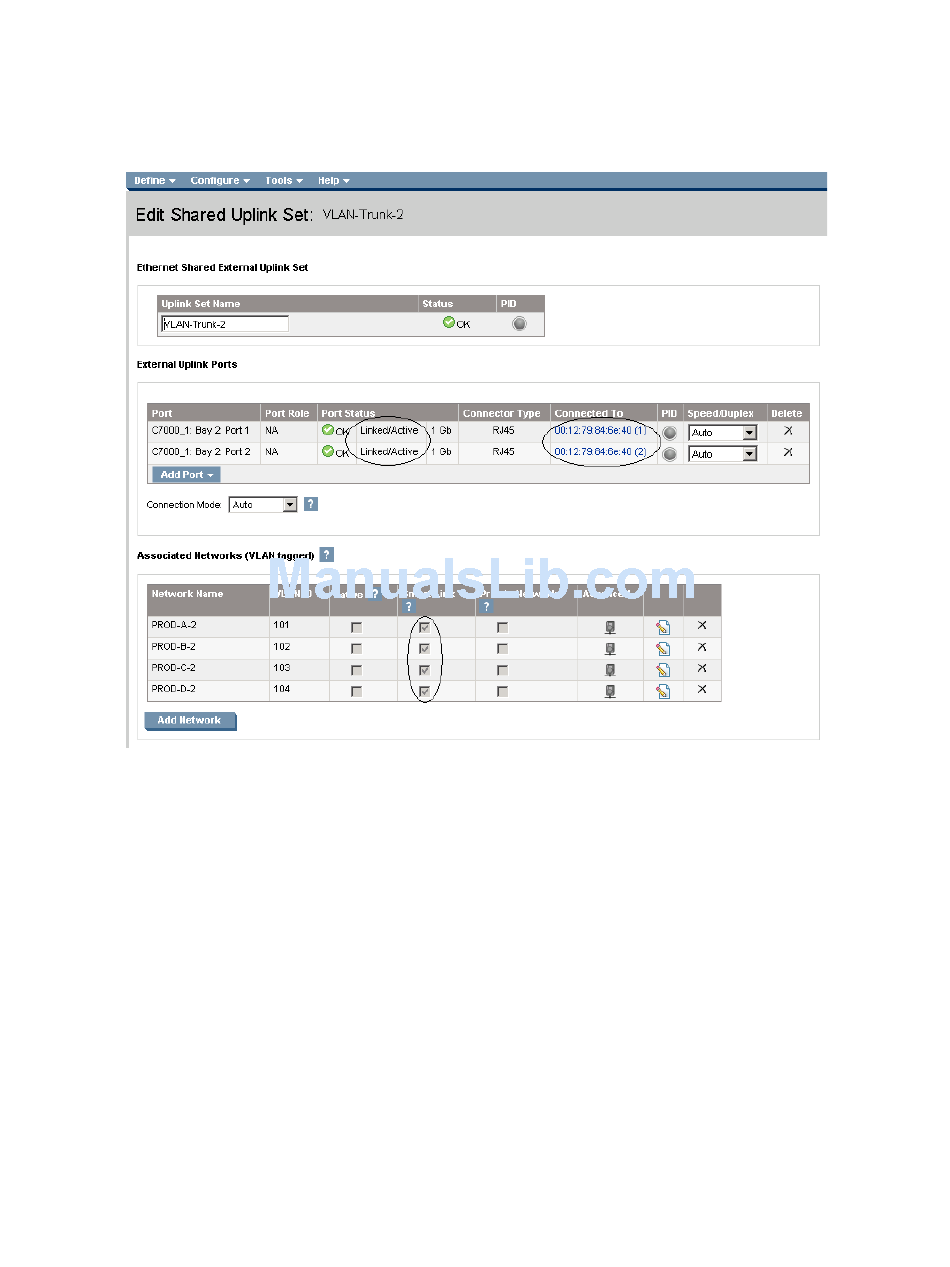

Figure 1-70 Define Shared Uplink Set (VLAN-Trunk-2).
Note: The Port Status and Connected to information. If the connected switch supports LLDP, the connected to
information should be displayed as below.
Note: Smart Link is enabled, if ALL uplinks to this SUS fail, then server downlinks will be turned off, initiating a NIC
teaming fail-over.
Scenario 1:6 – VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Link Aggregation using LACP (802.3ad) –
VMware ESX 80
