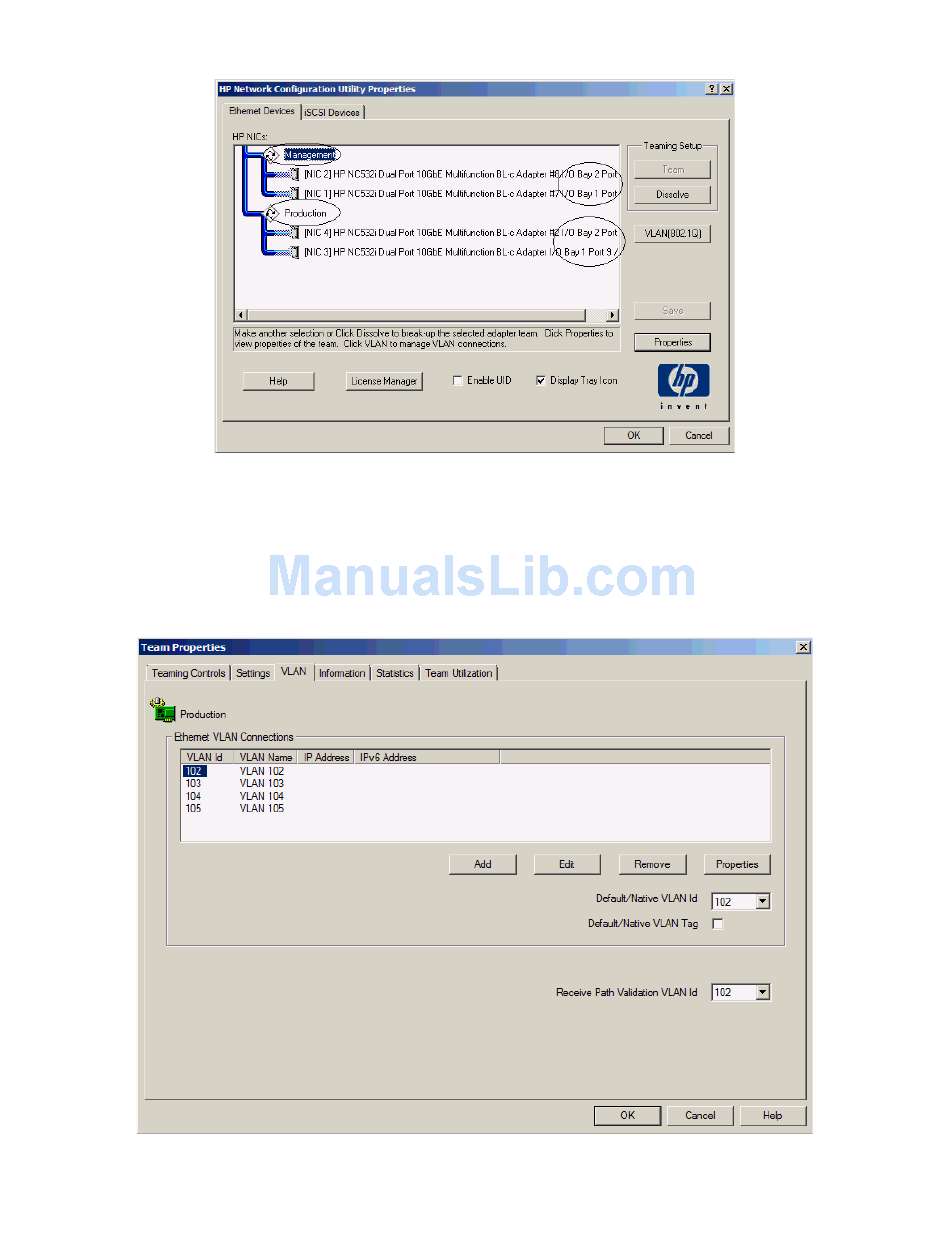

Figure 2-41 HP ProLiant Network Configuration Utility with both teams created.
Creating the VLANs within NIC Teaming
Highlight the Production NIC team and click the VLAN (802.1Q) button on the right and create a VLAN
for each VLAN that this NIC team will support.
Figure 2-42 HP ProLiant Network Configuration Utility VLAN configurations for Production Team.
Scenario 2:2 - Flex-10 - VLAN Tagging (802.1Q) with Multiple Shared Uplink Sets (SUS) and Mapped VLANs - Windows 2008
Hyper-V 136
