Defining a Server Profile with NICs Connections to Multiple VLANs, via CLI
The following command(s) can be copied and pasted into an SSH based CLI session with Virtual Connect
# Create and Assign Server Profile App-1
add profile ESX-1 –nodefaultenetconn -nodefaultfcconn
add enet-connection ESX-1 pxe=Enabled
add enet-connection ESX-1 pxe=Disabled
add server-port-map ESX-1:1 PROD-A VLanId=101 Untagged=True
add server-port-map ESX-1:1 PROD-B VLanId=102
add server-port-map ESX-1:1 PROD-C VLanId=103
add server-port-map ESX-1:1 PROD-D VLanId=104
add server-port-map ESX-1:2 PROD-A VLanId=101 Untagged=True
add server-port-map ESX-1:2 PROD-B VLanId=102
add server-port-map ESX-1:2 PROD-C VLanId=103
add server-port-map ESX-1:2 PROD-D VLanId=104
assign profile ESX-1 enc0:1

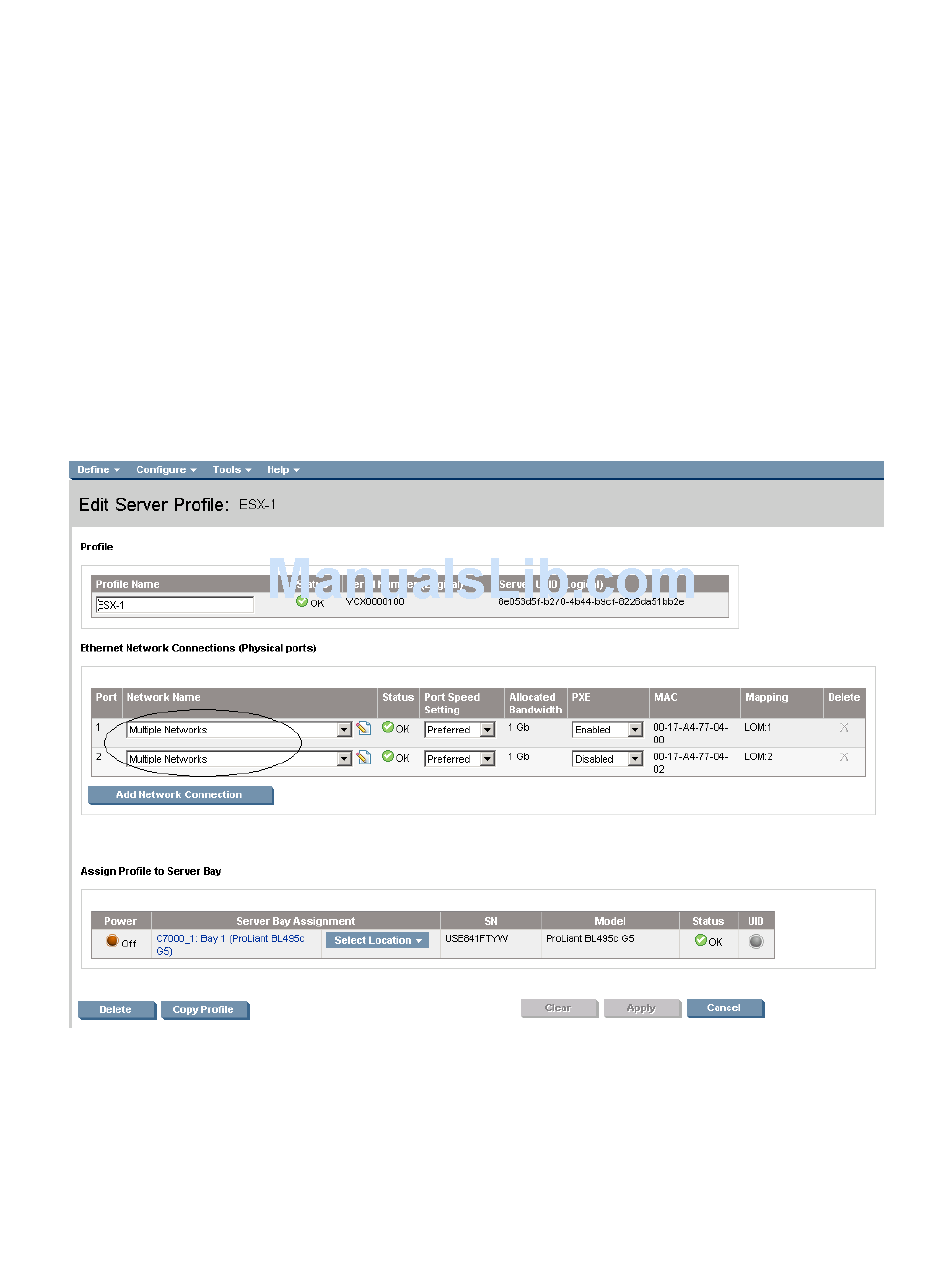

Figure 1-61 Server Profile (App-1) with Multiple Networks configured.
Scenario 1:5 – VLAN Tagging (802.1Q) with a Shared Uplink Set (SUS) with Link Aggregation using LACP (802.3ad) –
VMware ESX 69
