Figure 1-13
Both NICs for Profile App-1are connected to the network through vNet-PROD.

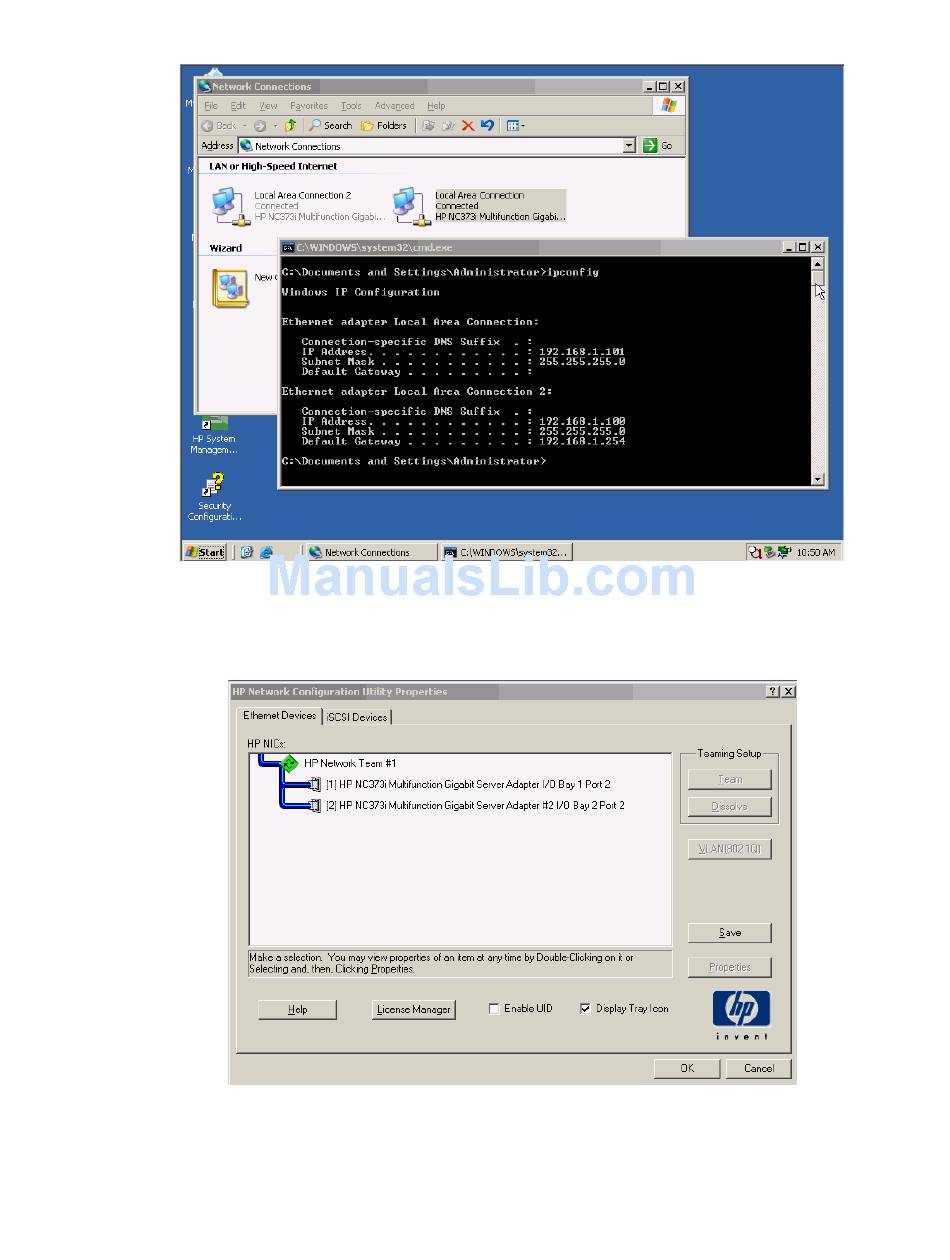

The following graphics provide an example of a Windows 2003 server with TWO NICs teamed and
connected to the network. One NIC will be active while the other is in standby. In the event of an Uplink
or switch failure, VC will fail-over to the standby uplinks.
Figure 1-14 Both NICs, using the HP Network Configuration Utility.
Scenario 1:1 – Simple vNet with Active/Standby Uplinks and Optional Link Aggregation 802.3ad (LACP) - Windows 24
