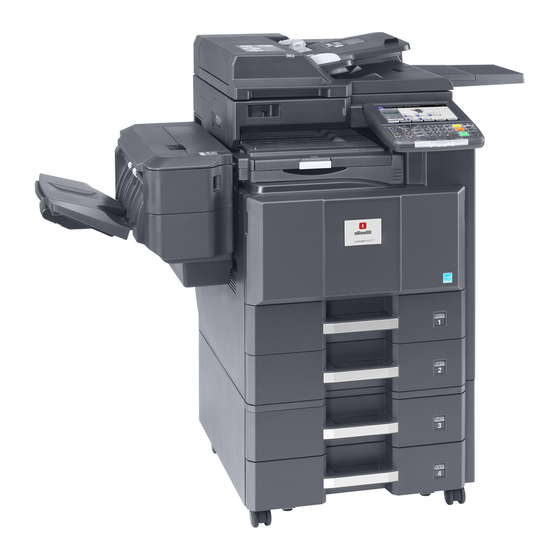

Page 1 Multifuction Digital Copier d-Color MF2552 plus SERVICE MANUAL Code: Y116141-8...
Page 3 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. It may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for proper disposal. ATTENTION IL Y A UN RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN MODELE DE TYPE INCORRECT.
Page 5 Safety precautions This booklet provides safety warnings and precautions for our service personnel to ensure the safety of their customers, their machines as well as themselves during maintenance activities. Service personnel are advised to read this booklet carefully to familiarize themselves with the warnings and precautions described here before engaging in maintenance activities.
Page 6 Safety warnings and precautions Various symbols are used to protect our service personnel and customers from physical danger and to prevent damage to their property. These symbols are described below: DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect compliance with warning messages using this symbol.
Page 7 1. Installation Precautions WARNING • Do not use a power supply with a voltage other than that specified. Avoid multiple connections to one outlet: they may cause fire or electric shock. When using an extension cable, always check that it is adequate for the rated current...................... •...
Page 8 2. Precautions for Maintenance WARNING • Always remove the power plug from the wall outlet before starting machine disassembly....• Always follow the procedures for maintenance described in the service manual and other related brochures............................• Under no circumstances attempt to bypass or disable safety features including safety mechanisms and protective circuits.
Page 9 • Do not remove the ozone filter, if any, from the copier except for routine replacement....... • Do not pull on the AC power cord or connector wires on high-voltage components when removing them; always hold the plug itself......................•...
Page 10 This page is intentionally left blank.
Page 11 2NP-5 CONTENTS 1-1 Specifications 1-1-1 Specifications .........................1-1-1 1-1-2 Parts names ...........................1-1-5 (1) Machine (front side)........................1-1-5 (2) Machine (rear side)........................1-1-7 (3) Operation panel ..........................1-1-8 1-1-3 Machine cross section ......................1-1-9 1-2 Installation 1-2-1 Installation environment......................1-2-1 1-2-2 Unpacking and installation......................1-2-2 (1) Installation procedure .
Page 12 (1) Precautions........................1-5-1 (2) Drum unit .......................... 1-5-1 (3) Toner ..........................1-5-1 (4) How to tell a genuine Olivetti toner container..............1-5-2 1-5-2 Outer covers .......................... 1-5-3 (1) Detaching and refitting the front cover................1-5-3 (2) Detaching and refitting the rear cover ................1-5-4 (3) Detaching and refitting the inner tray................
Page 13 2NP-5 1-5-7 Fuser section ........................1-5-17 (1) Detaching and refitting the fuser unit................1-5-17 1-5-8 Drive section ........................1-5-18 (1) Detaching and refitting the drive unit 1 ................1-5-18 (2) Detaching and refitting the drive unit 2 ................1-5-19 (3) Detaching and refitting the drive unit 3 ................1-5-19 1-5-9 Optical section ........................
Page 14 2NP-5 2-2 Electrical Parts Layout 2-2-1 Electrical parts layout ......................2-2-1 (1) PWBs..........................2-2-1 (2) Switches and sensors....................... 2-2-5 (3) Motors..........................2-2-7 (4) Others..........................2-2-9 2-3 Operation of the PWBs 2-3-1 Main PWB..........................2-3-1 2-3-2 Engine PWB ........................2-3-10 2-3-3 Engine connect PWB......................2-3-25 2-3-4 ISC PWB ..........................
Page 15 1-1-1 Specifications 1-1 Specifications Machine Item Specifications Type Desktop Printing method Electrophotography by semiconductor laser, tandem (4) drum system Originals Sheet, Book, 3-dimensional objects (maximum original size: A3/Ledger) Original feed system Fixed Cassette 60 to 256 g/m (Duplex: 60 to 220 g/m Paper weight MP tray 60 to 256 g/m...
Page 16 2NP-3 Item Specifications Inner tray : 250 sheets (80g/m Output tray capacity Job separator : 30 sheets (80g/m ), 15 sheets (A3 duplex) Continuous copying 1 to 999 sheets Light source White LED Scanning system Flat bed scanning by CCD image sensor Photoconductor OPC drum (diameter 30 mm) Image write system...
Page 17 2NP-2 Printer Item Specifications Color Cassette MP tray Cassette MP tray A4/Letter 25 sheets/min 17 sheets/min 25 sheets/min 17 sheets/min A4R/LetterR 17 sheets/min 14 sheets/min 17 sheets/min 14 sheets/min Printing A3/Ledger 13 sheets/min 10 sheets/min 13 sheets/min 10 sheets/min speed B4/Legal 13 sheets/min 10 sheets/min...
Page 18 Scanner Item Specifications Windows XP, Windows Server 2003, Windows Vista, Operating system Windows Server 2008, Windows 7, Windows Server 2012, Windows 8 Resolution 600 dpi, 400 dpi, 300 dpi, 200 dpi, 200 × 100dpi, 200 × 400dpi TIFF, JPEG, XPS, PDF (MMR/JPEG compression), File format PDF (high compression) B/W : 48 images/min...
Page 19 1-1-2 Parts names (1) Machine (front side) Figure 1-1-1 1. Cassette 6. MP Paper width guides 2. Paper width guides 7. Inner tray 3. Paper length guide 8. Operation panel 4. MP (multi purpose) tray 9. USB memory slot 5. MP tray extension 10.
Page 20 Figure 1-1-2 11. Duct cover 19. Toner container /Y 27. Developer unit /Y 12. Waste toner box 20. Toner container /C 28. Developer unit /C 13. Right cover 1 21. Toner container /M 29. Developer unit /M 14. MP paper feed roller 22.
Page 21 (2) Machine (rear side) 39 41 Figure 1-1-3 34. DP interface connector cover 41. USB interface connector 35. DP interface connector 42. Option interface slot 2 36. Cassette heater switch 43. Option interface slot 1 37. Inlet connector 44. FAX memory cover 38.
Page 22 (3) Operation panel 14 15 16 17 19 20 24 25 26 27 Figure 1-1-4 1. Status/Job cancel key 11. Main power indicator 21. Memory indicator 2. System menu key 12. Help key 22. Attention indicator 3. Counter key 13. Accessibility display key 23.
Page 23 1-1-3 Machine cross section Light path Paper path Paper path (Option) Figure 1-1-5 1. Cassette 8. Eject section 16. Developer unit /K 2. Cassette paper feed section 9. Duplex/conveyning section 17. Drum unit /Y 3. MP tray paper feed section 10.
Page 24 Service Manual Y116141-8...
Page 25 2NP-3 1-2-1 Installation environment 1-2 Installation 1. Temperature: 10 to 32.5°C/50 to 90.5°F 2. Humidity: 15 to 80% RH 3. Power supply: 220 - 240 V AC, 7.2A 4. Power supply frequency: 50 Hz ±2%/60 Hz ±2% 5. Installation location Avoid direct sunlight or bright lighting.
Page 26 1-2-2 Unpacking and installation (1) Installation procedure Start Connect the power cord Unpack Execution of initial-setting operation Remove the tapes and spacer Execution of mentenance item U952 Install the optional paper feeder Adjusting the image Load paper Output an own-status report Install the toner container (maintenance item U000) Switch the cassette heater switch...
Page 27 2NP-1 Unpacking Figure 1-2-2 1. Skid 10. Pad F 19. Power cord 2. Hinge joints 11. Pad R 20. Desiccant 12. Stay 3. Bottom pad RF 4. Bottom pad RR 13. Outer case 5. Bottom pad LF 14. Top pad 6.
Page 28 2NP-1 Remove the tapes and spacer Tape Protection pad 1. Remove two tapes and remove the protection pad. 2. Remove two tapes and remove the paper. 3. Remove two tapes from the main unit. Tape Tape Paper Tape Tape Tape Figure 1-2-3 4.
Page 29 Install the optional paper feeder 1. Install the optional paper feeder as required. Note: Refer to the installation manual of a paper feeder for details. Main unit Paper feeder Figure 1-2-5 Load paper Paper 1. Take out the paper preservation bag. preservation bag 2.
Page 30 3. Adjust the paper length guide to fit the paper size. Paper length guide Figure 1-2-7 4. Align the paper so that it is abut with the Paper right end of the cassette. Cassette 5. Insert the cassette size plate. 6.
Page 31 Install the toner container 1. Open the front cover. 2. Hold the toner container vertically and tap the upper part five times or more. Turn the toner container upside down and tap the upper part five times or more. Toner container Figure 1-2-9 3.
Page 32 4. Shake the toner container approxi- mately five or six times in the horizontal direction to stir toner. Toner container Figure 1-2-11 5. Gently push the toner container into the CLICK! machine. Note: Push the container all the way into the machine until it locks in place. Toner container Figure 1-2-12 1-2-8...
Page 33 Switch the cassette heater switch 1. Release the hook and then remove the switch cover. 2. Turn the cassette heater switch on. Note: When the cassette heater is used, it turns it on. Hook 3. Refit the switch cover. Cassette heater switch Switch cover Figure 1-2-13...
Page 34 Attaching the language label (Excluding 240V AC model) 1. Insert a flat-head screwdriver and slide the operation panel covers A and B to remove them. Operation panel cover B Operation panel cover A Figure 1-2-14 Clear panel 2. Remove the clear panel. Figure 1-2-15 Operation 3.
Page 35 Install the other optional devices 1. Install the optional devices (Document finisher, Fax kit, etc.) as required. Release the scanner lock Scanner lock 1. Remove two scanner lock cover using the cover flatscrew driver. 2. Reverse the upper and lower sides of a scanner lock cover and then refit it.
Page 36 Connect the power cord 1. Connect the power cord to the connector on the machine. 2. Insert the power plug into the wall outlet. Wall outlet Figure 1-2-18 Execution of initial-setting operation 1. Turn the main power switch on. The machine automatically starts to feed toner in the developer unit. Note: When the main power switch is turned on for the first time, it takes about five minutes until entering the state that can be copied.
Page 37 Execution of mentenance item U952 1. Enter the maintenance mode by entering 10871087 using the numeric keys. 2. Enter 952 using the numeric keys and press the start key. 3. Select [Execute]. 4. Select [SETUP]. 5. Press the start key. * : Running the simulation allows execution histories to be logged.
Page 38 4. Make test copies. If image quality is unsatisfactory after test copying, execute calibration, then retry U410-Adjusting the halftone automatically. [Output an own-status report (maintenance item U000)] 1. Enter the maintenance mode by entering 10871087 using the numeric keys. 2. Enter 000 using the numeric keys and press the start key. 3.
Page 39 (2) Setting initial copy modes Factory settings are as follows: Maintenance Contents Factory setting item No. U250 200000 200000 Checking/clearing the maintenance cycle 300000 300000 300000 300000 U251 Checking/clearing the maintenance counter 0/0/0/0/0/0/0 U252 Setting the destination U253 Double count Switching between double and single counts (A3/Ledger) U260...
Page 40 1-2-3 Option composition For the options availables for this model please refer to official P.d.G. d-Color MF2552 Plus (1) DP-770(B) (2) DP-772 (1) DP-773 (1) PLATEN COVER TYPE E (2) DF-770 (D) AK-740 (3) PH-7A/C/D (4) PF-791 (5) PF-810 [Other option]...
Page 41 1-2-4 Installing the key counter (option) (1) Installing directly on the device Key counter installation requires the following parts: Parts Quantity Part.No. AVGR03671G Key counter AVGR08516B Key counter set Key counter wire Wire saddle B Wire saddle C Supplied parts of key counter set (AVGR08516B): Parts Quantity Part.No.
Page 42 Parts Quantity Part.No. M3 x 8 bronze binding screw M4 x 30 tap-tight S screw M4 x 6 chrome TP screw M4 x 10 chrome TP screw * : Not used in this model. ▲: One piece is used in this model. Procedure 1.
Page 43 5. Remove eight screws. 6. Pull the rear cover upwards and then Rear cover release three hooks. 7. Remove the rear cover. Screw Screw Screw Screws Screw Screw Screw Hook Hooks Figure 1-2-20 Screw 8. Remove two screws and then remove Scanner right cover the scanner right cover.
Page 44 Ribs 10. Cut out the aperture plate (right side) on the right upper cover using nippers. Right upper cover Aperture plate Figure 1-2-22 Screw 11. Remove two screws and then remove the scanner rear cover. Scanner rear cover Screw Figure 1-2-23 1-2-20 Service Manual Y116141-8...
Page 45 12. Attaches the wire saddle B and the wire saddle C to right upper section of the machine and then release two hooks of the thir. 13. Attach the edging to the aperture part. Wire saddle C Edging Wire saddle B Figure 1-2-24 Wire saddle C 14.
Page 46 Wire saddle C 15. Pass the key counter electrical wires through the edging. Key counter 16. Connect the connector of the key electrical wires counter electrical wires to the connector of the option PWB. 17. Fit the scanner rear cover using two screws.
Page 47 Key counter electrical wires 22. Connect the key counter signal cable to the key counter electrical wires. 23. Fit the key counter cover to the M4 x 6 screw machine using the M4 x 6 screw. 24. Fit the rear cover using eight screws. 25.
Page 48 (2) Mounting on the document table Key counter installation requires the following parts Parts Quantity Part.No. AVGR03671G Key counter AVGR08516B Key counter set Key counter wire (option) Document table Wire saddle A Wire saddle B Wire saddle C Supplied parts of key counter set (AVGR08516B): Parts Quantity Part.No.
Page 49 Parts Quantity Part.No. M4 x 10 chrome TP screw Supplied parts of document table (1902LC0UN1) Parts Quantity Part.No. Tray stay Tray mount Tray cover Tray lower cover Tray retainer 2▲ Sheet M4 nut 7▼ M4 x 8 screw M4 x 10 screw M4 x 14 screw * : Not used in this model.
Page 50 5. Remove eight screws. 6. Pull the rear cover upwards and then Rear cover release three hooks. 7. Remove the rear cover. Screw Screw Screw Screws Screw Screw Screw Hook Hooks Figure 1-2-30 Screw 8. Remove two screws and then remove Scanner right cover the ISU right cover.
Page 51 10. Cut out four ribs of the aperture plate Ribs (left side) on the right upper cover using nippers. Note: Cut off the rib (lower part) Aperture certainly so that a projection does not remain. Rib (lower part) Right upper cover Figure 1-2-32 Screw 11.
Page 52 12. Attaches the wire saddle B and the wire saddle C to right upper section of the machine and then release two hooks of the thir. 13. Attach the edging to the aperture part. Wire saddle C Edging Wire saddle B Figure 1-2-34 Wire saddle C 14.
Page 53 16. Pass the key counter electrical wires through the edging. Key counter 17. Connect the connector of the key electrical wires counter electrical wires to the connector of the option PWB. 18. Fit the scanner rear cover using two screws. 19.
Page 54 22. Snap in the tray mount to the tray stay and fix using two screws. Tray mount Figure 1-2-38 1-2-30 Service Manual Y116141-8...
Page 55 23. Cut out the aperture plate on the tray Tray cover cover using nippers. 24. Fit the tray cover to the tray stay using Aperture four screws. M4 x 8 screws M4 x 8 screws Tray cover Figure 1-2-39 25. Fit the key counter cover retainer using M4 x 20 two screws.
Page 56 26. Pass the key counter signal cable through the aperture in the document Key counter table. M4 x 6 screw cover 27. Fit the key counter cover to the docu- ment table using the screw. 28. Connect the key counter signal cable to the key counter electrical wire.
Page 57 29. Fit the tray lower cover. Note: Install the key counter signal cable and key counter electrical wire so that they are held behind the tray lower cover. Tray lower cover Connector Figure 1-2-42 1-2-33 Y116141-8 Service Manual...
Page 58 30. Secure the tray lower cover with two pins. Tray lower cover Figure 1-2-43 Sheet 31. Adhere the sheet onto right side of the document table. 32. Fit the rear cover using eight screws. 33. Insert the key counter into the key counter socket assembly.
Page 59 1-2-5 Installing the gigabit ethernet board (option) Gigabit ethernet board installation requires the following parts: Parts Quantity Part.No. Gigabit ethernet board Procedure 1. Press the power key on the operation panel to off. Make sure that the power indicator and the memory indicator are off before turning off the main power switch.
Page 60 3. Insert the gigabit ethernet board along the groove in OPT2 and secure the board with two pins that have been removed in step 2. Gigabit ethernet Caution: Do not directly touch the giga- board bit ethernet board terminal. Hold the top and bottom of the gigabit ethernet board, or the projection of the board to insert the gigabit ethernet board.
Page 61 1-2-6 Installing the IC card reader holder (option) IC card reader holder installation requires the following parts: Parts Quantity Part.No. B4714 (option) IC card reader holder Supplied parts of IC card reader holder (B4714): Parts Quantity Part.No. IC card reader holder Label Bundling band Hook and loop fastener...
Page 62 4. Release the lock part and remove the upper cover B. Lock part Upper cover B Figure 1-2-49 IC card reader 5. The mounting procedure differs depending type of IC card readers. Type A: Thicker and in the same size as its holder Type A Continue to step 6.
Page 63 6. Affix two hook and loop fasteners to the IC card reader holder IC card reader and IC card reader holder. Hook and loop fasteners Hook and loop fasteners IC card reader (Type A) 7. Mount the IC card reader to the IC card IC card reader holder reader holder.
Page 64 8. Affix two hook and loop fasteners to the IC card reader holder IC card reader and IC card reader holder. Hook and *: Affix a hook and loop fastener onto the IC loop fasteners card reader so that it is mounted on the holder with both being flush with the right side edges.
Page 65 10. Route the USB cable from the IC card IC card reader holder reader through the IC card reader holder ribs, wind four timesaround its back and route through another rib. Proceed to step 15. USB cable Ribs Figure 1-2-53 1-2-41 Y116141-8 Service Manual...
Page 66 11. Affix two hook and loop fasteners to the IC card reader holder IC card reader. 12. Affix a hook and loop fastener at the reverse side of the spacer where an Spacer adhesive tape has been affixed. Affix two spacers to the IC card reader. Hook and loop fasteners Spacer...
Page 67 14. Route the USB cable from the IC card USB cable reader through the ribs at the bottom of IC card reader holder the IC card reader holder, wind around its back, and route through the rib on the left hand side. *: Make sure the cable will have a slack of about 15 cm.
Page 68 15. Hook the IC card reader holder onto the machine by mating the two holes on the holder with the hooks on the machine. IC card reader holder fixing part Hooks IC card reder holder Figure 1-2-56 16. For only type A or B of the IC card reader, bundle the surplus length of the cable and insert it into the wire holder.
Page 69 17. Connect the USB cable with the USB connector on the machine. USB connector If a keyboard holder is planned to be added, connect it to the connector on the USB wire far end. Figure 1-2-58 Positioning mark 18. Affix a label on the upper cover B align- ing it with the positioning mark.
Page 70 19. Fit the upper cover B by sliding and uniting two projections and two holes. Projections Holes Upper cover B Figure 1-2-60 20. Replace the staple cover and the staple holder in their original positions. Staple cover Screw Staple holder Figure 1-2-61 1-2-46 Service Manual...
Page 71 Enabling IC Card Authentication Precautions To install the optional function, you need the License Key. Please access the designated website of your dealer or service representative, and register “Machine No.” indicated on your machine and “Product ID” indi- cated on the License Certificate supplied with the product to issue the License Key. 1.
Page 72 1-2-7 Installing the keyboard holder (option) Keyboard holder installation requires the following parts: Parts Quantity Part.No. Keyboard holder (B) Supplied parts of keyboard holder (B): Parts Quantity Part.No. Upper keyboard holder Lower keyboard holder Upper keyboard cover Lower keyboard cover Cable cover Upper lid Lower lid...
Page 73 4. Remove a screw. Screw Figure 1-2-63 5. Fit the lower keyboard mounting bracket with the machine using the two S Tite screws M4 x 14 Lower keyboard mounting bracket S Tite screws M4 x 14 Figure 1-2-64 1-2-49 Y116141-8 Service Manual...
Page 74 6. Latch the hook of the lower lid with the S Tite screws machine. M3 x 8 7. Fit the lower lid with the machine using a S Tite screws M3 x 8. Lower lid Hook Lower lid Figure 1-2-65 S Tite screw S Tite screws 8.
Page 75 9. Cut out the cutaway portion of the lower Cutaway portion keyboard cover by using a pair of nip- pers. Lower keyboard cover Figure 1-2-67 10. Insert the two positioning pins at the hooks bottom of the lower keyboard cover in Upper keyboard hole the holes on the keyboard mounting...
Page 76 12. Fix the lower keyboard mounting P Tite screws bracket onto the upper keyboard M3 x 8 mounting bracket using the two P Tite screws M3 x 8. Lower keyboard cover Figure 1-2-69 13. Fix the lower keyboard mounting S Tite screws bracket onto the upper keyboard M3 x 8 mounting bracket using the two P Tite...
Page 77 Hook and loop fasteners 14. Affix two pieces of hook and loop fas- teners on the upper keyboard cover. Figure 1-2-71 15. Fix the keyboard with the hook and loop fasteners. USB connector 16. Connect the USB cable with the USB connector on the machine.
Page 78 17. Bundle the surplus length of the cable Bunding bands with two bundling bands and hook it on the hook of the upper keyboard cover. Hook Figure 1-2-73 18. Slide the upper lid and fix in the machine. Upper lid Figure 1-2-74 1-2-54 Service Manual...
Page 79 19. Fix the cable cover on the machine. Latch the three hooks at the near end Cable cover and press the hooks downwards to mate with the holes at the far end. Hole Holes Cable cover Hook Hook Hook Figure 1-2-75 20.
Page 80 2NP-1 1-2-8 Installing the Printed Document Guard Kit (option) Printed Document Guard Kit installation requires the following parts: Parts Quantity Part.No. Printed Document Guard Kit (B) Supplied parts of Printed Document Guard Kit : Parts Quantity Part.No. Copy guard PWB FFC (short) FFC (long) Mount plate B...
Page 81 2NP-1 [When DP junction PWB is not used] 6. Fit the mount plate B to the copy guard PWB using the screw. 7. Insert the FFC into the copy guard PWB until it clicks in. FFC(long) WIthout a DP junction PWB: A FFC is used at YC2 (serigraphed on MAIN) Copy guard PWB...
Page 82 9. Remove two screws and remove the DP junction PWB. Screw 10. Pass the FFC through the aperture Controller box section of the controller box. aperture part Screw DP junction PWB cover Figure 1-2-80 11. Connect the main-circuit PWB with the FFC.
Page 83 [When DP junction PWB is used] 13. Fit the mount plate B to the copy guard PWB using the screw. 14. Insert the FFC into the copy guard PWB FFC(long) until it clicks in. FFC(long) WIth a DP junction PWB: A FFCs is used at YC2 (serigraphed on MAIN) YC1 (Serigraphed on DP)
Page 84 16. Remove two screws and remove the DP junction PWB. Screw 17. Pass the FFC through the aperture Controller box section of the controller box. aperture part Screw DP junction PWB cover Figure 1-2-84 18. Connect the main-circuit PWB with the FFC.
Page 85 19. Fit the DP junction PWB using two screws. DP junction PWB Screw Screw Figure 1-2-86 20. Connect the main-circuit PWB and the DP relay circuit PWB with the FFC. DP junction PWB (YC35) Copy guard PWB 21. Refit the DP junction PWB cover and the rear cover.
Page 86 2NP-1 This page is intentionally left blank. 1-2-6 2 Service Manual Y116141-8...
Page 87 1-3-1 Maintenance mode 1-3 Maintenance Mode The machine is equipped with a maintenance function which can be used to maintain and service the machine. (1) Executing a maintenance item Start Enter “10871087” using Maintenance mode is entered. the numeric keys. Enter the maintenance item number using the cursor up/down keys The maintenance item is selected.
Page 88 (2) Maintenance modes item list Item Initial Section Content of maintenance item setting General U000 Outputting an own-status report U001 Exiting the maintenance mode U002 Setting the factory default data U003 Setting the service telephone number U004 Setting the machine number U010 Setting the maintenance mode ID U018 Check Firmware Checksum U019 Displaying the firrmware version...
Page 89 Item Initial Section Content of maintenance item setting Optical U061 Checking the operation of the exposure lamp U063 Adjusting the shading position U065 Adjusting the scanner magnification U066 Adjusting the scanner leading edge registration U067 Adjusting the scanner center line U068 Adjusting the scanning position for originals from the DP -/-/-/-...
Page 90 Item Initial Section Content of maintenance item setting High volt- U106 Setting the voltage for the secondary transfer Color-Light/Normal1-1st Side 83/58/42 High volt- Color-Light/Normal1-2nd Side 88/60/40 Color-Normal2/3-1st Side 85/60/44 Color-Normal2/3-2nd Side 90/62/42 Color-Heavy1-1st Side 64/45/33 Color-Heavy1-2nd Side 68/47/32 Color-Heavy2/3-1st Side 43/30/22 Color-Heavy2/3-2nd Side 45/31/21...
Page 91 Item Initial Section Content of maintenance item setting Developer U135 Checking toner motor operation U136 Setting toner near end detection U139 Displaying the temperature and humidity outside the machine U140 Setting developer bias Mag DC 480/480/450/450/50/50/50/50/380/ 380/350/350 Sleeve DC 180/180/150/150/150/150/150/150/ 180/180/150/150 Clock Freq 36/36/36/36/36/36/36/36/36/36/36/...
Page 92 Item Initial Section Content of maintenance item setting Operation U200 Turning all LEDs on panel and U201 Initializing the touch panel support U202 Setting the KMAS host monitoring system equipment U203 Checking DP operation Off/Coin Vender U204 Setting the presence or absence of a key card or key counter U206 Setting the presence or absence of a coin vender Normal...
Page 93 Item Initial Section Content of maintenance item setting 200000/200000/0/ Mode set- U250 Checking/clearing the maintenance cycle ting 300000/300000/300000/300000 0/0/0/0/0/0/0 U251 Checking/clearing the maintenance counter U252 Setting the destination Double count U253 Switching between double and single counts (A3/Ledger) Eject U260 Selecting the timing for copy counting U265 Setting OEM purchaser code Mode0 U276 Setting the copy count mode...
Page 94 Item Initial Section Content of maintenance item setting Image U425 Setting the target processing Chart1 White 93.6/0.9/-0.4 Black 10.6/-0.2/-0.7 Grav1 76.2/-0.2/1.2 Grav2 25.2/-0.2/-0.2 Grav3 51.3/-0.3/0.3 72.6/-32.8/-11.5 48.1/69.9/-6.1 86.2/-18.6/81.7 46.7/54.2/38.6 67.8/-51.3/48.9 38.8/25.3/-22.8 Adjust Original 5.0/10.0/190.0 Chart2/CCD N875 85.4/0.0/1.1 N475 52.0/-1.3/2.4 N125 21.0/-0.5/2.5 55.2/-29.7/-45.0 45.9/71.2/-2.1...
Page 95 Item Initial Section Content of maintenance item setting Image U429 Setting the offset for the color balance processing Text+Photo 0/0/0/0 Photo 0/0/0/0 Photo/Printout 0/0/0/0 Text 0/0/0/0 Graphics/Map 0/0/0/0 Copy/Printout 5/5/5/5 U464 Setting the ID correction operation Permission On/On Time interval 20/18/11 Bias target 760/760/750/820...
Page 96 Item Initial Section Content of maintenance item setting U600 Initializing all data U601 Initializing permanent data U603 Setting user data 1 U604 Setting user data 2 U605 Clearing data U610 Setting system 1 Setting:[Cut Line(100%)] Setting:[Cut Line(Auto)] Setting:[Cut Line(100%)] U611 Setting system 2 Setting:[Adj Lines] Setting:[Adj Lines(A4)] Setting:[Adj Lines(LT)]...
Page 97 Item Initial Section Content of maintenance item setting U633 Setting communication control 4 Setting:[V.34] Setting:[DIS 2Res] Setting:[DIS 2Res] Once Setting:[RTN Check] U634 Setting communication control 5 U640 Setting communication time 1 Setting:[Time (One)] Setting:[Time (Cont)] U641 Setting communication time 2 Setting:[T0 Time Out] Setting:[T1 Time Out] Setting:[T2 Time Out]...
Page 98 Item Initial Section Content of maintenance item setting 0/0/0/-/-/0 Others U901 Checking copy counts by paper feed locations U903 Checking/clearing the paper jam counts U904 Checking/clearing the call for service counts U905 Checking counts by optional devices U906 Resetting partial operation control U908 Checking the total counter value U910 Clearing the print coverage data 0/0/0/0/0/0...
Page 99 (3) Contents of the maintenance mode items Item No. Description U000 Outputting an own-status report Description Outputs lists of the current settings of the maintenance items and paper jam and service call occurrences. Outputs the event log. Also sends output data to the USB memory. Purpose To check the current setting of the maintenance items, or paper jam or service call occurrences.
Page 100 Item No. Description U000 Method: Send to the USB memory 1. Press the power key on the operation panel, and after verifying the main power indicator has gone off, switch off the main power switch. 2. Insert USB memory in USB memory slot. 3.
Page 101 Item No. Description U000 Event log Event Log 2013/18/02 15:15 d-Color MF2552 plus Firmware version 2NP_2000.000.000 2013.18.02 [XXXXXXXX] [XXXXXXX] [XXXXXXX] [XXXXXXXX] (12) Paper Jam Log Counter Log Count. Event Descriprions J0100: J4201: C0030: T00: 1876543 0501.01.08.01.01 J0101: J4202: C0070: T01: 166554 4002.01.08.01.01...
Page 102 Item No. Description U000 Detail of event log Items Description System version System date Engine soft version Engine boot version Controller BROM version Operation panel mask version Machine serial number Paper Jam Count. Event Remembers 1 to 16 of The total page count Log code (hexadeci- occurrence.
Page 103 2NP-1 Item No. Description U000 Items Description Paper Jam (d) Detail of paper type (Hexadecimal) cont. 01: Plain 0A: Color 15: Custom 1 02: Transparency 0B: Prepunched 16: Custom 2 03: Preprinted 0C: Envelope 17: Custom 3 04: Labels 0D: Cardstock 18: Custom 4 05: Bond 0E: Coated...
Page 104 2NP-1 Item No. Description U000 Items Description (11) Unknown Toner Count. Item Remembers 1 to 5 The total page count Unknown toner log of occurrence of at the time of the code unknown toner toner empty error (1 byte, 2 categories) detection.
Page 105 Item No. Description U000 Service status page (1) Service Status Page 2013/02/18 15:15 Firmware version 2NP_2000.000.000 2013.02.18 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Controller Information (30) FAX Information Slot1/Slot2 (31) Rings (Normal) Memory status (32) Rings (FAX/TEL) Total Size 2.0 GB (33) Rings (TAD) (34) Option DIMM Size 16 MB...
Page 106 Item No. Description U000 Service status page (2) Service Status Page 02/18/2013 15:15 Firmware version 2NP_2000.000.000 2013.18.02 [XXXXXXXX] [XXXXXXXX] [XXXXXXXX] Engine Information Send Information (40) NVRAM Version _1F31225_1F31225 (44) Date and Time 11/08/02 15:15 (41) Scanner Version 2LC_1200.001.089 (45) Address (42) FAX Slot1 FAX BOOT Version...
Page 107 2NP-1 Item No. Description U000 Detail of service status page Description Supplement Firmware version System date Engine soft version Engine boot version Operation panel mask version Machine serial number Total memory size Local time zone Report output date Day/Month/Year hour:minute (10) NTP server name (11)
Page 108 2NP-1 Item No. Description U000 Description Supplement (26) Average coverage for printer Black/Cyan/Magenta/Yellow (27) Average coverage for fax Black/Cyan/Magenta/Yellow (28) Cleared date and output date (29) Coverage on the final output page (30) Fax kit information This item is printed only when the fax kit is installed.
Page 109 2NP-1 Item No. Description U000 Description Supplement (41) Scanner firmware version (42) Fax firmware version This item is printed only when the fax kit is installed. (43) Mac address (44) The last sent date and time (45) Transmission address (46) Destination information (47) Area information...
Page 110 2NP-3 Item No. Description U000 Description Supplement (62) Job end judgment time-out time (63) Job end detection mode (64) Prescribe environment reset 0: Off 1: On (65) Media type attributes Weight settings Fuser settings 1 to 28 (Not used: 18, 19, 20) 0: Light 0: High 1: Normal 1...
Page 111 2NP-1 Item No. Description U000 Description Supplement (86) Altitude 0: Standard 1: High altitude 1 2: High altitude 2 (87) Charger roller correction 1 to 5 (88) Configuring toner coverage 0: Full-color count display counters 1: Color coverage count display (89) Low coverage setting 0.1 to 100.0...
Page 112 Item No. Description Exiting the maintenance mode U001 Description Exits the maintenance mode and returns to the normal copy mode. Purpose To exit the maintenance mode. Method Press the start key. The normal copy mode is entered. U002 Setting the factory default data Description Restores the machine conditions to the factory default settings.
Page 113 Item No. Description U003 Setting the service telephone number Description Sets the telephone number to be displayed when a service call code is detected. Purpose To set the telephone number to call service when installing the machine. Setting 1. Press the start key. The keys to enter the number are displayed on the touch panel.
Page 114 Item No. Description U010 Setting the maintenance mode ID Description Sets the maintenance mode ID. Purpose Modify maintenance mode ID for more security. Method 1. Press the start key. Display Description New ID Enter a new 8-digit ID New ID(Reconfirm) Enter a new 8-digit ID (to confirm) Initialize Initialize the ID...
Page 115 Item No. Description U018 Check Firmware Checksum Description Investigate that the firmware has not been modified. Purpose Investigate that the firmware has not been modified by re-calculate the checksum. Method 1. Press the start key. Display Description EXpected Displays the expected checksum. Result Displays the calculated checksum.
Page 116 Item No. Description U019 Displaying the firrmware version Description Displays the part number of the ROM fitted to each PWB. Purpose To check the part number or to decide, if the newest version of ROM is installed. Method 1. Press the start key. The ROM version are displayed. 2.
Page 117 Item No. Description U019 Display Description Document processor firmware DP Boot Document processor booting Paper feeder firmware PF1 Boot Paper feeder booting Document finisher firmware DF Boot Document finisher booting Mailbox firmware MT BOOT Mailbox booting Fax APL1 FAX APL1 Fax Boot1 FAX boot1 Fax IPL1...
Page 118 Item No. Description U021 Memory initializing Description Initializes all settings, except those pertinent to the type of machine, namely each counter, ser- vice call history and mode setting. Also initializes backup RAM according to region specification selected in maintenance item U252 Setting the destination. Purpose To return the machine settings to their factory default.
Page 119 Item No. Description U024 HDD formatting Description Initializes the hard disk. Purpose To initialize the hard disk when replacing the hard disk after shipping. Caution In addition, the following settings are also initialized by initializing the hard disk. System menu (user login administration, job accounting, address book, one-touch keys and doc- ument box etc.), shortcuts and panel programs When fully formatted, the following pre-installed software are removed.
Page 120 Item No. Description U026 Pulling Backup Data Description Performs restoring of the backup data.. Purpose Restores the setting values that was backed up in the flash memory from the HDD. Method 1. Press the start key. 2. Press [Execute]. 3. Press the start key. 4.
Page 121 Item No. Description U031 Checking switches and sensors for paper conveying Description Displays the on-off status of each paper detection switch or sensor on the paper path. Purpose To check if the switches and sensors for paper conveying operate correctly. Method 1.
Page 122 Item No. Description U032 Checking the operation of the clutches Description Turns each clutch on. Purpose To check the operation of each clutch. Method 1. Press the start key. 2. Select the clutch to be operated. 3. Press the start key. The operation starts. Display Description Feed...
Page 123 Item No. Description U034 Adjusting the print start timing Description Adjusts the leading edge registration or center line. Purpose Make the adjustment if there is a regular error between the leading edges of the copy image and original. Make the adjustment if there is a regular error between the center lines of the copy image and original.
Page 124 Item No. Description U034 5. Change the setting value using the +/- keys or numeric keys. For output example 1, increase the value. For output example 2, decrease the value. Leading edge registration (20 ± 1.5 mm) Correct image Output Output example 1 example 2...
Page 125 Item No. Description U034 5. Change the setting value using the +/- keys or numeric keys. For output example 1, increase the value. For output example 2, decrease the value. Center line of printing (within ± 0.5 mm) Correct image Output Output example 1...
Page 126 Item No. Description U035 Setting the printing area for folio paper Description Changes the printing area for copying on folio paper. Purpose To prevent cropped images on the trailing edge or left/right side of copy paper by setting the actual printing area for folio paper. Setting 1.
Page 127 Item No. Description U051 Adjusting the deflection in the paper Description Adjusts the deflection in the paper at the registration roller. Purpose Make the adjustment if the leading edge of the copy image is missing or varies randomly, or if the copy paper is Z-folded.
Page 128 Item No. Description U053 Setting the adjustment of the motor speed Description Performs fine adjustment of the speeds of the motors. Purpose Basically, the setting need not be changed. Modify settings by interlock setting only if faulty images occur. Method 1.
Page 129 Item No. Description U061 Checking the operation of the exposure lamp Description Lights the exposure lamp. Purpose To check whether the exposure lamp are turned on. Method 1. Press the start key. 2. Select the item. Display Description The exposure lamp lights The CIS lights (when dual scan DP is installed) 3.
Page 130 Item No. Description U065 Adjusting the scanner magnification Description Adjusts the magnification of the original scanning. Purpose Make the adjustment if the magnification in the main scanning direction is incorrect. Make the adjustment if the magnification in the auxiliary scanning direction is incorrect. Caution Adjust the magnification of the scanner in the following order.
Page 131 Item No. Description U065 Adjustment: [Sub Scan] 1. Change the setting value using the +/- keys or numeric keys. For copy example 1, increase the value. For copy example 2, decrease the value. Copy Original Copy example 2 example 1 Figure 1-3-8 2.
Page 132 Item No. Description U066 Adjusting the scanner leading edge registration Description Adjusts the scanner leading edge registration of the original scanning. Purpose Make the adjustment if there is a regular error between the leading edges of the copy image and original.
Page 133 Item No. Description U067 Adjusting the scanner center line Description Adjusts the scanner center line of the original scanning. Purpose Perform this adjustment if there is a unmatching error between the center lines of the copy image and original. Adjustment 1.
Page 134 Item No. Description U068 Adjusting the scanning position for originals from the DP Description Adjusts the position for scanning originals from the DP. Performs the test copy at the four scan- ning positions after adjusting. Purpose Used when the image fogging occurs because the scanning position is not proper when the DP is used.
Page 135 Item No. Description U070 Adjusting the DP magnification Description Adjusts the DP original scanning speed. Purpose Perform this adjustment if the magnification is incorrect in the auxiliary scanning direction when the DP is used. Adjustment 1. Press the start key. 2.
Page 136 Item No. Description U070 Adjustment: [Main Scan] 1. Change the setting value using the +/- keys or numeric keys. For copy example 1, increase the value. For copy example 2, decrease the value. Increasing the setting enlarges the image and decreasing it narrows the image. Copy Original Copy...
Page 137 Item No. Description U071 Adjusting the DP scanning timing Description Adjusts the DP original scanning timing. Purpose Make the adjustment if there is a regular error between the leading or trailing edges of the origi- nal and the copy image when the DP is used. Method 1.
Page 138 Item No. Description U071 Adjustment: Leading edge registration 1. Change the setting value using the +/- keys or numeric keys. For copy example 1, increase the value. For copy example 2, decrease the value. Increasing the value moves the image forward and decreasing the value moves the image backward.
Page 139 Item No. Description U072 Adjusting the DP center line Description Adjusts the scanning start position for the DP original. Purpose Perform the adjustment if there is a regular error between the centers of the original and the copy image when the DP is used. Adjustment 1.
Page 140 Item No. Description U073 Checking the scanner operation Description Simulates the scanner operation under the arbitrary conditions. Purpose To check the scanner operation. This is also done to check the accumulation of dust on the slit glass. Method 1. Press the start key. 2.
Page 141 Item No. Description U073 Method: [Home Position] 1. Select [Home Position]. 2. Press the start key. The mirror frame of the scanner moves to the home position. Method: [Dust Check] 1. Select [Dust Check]. 2. Press the start key. The exposure lamp lights. 3.
Page 142 Item No. Description U087 Setting DP reading position modification operation Description The presence or absence of dust is determined by comparing the scan data of the original trailing edge and that taken after the original is conveyed past the DP original scanning position. If dust is identified, the DP original scanning position is adjusted for the following originals.
Page 143 Item No. Description U089 Outputting a MIP-PG pattern Description Selects and outputs the MIP-PG pattern created in the machine. Purpose To check copier status other than scanner when adjusting image printing, using MIP-PG pattern output (with-out scanning). Method 1. Press the start key. 2.
Page 144 Item No. Description U091 Setting the white line correction Description Sets the error detection threshold value for white line correction and displays the count result of abnormal pixels. Purpose To perform when replacing the CIS, DP main PWB or CIS roller. Method 1.
Page 145 Item No. Description U091 How to view test copies blank sheet black band Causes Corrective measures No lines No lines Complete Black lines White lines Dirty CIS roller or CIS Clean CIS roller or CIS glass glass and then perform U091 again Black lines No lines Engine side...
Page 146 Item No. Description U099 Adjusting original size detection Description Checks the operation of the original size sensor and sets the sensing threshold value. Purpose To adjust the sensitivity of the sensor and size judgement time if the original size sensor malfunc- tions frequently due to incident light or the like.
Page 147 Item No. Description U099 Setting: [B/W Level1] 1. Select an item to be set. 2. Change the setting value using the +/- keys or numeric keys.l Setting Initial Display Description range setting 20/50 Original R1 Original threshold value for color R (near side) 0 to 255 30/50 Original R2...
Page 148 Item No. Description U100 Setting the main high voltage Description Controls the charger roller voltage to optimize the surface potential. Purpose To change the setting value to adjust the image if an image failure (background blur, etc.) occurs. Method 1. Press the start key. 2.
Page 149 Item No. Description U100 Setting:[Bias] 1. Select an item to be set. 2. Change the setting value using the +/- keys or numeric keys. Setting Initial Display Description range setting Manual adjustment value (Cyan) -200 to 200 0 Manual adjustment value (Magenta) -200 to 200 0 Manual adjustment value (Yellow) -200 to 200 0...
Page 150 Item No. Description U100 Setting:[High Altitude] 1. Select an item to be set. Display Description Mode0 Standard (Factory setting) Mode1 High ground 1 (1500 to 2500 m) Mode2 High ground 2 (2500 m or more) Mode3 High ground 3 (3500 m or more) Initial setting: Mode0 * : MCH compensation is set to "3"...
Page 151 Item No. Description U101 Setting the voltage for the primary transfer Description Sets the control voltage for the primary transfer. Purpose To change the setting when any density problems, such as too dark or light, occur. Method 1. Press the start key. 2.
Page 152 Item No. Description U101 Setting: [B/W] 1. Change the setting value using the +/- keys or numeric keys. Setting Initial Display Description range setting Value Correction value -50 to 50 2. Press the start key. The value is set. Supplement While this maintenance item is being executed, copying from an original is available in interrupt copying mode (which is activated by pressing the system menu key).
Page 153 Item No. Description U106 Setting the voltage for the secondary transfer Description Sets the control voltage for the secondary transfer. Purpose To change the setting when any density problems, such as too dark or light, occur. Method 1. Press the start key. 2.
Page 154 Item No. Description U106 Setting:[OHP/Coated] 1. Select the item to be set. 2. Change the setting value using the +/- keys or numeric keys. Setting Initial Display Description range setting Width<160 width of paper<160 0 to 200 40/59 160<=Width<220 160<= width of paper <220 0 to 200 33/42 220<=Width...
Page 155 Item No. Description U107 Setting the voltage for the intermediate transfer cleaning Description Sets the control voltage for the intermediate transfer cleaning. Purpose To change the setting when the offset by a defective cleaning of the transfer belt is generate. Method 1.
Page 156 Item No. Description U108 Setting separation shift bias Description Adjusts output of separation shift bias and ON/OFF timing. Purpose To set when the separated malfunction of the paper occurs. Method 1. Press the start key. 2. Select the item. The screen for executing each item is displayed. Display Description Light/Normal1...
Page 157 Item No. Description U110 Checking the drum count Description Displays the drum counts for checking. Purpose To check the drum status. Method 1. Press the start key. The current drum counts is displayed. Display Description Drum count value for cyan Drum count value for magenta Drum count value for yellow Drum count value for black...
Page 158 Item No. Description U117 Checking the drum number Description Displays the drum number. Purpose To check the drum number. Method 1. Press the start key. The drum number is displayed. Display Description Cyan drum number Magenta drum number Yellow drum number Black drum number Completion Press the stop key.
Page 159 Item No. Description U122 Checking the transfer belt unit number Description Displays the number of the transfer belt unit for checking. Purpose To check the number of the transfer belt. Method 1. Press the start key. The current number of the transfer belt is displayed. Completion Press the stop key.
Page 160 Item No. Description U127 Checking/clearing the transfer count Description Displays and clears the counts of the transfer counter. Purpose To check the count after replacement of the transfer roller. Also to clear the transfer belt unit or counts after replacing transfer roller. Method 1.
Page 161 Item No. Description Setting toner near end detection U136 Description Sets the level that indicates the number of sheets that can be printed from occurrence of toner near end to toner empty. Purpose To change the setting to advance detection of near end if the interval from toner near end to toner empty seems too short.
Page 162 Item No. Description U140 Setting developer bias Description Setting the value of various developer bias. Purpose To check and setting the value of developer bias. Method 1. Press the start key. 2. Select the item to be set. Display Description Mag DC Setting the value of magnet DC bias.
Page 163 Item No. Description U140 Setting: [On Timing/On Timing] 1. Select the item to be set. 2. Change the setting value using the +/- keys or numeric keys. Setting Initial Display Description range setting Setting the value of cyan. -500 to 500 Setting the value of magenta.
Page 164 Item No. Description U147 Setting for toner applying operation Description Sets the mode for removing charged toner in the developer unit (T7 control: Toner applying oper- ation).In order to protect a cleaning blade, a mode setup of an interval (Drum T7 drive: Toner supply operation) which carries out toner supply is performed.
Page 165 Item No. Description U150 Checking sensors for toner Description Displays the on-off status of each sensor or switch related to toner. Purpose To check if the sensors and switches operate correctly. Method 1. Press the start key. 2. Select the item. The screen for executing each item is displayed. Display Description Displays the state of the toner sensor.
Page 166 Item No. Description U150 Method: [Waste Box] 1. Turn each switch or sensor on and off manually to check the status. When a switch or sensor is detected to be in the ON position, the display for that switch or sensor will be “1”...
Page 167 Item No. Description U158 Checking the developer count Description Displays the developer count for checking. Purpose To check the developer unit status. Method 1. Press the start key. The current developer counts is displayed. Display Description Developer count value for cyan Developer count value for magenta Developer count value for yellow Developer count value for black...
Page 168 Item No. Description U161 Setting the fuser control temperature Description Changes the fuser control temperature and control temperature correction value and other set values. Purpose Normally no change is necessary. However, this mode can be used to prevent curling or creasing of paper, or solve a fuser problem on thick paper.
Page 169 Item No. Description Checking the fuser count U167 Description Displays the fuser count for checking. Purpose To check the fuser count after replacement of the fuser unit. Method 1. Press the start key. The fuser count is displayed. Display Description Fuser count value Release(Time) Fuser drive time ( Pressing force)
Page 170 Item No. Description Displaying fuser heater temperature U199 Description Displays the detected fuser temperature. Purpose To check the fuser temperature. Method 1. Press the start key. The current setting is displayed. Display Description Fix Press Press roller center temperature (°C) Fix Edge Heat roller edge temperature (°C) Fix Center...
Page 171 Item No. Description U201 Initializing the touch panel Description Adjust touch panel detecting positions. Purpose When the panel PWB or the operation panel is replaced or if the detecting positions are not aligned, perform this simulation to correct and confirm. Method 1.
Page 172 Item No. Description U201 Press the center of the “+” sign. * Press it using a tool with a fine tip. Figure 1-3-19 4. If two “ ” signs appear, press the both points at the same time. * : While pressing down one of " "...
Page 173 Item No. Description U201 6. Press the center of "+" sign displayed, as step 2 7. Repeat three times. Press the center of the “+” sign. * Press it using a tool with a fine tip. If you cannot proceed to the next step, press the Stop key and try again. Figure 1-3-22 Press the center of the “+”...
Page 174 Item No. Description U201 8. After completing the setting, “Initialize Completed.” is displayed and entering Check mode. Initialize completed. Figure 1-3-25 Method: [Check Single Tap Check 1. Press the start key. Initialize 2. Press the center of three "+" signs and confirm the display positions.
Page 175 Item No. Description U201 Multi Tap chek 1. Select "Multi tap check", and press the Step1 : Not completed start key. Step2 : Not completed Initialize 2. Press two “ ” signs at the same time. (Step1) * : If the detecting values are not within the setting values, pressed detecting Multi Tap Check.
Page 176 Item No. Description U201 * : If the detecting values are not within Step1 : Completed the setting values, pressed detecting Step2 : Not completed Initialize positions are displayed by red Multi Tap Check Step1 points. And "Multi tap check Step 1" button is displayed.
Page 177 Item No. Description U202 Setting the KMAS host monitoring system Description Initializes or operates the KMAS host monitoring system. This is an optional device which is currently supported only by Japanese specification machines, so no setting is necessary. Purpose Performed at installation, periodic maintenance, and/or repair. Method 1.
Page 178 Item No. Description U203 Checking DP operation Description Simulates the original conveying operation separately in the DP. Purpose To check the DP operation. Method 1. Press the start key. 2. Place an original in the DP if running this simulation with paper. 3.
Page 179 Item No. Description U203 Setting: [Result] Press the start key. The value is set. Completion Press the stop key. The screen for selecting a maintenance item No. is displayed. U204 Setting the presence or absence of a key card or key counter Description Sets the presence or absence of the optional key card or key counter.
Page 180 Item No. Description U206 Setting the presence or absence of a coin vender Description Sets the presence or absence of the optional coin vender. This is an optional device which is currently supported only by Japanese specification machines. Purpose To run this maintenance item if a coin vender is installed. Method 1.
Page 181 Item No. Description U206 Setting: [Price] 1. Select the item to be set. Display Description Normal Charge setting: Normal Charge setting: Commercial Print Charge setting: Print Charge setting: Extended Setting: [Normal / AD] 1. Select the item to be set. Display Description Black &...
Page 182 Item No. Description U206 3. Change the setting value using the +/- keys. Initial setting Setting Display Description range CMY/RGB Full Color A3-Ledger A3/Ledger size 0 to 300 B4 size 0 to 300 Card Post card 0 to 300 Other Other 0 to 300 In 10-yen increments...
Page 183 Item No. Description U207 Checking the operation panel keys Description Checks operation of the operation panel keys. Purpose To check operation of all the keys and LEDs on the operation panel. Method 1. Press the start key. The screen for executing is displayed. 2.
Page 184 Item No. Description U221 Setting the USB host lock function Description Specifies ON/OFF the USB host lock function. Setting this to ON causes the machine to be unable to recognize the device connected to the USB host. Purpose Set according to the preference of the user. Method 1.
Page 185 Item No. Description U223 Operation panel lock Description Sets the operation panel lock function. Purpose This is performed to inhibit operating and canceling the system menu on the operation panel which may be done by others then an administrator. Setting 1.
Page 186 Item No. Description U224 Panel sheet extension Description Changes the image data and the message of the opening screen at the machine startup and the image data and the message of the service call screen to user specified data. Purpose Set according to the preference of the user.
Page 187 Item No. Description U224 Supplement 2 Displaying start display The pre-installed graphics file is displayed at power on or recovering from sleeping. Graphics display on service call display The pre-installed graphics file is displayed at a service call. How to change the message Entering #562 (4 letters) using the numeric keypad during a service call display will let service call messages 1 and 2.
Page 188 Item No. Description U237 Setting finisher stack quantity Description Sets the number of sheets of each stack on the main tray and on the middle tray in 1000-sheet finisher. Purpose To change the setting when a stack malfunction has occurred. Method 1.
Page 189 Item No. Description U240 Checking the operation of the finisher Description Turns each motor and solenoid of 1000-sheet finisher ON. Purpose To check the operation of each motor and solenoid of the 1000-sheet finisher. Method 1. Press the start key. 2.
Page 190 Item No. Description U240 Display Description Punch Punch motor (PUM) is turned on Punch Move Punch slide motor (PUSLM) is turned on Method: [Solenoid] 1. Select the item to be operated. 2. Press the start key. The operation starts. Display Description Sub Tray DF feedshift solenoid (DFFSSOL) is turned on...
Page 191 Item No. Description U241 Checking the operation of the switches of the finisher Description Displays the status of each switches and sensors of 1000-sheet finisher. Purpose To check the operation of each switches and sensors of the 1000-sheet finisher. Method 1.
Page 192 Item No. Description U241 Method: [Mail Box] 1. Turn each switch or sensor on and off manually to check the status. When the on-status of a switch or sensor is detected, that switch or sensor is displayed in reverse. Display Description Eject MB eject sensor (MBES)
Page 193 Item No. Description U243 Checking the operation of the DP motors Description Turns the motors or solenoids in the DP on. Purpose To check the operation of the DP motors and solenoids. Method 1. Press the start key. 2. Select the item to be operated. 3.
Page 194 Item No. Description U244 Checking the DP switches Description Displays the status of the respective switches and sensors in the DP. Purpose To check if respective switches and sensors in the DP operate correctly. Method 1. Press the start key. 2.
Page 195 Item No. Description U245 Checking messages Description Displays a list of messages on the touch panel of the operation panel. Purpose To check the messages to be displayed. Method 1. Press the start key. 2. Change the message using the cursor up/down keys. When a message number is entered with the numeric keys and then the start key is pressed, the message corresponding the specified number is displayed.
Page 196 Item No. Description U246 Setting the finisher Description Provides various settings for the 1000-sheet finisher, if furnished. Purpose Adjustment of registration stop timing in punch mode Adjust if skewed paper conveying occurs or if the copy paper is Z-folded in punch mode. Adjustment of paper stop timing in the punch mode To adjust this item when the position of a punch hole is different from the specified one.
Page 197 Item No. Description U246 Setting: [Punch Regist] 1. Select [Punch Regist]. 2. Change the setting value using the +/- keys or numeric keys. Description Setting Initial Change in range setting value per step Adjustment of registration stop timing -5 to 5 1 mm If skewed paper conveying occurs (sample 1), increase the setting value.
Page 198 Item No. Description U246 Setting: [Punch Width] 1. Select [Punch Width]. 2. Change the setting value using the +/- keys or numeric keys. Description Setting Initial Change in range setting value per step Adjustment of the punch center position timing -5 to 5 1 mm If the punch hole is too close to the front of the machine, increase the setting value.
Page 199 Item No. Description U246 Setting: [Staple HP] 1. Select [Staple HP]. 2. Change the setting value using the +/- keys or numeric keys. Description Setting Initial Change in range setting value per step Adjustment of front and back stapling home position -5 to 5 1 mm When staple positions are off toward the front side of the machine (sample 1), increase the setting value.
Page 200 Item No. Description U247 Setting the paper feed device Description Turns on motor and clutches of paper feeder device. Purpose To check the operation of motor and clutches of paper feed device. Method 1. Press the start key. 2. Select the paper feed device. Display Description Paper feeder...
Page 201 Item No. Description U250 Checking/clearing the maintenance cycle Description Changes preset values for maintenance cycle and automatic grayscale adjustment. Purpose Provides changing the time when the message to acknowledge to conduct maintenance and automatic grayscale adjustment is periodically displayed. Setting 1.
Page 202 Item No. Description U251 Checking/clearing the maintenance counter Description Displays and clears or changes the maintenance count and automatic grayscale adjustment count. Purpose To verify the maintenance counter count and automatic grayscale count. Also to clear the count during maintenance service. Setting 1.
Page 203 Item No. Description U252 Setting the destination Description Switches the operations and screens of the machine according to the destination. Purpose To be executed after initializing the backup RAM, in order to return the setting to the value before replacement or initialization. Method 1.
Page 204 Item No. Description U253 Switching between double and single counts Description Switches the count system for the total counter and other counters for every color mode. Purpose Used to select, according to the preference of the user (copy service provider), if A3/Ledger paper is to be counted as one sheet (single count) or two sheets (double count).
Page 205 Item No. Description U260 Selecting the timing for copy counting Description Changes the copy count timing for the total counter and other counters. Purpose To be set according to user request. Setting 1. Press the start key. 2. Select the copy count timing. Display Description Feed...
Page 206 Item No. Description U276 Setting the copy count mode Description Sets the count mode of single color mode. Purpose To change the charging counter which counts up in single color printing. Setting 1. Press the start key. 2. Select the mode. Display Description Mode0...
Page 207 Item No. Description U284 Setting 2 color copy mode Description Sets whether to use 2 color copy mode. Purpose According to user request, changes the setting. Setting 1. Press the start key. 2. Select On or Off. Display Description 2 color copy mode is enabled, monochrome count Mono Color 2 color copy mode is enabled, monochrome color count 2 color copy mode is disabled...
Page 208 Item No. Description Setting the paper interval U325 Description Determines the interval between pages and the toner replenishment amount when printing pages with high print coverage. Purpose Modify the settings only if a spotted background or uneven density appears when printing pages with high print coverage.
Page 209 Item No. Description U326 Setting the black line cleaning indication Description Sets whether to display the cleaning guidance when detecting the black line. Purpose Displays the cleaning guidance in order to make the call for service with the black line decrease by the rubbish on the contact glass when scanning from the DP.
Page 210 Item No. Description U332 Setting the size conversion factor Description Sets the coefficient of nonstandard sizes in relation to the A4/Letter size. The coefficient set here is used to convert the black ratio in relation to the A4/Letter size and to display the result in user simulation.
Page 211 Item No. Description U340 Setting the applied mode Description Allocates memory to ensure that there is sufficient memory available for the printer to use as a working area. Purpose Modify the memory allocation if insufficient memory for transparency support or XPS direct print- ing occurs.
Page 212 Item No. Description U341 Specific paper feed location setting for printing function Description Sets a paper feed location specified for printer output. Purpose To use a paper feed location only for printer output. A paper feed location specified for printer output cannot be used for copy output. Method 1.
Page 213 Item No. Description U345 Setting the value for maintenance due indication Description Sets when to display a message notifying that the time for maintenance is about to be reached, by setting the number of copies that can be made before the current maintenance cycle ends. When the difference between the number of copies of the maintenance cycle and that of the maintenance count reaches the set value, the message is displayed.
Page 214 Item No. Description U346 Selecting Sleep Mode Description Switches configurations for sleep modes. Purpose Use this to switch configurations for sleep modes. Method 1. Press the start key. 2. Select the item to set. Display Description Disable Auto Sleep Auto Sleep setting Setting Setting 1.
Page 215 Item No. Description U402 Adjusting margins of image printing Description Adjusts margins for image printing. Purpose Make the adjustment if margins are incorrect. Adjustment 1. Press the start key. 2. Press the system menu key. 3. Press the start key to output a test pattern. 4.
Page 216 Item No. Description U403 Adjusting margins for scanning an original on the contact glass Description Adjusts margins for scanning the original on the contact glass. Purpose Perform the adjustment if margins are incorrect. Adjustment 1. Press the start key. 2. Press the system menu key. 3.
Page 217 Item No. Description U404 Adjusting margins for scanning an original from the DP Description Adjusts margins for scanning the original from the DP. Purpose Perform the adjustment if margins are incorrect. Caution Before making this adjustment, ensure that the following adjustments have been made in mainte- nance mode U402 U403...
Page 218 Item No. Description U407 Adjusting the leading edge registration for memory image printing Description Adjusts the leading edge registration during memory copying. Purpose Perform the following adjustment if there is a regular error between the leading edge of the copy image on the front face and that on the reverse face during duplex switchback copying.
Page 219 Item No. Description U410 Adjusting the halftone automatically Description Carries out processing for the data acquisition that is required in order to perform either auto- matic adjustment of the halftone or the ID correction operation. Purpose Performed when the quality of reproduced halftones has dropped. Method 1.
Page 220 2NP-2 Item No. Description U411 Adjusting the scanner automatically Description Uses a specified original and automatically adjusts the following items in the scanner and the DP scanning sections. Purpose To perform automatic adjustment of various items in the scanner and the DP scanning sections. Perform adjustments using a new test chart (chart 1) when replacing ISC PWB, LED lamp PWB, ISU, CIS and/or DP main PWB.
Page 221 2NP-2 Item No. Description U411 Display Description Executing the all scanner adjustment LED/AGC Executing the adjustment for LED light quantity/AGC White Executing the white reference compensation coefficient Input Executing the adjustment for magnification, leading edge tim- ing and center line C.A.
Page 222 2NP-2 Item No. Description U411 * : If the target values are not obtainable automatically, manually enter the following target values in the following manner and perform adjustment. 1. Enter the target values which are shown at the bottom of the specified original (P/N: AVGR14938B) executing maintenance item U425.
Page 223 2NP-2 Item No. Description U411 Method: [Table (Chart2)] 1. Enter the target values which are shown on the back of the specified original (P/N: AVGR05131K) executing maintenance item U425. 2. Set a specified original on the platen. 3. Enter maintenance item U411. 4.
Page 224 2NP-3 Item No. Description U411 7. Press the start key. Auto adjustment starts. * : When automatic adjustment has normally completed, [OK] is displayed. If a problem occurs during auto adjustment, error code is displayed and operation stops. Should this happen, determine the details of the problem and repeat the procedure from the begin- ning.
Page 225 2NP-3 Item No. Description U411 * : When automatic adjustment has normally completed, [OK] is displayed. If a problem occurs during auto adjustment, error code is displayed and operation stops. Should this happen, determine the details of the problem and repeat the procedure from the begin- ning.
Page 226 Item No. Description U411 Error Codes Codes Description DP uxiliary scanning direction skew error Maintenance request error Main scanning direction center line error DP main scanning direction skew error Main scanning direction magnification error Service call error DP paper misfeed error PWB replacement error Original error Input gamma adjustment original error...
Page 227 Item No. Description U415 Adjusting the print position automatically Description Automatically adjusts timings at the print engine. Adjustment for leading edge timing, center line and margin. Purpose Used to make respective auto adjustments for the print engine. Method 1. Load A3/ledger paper. 2.
Page 228 Item No. Description U425 Setting the target Description Enters the lab values that is indicated of the chart 1 (P/N: AVGR14938B) or chart 2 (P/N: AVGR05131K) used for adjustment. Purpose Performs data input in order to correct for differences in originals during automatic adjustment. Method 1.
Page 229 2NP-2 Item No. Description U425 Setting: [Adjust Original] * : This setting is usually unnecessary. 1. Measure the distance from the leading edge to the top of black belt 1 of the original at A, B and C. Measurement procedure 1) Measure the distance from the leading edge to the top of black belt 1 of the original at A (30 mm from the left edge), B (148.5 mm from the left edge) and C (267 mm from the left edge), respectively.
Page 230 Item No. Description U425 Method: [Chart2] 1. Press the start key. 2. Select the item. Display Description Entering the target values of the chart (P/N: AVGR05131K) used for adjustment Entering the measurement value of the chart (P/N: AVGR11211F) used for adjustment Method: [CCD] 1.
Page 231 2NP-2 Item No. Description U425 Setting: [Adjust Original] * : This setting is usually unnecessary. 1. Measure the distance from the left edge to the black belt (a) of the original at A, B and C. Measurement procedure 1) Measure the distance from the edge to the black belt (a) of the original at A (30 mm from the leading edge), B (148.5 mm from the leading edge) and C (267 mm from the leading edge), respectively.
Page 232 2NP-2 Item No. Description U425 Setting: [DP] * : This setting is usually unnecessary. 1. Measure the distance from the leading edge to the black belt (inside) of the original at A. 2. Enter the measured value using the +/- keys or numeric keys in [Lead]. 3.
Page 233 Item No. Description U429 Setting the offset for the color balance Description Displays and changes the density for each color during copying in the various image quality modes. Purpose To change the balance for each color. Method 1. Press the start key. 2.
Page 234 Item No. Description Setting the ID correction operation U464 Description Turns ID correction (calibration) on or off. Also, this determines the duration of calibration and the timing of calibration during printing. Also, this allows individual settings for calibration operation by enabling custom settings.
Page 235 Item No. Description U464 Setting: [Time Interval] 1. Select the item to be set. 2. Change the setting value using the cursor left/right keys or numeric keys. Display Description Setting Initial set- Paper Int Calib Setting the driving time of the calibra- 0 to 100 tion between paper.
Page 236 Item No. Description U464 Method: [Calib] 1. Select the item to be set 2. Press the start key. The operation starts. Display Description Regist Executes the calibration to correct registration. Gamma Executes the calibration to quantities of light. Paper Int Executes the calibration between paper.
Page 237 Item No. Description U468 Checking the color registration data Description Displays the color registration correction data and transfer belt speed correction data. Purpose To check the corresponding data. Method 1. Press the start key. 2. Select the item to be reference. The screen for the selected item is displayed. Display Description Auto (C)
Page 238 Item No. Description U468 Displaying: [Auto] 1. Select [Auto(1st)], [Auto(2nd)] or [Auto(3rd)]. The current value is displayed. Display Description LSU Out Top Image up-to-date timing LSU Out Left Image optical axis adjustment Magnification(Whole) Correction data of original size magnification in whole Displaying: [Manual] 1.
Page 239 Item No. Description U469 Adjusting the color registration Description Performs the color registration correction. Purpose To perform when replacing the maintenance kit or laser scanner unit. Method * : Be sure to perform U464 Calib before performing this mode. 1. Press the start key. 2.
Page 240 Item No. Description U469 Error codes Codes Description Codes Description S001 Patch not detected S004 Original inclination error S002 Original deviation in the main S005 Original type error scanning direction SFFF Scanner other error S003 Original deviation in the auxil- CFFF Controller other error iary scanning direction...
Page 241 Item No. Description U470 Setting the JPEG compression ratio Description Sets the compression ratio for JPEG images in each image quality mode. Purpose To change the setting in accordance with the image that the user is copying. For example, in order to soften the coarseness of the image when making copies at over 200% magnification, change the level of compression by raising the value.
Page 242 Item No. Description U470 Setting: [Send] 1. Select the item to be set. Display Description Photo Compression ratio in the photo mode Text Compression ratio in the text mode HC-PDF(BG) Compression ratio of high compression PDF HC-PDF(Char) Setting the compression rate of the high-compression PDF (text color) HC-PDF(File Size) Setting the compression rate of the high-compression PDF...
Page 243 Item No. Description U470 Setting: [System] 1. Select the item to be set. 2. Change the setting value using the +/- keys or numeric keys. Setting Initial Display Description range setting Compression ratio of brightness 1 to 100 CbCr Compression ratio of color differential 1 to 100 3.
Page 244 Item No. Description U474 Checking LSU cleaning operation Description Provides cleaning LSU by means of the LSU cleaning motor. Also, the cleaning cycle can be adjusted. Method 1. Press the start key. 2. Select the item. Display Description Execute Executing the cleaning operation Cycle Setting the cleaning cycle Method: [Execute]...
Page 245 Item No. Description U485 Setting the image processing mode Description Sets the detection level for scanning printed matter outputted with the confidential document guard function. Also, sets the process PDF images are rotated. Purpose To change the detection level when the confidential document guard is not printed well for detec- tion in scanning.
Page 246 Item No. Description U485 Setting: [Color Table] 1. Select the item. Display Description Color Table 1(Prn) Setting the printer color table (Default) Color Table 2(Prn) Setting the printer color table (Custom) Color Table 1(Copy) Setting the copy color table (Default) Color Table 2(Copy) Setting the copy color table (Custom) Install...
Page 247 Item No. Description U485 Setting: [Color Table 1(Copy)],[Color Table 2(Copy)] 1. Default/Custom printer color tables are shown. 2. Press the appropriate button. 3. Press the target button for switching Display CTYPE_CA CTYPE_FJ CTYPE_KO CTYPE_KY CTYPE_RH CTYPE_TO CTYPE_J1 CTYPE_SH 4. Press the Start key and [Complete] is displayed. 5.
Page 248 Item No. Description U486 Setting color/black and white operation mode Description When color and B/W documents are mixed, sets operation mode after a color document is detected. Purpose To ensure productivity when copying color and B/W documents in ACS mode, select Mode3. However, selecting Mode3 will increase the maintenance count for cyan, magenta, and yellow color developer units even when there is a B/W original after a color original.
Page 249 Item No. Description U486 Details on the modes Figure 1-3-47 1-3-163 Y116141-8 Service Manual...
Page 250 Item No. Description U600 Initializing all data Description Initializes software switches and all data in the backup data on the FAX control PWB, according to the destination and OEM. Executes the check of the file system, when abnormality of the file system is detected, initializes the file system, communication past record and register setting contents.
Page 251 Item No. Description U601 Initializing permanent data Description Initializes software switches on the FAX control PWB according to the destination and OEM. Purpose To initialize the FAX control PWB without changing user registration data. Method 1. Press the start key. 2.
Page 252 Item No. Description U604 Setting user data 2 Description Makes user settings to enable the use of the machine as a fax. Purpose Use this if the user wishes to adjust the number of rings that occur before the unit switches into fax receiving mode when fax/telephone auto-select is enabled.
Page 253 Item No. Description U610 Setting system 1 Description Makes settings for fax reception regarding the sizes of the fax paper and received images and automatic printing of the protocol list. Method 1. Press the start key. 2. Select the item to be set. Display Description Cut Line(100%)
Page 254 Item No. Description U610 Setting:[Cut Line(A4)] Sets the maximum number of lines to be ignored if the received data volume exceeds the record- ing capacity when the data is recorded in the auto reduction mode onto A4R or LetterR paper under the conditions below.
Page 255 Item No. Description U611 Setting system 2 Description Sets the number of adjustment lines for automatic reduction. Method 1. Press the start key. 2. Select the item to be set. Display Description Adj Lines Sets the number of adjustment lines for automatic reduction. Adj Lines(A4) Sets the number of adjustment lines for automatic reduction when A4 paper is set.
Page 256 Item No. Description U612 Setting system 3 Description Makes settings for fax transmission regarding operation and automatic printing of the protocol list. Method 1. Press the start key. 2. Select the item to be set. Display Description Auto Reduct Selects if auto reduction in the auxiliary direction is to be per- formed.
Page 257 Item No. Description U615 Setting system 6 Description Makes settings for fax reception regarding the sizes of the fax paper and received images. Purpose To set the maximum recording width and processing method when 11" width fax paper is loaded on an inch specification machine.
Page 258 Item No. Description U625 Setting the transmission system 1 Description Makes settings for the auto redialing interval and the number of times of auto redialing. Purpose Change the setting to prevent the following problems: fax transmission is not possible due to too short redial interval, or fax transmission takes too much time to complete due to too long redial interval.
Page 259 Item No. Description U630 Setting communication control 1 Description Makes settings for fax transmission regarding the communication. Method 1. Press the start key. 2. Select the item to be set. Display Description TX Speed Sets the communication starting speed. RX Speed Sets the reception speed.
Page 260 Item No. Description U630 Setting:[TX Echo] Sets the period before a DCS signal is sent after a DIS signal is received. Used when problems occur due to echoes at the sender. 1. Select the setting. Display Description Sends a DCS 500 ms after receiving a DIS. Sends a DCS 300 ms after receiving a DIS.
Page 261 Item No. Description U631 Setting communication control 2 Description Makes settings regarding fax transmission. Method 1. Press the start key. 2. Select the item to be set. Display Description ECM TX Sets ECM transmission. ECM RX Sets ECM reception. CED Freq Sets the frequency of the CED signal.
Page 262 Item No. Description U632 Setting communication control 3 Description Makes settings for fax transmission regarding the communication. Method 1. Press the start key. 2. Select the item to be set. Display Description DIS 4Byte Sets the DIS signal to 4 bytes. Num OF CNG(F/T) Sets the CNG detection times in the fax/telephone auto select mode.
Page 263 Item No. Description U633 Setting communication control 4 Description Makes settings for fax transmission regarding the communication. Purpose To reduce transmission errors when a low quality line is used. Method 1. Press the start key. 2. Select the item to be set. Display Description V.34...
Page 264 Item No. Description U633 Setting:[DIS 2Res] Sets the number of times to receive the DIS signal to once or twice. Used as one of the correction measures for transmission errors and other problems. 1. Select the setting. Display Description Once Responds to the first signal.
Page 265 Item No. Description U640 Setting communication time 1 Description Sets the detection time when one-shot detection is selected for remote switching. (This setting item will be displayed, but the setting made is ineffective.) Sets the detection time when continuous detection is selected for remote switching. (This setting item will be displayed, but the setting made is ineffective.) Method 1.
Page 266 Item No. Description U641 Setting communication time 2 Description Sets the time-out time for fax transmission. Purpose To improve transmission performance for international communications mainly. Method 1. Press the start key. 2. Select the item to be set. Display Description T0 Time Out Sets the T0 time-out time.
Page 267 Item No. Description U641 Setting:[T2 Time Out] The T2 time-out time decides the following. From CFR signal output to image data reception From image data reception to the next signal reception In ECM, from RNR signal detection to the next signal reception 1.
Page 268 Item No. Description U641 Setting:[Tb2 Time Out] In the fax/telephone auto select mode, sets the time to start ringing an operator through the con- nected telephone after receiving a call as a fax machine (see figure 1-3-48). In the fax/telephone auto select mode, change the setting when fax reception is unsuccessful or a telephone fails to receive a call.
Page 269 Item No. Description U650 Setting modem 1 Description Sets the G3 cable equalizer. Sets the modem detection level. Purpose Perform the following adjustment to make the equalizer compatible with the line characteristics. To improve the transmission performance when a low quality line is used. Method 1.
Page 270 Item No. Description U651 Setting modem 2 Description Sets the modem output level. Sets the DTMF output level of a push-button dial telephone. Purpose Used if problems occur when sending a signal with a push-button dial telephone. Setting 1. Press the start key. 2.
Page 271 Item No. Description U660 Setting the NCU Description Makes setting regarding the network control unit (NCU). Purpose To be executed as required. Method 1. Press the start key. 2. Select the item to be set. Display Description Exchange Sets the connection to PBX/PSTN. Dial Tone Sets PSTN dial tone detection.
Page 272 Item No. Description U660 Setting:[Busy Tone] When a fax signal is sent, sets whether the line is disconnected immediately after a busy tone is detected, or the busy tone is not detected and the line remains connected until T0 time-out time. Fax transmission may fail due to incorrect busy tone detection.
Page 273 Item No. Description U670 Outputting lists Description Outputs a list of data regarding fax transmissions. Printing a list is disabled either when a job is remaining in the buffer or when [Pause All Print Jobs] is pressed to halt printing. Purpose To check conditions of use, settings and transmission procedures of the fax.
Page 274 Item No. Description U671 Clear FAX back up data Description The communication history information of fax / Internet fax and the fax transmitting reservation information which are backed up on the FAX control circuit board are cleared. Moreover, memory DIMM is initialized. Purpose It carries out for the prevention from an information leak of backup data.
Page 275 Item No. Description U695 FAX function customize Description Sets fax batch transmission ON/OFF. Also changes the print size priority at the time of small size reception. Purpose To be executed as required. Setting 1. Select the item to be set. Display Description FAX Bulk TX...
Page 276 Item No. Description U698 Setting the port addressed in maintenance mode Description Configures the port that is addressed in maintenance mode. Purpose To configure the port that is addressed in maintenance mode when the optional dual FAX is installed. It is not required to assign the same settings to both ports. It should be used to assign different settings to each port.
Page 277 Item No. Description U699 Setting the software switches Description Sets the software switches on the FAX control PWB individually. Purpose To change the setting when a problem such as split output of received originals occurs. Since the communication performance is largely affected, normally this setting need not be changed.
Page 278 Item No. Description U699 <Communication time setting> Item 76543210 T3 timeout setting 76543210 T4 timeout setting (automatic equipment) 76543210 T5 timeout setting 76543210 Time before transmission of CNG (1100 Hz) signal 76543210 T0 timeout setting (manual equipment) 7 Phase C timeout in ECM reception 76543210 Timeout 1 in countermeasures against echo 76543210 Timeout for FSK detection start in V.8 <Modem setting>...
Page 279 Item No. Description U901 Checking copy counts by paper feed locations Description Displays or clears copy counts by paper feed locations. Purpose To check the time to replace consumable parts. Also to clear the counts after replacing the con- sumable parts. Method 1.
Page 280 Item No. Description U903 Checking/clearing the paper jam counts Description Displays or clears the jam counts by jam locations. Purpose To check the paper jam status. Also to clear the jam counts after replacing consumable parts. Method 1. Press the start key. 2.
Page 281 Item No. Description U904 Checking/clearing the call for service counts Description Displays or clears the service call code counts by types. Purpose To check the service call code status by types. Also to clear the service call code counts after replacing consumable parts. Method 1.
Page 282 Item No. Description U905 Checking counts by optional devices Description Displays the counts of document processor or document finisher. Purpose To check the use of document processor or document finisher. Method 1. Press the start key. 2. Select the device to be checked. The count of the selected device is displayed. Display Description Counts of document processor...
Page 283 Item No. Description U908 Checking the total counter value Description Displays the total counter value. Purpose To check the total counter value. Method 1. Press the start key. The total count value is displayed. Completion Press the stop key. The screen for selecting a maintenance item No. is displayed. U910 Clearing the print coverage data Description...
Page 284 Item No. Description U911 Checking copy counts by paper sizes Description Displays the paper feed counts by paper sizes. Purpose To check the counts after replacing consumable parts. Method 1. Press the start key. The screen for the paper feed counts by paper size is displayed. Display Display Description...
Page 285 Item No. Description U917 Setting backup data reading/writing Description Retrieves the backup data to a USB memory from the machine; or writes the data from the USB memory to the machine. Purpose To store and write data when replacing the HDD. Method 1.
Page 286 Item No. Description U917 7. Press the start key. Starts reading or writing. The progress of selected item is displayed in %. When an error occurs, the operation is canceled and an error code is displayed. 8. When normally completed, [Finish] is displayed. * : Turn the main power switch off and on after completing writing when selecting [Import].
Page 287 Item No. Description U917 Error Codes Codes Description Codes Description e710 Fax memory open error d002 USB memory is not inserted e711 Fax memory initialization error d003 File for writing is not found in the USB e712 Fax memory list error d004 File for reading is not found in the HDD...
Page 288 Item No. Description U920 Checking the copy counts Description Checks the copy counts. Purpose To check the copy counts. Method 1. Press the start key. 2. Select the item. Display Description Main Function Counts of main function Sub Function Counts of sub function [Setting: Main Function] 1.
Page 289 Item No. Description U927 Clearing the all copy counts and machine life counts (one time only) Description Resets all of the counts back to zero. Supplement The total account counter and the machine life counter can be cleared only once if all count val- ues are 1000 or less.
Page 290 Item No. Description U933 Set Maintenance Mode Execute Log Description Performs individual configuration or log file printing for the date when maintenance mode is entered and exited or for the feature which records the dates when maintenance mode numbers are executed. Purpose Logs a history of execution of maintenance modes for an analysis of causes against the prob- lems.
Page 291 Item No. Description U942 Setting of deflection for feeding from DP Description Adjusts the deflection generated when the document processor is used. Purpose Use this mode if an original non-feed jam, oblique feed or wrinkling of original occurs when the document processor is used.
Page 292 Item No. Description U952 Maintenance mode workflow Description The maintenance modes configured in the machine or a USB flash device as a workflow must be executed in succession. Purpose This allows maintenance mode to be preset as a template. Setting 1.
Page 293 2NP-4 Item No. Description U952 Method: [Execute(USB)] 1. Press the power key on the operation panel, and after verifying the main power indicator has gone off, switch off the main power switch. 2. Insert USB memory in USB memory slot. 3.
Page 294 Item No. Description U964 Checking of log Description Sends a log file saved on the HDD to a USB memory. Purpose To transfer a log file saved on the HDD to a USB memory as a means of investigating malfunc- tions.
Page 295 Item No. Description U964 Display Description Copy Error File copy error Unmount Error USB memory unmount error Other Error Other error U969 Checking of toner area code Description Displays the toner area code. Purpose To check the toner area code. Method 1.
Page 296 Item No. Description Checking the developer unit number U984 Description Displays the developer unit number. Purpose To check the developer unit number. Method 1. Press the start key. The developer unit number for each color is displayed. Display Description Cyan developer unit number Magenta developer unit number Yellow developer unit number Black developer unit number...
Page 297 Item No. Description U989 HDD Scan disk Description Restores data in the hard disk by scanning the disk. Purpose If power is turned off while accessing to the hard disk is performed, the control information in the hard disk drive may be damaged. Use this mode to restore the data. Method 1.
Page 298 This page is intentionally left blank. 1-3-212 Service Manual Y116141-8...
Page 299 1-4-1 Paper misfeed detection 1-4 Troubleshooting (1) Paper misfeed indication When a paper misfeed occurs, the machine immediately stops printing and displays the paper misfeed mes- sage on the operation panel. To remove paper misfed in the machine, pull out the cassette, open the paper conveying unit or paper conveying cover.
Page 300 Figure 1-4-2 (A) Misfeed in the cassette 1 (B) Misfeed in the cassette 2 (C) Misfeed in the cassette 3 or 4 (option) (D) Misfeed in the MP tray (E) Misfeed in the duplex unit (F) Misfeed in the inner tray or fuser section (G) Misfeed in the document processor (option) (H) Misfeed in the job separator (I) Misfeed in the the bridge (option)
Page 301 (2) Paper misfeed detection component Document processor DPPFS DPOS DPPFS DPRCL DPSBS DPRS DPTS DFPES BRCS1 BRCS2 DFEPS BRCS3 DFMES FUPS DUCL PFCL MPSOL 1000 sheets Document finisher PFFS PFFS2 500 sheets×2 PFPCS2 PFPS2 PFFS1 Paper feeder PFPS1 3000 sheets Bulk paper feeder Figure 1-4-3 1-4-3...
Page 302 Code Contents Conditions location* 0000 Initial jam The power is turned on when a sensor in the con- veying system is on. 0100 Secondary paper feed Secondary paper feed request given by the con- request time out troller is unreachable. 0101 Waiting for process package Process package won’t be ready.
Page 303 Code Contents Conditions location* 0514 Multiple sheets in cassette 4 PF feed sensor (PFFS) does not turn off during paper feed from cassette 4. 0518 Multiple sheets in duplex The registration sensor (RS) does not turn off dur- section ing paper feed from the duplex section. 0519 Multiple sheets in MP tray The registration sensor (RS) does not turn off dur-...
Page 304 Code Contents Conditions location* 2714 PF feed sensor 2 stay jam PF conveying sensor 2 (PFPCS2) does not turn off during paper feed from cassette 4 (Bulk paper feeder). 4002 Registration sensor non The registration sensor (RS) does not turn on dur- arrival jam ing paper feed from cassette 2.
Page 305 Code Contents Conditions location* 4201 Eject sensor non arrival jam The eject sensor (ES) does not turn on during paper feed from cassette 1. 4202 The eject sensor (ES) does not turn on during paper feed from cassette 2. 4203 The eject sensor (ES) does not turn on during paper feed from cassette 3.
Page 306 Code Contents Conditions location* 4311 Duplex sensor stay jam The duplex sensor (DUS) does not turn off during paper feed from cassette 1. 4312 The duplex sensor (DUS) does not turn off during paper feed from cassette 2. 4313 The duplex sensor (DUS) does not turn off during paper feed from cassette 3.
Page 307 Code Contents Conditions location* 4911 Bridge conveying sensor 1 The bridge conveying sensor 1 (BRCS1) does not stay jam turn off during paper feed from cassette 1. 4912 The bridge conveying sensor 1 (BRCS1) does not turn off during paper feed from cassette 2. 4913 The bridge conveying sensor 1 (BRCS1) does not turn off during paper feed from cassette 3.
Page 308 Code Contents Conditions location* 6041 DF top cover open DF top cover is opened during operation (1000- sheet finisher). 6101 DF paper entry sensor non DF paper entry sensor (DFPES) does not turned arrival jam on even if a specified time has elapsed after the machine eject signal was received (1000-sheet fin- isher).
Page 309 Code Contents Conditions location* 9001 DP original conveying jam DP timing sensor (DPTS) turns off within the speci- fied time since the sensor turns on. 9002 DP sensor stay jam Sensor in the conveying system is on since original feeding starts. 9004 DP original switchback jam During duplex switchback scanning, the DP regis-...
Page 310 Code Contents Conditions location* 9310 DP CIS sensor stay jam DP CIS sensor (DPCS) does not turn off within specified time of DP registration sensor (DPFS) turning off. 9400 DP timing sensor non arrival The DP timing sensor (DPTS) does not turn on within the specified time of the DP registration sen- sor (DPRS) turning on (Retry 5 times).
Page 311 1-4-2 Self-diagnostic function (1) Self-diagnostic function This machine is equipped with self-diagnostic function. When a problem is detected, the machine stops print- ing and display an error message on the operation panel. An error message consists of a message prompting a contact with service personnel and a four-digit error code indicating the type of the error.
Page 312 Check procedures/ Code Contents Causes corrective measures 0130 Backup memory read/write Defective NAND. Turn the main power swtch off and after 5 error (main PWB) seconds, then turn power on. Mismatch between writing data and reading data succes- Defective PWB. Replace the main PWB and check for cor- sively.
Page 313 Check procedures/ Code Contents Causes corrective measures 0180 Machine number mismatch 1. Confirm the machine data for the main Data in the Machine number of main and EEPROM . and engine units by using U004 (see engine does not match. page 1-3-27).
Page 314 Check procedures/ Code Contents Causes corrective measures 0630 DMA error 1. Reconnect the CIS signal line. Poor contact in the DMA transmission of image connector termi- 2. Confirm that the CIS connector data does not complete within nals. terminals are firmly connected. Insert the specified period of time.
Page 315 Check procedures/ Code Contents Causes corrective measures 0650 FAX image DIMM check DIMM installed Check if the DIMM is inserted into the socket error incorrectly. on the main PWB correctly. Improper DIMM is installed. 1. Confirm that a used FAX image DIMM DIMM of another machine is was used instead of the FAX image...
Page 316 Check procedures/ Code Contents Causes corrective measures 0800 Image processing error Defective main Replace the main PWB and check for cor- The JAM100 fee counter is PWB. rect operation (see page 1-5-31). continuously generated. 0830 FAX control PWB flash pro- Defective FAX soft- Install the fax software.
Page 317 Check procedures/ Code Contents Causes corrective measures 0980 24 V power down detect 1. Check the +24V output is given at YC12- Defective power 24V disconnection signal is source PWB. 1 to 3 of the power circuit PWB. detected for 1.5 seconds. 2.
Page 318 2NP-5 Check procedures/ Code Contents Causes corrective measures 1020 Lift motor 2 error Defective bottom Check to see if the bottom plate can move After cassette 2 is inserted, plate elevation smoothly and repair any problem that is PF lift sensor 2 does not turn mechanism in the found.
Page 319 2NP-5 Check procedures/ Code Contents Causes corrective measures 1040 PF lift motor 2 error Defective bottom Check to see if the bottom plate can move (paper feeder) plate elevation smoothly and repair it if any problem is After cassette 4 is inserted, mechanism in the found.
Page 320 2NP-5 Check procedures/ Code Contents Causes corrective measures 1110 PF lift motor 2 error Paper feeder lift Check that the cassette base can be (large capacity feeder) base elevating manipulated smoothly, if not, repair or After cassette 4 is inserted, mechanism replace.
Page 321 Check procedures/ Code Contents Causes corrective measures 1900 Paper feeder EEPROM error 1. Confirm that the wiring connector is Defective PWB. When writing the data, the firmly connected and, if necessary, write data and the read data is connect the connector all the way in. not continuously in agreement 2.
Page 322 Check procedures/ Code Contents Causes corrective measures 2111 Developer motor K startup Defective connec- Reinsert the connector. Also check for conti- error tor cable or poor nuity of the connector cable. If necessary, Developer motor K is not sta- contact in the con- replace the cable.
Page 323 Check procedures/ Code Contents Causes corrective measures Drum motor K steady-state 2201 Defective connec- Reinsert the connector. Also check for conti- error tor cable or poor nuity within the connector cable. If none, The rated speed signal contact in the con- replace the cable.
Page 324 Check procedures/ Code Contents Causes corrective measures 2211 Drum motor K startup error Defective connec- Reinsert the connector. Also check for conti- Drum motor K is not stabilized tor cable or poor nuity within the connector cable. If none, within 3 s since the motor is contact in the con- replace the cable.
Page 325 Check procedures/ Code Contents Causes corrective measures 2310 Fuser motor startup error Defective connec- Reinsert the connector. Also check for conti- Fuser motor is not stabilized tor cable or poor nuity within the connector cable. If none, within 3 s since the motor is contact in the con- replace the cable.
Page 326 2NP-5 Check procedures/ Code Contents Causes corrective measures 2550 Conveying motor 1 steady- Defective connec- Reinsert the connector. Also check for conti- state error tor cable or poor nuity within the connector cable. If none, The rated speed signal contact in the con- replace the cable.
Page 327 2NP-5 Check procedures/ Code Contents Causes corrective measures 2610 PF paper feed motor error Defective connec- Reinsert the connector. Also check for conti- (bulk paper feeder) tor cable or poor nuity within the connector cable. If none, When the PF paper feed contact in the con- replace the cable.
Page 328 Check procedures/ Code Contents Causes corrective measures 3100 ISU home position error The scanner mirror Check whether the scanner mirror frame has ON/OFF of the HP sensor frame is being been unlocked and unlock if necessary (see doesn't change after a pre- locked after setup.
Page 329 Check procedures/ Code Contents Causes corrective measures 3220 LED error 1. To check the lamp, execute U061 CCD Defective connec- tor cable or poor (see page 1-3-43). contact in the con- 2. Confirm that the wiring connector is nector. firmly connected and, if necessary, connect the connector all the way in.
Page 330 Check procedures/ Code Contents Causes corrective measures 3310 CIS AGC error 1. Execute U906 Separating Operation After AGC, correct input is not Release (see page 1-3-196). obtained at CIS. 2. To check the lamp, execute U061 CCD (see page 1-3-43). 3.
Page 331 Check procedures/ Code Contents Causes corrective measures 4001 Polygon motor (K) steady- Defective connec- Reinsert the connector. Also check for conti- state error tor cable or poor nuity within the connector cable. If none, The rated speed signal contact in the con- replace the cable.
Page 332 Check procedures/ Code Contents Causes corrective measures 4011 Polygon motor (K) startup Defective connec- Reinsert the connector. Also check for conti- error tor cable or poor nuity within the connector cable. If none, Polygon motor (K) is not stabi- contact in the con- replace the cable.
Page 333 Check procedures/ Code Contents Causes corrective measures 4101 BD initialization problem (K) Defective connec- Reinsert the connector. Also check for conti- BD is not detected within two tor cable or poor nuity within the connector cable. If none, seconds after the polygon contact in the con- replace the cable.
Page 334 Check procedures/ Code Contents Causes corrective measures 4104 BD initialization problem (Y) Defective connec- Reinsert the connector. Also check for conti- BD is not detected within two tor cable or poor nuity within the connector cable. If none, seconds after the polygon contact in the con- replace the cable.
Page 335 Check procedures/ Code Contents Causes corrective measures 4203 BD steady-state error M PD PWB M (LSU) 1. Confirm that the FCC wiring connector is The BD signal is not detected. not distorted and connect the FCC wiring all the way in. Laser scanner unit and LSU relay PWB (YC2) LSU relay PWB (YC10) and Engine...
Page 336 Check procedures/ Code Contents Causes corrective measures 6000 Broken fuser heater wire Defective connec- Reinsert the connector. Also check for conti- Fuser thermistor 2 does not tor cable or poor nuity within the connector cable. If none, reach 80° C/176 °F even contact in the con- replace the cable.
Page 337 Check procedures/ Code Contents Causes corrective measures 6040 NC sensor error Deformed connec- If the I/F connector pins of the fuser unit and tor pin. the main unit are deformed owing to foreign matters, such as paper dusts, replace the connectors or the units including the con- nectors.
Page 338 Check procedures/ Code Contents Causes corrective measures 6150 Abnormally low fuser Deformed connec- If the I/F connector pins of the fuser unit and thermistor 3 (press roller) tor pin. the main unit are deformed owing to foreign temperature matters, such as paper dusts, replace the The fuser temperature lower connectors or the units including the con- than 30 °C/86 °F is detected...
Page 339 Check procedures/ Code Contents Causes corrective measures 6230 Fuser thermistor 1 (edge) Defective connec- Reinsert the connector. Also check for conti- break error tor cable or poor nuity within the connector cable. If none, During warming up a hearter, contact in the con- replace the cable.
Page 340 Check procedures/ Code Contents Causes corrective measures 6720 Belt rotation error (IHPWB) Defective PWB. Replace the IH PWB and check for correct operation (see page 1-5-51). Defective fuser Replace the fuser motor. motor. Defective fuser Replace the fuser unit (see page 1-5-17). unit.
Page 341 Check procedures/ Code Contents Causes corrective measures 6930 IH related cooling fan motor Defective connec- Reinsert the connector. Also check for conti- error tor cable or poor nuity within the connector cable. If none, The alarm signal was contact in the con- replace the cable.
Page 342 Check procedures/ Code Contents Causes corrective measures 6990 Fuser unit type mismatch Defective PWB. Replace the IH PWB and check for correct problem operation (see page 1-5-51). Absence of the fuser unit is detected. 7101 Defective Devel- Replace the developer unit K Toner sensor K error oper unit.
Page 343 Check procedures/ Code Contents Causes corrective measures 7402 Developer unit C type mis- Defective connec- Reinsert the connector. Also check for conti- match error tor cable or poor nuity within the connector cable. If none, Absence of the developer unit contact in the con- replace the cable.
Page 344 Check procedures/ Code Contents Causes corrective measures Drum unit Y type mismatch 7414 Drum unit connec- Reinsert the drum unit Y connector if neces- problem tor inserted incor- sary. Absence of the drum unit Y is rectly. detected. Different type of Install the correct drum unit the drum unit is (see page 1-5-15).
Page 345 Check procedures/ Code Contents Causes corrective measures 7800 Broken external thermistor Defective connec- Reinsert the connector. Also check for conti- wire tor cable or poor nuity within the connector cable. If none, The external thermistor deliv- contact in the con- replace the cable.
Page 346 Check procedures/ Code Contents Causes corrective measures 7903 Drum unit M EEPROM error Poor contact in the Reinsert the connector. Also check for conti- No response is issued from connector termi- nuity within the connector cable. If none, the device in reading/writing nals.
Page 347 Check procedures/ Code Contents Causes corrective measures 7912 Developer unit C EEPROM Poor contact in the Reinsert the connector. Also check for conti- error connector termi- nuity within the connector cable. If none, No response is issued from nals. replace the cable. the device in reading/writing Developer unit (C) and drum connect for 5 ms or more and this...
Page 348 Check procedures/ Code Contents Causes corrective measures 8010 Punch motor 1 error 1. Execute U240 Motor - Punch to check Punch motor When the punch motor is the finisher operation (see page 1-3- driven, punch home position 103). sensor does not turn on within 2.
Page 349 Check procedures/ Code Contents Causes corrective measures 8020 Punch motor 2 error 1. Execute U240 Motor - Punch to check Punch motor Home position is not obtained the finisher operation (see page 1-3- in 3 s after home position is 103).
Page 350 Check procedures/ Code Contents Causes corrective measures 8030 Punch motor 3 error 1. Execute U240 Motor - Punch to check Punch motor Home position does not turn the finisher operation (see page 1-3- from On to Off in 50 ms after 103).
Page 351 Check procedures/ Code Contents Causes corrective measures 8090 DF paddle motor error 1. Execute U240 Motor - Beat to check the DF paddle motor When the DF paddle motor is finisher operation (see page 1-3-103). driven, DF paddle sensor 2. Check that the paddle can rotate. does not turn on within 1 s.
Page 352 Check procedures/ Code Contents Causes corrective measures 8100 DF eject release motor error 1. Execute Motor - Eject Unlock (Full) of DF eject release When the DF eject release U240 finisher operation check (see page motor motor is driven, DF bundle DF bundle 1-3-103).
Page 353 Check procedures/ Code Contents Causes corrective measures 8140 DF tray motor error 1 1. Execute U240 Motor - Tray to check the DF tray motor When the main tray has finisher operation (see page 1-3-103). ascended, DF tray sensor 1 or 2.
Page 354 Check procedures/ Code Contents Causes corrective measures 8150 DF tray motor error 2 1. Execute U240 Motor - Tray to check the DF tray motor When the main tray has finisher operation (see page 1-3-103). descended, DF tray sensor 1 2.
Page 355 Check procedures/ Code Contents Causes corrective measures 8160 DF tray motor error 3 1. Execute U240 Motor - Tray to check the DF tray motor When the main tray has finisher operation (see page 1-3-103). descended, DF tray sensor 3 2.
Page 356 Check procedures/ Code Contents Causes corrective measures 8170 DF side registration motor 1 1. Execute U240 Motor - Width Test to DF side registration error 1 check the finisher operation (see page motor 1 When initial operation, DF 1-3-103). side registration sensor 1 2.
Page 357 Check procedures/ Code Contents Causes corrective measures 8180 DF side registration motor 1 1. Execute U240 Motor - Width Test to DF side registration error 2 check the finisher operation (see page motor 1 JAM6810 ( jam in front of 1-3-103).
Page 358 Check procedures/ Code Contents Causes corrective measures 8190 DF side registration motor 2 1. Execute U240 Motor - Width Test to DF side registration error 1 check the finisher operation (see page motor 2 When initial operation, DF 1-3-103). side registration sensor 2 2.
Page 359 Check procedures/ Code Contents Causes corrective measures 8200 DF side registration motor 2 1. Execute U240 Motor - Width Test to DF side registration error 2 check the finisher operation (see page motor 2 JAM6910 ( jam in rear of width 1-3-103).
Page 360 Check procedures/ Code Contents Causes corrective measures 8210 DF slide motor error 1. Execute U240 Motor - Staple Move to DF slide motor When initial operation, DF sta- check the finisher operation (see page ple sensor does not turn on 1-3-103).
Page 361 Check procedures/ Code Contents Causes corrective measures 8230 DF staple motor error 1 1. Remove the staple unit and check that DF staple motor stapling is possible without a jam. Staple JAM (DF) has been 2. Confirm that the FCC wiring connector is detected twice in a row.
Page 362 Check procedures/ Code Contents Causes corrective measures 8260 DF middle motor error 1. Execute U240 Motor - Middle(L) to DF middle motor When the DF middle motor is check the finisher operation (see page driven, DF middle sensor 1-3-103). does not turn on within 1s. 2.
Page 363 Check procedures/ Code Contents Causes corrective measures 8410 Punch slide motor error 1 1. Execute U240 Booklet - Punch Move to Punch slide motor The punch slide sensor won’t check the finisher operation (see page turn On when home position 1-3-103).
Page 364 Check procedures/ Code Contents Causes corrective measures 8420 Punch slide motor error 2 1. Execute U240 Booklet - Punch Move to Punch slide motor In detection of paper edges, check the finisher operation (see page the paper edge cannot be 1-3-103).
Page 365 2NP-3 Check procedures/ Code Contents Causes corrective measures 8430 Punch unit communication 1. Confirm that the wiring connector is Punch PWB error firmly connected and, if necessary, Communication with the connect the connector all the way in. punch unit is not possible. Punch PWB (YC1) and DF main PWB (YC8) 2.
Page 366 2NP-3 Check procedures/ Code Contents Causes corrective measures 9000 Document processor com- Defective connec- Reinsert the connector. Also check for conti- munication error tor cable or poor nuity within the connector cable. If none, A communication error is contact in the con- replace the cable.
Page 367: Table Of Contents
Check procedures/ Code Contents Causes corrective measures 9050 DP lift motor going down 1. Execute U906 Separating Operation DP lift motor error Release (see page 1-3-196). When the DP lift motor is 2. Execute U243 Lift Motor to check the DP driven, DP lift sensor 2 does motor operation (see page 1-3-107).
Page 368: Communication Error
Check procedures/ Code Contents Causes corrective measures 9080 LED fault detection 1. Execute CIS automatic original DP CIS A block is existent below a document alignment by U411 (see page peak which was obtained by 1-3-134). activating the LEDs in the four 2.
Page 369 Check procedures/ Code Contents Causes corrective measures 9140 Sensor error in coin vender Coin jam in the Check visually and remedy. change (Yen 100) change tube Change is empty despite Poor contact in the Check if the change empty sensor is intact. change is enough.
Page 370 2NP-5 Check procedures/ Code Contents Causes corrective measures ISC PWB error C 9520 1. Reinsert the connector if it its connection Main PWB is loose. ISC PWB Main PWB (YC25) and ISC PWB (YC4) 2. Replace the main PWB (see page 1-5- 31).
Page 371: Confirm That The Eeprom Has Been Properly Installed
2NP-5 Check procedures/ Code Contents Causes corrective measures F010 Main PWB checksum error 1. Turn the main power swtch off and after Defective main PWB. 5 seconds, then turn power on. F011 2. If not corrected, replace the main PWB F012 (see page 1-5-31).
Page 372 2NP-5 Check procedures/ Code Contents Causes corrective measures F051 Scanner engine ROM Scanner software Install the latest scanner software. checksum error 1. Turn the main power swtch off and after ISC PWB 5 seconds, then turn power on. 2. Confirm that the EEPROM has been properly installed.
Page 373 1-4-3 Image quality problems If the part causing the problem is not designated as a service part, replace with the assembly comprising the part. (1) No image (2) No image (3) Image is too (4) The back- (5) White streaks appears (entirely appears (entirely light.
Page 374 2NP-5 (1) No image appears (entirely white). Print example Causes Check procedures/corrective measures Defective Defective connector cable Reinsert the connector. Also check for conti- transfer or poor contact in the con- nuity of the connector cable. If necessary, bias output. nector.
Page 375 2NP-5 (3) Image is too light. Print example Causes Check procedures/corrective measures Defective Defective connector cable Reinsert the connector. Also check for conti- transfer or poor contact in the con- nuity within the connector cable. If none, charger out- nector. replace the cable.
Page 376 (6) Black streaks are printed vertically. Print example Causes Check procedures/corrective measures Dirty contact glass. Clean the contact glass. Dirty slit glass. Clean the slit glass. Dirty or flawed drum. Perform the drum refresh operation. Flawed drum. Replace the drum unit (see page 1-5-15). Deformed or worn cleaning Replace the drum unit (see page 1-5-15).
Page 377 (9) Spots are printed. Print example Causes Check procedures/corrective measures Dirty contact glass. Clean the contact glass. Dirty or flawed drum. Perform the drum refresh operation. Flawed drum. Replace the drum unit (see page 1-5-15). Deformed or worn cleaning Replace the drum unit (see page 1-5-15). blade in the drum unit.
Page 378 (13) Paper is wrinkled. Print example Causes Check procedures/corrective measures Paper curled. Check the paper storage conditions. Paper damp. Check the paper storage conditions. Defective pressure springs. Replace the fuser unit (see page 1-5-17). (14) Image is off-set. Print example Causes Check procedures/corrective measures Deformed or worn cleaning...
Page 379 (17) Image is out of focus. Print example Causes Check procedures/corrective measures Defective image scanning Replace the image scanning unit (see page 1-5-21). unit. Drum condensation. Perform the drum refresh operation. (18) Image center does not align with the original center. Print example Causes Check procedures/corrective measures...
Page 380 1-4-4 Electric problems If the part causing the problem s not designated as a service part, replace with the assembly comprising the part. Troubleshooting to each failure must be made in the order of the numbered Problems. Problem Causes Check procedures/corrective measures 1.
Page 381 Problem Causes Check procedures/corrective measures 1. Defective connector Reinsert the connector. Also check for continuity within the ID Shutter motor cable or poor con- connector cable. If none, replace the cable. does not operate. tact in the connector. ID Shutter motor and engine connect PWB (YC3) engine connect PWB and engine PWB (YC5) 2.
Page 382 Problem Causes Check procedures/corrective measures 1. Defective connector Reinsert the connector. Also check for continuity within the Developer fan cable or poor con- connector cable. If none, replace the cable. motor 2/3 does not tact in the connector. Developer fan motor 2/3 and engine connect PWB (YC13) operate.
Page 383 Problem Causes Check procedures/corrective measures (15) 1. Defective connector Reinsert the connector. Also check for continuity within the Paper feed clutch 1 cable or poor con- connector cable. If none, replace the cable. does not operate. tact in the connector. Paper feed clutch 1 and engine PWB (YC25) 2.
Page 384 Problem Causes Check procedures/corrective measures (21) 1. Defective connector Reinsert the connector. Also check for continuity within the Developer stop cable or poor con- connector cable. If none, replace the cable. clutch does not tact in the connector. Developer stop clutch and engine PWB (YC16) operate.
Page 385 Problem Causes Check procedures/corrective measures (26) 1. Defective connector Reinsert the connector. Also check for continuity within the The message cable or poor con- connector cable. If none, replace the cable. requesting paper to tact in the connector. MP paper sensor and engine PWB (YC22) be loaded is shown 2.
Page 386 1-4-5 Mechanical problems If the part causing the problem was not supplied, use the unit including the part for replacement. Problem Causes/check procedures Corrective measures Check if the surfaces of the following roll- Clean with isopropyl alcohol. No primary paper ers are dirty with paper dusts.
Page 387 1-4-6 Send error code This section describes the scanning errors and descriptions, preventive actions, as well as corrective actions. Error codes not described here could fall within software errors. If such an error is encountered, turn power off then on, and advise the service representative. (1) Scan to SMB error codes Code Contents...
Page 388 (2) Scan to FTP error codes Code Contents Check procedures/corrective measures 1101 FTP server does not exist on the net- 1. Check the FTP server name. work. 2. Confirm device's network parameters. 3. Confirm the parameters of the network to which the device is connected are correct.
Page 389 Code Contents Check procedures/corrective measures 2231 Connection with the FTP server has 1. Confirm device's network parameters. failed. 2. Confirm the network parameters the device is con- (FTPS communication) nected. 3101 FTP server responded with an error. 1. Confirm device's network parameters. 2.
Page 390 2NP-3 (3) Scan to E-mail error codes Code Contents Check procedures/corrective measures 1101 SMTP/POP3 server does not exist on 1. Check the SMTP/POP3 server name. the network. 2. Confirm device's network parameters. 3. Confirm the parameters of the network to which the device is connected are correct.
Page 391 2NP-3 Code Contents Check procedures/corrective measures 3201 No SMTP authentication is found. 1. Check the SMTP server. 2. The device supports SMTP authentication services including CRAM-MD5, DIGEST-MD5, PLAIN and LOGIN. 4803 Failed to establish the SSL session. 1. Verify the self certificate of the device. 2.
Page 392 1-4-7 Error codes (1) Error code Error codes are listed on the communication reports, activity report, etc. The codes consist of an error code indication U followed by a 5-digit number. (Error codes for V34 communication errors start with an E indica- tion, followed by five digits.) The upper three of the five digits indicate general classification of the error and its cause, while the lower two indicate the detailed classification.
Page 393 (2) Table of general classification Error code Description U00000 No response or busy after the set number of redials. U00100 Transmission was interrupted by a press of the stop/clear key. U00200 Reception was interrupted by a press of the stop/clear key. U00300 Recording paper on the destination unit has run out during transmission.
Page 394 Error code Description U03300 In polling reception from a unit of our make, operation was interrupted due to a mismatch in permit ID or telephone number. Or, in interoffice subaddress-based bulletin board reception, operation was interrupted due to a mismatch in permit ID or telephone num- ber.
Page 395 Error code Description U12000 Relay broadcast was requested from a command station but memory overflowed during reception. Or, in subaddress-based relay reception, memory overflowed. U12100 Relay was commanded but memory overflowed in the destination unit (relay station). U14000 Memory overflowed during confidential reception. Or, in subaddress-based confidential reception, memory overflowed.
Page 396 (2-1) U004XX error code table: Interrupted phase B Error code Description U00420 A relay request was received from the host center but interrupted because of a mismatch in permit ID or telephone number. U00421 Subaddress-based relay reception was interrupted because of a mismatch in the speci- fied subaddress relay box number.
Page 397 (2-2) U006XX error code table: Problems with the unit Error code Description U00600 The document processor cover is open. U00601 Document jam or the document length exceeds the maximum. U00602 Image scanning section problem. U00603 No document feed. U00604 Document length exceeded the limit of the bitmap memory capacity. U00610 Recording section cover is open.
Page 398 (2-5) U010XX error code table: G3 transmission Error code Description U01000 An FTT signal was received for a set number of times after TCF signal transmission at 2400 bps. Or, an RTN signal was received in response to a Q signal (excluding EOP) after transmission at 2400 bps.
Page 399 Error code Description U01040 A DCN or other inappropriate signal was received during standby for DIS signal recep- tion. U01041 A DCN signal was received after transmission of a DNL (MPS or EOM) signal (between units of our make). U01042 A DCN signal was received after transmission of a DCS, TCF signal.
Page 400 (2-6) U011XX error code table: G3 reception Error code Description U01100 Function of the unit differs from that indicated by a DCS signal. U01101 Function of the unit (excl. communication mode select) differs from that indicated by an NSS signal. U01102 A DTC (NSC) signal was received when no transmission data was in the unit.
Page 401 Error code Description U01152 A DCN signal was received after transmission of a CTR signal (ECM). U01153 A DCN signal was received after transmission of an ERR signal (ECM). U01154 A DCN signal was received after transmission of an RNR signal (ECM). U01155 A DCN signal was received after transmission of an SPA signal (short protocol).
Page 402 (2-8) U018XX error code table: V.34 reception Error code Description U01800 A communication error occurred in phase 2 (line probing). U01810 A communication error occurred in phase 3 (primary channel equivalent device training). U01820 A communication error occurred in phase 4 (modem parameter exchange). U01821 Operation was interrupted due to the absence of a common communication speed between units.
Page 403 1-5-1 Precautions for assembly and disassembly 1-5 Assembly and disassembly (1) Precautions Before starting disassembly, press the Power key on the operation panel to off. Make sure that the Power lamp is off before turning off the main power switch. Unplug the power cable from the wall outlet. When the fax kit is installed, be sure to disconnect the modular code before starting disassembly.
Page 404 A black-colored band when seen through the left side window ( A shiny or gold-colored band when seen through the right side window ( The above will reveal that the toner container is a genuine Olivetti branded toner container, otherwise, it is a counterfeit.
Page 405 1-5-2 Outer covers (1) Detaching and refitting the front cover Procedure 1. Remove the cassette.(See page 1-5-8) 2. Open the front cover. 3. Remove two films from the front cover. Film FIlm Film Figure 1-5-3 4. Unhitch the straps by squeezing the Strap Strap hooks inward as shown.
Page 406 5. Remove two fulcrum axes of the front Fulcrum section Fulcrum section cover. 6. Remove the front cover. Fulcrum axis Fulcrum axis Front cover Figure 1-5-5 (2) Detaching and refitting the rear cover Procedure. 1. Remove eight screws. 2. Pull the rear cover upwards and then Rear cover release three hooks.
Page 407 (3) Detaching and refitting the inner tray Procedure 1. Release the lock lever and then remove Lock lever the job separator tray. ATTENTION: When refitting the Job separator tray, are cautious of the posi- tion of a paper guide. Job separator tray Paper guide Figure 1-5-7 2.
Page 408 8. Release the hook of the front upper cover. 9. Tilt the front upper cover forward. Hook Front upper cover Figure 1-5-9 10. Remove the inner tray. Inner tray Figure 1-5-10 1-5-6 Service Manual Y116141-8...
Page 409 (4) Detaching and refitting the eject rear cover Procedure 1. Remove the screw and remove the eject rear cover. Eject rear cover Screw Figure 1-5-11 2. Release two hooks by using a flat screwdriver. Projections 3. Release two projections and remove the tray left cover.
Page 410 1-5-3 Paper feed section (1) Detaching and refitting the primary paper feed unit Procedure 1. Remove the cassette. Cassette Figure 1-5-13 2. Release the paper feed lever and then Paper feed lever remove the primary paper feed unit. 3. Check or replace the primary paper feed unit and refit all the removed parts.
Page 411 (2) Detaching and refitting the MP paper feed roller and MP separation pad Procedure 1. Open the right cover 1. Right cover 1 Figure 1-5-15 2. While squeezing the holder inward, remove the MP paper feed roller. Holders MP paper feed roller Figure 1-5-16 1-5-9 Y116141-8...
Page 412 3. Tilt the MP separation pad forward and then remove it upwards. 4. Check or replace the MP paper feed roller and MP separation pad and refit all the removed parts. 5. When replacing the new parts,proceed as follows: MP separation pad 1)Performs maintenance mode U901 (Checking copy counts by paper feed locations) (see page 1-3-193).
Page 413 (3) Detaching and refitting the registration roller Procedure 1. Open the right cover 1. 2. Remove the transfer roller unit. Registration roller right (See page 1-5-16) 3. Remove two springs at the front and back of the registration roller right. 4.
Page 414 (5) Detaching and refitting the MP tray Procedure 1. Open the right cover 1. 2. Remove the MP wire cover and then remove the connector. 3. Close the right cover 1. MP wire cover Connector Right cover 1 Figure 1-5-20 4.
Page 415 1-5-4 Developing section (1) Detaching and refitting the developing unit Procedure 1. Open the front cover. 2. Release the lock lever and then remove the waste toner box. Waste toner box Lock lever Figure 1-5-22 3. Turn the lock lever to the right and then knock down the duct cover forwards.
Page 416 4. Lift the lever and turn the duct holder Lever upwards. Duct holder Figure 1-5-24 5. Push the lock lever of the developer unit upwards and then remove the developer unit. 6. Check or replace the developer unit and refit all the removed parts. 7.
Page 417 1-5-5 Drum section (1) Detaching and refitting the drum unit Procedure 1. Open the front cover. 2. Release the waste toner box. (See page 1-5-13) 3. Turn the lock lever to the right and then knock down the duct cover forwards. (See page 1-5-14) 4.
Page 418 1-5-6 Transfer/separation section (1) Detaching and refitting the intermediate transfer unit Procedure 1. Open the right cover 1. Knobs A 2. Pull the intermediate transfer unit for- wards by holding two knobs A. 3. .Change to the knob B from the knob A Intermediate transfer unit and then remove the intermediate transfer unit.
Page 419 1-5-7 Fuser section (1) Detaching and refitting the fuser unit Procedure 1. Open the right cover 1. Mount levers 2. Release two mount levers and then pull the fuser unit forwards Right cover 1 Fuser unit Figure 1-5-30 3. Grip two knobs of the fuser unit. Knobs 4.
Page 420 1-5-8 Drive section (1) Detaching and refitting the drive unit 1 Procedure 1. Remove the rear cover. Connector (See page 1-5-4) Drive unit 1 2. Remove the connector. 3. Remove four screws and then remove the drive unit 1. 4. Check or replace the drive unit 1 and refit all the removed parts.
Page 421 (2) Detaching and refitting the drive unit 2 Procedure Connectors 1. Remove the rear cover. (See page 1-5-4) Connector 2. Remove five connectors. 3. Remove four screws and then remove the drive unit 2. 4. Check or replace the drive unit 2 and refit all the removed parts.
Page 422 1-5-9 Optical section (1) Detaching and refitting the laser scanner unit Procedure 1. Remove the cassette. (See page 1-5-8) 2. Remove the rear cover and left lower cover.(See page 1-5-4,1-5-5) 3. Remove two connectors. 4. Remove four screws and then remove the laser scanner unit assy by pulling it forwards.
Page 423 (2) Checks and adjusts the assembly frame of LSU unit Procedure 1. Performe maintenance mode U034 (Adjusting the print start timing). 2. Select [LSU OUT TOP] or [LSU OUT LEFT]. *: The screen for executing each item is displayed. 3. Press the system menu key. 4.
Page 424 (3) Color registration adjustment Follow the procedure below to replace the laser scanner unit. Procedure 1. Press the system menu key. 2. Press [Adjustment/Maintenance], [Color Registration]. Auto correction 3. Press [Auto] and then [Start]. A chart is printed. 4. Place the printed chart as the original and then [Start]. Color registration begins. Chart for adjustment Figure 1-5-40 Manual correction...
Page 425 8. Press [Chart] and [Print] to print a chart. 9. Verify that each scale is within the range of 1to A. If they are within the range, proceed to step 10. If scales are out of range, repeat steps 6 through 9. The scale must be corresponding within the range of "A"...
Page 426 12. Open the front cover and then pull out the waste toner box tray (see page 1-5-13). 13. Remove three bandage labels. 14. Rotate the adjustment knob using a 5 mm hex wrench. Direction of rotation (V-1 - V-5) >= 2 scales (sample 1): rotate counterclockwise. (V-1 - V-5) <= -2 scales (sample 2): rotate clockwise.
Page 427 (4) Detaching and refitting the image scanner unit Procedure 1. Remove two screws and then remove Scanner right cover Screw the scanner right cover. ATTENTION: To reinstall the scanner right cover, position it close to the Screw contact glass. Figure 1-5-46 2.
Page 428 Screw 3. Remove five screws and then remove Scanner cover the scanner cover. Screw Screw Screw Screw Figure 1-5-48 Screw 4. Remove the FFC and the connector. 5. Remove four screws and then remove Screw the image scanner unit. Screw Image scanner unit Screw Connector...
Page 429 Refitting the ISU 6. When re-installation, fix the image scanner unit by matching to the scale of a former position. When exchange, decide the fix position of ISU by the following. The right and left of machine: Confirm the number marked (a) and then match the line (c) of ISU to the positioning line (b) of same number on frame side.
Page 430 (5) Detaching and refitting the LED unit Procedure Screw 1. Remove the sanner right cover and contact glass.(See page 1-5-21) Scanner rear cover 2. Remove two screws and then remove the scanner rear cover. 3. Remove the rear cover. Screw Figure 1-5-51 Scanner front Screw...
Page 431 5. Move the exposure unit to the cutting FFC cover lack part. 6. Peel off the sheet. 7. Release the hook and then remove the FFC cover. Hook Sheet Exposure unit Figure 1-5-53 Screw 8. Remove the FFC from the connector. 9.
Page 432 (6) The cautions at the time of movement of an exposure unit Connector Caution: When you move an exposure unit manually, carry out after removing the connec- tor of a scanner motor. An ISC PWB may be damaged with the back electromotive force of a scanner motor.
Page 433 2NP-3 1-5-10 PWBs (1) Detaching and refitting the main PWB Procedure 1. Remove the rear cover. Wire saddle (See page 1-5-4) Connector 2. Release the wire saddle and the guide hook and then remove the connector Screw from the DP relay PWB. 3.
Page 434 2NP-2 5. Release the wires from the edging and Edging two wire saddles. Wire saddles 6. Remove five guide hooks. Guide hooks Wires Figure 1-5-58 7. Remove all connectors and FFC from the main PWB. Main PWB 8. Remove the wire guide and the controller fan motor.
Page 435 (1-1) Remarks on main PWB replacement When replacing the main PWB, remove the EEPROM (YC14) and DIMM (YS1,YS3) from the main PWB that has been removed and then reattach it to the new main PWB. Main PWB EEPROM YC14 Figure 1-5-60 When refitting DIMM, Refit them to the original positions.
Page 436 3. Reset machine settings.( Resets system menu settings modified at setup to their defaults.) Main items for settings [Date/Timer] - Date/Time settings [Date/Timer] - Timer settings (Sleep timer) [Edit Destination] - One-touch presetting [User/Job accounting] - Defaults for user authentication and job accounting only. Resettings are not required as the data are stored in harddisk.
Page 437 When connecting the USB cables (YC21, YC22, YC26) to the PWB, connect to the connectors which the cable length match. (Connecting to any connector is satisfactory.) Main PWB YC21 YC26 YC22 Figure 1-5-63 Detaching of EEPROM 1. The flat screwdriver is inserted between EEPROM EEPROM and socket.
Page 438 (2) Detaching and refitting the engine PWB Procedure Connector 1. Remove the main PWB.(See page 1-5- 2. Remove the connector from the ISC PWB. 3. Remove the wires by releasing three wire saddles. Wires ISC PWB Wire saddles Figure 1-5-65 4.
Page 439 2NP-2 7. Remove nine screws and then remove the controller box. FFC clamp Screws Controller box Screws Figure 1-5-67 8. Remove three wire saddles A. 9. Release the wires from the wire saddle Wire 10. Remove all connectors and FFC from Wires saddles A the engine PWB.
Page 440 (2-1) Remarks on engine PWB replacement NOTE: When replacing the PWB, remove the EEPROM (YS1) from the PWB and then reattach it to the new PWB. Engine PWB EEPROM (YS1) Figure 1-5-69 Detaching of EEPROM 1. The flat screwdriver is inserted between EEPROM EEPROM and socket.
Page 441 2NP-5 (3) Detaching and refitting the high voltage PWB Procedure 1. Remove the inner tray. (See page1-5-5) Projections 2. Remove the eject rear cover. (See page1-5-7) 3. Release two hooks and then remove the tray left cover. Tray left cover Hooks Hooks Flatscrew driver...
Page 442 2NP-5 Screw 5. Remove the fuser unit. Scanner right cover (See page1-5-17) 6. Remove two screws and scanner right cover. Screw 7. Remove the right upper cover. Right upper cover Figure 1-5-73 Screw 8. Remove two screws and scanner rear cover.
Page 443 2NP-5 Screw Scanner front 9. Remove two screws and scanner front upper cover upper cover. Screw Figure 1-5-75 10. Remove the staple holder. 11. Remove the screw and the staple cover. Staple cover Screw Staple holder Figure 1-5-76 1-5-41 Y116141-8 Service Manual...
Page 444 2NP-5 12. Release the lock part and then remove the upper cover B by sliding it to the left. Lock part Upper cover B Figure 1-5-77 13. Remove two screws and then remove Screw Screw the operation panel lower cover. Operation panel lower cover Figure 1-5-78...
Page 445 2NP-5 14. Remove four screws from the operation Screws panel upper unit. Screw Screw Screws Operation panel upper unit Screws Figure 1-5-79 ISU front cover 15. Remove the ISU front cover. Figure 1-5-80 1-5-43 Y116141-8 Service Manual...
Page 446 2NP-5 16. Remove the connector from the DP Screw relay PWB and release the wire from Mount board of Wire the wire saddle. DP relay PWB saddle 17. Remove two screws and the mount board of DP relay PWB. 18. Remove three connectors from the ISC ISC PWB PWB.
Page 447 2NP-5 20. Remove two screws from the eject unit. 21. Slide the eject unit to the right. Eject unit Screw Screw Figure 1-5-83 22. Remove six screws. 23. Release four hooks by sliding the high Screw voltage PWB upward. Screw Hooks Hooks Screw...
Page 448 2NP-5 24. Remove two connectors from the high voltage PWB. 25. Remove the high voltage PWB. 26. Check or replace the high voltage PWB Connector and refit all the removed parts. Connector High voltage PWB Figure 1-5-85 1-5-46 Service Manual Y116141-8...
Page 449 (4) Detaching and refitting the power source PWB Procedure 1. Remove the rear cover. (See page 1-5-4) 2. Remove seven screws and then remove the power source box cover. Screw Screws Screw Screw Screws Power source box cover Figure 1-5-86 PWB connector 3.
Page 450 (5) Detaching and refitting the operation panel PWB main Procedure 1. Open the front cover. Screw Screw 2. Open the right cover1. 3. Remove the front upper cover. 4. Remove two screws and then remove the operation panel lower cover. Operation panel lower cover Figure 1-5-88...
Page 451 Operation panel 6. Remove three connectors from the PWB main operation panel PWB main. 7. Remove the operation panel upper unit. Operation panel upper unit Connectors Figure 1-5-90 Screw 8. Remove three connectors from the Wire guide operatioon panel PWB main. 9.
Page 452 Screw 10. Remove all connectors and FFC from the operatioon panel PWB main. Screw 11. Remove six screws and remove the operation panel PWB main. Screw Screw 12. Check or replace the operation panel PWB main and refit all the removed Screw parts.
Page 453 (6) Detaching and refitting the IH PWB Procedure 1. Remove the controller box. (See page 1-5-33) 2. Remove the scanner right cover. (See page 1-5-21) 3. Remove the right upper cover. 4. Remove the right rear cover. Right upper cover Right rear cover Figure 1-5-93 5.
Page 454 1-5-11 Others (1) Detaching and refitting the language sheet Procedure 1. Insert a flat-head screwdriver and slide the operation panel covers A and B to remove them. Operation panel cover B Operation panel cover A Figure 1-5-95 Clear panel 2. Remove the clear panel. Figure 1-5-96 Operation 3.
Page 455 (2) Detaching and refitting the conveying unit Procedure 1. Remove the MP tray.(See page 1-5-12) 2. Open the right cover 1. Right cover 1 Figure 1-5-98 3. Remove two screws and then remove two straps. Screw Strap Screw Strap Figure 1-5-99 1-5-53 Y116141-8 Service Manual...
Page 456 4. Rotate the wire cover. 5. Remove two connectors. 6. Rotate the fulcrum axis and slide it for- ward. 7. Pull the right cover 1 backward and then remove it. Wire cover Right cover1 Connectors Fulcrum Figure 1-5-100 1-5-54 Service Manual Y116141-8...
Page 457 (3) Direction of installing the principal fan motors When detaching or refitting the fan moter,be careful of the airflow direction (intake or exhaust). Container/IH coil fan (Rating label:inside) Fuser fan 2 (Rating label: outside) Developer fan 2 Exhaust (Rating label:outside) Fuser fan 1 (Rating label:outside) Exhaust...
Page 458 This page is intentionally left blank. 1-5-56 Service Manual Y116141-8...
Page 459 2NP-5 1-6-1 Upgrading the firmware 1-6 Upgrading the firmware Follow the procedure to upgrade the firmware below. * Controller data * 1000-DF software * Operation panel data * 500x2-PF software * Engine PWB software * 3000-PF software * Scaner PWB software * DP software (Duplex/Reverse) * Operation panel PWB software * PUNCHUNIT software...
Page 460 2NP-5 Emergency-UPDATE If Safe Update is processed to the end, the firmware update is complete. In case the message below is indicated, update the firmware after recovery with the steps below. Note that this is unoperable when the device is operating normally. FW-Update Error FFFF...
Page 461 2-1-1 Paper feed/conveying section 2-1 Mechanical Construction The paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the feed paper to the transfer/separation section.
Page 462 EPWB FEED1_MOT_DIR YC25-11 LIFT_FULL1_SW YC4-16 FEED1_MOT_RDY YC25-12 PAPEMP1 YC4-15 FEED1_MOT_CLK YC25-13 PAPEMP2 YC4-14 FEED1_MOT_REM YC25-14 PAPER_LSIZE1_3 YC4-13 PAPER_LSIZE1_2 YC4-12 PAPER_LSIZEI_1 YC4-11 FEED1_CL_REM PAPER_WSIZE1 YC4-10 YC25-9 PFCL1 ECPWB LIFT_FULL1_SW YC5-3 PAPER_LSIZE1_3 YC7-1 PAPER_LSIZE1_2 PLSW1 YC7-2 PAPER_LSIZE1_1 YC7-4 PAPER_WSIZE1 PWSW1 YC7-5 PAPEMP1 YC6-3 PAPEMP2 YC6-6...
Page 463 (2) MP tray paper feed section The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper feed roller. Also, function of the MP separation pad prevents paper from multiple feeding. Figure 2-1-3 MP tray paper feed section 1.
Page 464 (3) Conveying section The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section by the right registration roller and left registration roller.
Page 465 2-1-2 Drum section The drum section consists of the drum, the charger roller unit, and the cleaning unit, and the drum surface is uniformly charged in preparation for formation of residual image by laser beam. After transfer is complete, toner remaining on the drum surface is chipped off with the cleaning blade and is collected to the waste toner box with the sweep roller.
Page 466 EPWB DRMCDIR YC16-9 DRMCRDY YC16-10 DRMCCLK -YCM YC16-11 DRMCREM YC16-12 DRMKDIR YC16-15 DRMKRDY YC16-16 DRM-K DRMKCLK YC16-17 DRMKREM YC16-18 ECPWB DRCPWB EEPROM EEPROM EEPROM EEPROM DRPWB-Y DRPWB-C DRPWB-M DRPWB-K Drum Drum Drum Drum unit Y unit C unit M unit K CL-Y CL-C CL-M...
Page 467 2-1-3 Developing section The developing unit consists of the sleeve roller that forms the magnetic brush, the magnet roller, the devel- oping blade and the developing screws that agitate the toner.Also, the toner sensor (TS) checks whether or not toner remains in the developing unit. Figure 2-1-9 Developer section 1.
Page 468 HVPWB TS-Y TS-C TS-M TS-K DEVPWB-Y DEVPWB-C DEVPWB-M DEVPWB-K EEPROM EEPROM EEPROM EEPROM DRCPWB DLPCDIR YC16-1 DLPCRDY YC16-2 TM-C TM-K DEVM DLPCCLK YC16-3 -CMY ECPWB DLPCREM YC16-4 TM-Y TM-M CLDLPREM DEVSCL YC16-8 DLPKDIR YC17-1 DLPKRDY YC17-2 DEVM DLPKCLK YC17-3 DLPKREM YC17-4 EPWB Figure 2-1-10 Developing section block diagram...
Page 469 2-1-4 Optical section The optical section consists of the image scanner section for scanning and the laser scanner section for print- ing. (1) Image scanner section The original image is illuminated by the exposure lamp (EL) and scanned by the CCD image sensor in the CCD PWB (CCDPWB) via the three mirrors and ISU lens, the reflected light being converted to an electrical signal.
Page 470 Original Contact glass YC6-9 YC6-8 VSET YC6-5 LEDPWB Lens Mirrer CCD_SEL YC9-35 CCDCLK2 Image YC9-4 sensor CCDCLK1 YC9-2 CCDPWB ISCPWB SMOT_AP YC5-1 Image scanner unit (ISU) SMOT_BP YC5-2 ISUM SMOT_AN YC5-3 SMOT_BN YC5-4 HP_SW YC8-3 Scanner unit YC25 MPWB Figure 2-1-13 Scanner unit block diagram 2-1-10 Service Manual Y116141-8...
Page 471 (2) Laser scanner section The charged surface of the drum is then scanned by the laser beam from the laser scanner unit. The laser beam is dispersed as the polygon motor (PM) revolves to reflect the laser beam over the drum. Various lenses and mirror are housed in the laser scanner unit, adjust the diameter of the laser beam, and focalize it at the drum surface.
Page 472 EPWB LSUCPWB APCPWB APCPWB APCPWB APCPWB Laser Laser Laser Laser scanner scanner scanner scanner unit Y unit C unit M unit K Figure 2-1-15 Laser scanner unit block diagram 2-1-12 Service Manual Y116141-8...
Page 473 2-1-5 Transfer/Separation section The transfer/separation section consists of the intermediate transfer unit section and the secondary transfer roller section. (1) Intermediate transfer unit section The intermediate transfer unit section consists of the transfer cleaning unit, the transfer belt, and the four pri- mary transfer rollers for respective color drums, and forms a full-color toner image by superimposing and transferring single-color toner images formed on each drum onto the transfer belt.
Page 474 Inter mediate transfer unit HVPWB-S EPWB T1_CONT_M DLPKDIR YC7-7 YC17-1 T1_CONT_Y DLPKRDY YC7-6 YC17-2 CL_CONT DEVM-K DLPKCLK YC7-4 YC17-3 T1_CONT_C DLPKREM YC7-3 YC17-4 T1_CONT_BK YC7-2 ECPWB ID1S YC4-1 ID1P IDS1 YC4-2 LEDREF1 YC4-4 ID2S YC4-6 ID2P YC4-7 IDS2 LEDREF2 YC4-9 TCCPWB TCPWB BLTREMA...
Page 475 (2) Secondary transfer roller section The secondary transfer roller section consists of the secondary transfer roller mounted to the paper conveying unit and the separation needle. To the secondary transfer roller, DC bias is applied from the high voltage PWB (HVPWB).
Page 476 2-1-6 Fuser section The paper sent from the transfer/separation section is interleaved between the heat roller and the press roller. The heat roller is heated by the IH coil (IHC), and the toner is fused by heat and pressure and fixed onto the paper because the press roller is pressed by the fuser press spring.
Page 477 FUSERDIR YC17-7 FUSERRDY YC17-8 FUSERCLK YC17-9 FUSERREM YC17-10 PRESS_MOT_OUTB YC30-2 FPRM PRESS_MOT_OUTA YC30-1 FSR_SW YC30-5 FUPWB YC30-17 YC5-1 PR_TH FTH3 YC30-11 YC5-7 YC4-1 HR_NCTH2 YC30-10 YC5-8 YC3-3 FTH2 HR_NCTH1 YC30-9 YC5-9 YC3-2 EG_TH YC30-15 YC5-3 YC2-2 FTH1 EPWB YC6-1 YC31-2 YC8-2 YC6-2 YC32-4...
Page 478 2-1-7 Eject/Feedshift section The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the fuser section to the inner tray, the job separator tray or the duplex conveying section. Figure 2-1-22 Eject/Feedshift section 6. Actuator (paper full sensor) 1.
Page 479 EPWB EJE_FULL_DOWN JPFS YC21-12 JS_LED JEPS YC21-14 EJE_FULL_UP YC21-9 EJE_SOL_REM FSSOL YC21-1 EJE_MOT_/B YC21-3 EJE_MOT_/A YC21-4 EJE_MOT_B YC21-5 EJE_MOT_A YC20-6 Figure 2-1-23 Eject/Feed shift section block diagram 2-1-19 Y116141-8 Service Manual...
Page 480 2-1-8 Duplex conveying section The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift section to the paper feed/conveying section when duplex printing. Figure 2-1-24 Duplex conveying section 1. Right cover 1 6. Duplex feed roller C 2.
Page 481 EPWB DU_SW YC24-3 DU_CL_REM YC25-3 DUCL Figure 2-1-25 Duplex conveying section block diagram 2-1-21 Y116141-8 Service Manual...
Page 482 This page is intentionally left blank. 2-1-22 Service Manual Y116141-8...
Page 483 2-2-1 Electrical parts layout 2-2 Electrical Parts Layout (1) PWBs 6,8,9 Front Inside Rear Figure 2-2-1 PWBs 2-2-1 Y116141-8 Service Manual...
Page 484 1. Main PWB (MPWB) ......Controls the software for print data processing and provides the interface with computers. 2. Engine PWB (EPWB)......Controls printer hardware such as high voltage/bias output con- trol, paper conveying system control, and fuser temperature con- trol, etc.
Page 485 28. Fuser PWB (FUPWB) ......Relays wirings from electrical components on the fuser unit. Fuser individual information in EEPROM storage. 29. Transfer PWB (TCPWB) ....... Relays wirings from electrical components on the intermediate transfer unit. Intermediate transfer individual information in EEPROM storage. 30.
Page 486 Name used in service manual Name used in parts list PARTS PWB ENGINE CONNECT ASSY SP Engine connect PWB (ECPWB) Option connect PWB (OPCPWB) PARTS PWB IH 200 ASSY SP IH PWB (IHPWB) Fuser PWB (FUPWB) Transfer PWB (TCPWB) PARTS PWB TRANSFER CONNECT ASSY SP Transfer connect PWB (TCCPWB) DP connect PWB 2-2-4...
Page 487 (2) Switches and sensors 40,41 30,31 43,44 Front Inside Rear Figure 2-2-2 Switches and sensors 1. Home position sensor (HPS) ....Detects the ISU in the home position. 2. Original detection switch (ODSW) ..Operates the original size detection sensor. 3.
Page 488 13. Registration sensor (RS)....... Controls the secondary paper feed start timing. 14. Duplex sensor (DUS) ......Detects a paper jam in the duplex section. 15. Eject sensor (ES) ........Detects a paper misfeed in the fuser or eject section. 16. Job paper full sensor (JPFS) ....Detects the paper full in the job separator tray. 17.
Page 489 2NP-5 (3) Motors 31,32 Front Inside Rear Figure 2-2-3 Motors 1. ISU motor (ISUM) ......... Drives the ISU. 2. Fuser motor (FUM) ....... Drives the fuser section. 3. Eject motor (EM) ........Drives the eject section. 4. Lift motor 1 (LM1)........Operates the bottom plate in the cassette 1. 5.
Page 490 2NP-5 14. Toner motor M (TM-M) ......Replenishes toner to the developer unit M. 15. Toner motor K (TM-K) ......Replenishes toner to the developer unit K. 16. Polygon motor Y (PM-Y) ...... Drives the polygon mirror Y. 17. Polygon motor C (PM-C)...... Drives the polygon mirror C. 18.
Page 491 (4) Others Front Inside Rear Figure 2-2-4 Others 1. Paper feed clutch 1 (PFCL1) ....Controls the primary paper feed from cassette 1. 2. Paper feed clutch 2 (PFCL2) ....Controls the primary paper feed from cassette 2. 3. Mid clutch 1 (MCL1)......Controls the paper conveying. 4.
Page 492 15. Operation panel PWB (OPPWB) ..Displays the operating state. 16. Speaker (SPK) ........Generates an error sound. 17. Hard disk (HDD)........Storages the image data and information of job accounting mode. 18. Cassette heater (CH) ......Dehumidifies the cassette section. 2-2-10 Service Manual Y116141-8...
Page 493 2-3-1 Main PWB 2-3 Operation of the PWBs YC25 YC12 BAT1 YC31 YC11 YC30 YC23 YC10 YC33 YC27 BLACK BLUE YC43 YC42 YC21 YC26 YC22 YC20 Figure 2-3-1 Main PWB silk-screen diagram 2-3-1 Y116141-8 Service Manual...
Page 494 Connector Signal Voltage Description Ground Connected to HDD data signal hard disk. HDD data signal Ground HDD data signal HDD data signal Ground TD1+ 0/3.3 V DC(pulse) Transmission data Connected to TD1- 0/3.3 V DC(pulse) Transmission data ethernet TD2+ 0/3.3 V DC(pulse) Transmission data TD2- 0/3.3 V DC(pulse)
Page 495 Connector Signal Voltage Description KMDET 0/3.3 V DC KMAS set signal Connected to Not used KMAS KMDREQ 0/3.3 V DC KMAS control signal KMACK 0/3.3 V DC KMAS control signal KMRXD 0/3.3 V DC(pulse) KMAS received data signal SGND Ground KMTXD 0/3.3 V DC(pulse) KMAS transmission data signal...
Page 496 Connector Signal Voltage Description YC10 DP_CONECT 0/3.3 V DC DPRPWB control signal Connected to DP_SYSCLK 0/3.3 V DC(pulse) DPRPWB clock signal DPIFPWB PCIEN3_DP2 0/3.3 V DC(pulse) Image data signal Ground PCIEP3_DP2 0/3.3 V DC(pulse) Image data signal Ground Ground PCIEN_REFC 0/3.3 V DC(pulse) DPRPWB clock signal LK_DP...
Page 497 Connector Signal Voltage Description YC10 PCIEN1_DP2 0/3.3 V DC(pulse) Image data signal Connected to +3.3V3 3.3 V DC 3.3V DC power output to DPRPWB DPIFPWB PCIEP1_DP2 0/3.3 V DC(pulse) Image data signal +3.3V3 3.3 V DC 3.3V DC power output to DPRPWB Ground +3.3V3 3.3 V DC...
Page 498 Connector Signal Voltage Description YC12 HUMAN_SEN Not used S_FAR Connected to JOB_LED 0/3.3 V DC JOB LED control signal operation 5V DC 5 V DC power output to OPPWB-M panel PWB main HUMAN_SEN Not used S_NEAR ANY_KEY 0/3.3 V DC ANY KEY return signal C2P_SCK 0/3.3 V DC(pulse)
Page 499 Connector Signal Voltage Description YC21 VBUS 5 V DC 5 V DC power output Connected to DATA- USB data signal USB host DATA+ USB data signal Not used Ground YC22 VBUS 5 V DC 5 V DC power output Connected to DATA- USB data signal DATA+...
Page 500 Connector Signal Voltage Description YC31 CD/DAT3 0/3.3 V DC Control signal Connected to 0/3.3 V DC Control signal SD card Ground 0/3.3 V DC Control signal 0/3.3 V DC Control signal Ground DAT0 0/3.3 V DC(pulse) Data bus signal DAT1 0/3.3 V DC(pulse) Data bus signal DAT2...
Page 501 Connector Signal Voltage Description YC43 HSYNCD_N 0/3.3 V DC(pulse) Image control signal Connected to HSYNCC_P 0/3.3 V DC(pulse) Image control signal engine PWB HSYNCC_N 0/3.3 V DC(pulse) Image control signal HSYNCB_P 0/3.3 V DC(pulse) Image control signal HSYNCB_N 0/3.3 V DC(pulse) Image control signal HSYNCA_P 0/3.3 V DC(pulse)
Page 502 2-3-2 Engine PWB YC29 YC22 YC25 YC18 YC23 YC36 YC34 YC32 YC10 YC30 YC19 YC17 YC24 YC31 YC35 YC15 YC21 YC20 YC16 YC11 YC12 YC28 YC27 YC26 YC13 YC33 YC14 Figure 2-3-2 Engine PWB silk-screen diagram 2-3-10 Service Manual Y116141-8...
Page 503 Connector Signal Voltage Description Ground Connected to Ground power source Ground Ground 5V DC 5 V DC power input from PSPWB 24V1 24 V DC 24 V DC power input from PSPWB 24V1 24 V DC 24 V DC power input from PSPWB 24V1 24 V DC 24 V DC power input from PSPWB...
Page 504 Connector Signal Voltage Description VSYNC_AP 0/3.3 V DC(pulse) Image control signal Connected to VSYNC_AN 0/3.3 V DC(pulse) Image control signal main PWB Ground SAR_VCLK_P 0/3.3 V DC(pulse) Clock signal SAR_VCLK_N 0/3.3 V DC(pulse) Clock signal Ground SAR_CH3_P 0/3.3 V DC(pulse) Image control signal SAR_CH3_N 0/3.3 V DC(pulse)
Page 505 Connector Signal Voltage Description LIFT_MOT1_ 0/3.3 V DC LM1: On/Off Connected to LIFT_MOT2_ 0/3.3 V DC Alarm signal engine connect LIFT_MOT2_ 0/3.3 V DC LM2: On/Off LIFT_FULL2_ 0/3.3 V DC LS2: On/Off PF_PAUSE 0/3.3 V DC PF control signal PF_SET 0/3.3 V DC PF sleep return signal PF_RDY...
Page 506 2NP-5 Connector Signal Voltage Description Ground Connected to BLT_SDA 0/3.3 V DC Data signal engine Ground connect BLT_SCL 0/3.3 V DC Clock signal 3.3V1 3.3 V DC 3.3 V DC power output to ECPWB Connected to 3.3V2 3.3 V DC 3.3 V DC power output to ECPWB engine Ground...
Page 507 Connector Signal Voltage Description MISENS Analog Chager roller AC current signal Connected to HVU1_REM 0/10 to 24 V DC Developer bias remote signal high voltage (pulse) DC_SLV_BK Analog Developer sleeve roller bias control voltage (black) DC_MAG_M Analog Developer magnet roller bias control voltage (magenta) DC_MAG_BK Analog...
Page 508 Connector Signal Voltage Description 3.3V1 3.3 V DC 3.3 V DC power output to RFPWB Connected to RFID_SCL 0/3.3 V DC(pulse) RFIDPWB EEPROM clock signal RFID PWB RFID_SDA 0/3.3 V DC(pulse) RFIDPWB EEPROM data signal Ground YC10 SUB_SCL 3.3V Clock signal Connected to SUB_SDA 3.3V...
Page 509 Connector Signal Voltage Description YC12 MCV_TXD 0/5 V DC(pulse) Serial comunication data signal Connected to Ground coin vender MCV_RXD 0/5 V DC(pulse) MCV: On/Off Ground YC13 DATABK_N LVDS Video data LVDS(-) (black) Connected to DATABK_N LVDS Video data LVDS(+) (black) LSU connect SH_BK 0/3.3 V DC...
Page 510 Connector Signal Voltage Description YC14 A12 GND Ground Connected to A13 24V1 24 V DC 24 V DC power output to PM LSU connect A14 GND Ground A15 24V1 24 V DC 24 V DC power output to PM LSU_MOT_O 24 V DC/0V LSUCM drive voltage output LSU_MOT_O...
Page 511 Connector Signal Voltage Description YC15 Ground Connected to 3.3V1 3.3 V DC 24 V DC power output to BRES bridge PWB 24V1 24 V DC 24 V DC power output to BRPWB YC16 DLPCDIR 0/5 V DC DEVM-YCM drive change signal Connected to DLPCRDY 0/3.3 V DC...
Page 512 Connector Signal Voltage Description YC18 24V1 24 V DC 24 V DC power output to IHFM Connected to IH_FAN1_RE 0/24 V DC IHFM: On/Off IH fan motor IH_FAN1_AL 0/3.3 V DC IHFM alarm signal YC19 24V1F3 24 V DC 24 V DC power output to C/IHCFM Connected to IH_FAN2_RE 0/24 V DC...
Page 513 Connector Signal Voltage Description YC21 EJE_FULL_U 0/3.3 V DC PFS: On/Off Connected to 3.3V1_A 3.3 V DC 3.3 V DC power output to JEPS feed sift Ground solenoid, EJE_FULL_D 0/3.3 V DC JEPS: On/Off eject motor, paper full Ground sensor, job paper full JS_LED 0/3.3 V DC...
Page 514 Connector Signal Voltage Description YC25 24V1F1 24 V DC 24 V DC power output to MPSOL Connected to MPF_SOL_R 0/24 V DC MPSOL: On/Off MP solenoid, duplex DU_CL_REM 0/24 V DC DUCL: On/Off clutch, 24V1F1 24 V DC 24 V DC power output to DUCL middle RES_CL_RE 0/24 V DC...
Page 515 Connector Signal Voltage Description YC27 PAPER_LSIZ 0/3.3 V DC PLSW2_3: On/Off E2_3 Connected to PAPER_LSIZ 0/3.3 V DC PLSW2_2: On/Off paper length E2_2 switch2, Ground paper width PAPER_LSIZ 0/3.3 V DC PLSW2_1: On/Off switch2 E2_1 PAPER_WSIZ 0/3.3 V DC PWSW2: On/Off Ground YC28 FEED2_CL_R...
Page 516 Connector Signal Voltage Description YC30 FSR_PRE_S 0/3.3 V DC FPRS: On/Off Connected to HR_NCTH1 Analog FTH detection voltage (center) fuser HR_NCTH2 3.3V Clock signal thermistor PR_TH Analog FTH detection voltage (press roller) 1,2 and eject FUSER_SDA Analog FTH detection voltage (center) sensor, fuser press release FUSER_SCL...
Page 517 2-3-3 Engine connect PWB YC12 YC16 YC12 YC15 YC13 YC11 YC10 Figure 2-3-3 Engine connect PWB silk-screen diagram 2-3-25 Y116141-8 Service Manual...
Page 518 Connector Signal Voltage Description 24V1 24 V DC 24 V DC power input from PSPWB 24V1 24 V DC 24 V DC power input from PSPWB Connected to power source Ground Ground ID1S Analog IDS1 detection signal ID1P Analog IDS1 detection signal Connected to engine PWB Analog...
Page 519 2NP-5 Connector Signal Voltage Description PF_SO 0/3.3 V DC (pulse) Serial comunicatuion data signal PF_SI 0/3.3 V DC (pulse) Serial comunicatuion data signal Connected to engine PWB PF_CLK 0/3.3 V DC (pulse) Clock signal FAN_B_HALF 0/3.3 V DC CM1 drive chane signal FAN_B_FULL 0/3.3 V DC CM1: On/Off...
Page 520 Connector Signal Voltage Description Ground Connected to Ground engine PWB 3.3V2 0/3.3 V DC 3.3 V DC power input from EPWB 3.3V1 0/3.3 V DC 3.3 V DC power input from EPWB ID1S Analog IDS1 detection signal Connected to ID1P Analog IDS2 detection signal ID sensor1,2...
Page 521 Connector Signal Voltage Description 3.3V1 3.3 V DC 3.3 V DC power output to TS Connected to Ground drum TCSENSE_Y Analog TS-Y detection signal connect ERASER_EN 0/3.3 V DC CL_COL control signal _COL TCSENSE_C Analog TS-C detection signal TCSENSE_M Analog TS-M detection signal TCSENSE_B Analog...
Page 522 2NP-5 Connector Signal Voltage Description YC11 3.3V1_A 3.3 V DC 3.3 V DC power output to WTS WTC_FULL_ 0/3.3 V DC WTS: On/Off Connected to waste toner sensor WTC_FULL_I Analog WTS detection signal 3.3V1 3.3 V DC 3.3 V DC power output to WTS YC12 3.3V1_A 3.3 V DC...
Page 523 Connector Signal Voltage Description YC15 3.3V1 3.3 V DC 3.3 V DC power output to PF Connected to Ground PF main Ground YC16 3.3V1_A 3.3 V DC 3.3 V DC power output to LS2 Connected to Ground lift sensor1 LIFT_FULL2_ 0/3.3 V DC LS2: On/Off and lift...
Page 524 2-3-4 ISC PWB YC14 Figure 2-3-4 ISC PWB silk-screen diagram 2-3-32 Service Manual Y116141-8...
Page 525 Connector Signal Voltage Description SC_CLK 0/3.3 V DC (pulse) Scanner clock signal Connected to SC_SO 0/3.3 V DC (pulse) Serial communication data signal main PWB SC_SI 0/3.3 V DC (pulse) Serial communication data signal SC_BSY 0/3.3 V DC Scanner busy signal SC_HLDN 0/3.3 V DC Scanner hold signal...
Page 526 Connector Signal Voltage Description +3.3V 3.3 V DC 3.3 V DC power output to HPS Connected to Ground home posi- HP_SW 0/3.3 V DC HPS: On/Off tion sensor Ground Connected to CCDCLK1 0/3.3 V DC (pulse) Clock signal CCD PWB Ground CCDCLK2 0/3.3 V DC (pulse) Clock signal...
Page 527 Connector Signal Voltage Description Ground Connected to CCDSEL 0/3.3 V DC Select signal CCD PWB Ground AFE_MCLK 0/3.3 V DC (pulse) Clock signal GND(AFE_SH Ground CLPIN 0/3.3 V DC Clamp signal GND(AFE_SH Ground Ground YC11 +5.1V 5 V DC 5 V DC power output to CCDPWB Connected to Ground CCD PWB...
Page 528 Connector Signal Voltage Description YC14 +3.3V 3.3 V DC 3.3 V DC power output to ODSW Connected to Ground original CO_SW 0/3.3 V DC ODSW: On/Off detection switch 2-3-36 Service Manual Y116141-8...
Page 529 2-3-5 IH PWB YC10 Figure 2-3-5 IH PWB silk-screen diagram 2-3-37 Y116141-8 Service Manual...
Page 530 2NP-5 Connector Signal Voltage Description IH_NEUTRAL AC100V AC input voltage Connected to IH_LIVE AC100V AC input voltage AC connect Analog Low side IGBT case temperature Connected to Analog High side IGBT case temperature IH control AC_CURREN Analog AC input current AC_VOLTAGE Analog AC input voltage...
Page 531 Connector Signal Voltage Description YC10 IH_OUT2 1000 V DC Resonance circuit output Connected to IH coil CAUTION: Connectors YC1, YC3, YC6, YC9 and YC10 are not grounded, therefore, use caution not to damage the connectors during measurement of voltages. 2-3-39 Y116141-8 Service Manual...
Page 532 2-3-6 Operation panel PWB main YC20 YC17 Figure 2-3-6 Operation panel PWB main silk-screen diagram 2-3-40 Service Manual Y116141-8...
Page 533 Connector Signal Voltage Description 5 V DC 5 V DC power output to OPWB2 Connected to Not used operation INT_POWER Power key: On/Off 0/3.3 V DC panel PWB KEY_N Ground KEY6 0/3.3 V DC (pulse) Operation panel key scan return signal 6 Not used LED3 0/3.3 V DC (pulse) Operation panel LED display drive...
Page 534 Connector Signal Voltage Description BOTTOM Y+ Analog Touch panel Y+ position signal Connected to LEFT X- Analog Touch panel X- position signal touch panel TOP Y- Analog Touch panel Y- position signal RIGHT X+ Analog Touch panel X+ position signal LED_A 0/3.3 V DC LED control signal...
Page 535 Connector Signal Voltage Description YC15 +5V6 5 V DC 5 V DC power input from MPWB Connected to +5V6 5 V DC 5 V DC power input from MPWB main PWB +5V6 5 V DC 5 V DC power input from MPWB Ground Ground Ground...
Page 536 Connector Signal Voltage Description YC20 LCD control signal 0/3.3 V DC Connected to LCD control signal 0/3.3 V DC LCD control signal 0/3.3 V DC LCD control signal 0/3.3 V DC LCD control signal 0/3.3 V DC LCD control signal 0/3.3 V DC LCD control signal 0/3.3 V DC...
Page 537 2-3-7 Power source PWB YC13 YC14 YC12 YC10 YC16 YC17 YC11 NEUTRAL LIVE LIVE NEUTRAL TRA701 LIVE LIVE 5 6 NEUTRAL LIVE LIVE Figure 2-3-7 Power source PWB silk-screen diagram 2-3-45 Y116141-8 Service Manual...
Page 538 Connector Signal Voltage Description LIVE 220-240 V AC AC power input NEUTRAL 220-240 V AC Connected to AC power input AC inlet and LIVE 220-240 V AC AC power input AC connect LIVE 220-240 V AC AC power input from MSW Connected to LIVE 220-240 V AC...
Page 539 Connector Signal Voltage Description YC13 24V1 Not used Connected to 24V1 Not used ISC PWB 24V1 24 V DC 24 V DC power output to DFMPWB and DF main 24V1 24 V DC 24 V DC power output to DFMPWB 24V1 24 V DC 24 V DC power output to ISCPWB...
Page 540 This page is intentionally left blank. 2-3-48 Service Manual Y116141-8...
Page 541 2NP-2 2-4-1 Appendixes 2-4 Appendixes (1) List of maintenance parts Maintenance part name Alternative Part No. part No. Name used in service manual Name used in parts list AVGR18367M Registration cleaner PARTS CLEANING REGIST ASSY SP AVGR18255A Primary paper feed unit PARTS PRIMARY FEED ASSY SP AVGR18278H MP paper feed roller...
Page 542 (2) Maintenance kits Maintenance part name Parts No. Name used in service Name used in parts list B1095 MK-8325A/MAINTENANCE MK-8325A/MAINTENANCE KIT (200,000 sheets) Drum unit DK-8325 Developer unit K DV-8325K Fuser unit FK-8325 Intermediate transfer unit IMAGE UNIT MK Transfer roller unit HOLDER TRANSFER ASSY Primary feed unit PRIMARY FEED ASS'Y...
Page 543 2NP-2 (3) Periodic maintenance procedures Check the maintenance counts by the maintenance mode U901. CH: Check, CL: Clean, AD: Adjust, LU: Lubrication, RE: Replace Periodic maintenance (x1000 counts) Maintenance Section Points and cautions Page part/location User call Test copy Copy Quaity and test print Periodic maintenance...
Page 544 2NP-2 Periodic maintenance (x1000 counts) Maintenance Section Points and cautions Page part/location User call Image Contact glass CL: Slit glass for DP: Clean by dry P.1-5-25 Scaner cloth or alcohol (attention: wet cloth section is strictly prohibited.) when inatalling DP,clean with dry cloth. Contact glass for putting the original on: Dry cloth after cleaning with alcohol (FACE SIDE)
Page 545 2NP-2 Periodic maintenance (x1000 counts) Maintenance Section Points and cautions Page part/location User call Cover Covers CL: Alcohol or dry cloth Inside of machine CL: VACUUM: Remove toner and paper dust especially at the paper conveying part and around the image formation part.
Page 546 2NP-3 (4) Repetitive defects gauge First occurrence of defect 37.7 mm/1 Chager roller 1/2” 46.5 mm/1 Left registration roller 13/16” 50.3 mm/2” Developing roller 62.0 mm/2 Right registration roller 7/16” 65.7 mm/2 Transfer roller 9/16” 94.2 mm/3 Drum/Press roller 11/16” 125.7 mm/4 Heat roller 15/16”...
Page 547 (5) Firmware environment commands The printer maintains a number of printing parameters in its memory. These parameters may be changed per- manently with the FRPO (Firmware RePrOgram) commands. This section provides information on how to use the FRPO command and its parameters using examples. Using FRPO commands for reprogramming the firmware The current settings of the FRPO parameters are listed as the optional values on the service status page.
Page 548 Factory Item FRPO Setting values setting Default emulation mode 6: PCL 6 6(KDA:9) 9: KPDL Carriage-return action * 0: Ignores 0x0d 1: Carriage-return 2: Carriage-return+linefeed Linefeed action * 0: Ignores 0x0d 1: Linefeed 2: Linefeed+carriage-return Automatic emulation sensing 0: AES disabled 0(KDA:1) (For KPDL3) 1: AES enabled...
Page 549 Factory Item FRPO Setting values setting Default paper size 0: Size of the default paper cassette (See R4.) 1: Monarch (3-7/8 × 7-1/2 inches) 2: Business (4-1/8 × 9-1/2 inches) 3: International DL (11 × 22 cm) 4: International C5 (16.2 × 22.9 cm) 5: Executive (7-1/4 ×...
Page 550 Factory Item FRPO Setting values setting Country code 0: US-ASCII 1: France 2: Germany 3: UK 4: Denmark 5: Sweden 6: Italy 7: Spain 8: Japan 9: US Legal 10: IBM PC-850 (Multilingual) 11: IBM PC-860 (Portuguese) 12: IBM PC-863 (Canadian French) 13: IBM PC-865 (Norwegian) 14: Norway 15: Denmark 2...
Page 551 Factory Item FRPO Setting values setting Default weight 0: Courier = darkness (courier and letter Gothic) Letter Gothic = darkness 1: Courier = regular Letter Gothic = darkness 4: Courier = darkness Letter Gothic = regular 5: Courier = regular Letter Gothic = regular Color mode 0: Monochrome (grayscale)
Page 552 Factory Item FRPO Setting values setting Paper type for paper cassettes 1 1: Plain to 2 3: Preprinted 5: Bond 6: Recycled 9: Letterhead 10: Color 11: Prepunched 17: High quality 21: Custom1 22: Custom2 23: Custom3 24: Custom4 25: Custom5 26: Custom6 27: Custom7 28: Custom8...
Page 553 Factory Item FRPO Setting values setting Duplex operation for specified 0: Off paper type 1: On (Prepunched, Preprintedand Let- terhead) Default operation for PDF direct 0: Enlarges or reduces the image to fit in the printing current paper size. Loads paper from the current paper cassette.
Page 554 2NP-3 (6) System Error (Fxxxx) Outline The document is subscribed to describe the outline of the factors of the Fxxx errors that are not described in service manual. Please utilize it to refer to checking the factors. Please utilize it as the measures when the system is not recovered after power off/on or it frequently occurs.
Page 555 Check procedure & check point Content Team Remark 1 Remark 2 1) Check connection of the harness (Panel to Main board), (Main board to HDD) and connectors and check function. 2) Check contact of the DDR memory by detaching and reattaching. and check function.
Page 556 Check procedure & check point Content Team Remark 1 Remark 2 [DDR2 memory contact check] F21X 1) Check contact of the DDR memory and check function. Main board:YS1 or YS3 2) Format the HDD and check function. (U024 FULL formatting) A certain part of the memory 3) Execute the U021 Memory initializing to initialize the controller backup memory be faulty.
Page 557 Check procedure & check point Content Team Remark 1 Remark 2 *The F46F is printer process 1) Replace the main board and check function. error. if it repeats with a An error is detected at the PrintRIP/ F46X 2) Retrieve the USBLOG certain print data, retrieve Print image process section Color...
Page 558 Check procedure & check point Content Team Remark 1 Remark 2 1) Format the HDD and check function. (U024 FULL formatting) F69X 2) Execute the U021 Memory initializing to initialize the controller backup memory F6AX An error is detected at the and check function.
Page 559 (7) Chart of image adjustment procedures Maintenance mode Adjusting Item Image Description Original Page Remarks order Item No. Mode Adjusting the magnification in the Drive motor speed adjustment U053 DRUM U053 test pattern P.1-3-42 auxiliary scanning direction (printing adjustment) Adjusting the center line of the MP Adjusting the LSU print start timing U034 LSU OUT LEFT /MPT...
Page 560 Maintenance mode Adjusting Item Image Description Original Page Remarks order Item No. Mode Adjusting the center line Adjusting the original scan data U067 FRONT Test chart P.1-3-47 U067: For copying an original placed on the platen. (scanning adjustment) (image adjustment) ROTATE To make an adjustment for rotate copying, select ROTATE.
Page 561 (8) Wiring diagram 3.3V1 3.3V1 RFID_SCL RFID_SCL RFPWB EPWB RFID_SDA RFID_SDA YC16 CW/CCW DLPCDIR DLPCRDY DLPCCLK YC10 DEVM-CMY Start/Stop DLPCREM SUB_SCL SEC_CLK SUB_SDA SEC_DATA SPWB 24V1 24V1 3.3V1 3.3V1 24V1F1 DEVSCL 24V1 CLDLPREM CW/CCW DLMCDIR DLMCRDY YC29 24V1 F #187 DLMCCLK DRM-CMY Start/Stop...
Page 562 YC10 YC13 VDN(K) DATABK_N VDP(K) DATABK_P 24V1 24V1 SH(K) SH_BK PGND BD(K) BD_BK PM-Y Start/Stop MP(Y)_REM SGND Lock MP(Y)_RDY VDN(M) DATAM_N Clock MP(Y)_CLK VDP(M) DATAM_P SH(M) SH_M VDP(Y) BD(M) BD_M VDN(Y) SGND Relay YC43 LASER SUCANNER VCONT VCONT VDN(C) APCPWB DATAC_N UNIT-Y SH(Y)
Page 563 2NP-5 ID1S ID1S ID1P ID1P 3.3V4 3.3V4 3.3V1 LEDREF1 LEDREF1 TCSENSE TCSENSE(Y) ID2S ID2S TS-Y 3.3V4 TCSENSE(Y) TCSENSE_Y ID2P ID2P ERASER_REM(Col) ERASER_EN_COL LEDREF2 LEDREF2 TCSENSE(C) TCSENSE_C FAN_C_HALF FAN_C_HALF TCSENSE(M) TCSENSE_M FAN_C_FULL FAN_C_FULL TCSENSE(K) TCSENSE_BK RESIST_SW RESIST_SW DEVPWB-Y DLP_TH DLP_TH PAPER_WSIZE1 PAPER_WSIZE1 ERATHER_REM(K) ERASER_EN_BK...
Page 564 YC16 YC33 3.3V1_A 3.3V1_A DF_CLK Relay DF_SDO Vout LIFT_FULL2_SW DF_SEL DF_SDI DF_RDY LIFT_MOT2_OUTB DF_DET LIFT_MOT2_OUTA ENGINE CONNECT PWB DFMPWB From LVU (P.5) YC26 3.3V4 3.3V1_A Vout PAPEMP3 EPWB 3.3V4 3.3V1_A Vout PAPEMP4 3.3V1_A FEED2_SW 3.3V4 RCOVER Relay Vout Relay YC12 24V1 RCSW2 MCV_ENBL...
Page 565 Controller BOX PS BOX YC30 ROTATION ROTATION PR_TH FTH3 HR_EDGE EG_TH 3.3V1 3.3V1 FUSER_SCL FUSER_SCL HR_NCTH2 FUSER_SDA FUSER_SDA HR_NCTH1 FTH1 PR_TH PR_TH HR_NCTH2 HR_NCTH2 YC17 HR_NCTH1 HR_NCTH1 Relay FTH2 SLEEP POWER_OFF FSR_PRE_SW EG_TH DRM_HEAT_REM DRMHEAT_REM 3.3V1_A FSR_SW FUPWB 3.3V1_A YC12 PRESS_MOT_OUTB 24V1 24V1...
Page 566 MPWB GND(AFE_SHP) GND(AFE_SHP) CLPIN 39 CLPIN YC25 GND(AFE_SHD) GND(AFE_SHD) MCLK AFE_MCLK HTPDN HTPDN CCDSEL CCDSEL LOCKN LOCKN TXCLK1P DIS_CISCKN TX0N RX0N YC10 TXCLK1N DIS_CISCKP TX0P RX0P DP_CONECTN DP_CONECTN TXOUTC1P 30 DIS_CIS_5N DP_SYSCLKOUT DP_SYSCLKOUT HTPDN TXOUTC1N DIS_CIS_5P PCIEN3_DP2A PCIEN3_DP2A LOCKN 28 GND To DP TXOUTB1P DIS_CIS_4N...
Page 567 YC20 M PCB 3.3V2 KMDET 12 KMDET 3.3V2 PHS TXD KMDREQ 10 KMDREQ SGND SGND STVD KMACK KMACK PHS DTR KMRXD KMRXD 5V OUT SGND SGND PHS RTS KMTXD KMTXD N.C. SGND SGND PHS DCD SGND SGND N.C. 11 STVU SGND SGND PHS RXD...
Page 568 KUIOCPWB KUIOPWB VBUS1 VBUS USB_DN1 USB_DN VBUS1 VBUS1 USB_DP1 USB_DP USB_DN1 USB_DN1 USB_DP1 USB_DP1 YC15 PF_CLK PF_CLK AUDIO1 AUDIO1 PF_SI PF_SI WAKEUP1 WAKEUP1 PF_SO PF_SO RESET1 RESET1 PF_SEL PF_SEL PF_RDY PF_RDY VBUS0 VBUS0 PF_SET PF_SET ECPWB USB_DN0 USB_DN0 PF_PAUSE PF_PAUSE PF UNIT USB_DP0 11 USB_DP0...
Page 569 Installation Guide DP-770(B) / (Document processor) DP-772 / (Document processor) Installation Guide...
Page 570 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 DP-770(B) DP-772(B) for Black & White MFP for Color MFP 25/25ppm 30ppm,35ppm...
Page 571 DP-772 G(M4x14)(8) J(M3x8) (M3x8) Angle control fitting..........1 M3 × 8 screw BLACK ......... 1 English E-1. DP cable cover1 *2..........1 Label “Operation procedure” ........1 Supplied parts E-2. *: for metric specification DP cable cover2 *2..........1 **: for inch specification DP ................
Page 572 O. DP cable cover B ........1 Be sure to remove any tape and/or cushioning P. DP cable cover C ........1 materials from the parts supplied. *3:(O) and (P) are supplied with the machine. O. Couvercle du câble du DP B ....
Page 573 G(M4x14) G(M4x14) NOTICE Procedure Attach the fixing fitting (DP-770(B)) The illustrations of the DP in the Installation Before starting installation, be sure to turn the 1.Align projections (1) of each fixing fitting (C) Guide are for DP-772. main power switch of the machine off, and with holes (2) on the MFP and insert the fix- unplug the power plug from the wall outlet.
Page 574 G(M4x14) G(M4x14) G(M4x14) G(M4x14) C (C*) C (C*) Attach the fixing fitting (DP-772) Install the DP 5.Install DP (A) onto the MFP securely with pin 1.Align the projections (1) on the right fixing fit- 3.Align hinge hole (3) of DP (A) with pin (4) of (F) and two M4 ×...
Page 575 G(M4x14) Install the angle control fitting To adjust DP open-close angle 30 degrees 9.Remove stop ring (11) of angle control fitting To adjust DP open-close angle 60 degrees 7.Open the upper cover (6) of the DP (A). (D) that has been installed in step 6 to 6.Install angle control fitting (D) at the rear side 8.Remove the four screws (7) and (8) .
Page 576 Connect the DP signal line (DP-770(B) only) Insert shaft (12) into the rear side of the right hinge. Attach stop ring (11) to the notch of shaft (12) and secure shaft (12). For the DP-772, proceed to step 13 on page 8. Reinstall the rear cover (10) using the four screws (7) and (8) removed in step 13.Remove the screw (13) and remove the DP cable connection cover 8.Attach the strap (9) in the rear cover (10).Close the upper cover (6) of the...
Page 577 14.Pass the DP signal line cable (15) along the 15.Connect the DP signal line connector (16) to 16.Install the DP cable cover B (O). large groove in the DP cable cover B (O). the connector (17) of the ISC PWB. 14.Passez le câble de la ligne du signal DP (15) 15.Raccordez le connecteur de ligne de signal 16.Installez le couvercle B du câble DP (O).
Page 578 17.Attach the DP cable cover C (P) to the DP Connect the DP signal line (DP-772 only) 14.Remove the two screws (20). Remove the cable cover B (O) and install the DP cable 13.Remove the screw (18).Remove the DP cover (21) from the machine. cover C (P) using the screw (13) removed in relay PWB cover (19).
Page 579 15.Remove the screw (22) and remove the DP 16.Pass the DP signal line cable (24) along the large groove in the DP cable cover B (O).Pass the cable connection cover (23). CIS data line cable (25) along the other small groove. *(23) is not used.
Page 580 17.Connect the DP signal line connector (26) to the connector (27) of the Installing the DP relay PWB ISC PWB. 18.Connect connector (28) on the DP relay PWB (M) to connector (29) on the MFP. 17.Raccordez le connecteur de ligne de signal DP (26) sur le connecteur Installation de la carte de circuit imprimé...
Page 581 N(M3x8) 19.Secure the DP relay PWB (M). Secure it with the two M3 × 8 screws 20.Plug the CIS data line (25) into the connetor (30) on the DP relay PWB (N) supplied with the DP-772. (M). 19.Fixez la DP relay PWB (M). Fixez-la avec les deux vis M3 × 8 (N) 20.Enficher le câble de la ligne des données du CIS (25) dans le con- fournies avec le DP-772.
Page 582 21.Install the DP cable cover B (O). 22.Attach the DP cable cover C (P) to the DP cable cover B (O) and install the DP cable cover C (P) using the screw (22) removed in step 15. 23.Install the cover (21) using the 2 screws (20) removed in step 14. 24.Install the DP relay PWB cover (19) using the screw (18) removed in step 13.
Page 583 Fasten the original mat. 25.Place original mat (B) with its Velcro (31) upward over the contact glass. Align original mat (B) corner that has 90 degrees of angle with the inner left corner of the original instruction panel. 26.Close DP (A) and attach original mat (B) onto it with Velcro. Fixer la plaque d’original.
Page 584 J(M3x8) Installing the hinge cover (DP-772 only) 28.Install the right hinge cover (I) using the M3 For the DP-770(B), proceed to step 29 on page × 8 screw BLACK (J). 27.Install the left hinge cover (H). Installation des couvercles de charnière 28.Installer le couvercle de la charnière droite (DP-772 uniquement) (l) à...
Page 585 Adhere the label 30.Adhere Label “Operation procedure” (K) of 31.Adhere Caution label “Original face up!” (L) 29.Clean the label on the original table with which the language corresponding to the of which the language corresponding to the alcohol. destination of the MFP onto the existing destination of the MFP onto the label on the label on the original table.
Page 586 20mm 20mm 20mm 20mm [Operation check] 1.To check the machine operation, prepare original (a) where 4 lines (b) are drawn 20 mm from the edges of the A3 sheet and 1 line (c) is drawn at its center. 2.Connect the power plug of the MFP into the wall outlet and turn the main power switch on. 3.Set the original (a) on the DP and perform a test copy to check the operation and the copy example.
Page 587 20mm 20mm 20mm 20mm 4.Compare original (a) with the copy example. If the gap exceeds the reference value, perform the following adjustments according to the type of the gap. Check images of the DP after checking and adjusting images of the MFP. For details, see the service manual. NOTICE: If there is any image fogging, adjust the U068 DP scanning position.
Page 588 Be sure to adjust in the following order. If not, the adjustment cannot be performed correctly. For checking the angle of leading edge, see page 20. <Reference value> Simplex copying: within ±3.0 mm; Duplex copying: within ±4.0 mm For checking the angle of trailing edge, see page 23. <Reference value>...
Page 589 For checking the magnification, see page29. <Reference value> Within ±1.5% For checking the leading edge timing, see page 31. <Reference value> Within ±2.5 mm For checking the center line, see page 33. <Reference value> Simplex copying: within ±2.0 mm; Duplex copying: within ±3.0 mm Pour vérifier l’agrandissement, reportez-vous à...
Page 590 [Checking the angle of leading edge] 1.Check the horizontal gap between line (1) of original (a) and line (2) of copy example positions. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> For single copying: The horizontal gap of line (2) should be within ±3.0 mm. For duplex copying: The horizontal gap of line (2) should be within ±4.0 mm.
Page 591 C (C*) C (C*) DP-770(B): Remove the angle control fitting (D). Loosen the 2 M4 × 14TP screws (G) on the left and right fixing fittings (C). DP-772: Remove the left hinge cover (H) and the angle control fitting (D). Loosen the 2 M4 × 14TP screws (G) on the left and right fixing fittings (C)(C*) 3.Turn adjusting screw (3) at the rear side of the right hinge to adjust the DP position.
Page 592 5.Repeat the steps above until the gap of line (2) of copy example shows the following reference values. <Reference value> For single copying: The horizontal gap of line (2) should be within ±3.0 mm. For duplex copying: The horizontal gap of line (2) should be within ±4.0 mm. 6.After adjustment is completed, retighten two M4 ×...
Page 593 3mm/4mm 3mm/4mm [Checking the angle of trailing edge] 1.Check the gap between line (1) of original (a) and line (2) of copy example. If the gap exceeds the reference value, perform the following adjustment. <Reference value> For simplex copying: Within ±3.0 mm For duplex copying: Within ±4.0 mm [Vérification de l’angle du bord arrière] 1.Vérifiez l’écart entre la ligne (1) de l’original (a) et la ligne (2) de l’exemple de copie.
Page 594 2.Open the upper cover (3) of the DP (A). 4.Adjust the height of DP. Amount of change per scale: Approx. 0.5 3.Remove the 3 TP screws (4) and the screw Loosen the nut (8). mm (10) (5), and remove the strap (6) from the rear For copy example (f): Loosen the adjusting Retighten the nut (8).
Page 595 3mm/4mm 3mm/4mm 7.Make a proof copy again. 8.Repeat steps 1 to 6 until line (2) of copy example shows the following the reference values. <Reference value> For simplex copying: Within ±3.0 mm For duplex copying: Within ±4.0 mm 7.Effectuez à nouveau une copie de test. 8.Répétez les étapes 1 à...
Page 596 [Automatic adjustment using the original for adjustment] 4.Set the original on the DP face down and press the Start key to carry If there is no DP auto adjustment original. out rear-side adjustment.(DP-772 only) 1.Set the maintenance mode U411, select [DP Auto Adj] and press the 5.If OK appears on the display, the adjustment is completed.
Page 597 149 1mm A(149 5mm) 74 1mm Using a DP auto adjustment original 3.If OK appears on the display, the adjustment is completed. 1.Direct F and R of the DP auto adjustment original upward, and set the If ERROR XX appears, the adjustment failed. Check the original set original from the place where F and R are marked.
Page 598 149 1mm A(149 5mm) 74 1mm 4.After completing the surface adjustment, direct F and R of the DP auto 6.If OK appears on the display, the adjustment is completed.(DP-772 adjustment original downward and set the original by inserting the side only) where the F and R are marked into the DP first.
Page 599 -1.5% +1.5% [Checking the magnification] 2. Use the maintenance mode U070 to adjust the magnification. Sub Scan(F): Adjusts the scanner sub-scan magnification (surface) 1.Check the gap between line (1) of original (a) and line (2) (3) of copy Sub Scan(B): Adjusts the scanner sub-scan magnification (rear side) example.
Page 600 -1.5% +1.5% 3. Adjust the values. 5. Repeat the steps 2 to 4 above until the gap of line (2) (3) of copy For the shorter length copy example (h)(j): Increases the value. example shows the reference value. For the longer length copy example (i)(k): Decreases the value. <Reference value>...
Page 601 2.5mm 2.5mm [Checking the leading edge timing] Use the maintenance mode U071 to adjust the timing. 1.Check the gap between line (1) on original (a) and line (2) of copy Front Head: Adjusts the leading edge timing (surface) example. If the gap exceeds the reference value, adjust the gap Front Tail: Adjusts the trailing edge timing (surface) according to the following procedure.
Page 602 2.5mm 2.5mm 3.Adjust the values. 5.Repeat the steps 2 to 4 above until the gap of line (2) of copy example For the faster leading edge timing, copy examples (l): Decreases the shows the reference value. value. <Reference value> For the slower leading edge timing, copy examples (m): Increases the Vertical gap of line (2): within ±2.5 mm value.
Page 603 2mm/3mm 2mm/3mm [Checking the center line] 2.Use the maintenance mode U072 to adjust the timing. 1.Check the gap between center line (1) on original (a) and center line Front: Adjusts the center line (surface) (2) of copy example. If the gap exceeds the reference value, adjust the Back: Adjusts the center line (rear side) gap according to the following procedure.
Page 604 2mm/3mm 2mm/3mm 3. Adjust the values. 5.Repeat the steps 2 to 4 above until the gap of line (2) of copy example If the center moves more front, copy example (n): Increases the value. shows the reference value. If the center moves inner, copy sample (o): Decreases the value. <Reference value>...
Page 605 DP-773 (Document processor) Installation Guide...
Page 606 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 DP-773...
Page 607 E. Label “Operation procedure”...... 1 Be sure to remove any tape and/or cushioning English materials from the parts supplied. *: for metric specification Supplied parts **: for inch specification A. DP.............. 1 F. Caution label “Original face up!” ....1 B.
Page 608 Procedure Attaching the seals Install the DP. Before starting installation, be sure to turn the 1.After cleaning with alcohol, attach the seals 2.Insert DP (A) in the MFP. main power switch of the machine off, and (D) so that they cover the holes at the point unplug the power plug from the wall outlet.
Page 609 Connect the signal lines. Fasten the original mat. 3.Place original mat (B) with its Velcro (1) facing up over the contact glass. 5.Connect signal line (2) of DP (A) to the MFP Align original mat (B) corner that has 90 degrees of angle with the inner left corner of the and turn fixing knobs (3) at the both sides of original instruction panel.
Page 610 60° 30° Install the angle control fitting. To adjust DP open-close angle 30 degrees 9.Install angle control fitting (C) to DP (A). To adjust DP open-close angle 60 degrees 7.Remove two stop rings (4) and pull the shaft 6.Install angle control fitting (C) to DP (A). (5) out.
Page 611 Adhere the label 11.Adhere Label “Operation procedure” (D- 12.Adhere Caution label “Original face up!” (E) 10.Clean the label on the original table with 1)(D-2) of which the language corresponding of which the language corresponding to the alcohol. to the destination of the MFP onto the exist- destination of the MFP onto the label on the ing label on the original table.
Page 612 20mm 20mm 20mm 20mm [Operation check] 1.To check the machine operation, prepare original (a) where 4 lines (b) are drawn 20 mm from the edges of the A3 sheet and 1 line (c) is drawn at its center. 2.Connect the power plug of the MFP into the wall outlet and turn the main power switch on. 3.Set the original (a) on the DP and perform a test copy to check the operation and the copy example.
Page 613 20mm 20mm 20mm 20mm 4.Compare original (a) with the copy example. If the gap exceeds the reference value, perform the following adjustments according to the type of the gap. Check images of the DP after checking and adjusting images of the MFP. For details, see the service manual. NOTICE: If there is any image fogging, adjust the U068 DP scanning position.
Page 614 Be sure to adjust in the following order. If not, the adjustment cannot be performed correctly. For checking the angle of leading edge, see page 10. <Reference value> Simplex copying: within ±3.0 mm; Duplex copying: within ±4.0 mm For checking the angle of trailing edge, see page 13. <Reference value>...
Page 615 For checking the magnification, see page19. <Reference value> Within ±1.5% For checking the leading edge timing, see page 21. <Reference value> Within ±2.5 mm For checking the center line, see page 23. <Reference value> Simplex copying: within ±2.0 mm; Duplex copying: within ±3.0 mm Pour vérifier l’agrandissement, reportez-vous à...
Page 616 [Checking the angle of leading edge] 1.Check the horizontal gap between line (1) of original (a) and line (2) of copy example positions. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> For single copying: The horizontal gap of line (2) should be within ±3.0 mm. For duplex copying: The horizontal gap of line (2) should be within ±4.0 mm.
Page 617 Open the DP cover (4). 3.Remove the inner cover (5). 4.Lift up the lever (6). In case of copy sample (d):Turn the dial (7) towards the direction of the arrow d. In case of copy sample (e):Turn the dial (7) towards the direction of the arrow e. Amount of change per scale: Approx.
Page 618 6.Repeat the steps above until the gap of line (2) of copy example shows the following reference values. <Reference value> For single copying: The horizontal gap of line (2) should be within ±3.0 mm. For duplex copying: The horizontal gap of line (2) should be within ±4.0 mm. 7.After the adjustment, install the inner cover (5) which is removed in step 2.Close the DP cover (4).
Page 619 3mm/4mm 3mm/4mm [Checking the angle of trailing edge] 1.Check the gap between line (1) of original (a) and line (2) of copy example. If the gap exceeds the reference value, perform the following adjustment. <Reference value> For simplex copying: Within ±3.0 mm For duplex copying: Within ±4.0 mm [Vérification de l’angle du bord arrière] 1.Vérifiez l’écart entre la ligne (1) de l’original (a) et la ligne (2) de l’exemple de copie.
Page 620 2.Release the hook in the angle control fitting 3.Open the DP (A). (C), using a flat-blade screwdriver (9). 4.Release the 3 hooks (10) on the rear cover. Remove the angle control fitting (C). 2.Libérez le crochet dans la fixation d'angle (C) 3.Ouvrez le DP(A).
Page 621 5.Release the 2 hooks (11) on the rear cover. 7.Adjust the height of DP. Amount of change per scale: Approx. 0.5 mm (15) Loosen the nut (13). 6.Remove the rear cover (12). Retighten the nut (13). For copy example (f): Loosen the adjusting screw (14).
Page 622 3mm/4mm 3mm/4mm 10.Make a proof copy again. 11.Repeat steps 1 to 9 until line (2) of copy example shows the following the reference values. <Reference value> For simplex copying: Within ±3.0 mm For duplex copying: Within ±4.0 mm 10.Effectuez à nouveau une copie de test. 11.Répétez les étapes 1 à...
Page 623 [Automatic adjustment using the original for adjustment] 3.Set the original on the DP face up and press the Start key to carry out If there is no DP auto adjustment origina surface adjustment. 1.Set the maintenance mode U411, select [DP Auto Adj] and press the 4.If OK appears on the display, the adjustment is completed.
Page 624 149 1mm A(149 5mm) 74 1mm Using a DP auto adjustment original 3.If OK appears on the display, the adjustment is completed. 1.Direct F and R of the DP auto adjustment original upward, and set the If ERROR XX appears, the adjustment failed. Check the original set original from the place where F and R are marked.
Page 625 -1.5% +1.5% [Checking the magnification] 2. Use the maintenance mode U070 to adjust the magnification. 1.Check the gap between line (1) of original (a) and line (2) (3) of copy Sub Scan(F): Adjusts the scanner sub-scan magnification (surface) example. If the gap exceeds the reference value, adjust the gap Sub Scan(B): Adjusts the scanner sub-scan magnification (rear side) according to the following procedure.
Page 626 -1.5% +1.5% 3. Adjust the values. 5. Repeat the steps 2 to 4 above until the gap of line (2) (3) of copy For the shorter length copy example (h)(j): Increases the value. example shows the reference value. For the longer length copy example (i)(k): Decreases the value. <Reference value>...
Page 627 2.5mm 2.5mm [Checking the leading edge timing] Use the maintenance mode U071 to adjust the timing. 1.Check the gap between line (1) on original (a) and line (2) of copy Front Head: Adjusts the leading edge timing (surface) example. If the gap exceeds the reference value, adjust the gap Front Tail: Adjusts the trailing edge timing (surface) according to the following procedure.
Page 628 2.5mm 2.5mm 3.Adjust the values. 5.Repeat the steps 2 to 4 above until the gap of line (2) of copy example For the faster leading edge timing, copy examples (l): Decreases the shows the reference value. value. <Reference value> For the slower leading edge timing, copy examples (m): Increases the Vertical gap of line (2): within ±2.5 mm value.
Page 629 2mm/3mm 2mm/3mm [Checking the center line] 2.Use the maintenance mode U072 to adjust the timing. 1.Check the gap between center line (1) on original (a) and center line Front: Adjusts the center line (surface) (2) of copy example. If the gap exceeds the reference value, adjust the Back: Adjusts the center line (rear side) gap according to the following procedure.
Page 630 2mm/3mm 2mm/3mm 3. Adjust the values. 5.Repeat the steps 2 to 4 above until the gap of line (2) of copy example If the center moves more front, copy example (n): Increases the value. shows the reference value. If the center moves inner, copy sample (o): Decreases the value. <Reference value>...
Page 631 PF-791 (500 x 2 Paper feeder) Installation Guide...
Page 632 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 PF-791...
Page 633 D(M3x12) G(M4x20) E. Stopper R........... 1 Be sure to remove any tape and/or cushioning English F. Stopper L ........... 1 materials from the parts supplied. Supplied parts G. S Tite screws M4 × 20 ......4 A. Paper feeder..........1 H.
Page 634 Procedure 1.Place the machine (2) on the paper feeder 2.Remove the lower paper cassette (3) from Before starting installation, be sure to turn the (A) so that the pins (1) at the rear left and the machine. main power switch of the machine off, and rear right of the paper feeder (A) are aligned unplug the power plug from the wall outlet.
Page 635 (M3x12) 3.Secure the machine (2) to the paper feeder 5.Install the retainer (C) in the location as 6.Turn the adjusters on each corner (4) until (A) with the 2 pins (B). shown in the figure using 2 S Tite screws M3 they reach the floor and then secure the 4.Insert the lower paper cassette (3) into the ×...
Page 636 G(M4x20) G(M4x20) 7.Select holes (5) and install each stopper (E,F) with 2 S Tite screws M4 × 20 (G) so that the stop- Setting paper size plate pers will be grounded on the floor. Insert the paper size plate (H) into the size dis- play slot.
Page 637 20±2.5mm b<20mm b>20mm Adjusting the leading edge timing The reference value for the leading edge timing is 20 ±2.5 mm at position (1) in the sample image (a). If the timing is outside this range, perform the fol- lowing adjustment. 1.Set maintenance mode U034, select [LSU Out Top] and [Cassette(L)].
Page 638 d<0mm d>0mm Adjusting the center line The reference value for the center line(2) is ±2.0 mm or less at position (3) in the sample image (c). If the center line position is outside this range, perform the following adjustment. 1.Set maintenance mode U034, select [LSU Out Left] and [Cassette3] or [Cassette4]. 2.Adjust the values.
Page 639 PF-810 (3000-sheets deck) Installation Guide...
Page 640 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 PF-810...
Page 641 D(M3x12) G(M4x20) E. Stopper R........... 1 Be sure to remove any tape and/or cushioning English F. Stopper L ........... 1 materials from the parts supplied. Supplied parts G. S Tite screws M4 × 20 ......4 A. Paper feeder..........1 H.
Page 642 Procedure Place the machine (2) on the paper feeder (A) 2.Remove the lower paper cassette (4) from Before starting installation, be sure to turn the the machine. so that the pins (1) at the rear left and rear right main power switch of the machine off, and of the paper feeder (A) are aligned with the holes in the base of the machine.
Page 643 (M3x12) 3.Secure the machine (2) to the paper feeder 5.Install the retainer (C) in the location as 6.Open the lower right cover (5) on the (A) with the 2 pins (B). shown in the figure using 2 S Tite screws M3 machine.
Page 644 8.Remove the strap (7) from the shaft (8) and 9.Lift up the guide (3) until it clicks into place. 12.Turn the adjusters on each corner (9) until remove lower right cover (5). they reach the floor and then secure the 10.Close the paper feeder right cover (6) and paper feeder.
Page 645 G(M4x20) G(M4x20) 13.Pull out the right cassette (10) and the left 15.Select holes (13) and install each stopper (E,F) with 2 S Tite screws M4 × 20 (G) so that the stop- cassette (11) from the paper feeder (A). pers will be grounded on the floor. Remove the lift plate stopper (12) from each cassette and attach it to the storage location.
Page 646 Setting paper size plate Changing paper size (metric specifications 1.Pull out the cassette of the paper feeder. Insert the paper size plate (H) into the size dis- only) 2.Turn the front lock lever (14) 90° and remove play slot. At shipment, Letter is set for inch models and A4 the front deck cursor (15).
Page 647 3.Move the front deck cursor (15) so that it is aligned with the size indicators on the top (17) and 6.Release the hook (19) and remove the deck bottom (16) of the cassette. trailing edge cursor (20). 4.Turn the front lock lever (14) 90° to lock it. 5.Move the rear deck cursor (18) in the same way.
Page 648 0.5〜1.5mm 7.Lift up the sub-cursor (21). Adjusting the cursor width 8.Align with the size indicator (22), engage the 1.Load paper in the cassettes. hook (23) and install the deck trailing edge 2.If the gap between the front deck cursor (15) and the paper (24) is outside the 0.5 to 1.5 mm cursor (20).
Page 649 3.Insert a Philips-head screwdriver into the 2 long slots (25) in the front deck cursor (15) and loosen 4.Retighten the 2 adjusting screws (26). the 2 adjusting screws (26). Then move the front deck cursor (15). 5.Check that the gap between the front deck cursor (15) and the paper is between 0.5 and 1.5 mm.
Page 650 20±2.5mm b<20mm b>20mm Adjusting the leading edge timing The reference value for the leading edge timing is 20 ±2.5 mm at position (1) in the sample image (a). If the timing is outside this range, perform the fol- lowing adjustment. 1.Set maintenance mode U034, select [LSU Out Top] and [Cassette(L)].
Page 651 d<0mm d>0mm Adjusting the center line The reference value for the center line (2) is ±2.0 mm or less at position (3) in the sample image (c). If the center line position is outside this range, per- form the following adjustment. 1.Set maintenance mode U034, select [LSU Out Left] and [Cassette3] or [Cassette4].
Page 652 DF-770(D) (Document finisher) Installation Guide...
Page 653 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 DF-770(D) for Black & White MFP for Color MFP 25/25ppm 30ppm,35ppm...
Page 654 I(M4x20) H(M4x8) AK-740 E. Connector cover ........1 *(C) and (F) are not used. English F. Eject guide ..........1 Supplied parts G. Staple cartridge.......... 1 Be sure to remove any tape and/or cushioning A. Document finisher........1 H. M4 × 8 screw ..........1 materials from the parts supplied.
Page 655 NOTICE Procedure 1.Install eject tray (B) to document finisher (A) The Attachment Kit (AK-740) must be installed Before starting installation, be sure to turn the by inserting the 2 hooks (1) on the back of before the document finisher is installed. main power switch of the machine off, and the tray in the holes (2) of the finisher lift unplug the power plug from the wall outlet.
Page 656 Adjusting the height of the document fin- 3.Remove the front and rear screws (5). isher 4.Pull out the front and rear positioning pins (6). 2.Release the 6 hooks (4) at the foot cover 5.Lift up the front and rear handles (7) at the same time.Lower the DF upper body (9) to the lowest (3).Remove the front and rear foot covers position.
Page 657 6.Lift the DF upper body (9) while holding it at its top by hands as shown Installation with 30 and 35 ppm monochrome machines above. 8.Fully insert the front and rear positioning pins (6) removed in step 4. Adjust the height of the DF upper body (9) at the location mark (10) which The front and rear position pins (6) must be visible.
Page 658 5 10 Installation with 25/25 ppm Full-color 9.Secure the DF upper body (9) with the lower machine frame (10) using screws (5) removed in step 8.Fully insert the front and rear positioning pins (6) removed in step 4. 10.Attach the front and rear covers (3) removed The front and rear position pins (6) must be in step 2.
Page 659 H(M4x8) H(M4x8) PF-810 PF-791 If PF-810 is installed If PF-791 is installed 11.Install earth plate (AA) to the bottom center of document finisher using 11.Install earth plate (AA) to the bottom center of document finisher using an M4 × 8 screw (H).Secure the plate at the location marked "PF-810". an M4 ×...
Page 660 I(M4x20) I(M4x20) PF-810 12.Remove the machine interface cover (11). 13.Attach the connecting plate (D) to the machine using 2 M4 × 20 screws (I). Attach them at the point as shown above. Only if PF-810 is installed, execute step 14. 14.Remove the breakaway cover (12) from the left cover.
Page 661 15 16 16.Fit the connector cover (E) in the connecting 17.Remove the screw (17).Remove the rear 15.Connect the signal line connector (13) to the plate (D).Take care not to get the cable cover (18) . connector (14) on the machine.Hook the sig- pinched by objects.Attach it at the point as nal line wire (15) onto the hook (16).
Page 662 18-1 18-2 18-1 18.Separate the rear cover(18) into the two cov- 19.Install the cover (18-1) using the screw (17) 20.Open the document finisher front cover ers(18-1,18-2). removed in step 17. (19).Remove the screw (20).Pull the lock The cover (18-2) is not used. frame (21) frontwards.
Page 663 22 D 21.Insert the pin (22) on the connecting plate 22.Slowly push the lock frame (21) fully into the 24.Install the staple cartridge (G). (D) into the hole (23) on the document fin- machine so that the connectors at the far 25.Close the front cover (19).
Page 664 Adjusting the height Compliant: The diameter (a) of the pin (22) is within the height range (b) of the curved section (24). 1.Check that the respective heights of the pins Non-compliant: The diameter (a) of the pin (22) is extends beyond the height range (b) of the curved (22) on the connecting plate installed on the section (24).
Page 665 2.Remove each of the screws (25) and 3.Remove the screw (28) to remove the span- remove the front foot cover (26) and rear ner (29). foot cover (27). 4.Loosen the 2 screws (30) on the front right and on the rear right of the document fin- isher.
Page 666 5.Turn the adjustment bolts (31) with the spanner (29) to adjust the height of the document finisher. 7.If the distances between the document fin- Turning the adjustment bolt clockwise lifts the document finisher, and turning it counterclockwise isher and the machine (32, 33) are unequal, lowers the document finisher.
Page 667 8.Loosen the 2 screws (34) on the front left 9.Turn the adjustment bolts (35) with a Philips-head screwdriver to adjust the height of the docu- and on the rear left of the document finisher. ment finisher. Turning the adjustment bolt clockwise lifts the document finisher, and turning it counterclockwise lowers the document finisher.
Page 668 78.5mm±2.5 158mm±2.5 Adjusting the stapling position 1.Connect the machine power plug to the wall outlet and turn the machine main power switch on. 2.Make a test copy using staple mode (double stapled). 3.Check whether the stapling position is off-center.If the staple position is off-center, follow the procedure below to adjust the position. <Reference value>...
Page 669 4.Set maintenance mode U246, select [Finisher] and [Staple HP]. 6.Perform a test copy. 5.Adjust the values. 7.Repeat steps 4 to 6 until the staple position is within the reference If the paper is stapled too close to the front of the machine (a): Increase value.
Page 670 AK-740 (Bridge unit) Installation Guide...
Page 671 AK-740 ATTACHMENT KIT for Black & White MFP 30ppm,35ppm Color MFP 25/25ppm Black & White MFP 30ppm,35ppm Color MFP 25/25ppm Black & White MFP 30ppm,35ppm Color MFP 25/25ppm 2013.6 303PD56710-01...
Page 672 PH-7A/C/D (Punch unit) Installation Guide...
Page 673 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 PH-7A/PH-7B/PH-7C/PH-7D...
Page 674 E. Spring............1 L. Large clamp (for DF-790) ......1 English M. Ferrite core ..........1 F. Punch PWB ..........1 Supplied parts G. Waste hole punch box ....... 1 Be sure to remove any tape and/or cushioning A. Punch guide..........1 H.
Page 675 Procedure Removing the cover (DF-770) 2.Remove the 2 screws (3) and remove the Before installing the hole punch unit, make sure If installing on the DF-790, proceed to step 1 on upper rear cover (4). the MFP's main power switch is turned off and page 3.
Page 676 Removing the cover (DF-790) 2.Remove the 3 screws (7) and remove the Installing the hole punch unit 1.Remove the screw (5) and remove the small upper rear cover (8). 3.Remove the screw (9) and pull the guide rear cover (6). (10) outwards.
Page 677 4.After using alcohol to clean the shaded portion (38) of the motor shown for adhering the film (J), adhere the film. 4.Après avoir utilisé de l'alcool pour nettoyer la partie du moteur hachurée (38) sur laquelle le film (J) est apposé, coller ce film. 4.Después de utilizar alcohol para limpiar la parte sombreada (38) del motor mostrada en la ilustración para pegar la película (J), pegue la película.
Page 678 5.Install the punch guide (A) so that the leading edge of the guide (11) is below the document fin- 6.Insert the hole punch unit (B) into the docu- isher frame (12). ment finisher. 5.Monter le guide de la perforatrice (A) de sorte que le bord d'attaque du guide (11) se trouve sous 6.Insérer la perforatrice (B) dans le retoucheur le bâti du retoucheur de document (12).
Page 679 7.Raise the hole punch unit (B) slightly and fit the hook (13) on the motor unit (C) into the groove 8.Secure the motor unit (C) with the 2 screws (14) in the document finisher. At the same time, insert the rod (15) on the motor unit (C) into the (H).
Page 680 9.Fit the stop ring (D) over the motor unit rod 10.Run the hole punch unit wire (17) through (15) and fit the spring (E) between the hole the motor unit edging (18). punch unit and motor unit. 11.Plug the wire from the hole punch unit motor into the connector on the motor unit (19).
Page 681 Installing the punch PWB and waste hole punch box (DF-770) 14.Plug the 6 hole punch unit wires into the con- If installing on the DF-790, proceed to step 12 on page 12. nectors (25) on the punch PWB (F). 12.Fit the 2 hooks (20) in the punch PWB (F) into the cut (21) in the document finisher. At the same time, insert the projection (23) on the document finisher into the hole (22) in the punch PWB (F).
Page 682 15.Plug the 2 punch PWB wires into the con- 16.Install the small clamp (K) on the finisher, then pass and fasten the wires from the motor unit and nectors (27) on the DF main PWB (26). hole punch unit. 17.Attach the ferrite core (M) to the wire. 15.Raccorder les 2 câbles de la PWB de la per- 16.Monter le petit collier (K) sur le retoucheur puis faire passer les câbles du moteur et de la perfora- foratrice aux connecteurs (27) de la PWB...
Page 683 18.Replace the upper rear cover (4) and small 19.Open the upper front cover (28) and insert the waste hole punch box (G). rear cover (2). 18.Reposer le couvercle supérieur arrière (4) et 19.Ouvrir le couvercle supérieur avant (28) et insérer le bac de récupération de la perforatrice (G). le petit couvercle arrière (2).
Page 684 20.After cleaning each area with alcohol, adhere the following labels from the label sheet (J) at the 21.Close the upper front cover (28). locations shown in the illustration: B, C.. 20.Après avoir nettoyé chaque zone à l’alcool, apposer les étiquettes suivantes du feuillet 21.Fermer le couvercle supérieur avant (28).
Page 685 Installing the punch PWB and waste hole punch box (DF-790) 14.Plug the 6 hole punch unit wires into the con- 12.Fit the 2 hooks (29) in the punch PWB (F) into the cut (30) in the document finisher. At the same nectors (34) on the punch PWB (F).
Page 686 15.Plug the 2 punch PWB wires into the con- 16.Install the small clamp (L) on the finisher, then pass and fasten the wires from the motor unit and nectors (36) on the DF main PWB (35). hole punch unit. 17.Attach the ferrite core (M) to the wire. 15.Raccorder les 2 câbles de la PWB de la per- 16.Installer le grand collier (L) sur le retoucheur puis faire passer les câbles du moteur et de la perfo- foratrice aux connecteurs (36) de la PWB...
Page 687 18.Replace the upper rear cover (8) and small 19.Open the upper front cover (37) and insert the waste hole punch box (G). rear cover (6). 18.Reposer le couvercle supérieur arrière (8) et 19.Ouvrir le couvercle supérieur avant (37) et insérer le bac de récupération de la perforatrice (G). le petit couvercle arrière (6).
Page 688 20.After cleaning each area with alcohol, adhere the following labels from the label sheet (J) at the locations shown in the illustration: A, C. 21.Close the upper front cover (37). 20.Après avoir nettoyé chaque zone à l’alcool, apposer les étiquettes suivantes du feuillet d’étiquettes (J) aux emplacements indiqués dans l’illustration : A, C.
Page 689 [Adjusting the hole punch position] Adjusting the hole punch entry registration 1.Connect the MFP power plug to the wall out- 1.Enter the maintenance mode U246, select Finisher and Punch Regist. let and turn the MFP main power switch on. 2.Adjust the values. 2.Make a test copy in punch mode.
Page 690 Adjusting the hole punch position feed 3.Press the Start key to confirm the setting value. 1.Enter the maintenance mode U246, select Finisher and Punch Feed. <Reference value (c)> 2.Adjust the values. Metric specification: 13 mm; Inch specification: 9.5 mm If the punch hole position is closer to the edge than the reference value (c): Increase the setting value.
Page 691 Centering the hole punch position 3.Press the Start key to confirm the setting value. 1.Enter the maintenance mode U246, select Finisher and Punch Width. <Reference value> 2.Adjust the values. Metric specification: d = 80 mm ± 0.5, e = 40 mm ± 2 If the punch hole is too close to the front of the machine: Decrease the Inch specification: d = 2.75 inch ±...
Page 692 NOTICE This accessory is for use only with the following Applicant's Listed Machine. Refer to the supplied guide to install the accessory in the field. Machine: DF-770, DF-790 AVIS Cet accessoire est utilisable uniquement avec le copieur figurant dans la liste du demandeur suivant. Se reporter au guide fourni pour installer l'accessoire dans le champ.
Page 693 DT-730(B) (Document tray) Installation Guide...
Page 694 for Color MFP 25/25ppm for Black & White MFP INSTALLATION GUIDE 30ppm,35ppm GUIDE D’INSTALLATION DT-730(B) GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE M4 10(2) M4 8(7) M4 14(2) (I), (J) and (K) are not used. 1 piece of (D) will be left. (I), (J) et (K) ne sont pas utilisés.
Page 695 (M4×8) (M4×8) (M4×8) (M4×8) 2013. 5 302LC56750-01...
Page 696 FAX System (W) B Installation Guide...
Page 697 INSTALLATION GUIDE GUIDE D’INSTALLATION GUÍA DE INSTALACION INSTALLATIONSANLEITUNG GUIDA ALL’INSTALLAZIONE 安装手册 설치안내서 設置手順書 FAX System(W)
Page 698 Home Home Accessibility Display Visual. Accessibilità Accueil Affich. accessibilité Inicio Pantalla acceso Startseite Zugriffsanzeige English A different procedure is required depending on the product which is installed with this unit.Each procedure is described in the following pages. When installing the Fax system on a machine (A) which has the 'Home' key in the operation panel, see Page 1 to Page 13. When installing the multiport on a machine (A) which has the 'Home' key in the operation panel, see Page 14 to Page 21.
Page 699 When installing the Fax system on a machine (A) which has the 'Home' key in the operation panel Supplied parts C. Terminal seal..........1 Option A. FAX circuit board ........1 D. Alphabet label ..........1 H. Memory DIMM (128 MB) ......1 B.
Page 700 NOTICE References to medium-speed MFPs in this document denote 30/30, 35/35, 45/45 and 55/50 ppm color machines, and 35, 45 and 55 ppm monochrome machines. References to high-speed MFPs in this document denote 65/65 and 75/70 ppm color machines, and 65 and 80 ppm monochrome machines. (The generic procedure figures in this document show medium-speed MFPs.) If the finisher is already installed, remove the finisher before installing FAX System(W).
Page 701 Procedure 2.Install the memory DIMM (E) or the optional 3.Replace the cover (2) using the 2 screws (1). Installing the memory DIMM memory DIMM (H) into the memory slot (3). 1.Remove 2 screws (1), and then remove the Install it with the IC side facing up. cover (2).
Page 702 OPT1 Removing the slot cover 5.Remove 2 screws (6) and then remove the 4.Remove the cover (4). OPT1 slot cover (5). * For high-speed MFPs with/without the fin- * Do not use OPT2. isher and for medium-speed MFPs with the finisher installed.
Page 703 OPT1 Install the FAX circuit board. 6.Insert the FAX circuit board (A) along the groove in OPT1 and secure the board with two screws (6) that have been removed in step 5. Do not directly touch the FAX circuit board (A) terminal. Hold the top and bottom of the FAX circuit board, or the projection of the board to insert the FAX circuit board (A).
Page 704 Connect the MFP to the telephone line. For 100 V/120 V/Australian or Chinese models, 7.Plug the modular connector cable (8) into use the supplied modular connector cable (B). the line terminal, and then connect the other end to the telephone line. Connecter le MFP à...
Page 705 Connect the MFP to the separate phone (except for New Zealand model). If you don't connect the MFP to the separate 8.Plug the modular connector cable (9) into the telephone terminal, and then connect the other end phone, wipe the surface of the telephone termi- to the separate phone.
Page 706 Seal the terminal (for New Zealand model). Wiring the modular connector cable 11.Reinstall the covers (11). 9.Wipe the surface of the telephone terminal (High-speed MFPs only) with alcohol and adhere the terminal seal 10.Remove the covers (11) and run the modular 12.Install the cover (4) which was removed in (C).
Page 707 Attach the alphabet labels (excluding 100 V models). 14.Remove the clear panel (15). 13.Insert a flat-head screwdriver at the tip indicated by the arrows (12) as shown on the left, and slide the operation panel covers (13) (14) to remove them. Apposer les étiquettes de l’alphabet (Sauf sur les modèles 100 V).
Page 708 15.Remove the operation panel sheet (16). 16.Wipe the area above the numeric keys on the operation panel sheet (16) with alcohol and attach the alphabet labels (D). In Asia and Oceania, use PQRS TUV WXYZ label, and do not use PRS TUV WXY and OPER labels.
Page 709 17.Attach the operation panel sheet (16). 18.Reinstall the clear panel (15). 19.Reinstall the operation panel covers (13) (14). 17.Fixer la tôle du panneau de commande (16). 18.Reposer le panneau transparent (15). 19.Reposer les couvercles du panneau de com- mande (13) (14). 17.Fije la hoja del panel de trabajo (16).
Page 710 For Australian model For New Zealand model Attach the PTT label (for China, 110 V models only). Attach the approval label (for Australian/New Zealand model only). 20.Attach the PTT label (F) after wiping with alcohol. 21.Attach the approval label (G) after wiping with alcohol. Perform this procedure for Australian/New Zealand model only.
Page 711 Initialize the FAX circuit board. 1.Plug the MFP into a power outlet, and turn on the main power. 2.Perform the maintenance mode U600 to initialize the FAX PWBs Initialiser la carte à circuits FAX. 1.Brancher le MFP sur une prise d’alimentation et le mettre sous tension. 2.Exécuter le mode maintenance U600 pour initialiser les cartes de cir- cuit imprimé...
Page 712 When installing the multiport on a machine (A) which has the 'Home' key in the operation panel Supplied parts C. Terminal seal..........1 Option A. FAX circuit board ........1 D. Alphabet label ..........1 H. Memory DIMM (128 MB) ......1 B.
Page 713 NOTICE References to medium-speed MFPs in this document denote 30/30, 35/35, 45/45 and 55/50 ppm color machines, and 35, 45 and 55 ppm monochrome machines. References to high-speed MFPs in this document denote 65/65 and 75/70 ppm color machines, and 65 and 80 ppm monochrome machines. (The generic procedure figures in this document show medium-speed MFPs.) If the finisher is already installed, remove the finisher before installing FAX System(W).
Page 714 OPT2 Procedure 2.Remove 2 screws (6) and then remove the Removing the slot cover OPT2 slot cover (5). 1.Remove the cover (4). * For high-speed MFPs with/without the finisher and for medium-speed MFPs with the finisher installed. * This work is not required if a multiport is installed along with the fax system (OPT1). Procédure 2.Déposer les 2 vis (6) puis le couvercle de la Dépose du couvercle de la fente...
Page 715 OPT2 Install the FAX circuit board. 3.Insert the FAX circuit board (A) along the groove in OPT2 and secure the board with two screws (6) that have been removed in step 2. Do not directly touch the FAX circuit board (A) terminal. Hold the top and bottom of the FAX circuit board, or the projection of the board to insert the FAX circuit board (A).
Page 716 Seal the terminal. On 120 V models, be sure that it is not attached 4.Wipe the surface of the telephone terminal with alcohol and adhere the terminal seal (C). over the top of the approval label (10). The telephone terminal on the FAX circuit board installed to OPT2 is unavailable (invalid). Seal the terminal securely to prevent a user from connecting a separate phone.
Page 717 Connect the MFP to the telephone line. 5.Plug the modular connector cable (17) into the line terminal, and then connect the other end to the telephone line. For 100 V/120 V/Australian or Chinese models, use the supplied modular connector cable (B). Connecter le MFP à...
Page 718 Wiring the modular connector cable 7.Reinstall the covers (11). (High-speed MFPs only) 6.Remove the covers (11) and run the modular 8.Install the cover (4) which was removed in connector cable as shown in the figure. step 1. *Run it by binding with the modular cords * For high-speed MFPs with/without the fin- from the Fax System (OPT1).
Page 719 Initialize the FAX circuit board. If the FAX circuit board has been added to OPT2 (to initialize the FAX circuit board in OPT2) 1.Plug the MFP into a power outlet, and turn on the main power. Initialize OPT2 by pressing [PORT2], and the Start key in this order in the 2.If the FAX PWBs were installed simultaneously to OPT1 and OPT2 (all maintenance mode U698 and executing the maintenance mode U600.
Page 720 When installing the Fax system on a machine (B) which has the 'Accessibility Display' key in the operation panel Supplied parts C. Terminal seal..........1 Option A. FAX circuit board ........1 D. Alphabet label ..........1 H. Memory DIMM (128 MB) ......1 B.
Page 721 NOTICE If the finisher is already installed, remove the finisher before installing FAX System(W). Before starting installation, be sure to turn the main power switch of the machine off, and unplug the power plug from the wall outlet. REMARQUE Si le retoucheur est déjà en place, le déposer avant de monter le FAX System(W). Avant de commencer l'installation, s'assurer de mettre la machine hors tension et de débrancher la fiche d'alimentation de la prise murale.
Page 722 Procedure 2.Install the memory DIMM (E) or the optional 3.Replace the cover (2) using the 2 screws (1). Installing the memory DIMM memory DIMM (H) into the memory slot (3) 1.Remove 2 screws (1), and then remove the on the lower level (FLS). cover (2).
Page 723 OPT1 Removing the slot cover 4.Remove 2 screws (5) and then remove the OPT1 slot cover (4). * Do not use OPT2. Dépose du couvercle de la fente 4.Déposer les 2 vis (5) puis le couvercle de la fente OPT1 (4). * Ne pas utiliser OPT2.
Page 724 OPT1 Install the FAX circuit board. 5.Insert the FAX circuit board (A) along the groove in OPT1 and secure the board with two screws (5) that have been removed in step 4. Do not directly touch the FAX circuit board (A) terminal. Hold the top and bottom of the FAX circuit board, or the projection of the board to insert the FAX circuit board (A).
Page 725 Connect the MFP to the telephone line. For 100 V/120 V/Australian or Chinese models, 6.Plug the modular connector cable (7) into the line terminal, and then connect the other end to the use the supplied modular connector cable (B). telephone line. Connecter le MFP à...
Page 726 Connect the MFP to the separate phone ). If you don't connect the MFP to the separate 7.Plug the modular connector cable (8) into the telephone terminal, and then connect the other end phone, wipe the surface of the telephone termi- to the separate phone.
Page 727 Seal the terminal (for New Zealand model) 8.Wipe the surface of the telephone termi- nal with alcohol and adhere the terminal seal (C). Perform this procedure for New Zealand model only. Fermer hermétiquement la borne (modèle pour la Nouvelle-Zélande) 8.Cette étape est superflue. Selle el terminal (para el modelo Nuevo Zelandés) 8.Este paso no es necesario.
Page 728 Attach the alphabet labels (excluding 100 V models). 10.Remove the clear panel (13). 9.Insert a flat-head screwdriver at the tip indicated by the arrows (10) as shown on the left, and slide the operation panel covers (11) (12) to remove them. Apposer les étiquettes de l’alphabet (Sauf sur les modèles 100 V).
Page 729 11.Remove the operation panel sheet (14). 12.Wipe the area above the numeric keys on the operation panel sheet (14) with alcohol and attach the alphabet labels (D). In Asia and Oceania, use PQRS TUV WXYZ label, and do not use PRS TUV WXY and OPER labels.
Page 730 13.Attach the operation panel sheet (14). 14.Reinstall the clear panel (13). 15.Reinstall the operation panel covers (11) (12). 13.Fixer la tôle du panneau de commande (14). 14.Reposer le panneau transparent (13). 15.Reposer les couvercles du panneau de com- mande (11) (12). 13.Fije la hoja del panel de trabajo (14).
Page 731 For Australian model For New Zealand model Attach the PTT label (for China, 110 V models only). Attach the approval label (for Australian/New Zealand model only). 16.Attach the PTT label (F) after wiping with alcohol. 17.Attach the approval label (G) after wiping with alcohol. Perform this procedure for Australian/New Zealand model only.
Page 732 Initialize the FAX circuit board. 1.Plug the MFP into a power outlet, and turn on the main power. 2.Perform the maintenance mode U600 to initialize the FAX PWBs Initialiser la carte à circuits FAX. 1.Brancher le MFP sur une prise d’alimentation et le mettre sous tension. 2.Exécuter le mode maintenance U600 pour initialiser les cartes de cir- cuit imprimé...
Page 733 When installing the multiport on a machine (B) which has the 'Accessibility Display' key in the operation panel Supplied parts C. Terminal seal..........1 Option A. FAX circuit board ........1 D. Alphabet label ..........1 H. Memory DIMM (128 MB) ......1 B.
Page 734 NOTICE If the finisher is already installed, remove the finisher before installing FAX System(W). Before starting installation, be sure to turn the main power switch of the machine off, and unplug the power plug from the wall outlet. REMARQUE Si le retoucheur est déjà en place, le déposer avant de monter le FAX System(W). Avant de commencer l'installation, s'assurer de mettre la machine hors tension et de débrancher la fiche d'alimentation de la prise murale.
Page 735 OPT2 Procedure Removing the slot cover 1.Remove 2 screws (5) and then remove the OPT2 slot cover (4). Procédure Dépose du couvercle de la fente 1.Déposer les 2 vis (5) puis le couvercle de la fente OPT2 (4). Procedimiento Desmontaje de la cubierta de la ranura 1.Quite 2 tornillos (5) y, después, quite la cubierta de la ranura OPT2 (4).
Page 736 OPT2 Install the FAX circuit board. 2.Insert the FAX circuit board (A) along the groove in OPT2 and secure the board with two screws (5) that have been removed in step 1. Do not directly touch the FAX circuit board (A) terminal. Hold the top and bottom of the FAX circuit board, or the projection of the board to insert the FAX circuit board (A).
Page 737 Seal the terminal. On 120 V models, be sure that it is not attached 3.Wipe the surface of the telephone terminal with alcohol and adhere the terminal seal (C). over the top of the approval label (9). The telephone terminal on the FAX circuit board installed to OPT2 is unavailable (invalid). Seal the terminal securely to prevent a user from connecting a separate phone.
Page 738 Connect the MFP to the telephone line. 4.Plug the modular connector cable (15) into the line terminal, and then connect the other end to the telephone line. For 100 V/120 V/Australian or Chinese models, use the supplied modular connector cable (B). Connecter le MFP à...
Page 739 (Initialize the FAX circuit board. 3.If the FAX circuit board has been added to OPT2 (to initialize the FAX 1.Plug the MFP into a power outlet, and turn on the main power. circuit board in OPT2) Initialize OPT2 by pressing [PORT2], and the Start key in this order in 2.If the FAX PWBs were installed simultaneously to OPT1 and OPT2 (all the maintenance mode U698 and executing the maintenance mode Fax PWBs are initialized), perform the maintenance mode U600 to ini-...
Page 740 UPDATING STATUS DATE UPDATED PAGES PAGES CODE 03/2014 EDITION Y116140-9 EDITION 74 0 Y11614 1-8 10 /2014...
