To prepare for the camera alignment in an ATX 300 room:
Click the Display tab in the Telepresence Tool application.
1
If the displays are not showing the video from the cameras:
2
— For ATX SDK version 3.0.3, press the button preconfigured to show
the display.
— For ATX 300 version 3.0.3, access the Admin screen on the Polycom
Touch Control or on the Crestron Touch Panel, and then press Show
Display.
Click Camera Alignment.
3
Yellow, blue, and red lines appear on all display screens. You will use the
yellow and blue lines, but not the red lines, for the ATX system.
Click the Camera Alignment tab.
4

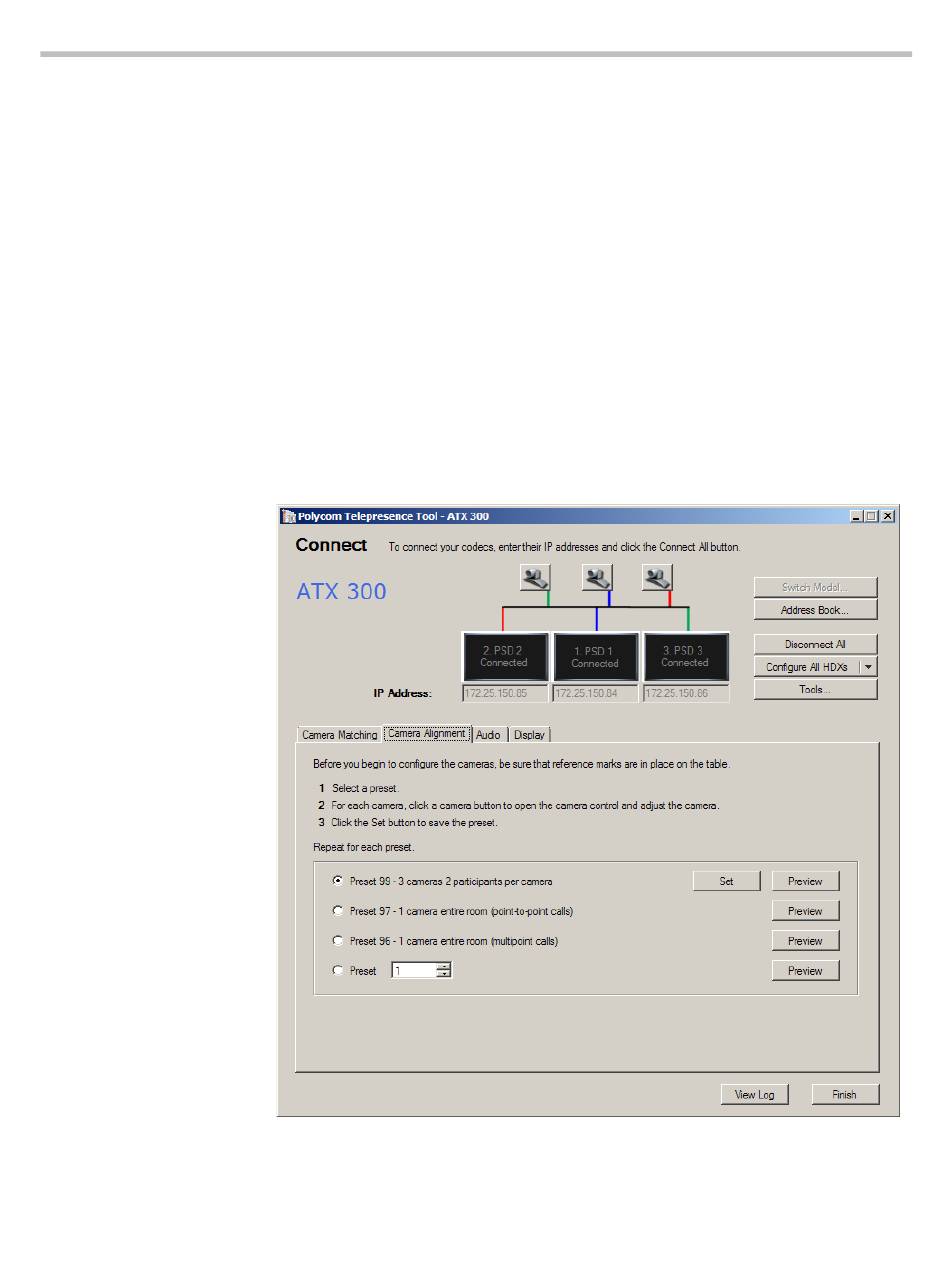

The following illustration shows the Camera Alignment tab for an ATX
300 system.
Figure 5-7
Telepresence Tool Camera Alignment Tab — ATX 300 System
Configuring the Displays, Cameras, and Audio
5 - 11
