Polycom ATX Integrator's Guide
3 - 10
Connect one end of a 25' (7.6 m) plenum crossover cable to the center
a
electronics enclosure, and connect the other end to the electronics
enclosure on the right (when facing the credenza).
25' (7.6 m) cable

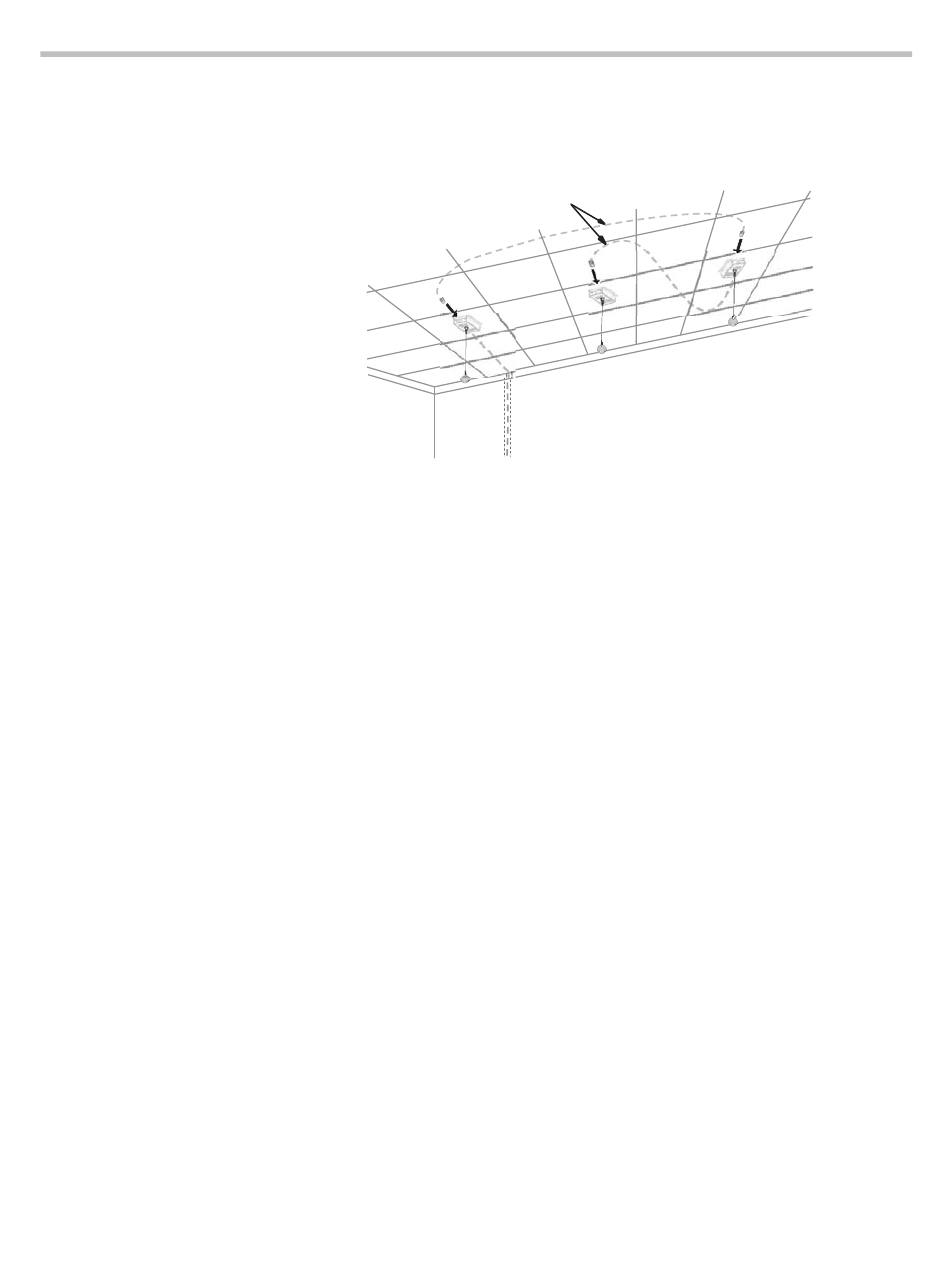

Figure 3-11
Connect one end of a 25' (7.6 m) plenum crossover cable to the
b
electronics enclosure on the right, and connect the other end to the
electronics enclosure on the left.
Connect one end of a 50' (15.2 m) plenum crossover cable to the
c
electronics enclosure on the left, and then run the cable through the
conduit in the wall behind the credenza and down to the junction box.
(This conduit and junction box should have been previously installed
by an electrician.)
Pull the end of the 50' (15.2 m) cable through the junction box and
d
connect it to the back of the wall plate provided in the Ceiling
Microphone Array kit.
Connecting the Cables
Polycom, Inc.
