Installing the Displays, Table, Cameras, and Chairs
For the ATX 300 system only, if the room is large, you can choose to place the
table farther than 110" (279.4 cm). By moving the table out to 126" (320 cm), you
will be able to completely see Seats 1 through 6 when the center camera zooms
out for the full room view, as shown in Figure 2-4. Note, however, that by
moving the table farther than 110" (279.4 cm), the participants will appear
somewhat farther from view on the far end of the conference.

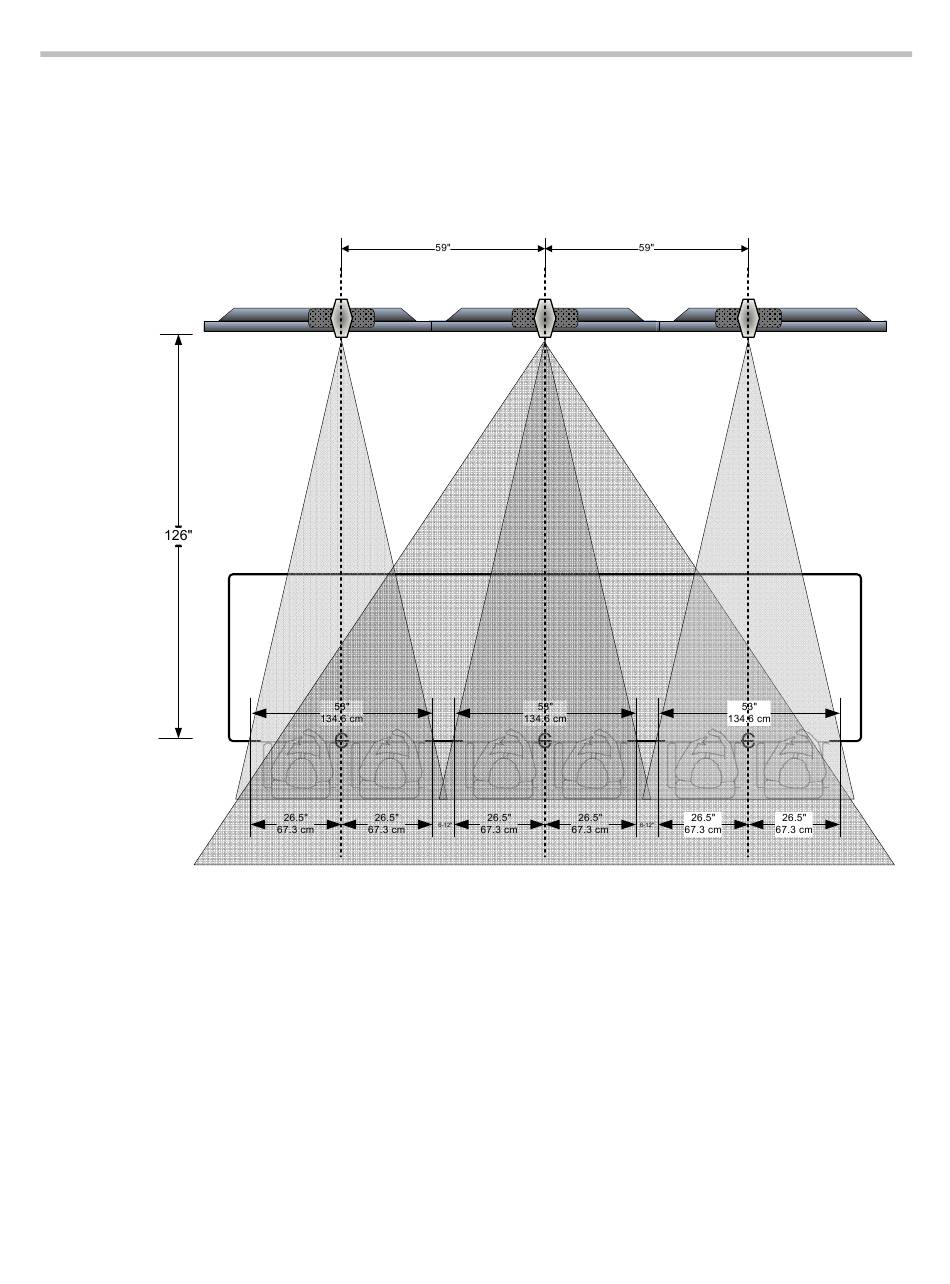

Figure 2-4 Camera Fields of View with a Table Placed at 126" (320 cm) —

ATX 300 System

Polycom, Inc. 2 - 7
