Selecting the Displays and Table

Polycom, Inc.

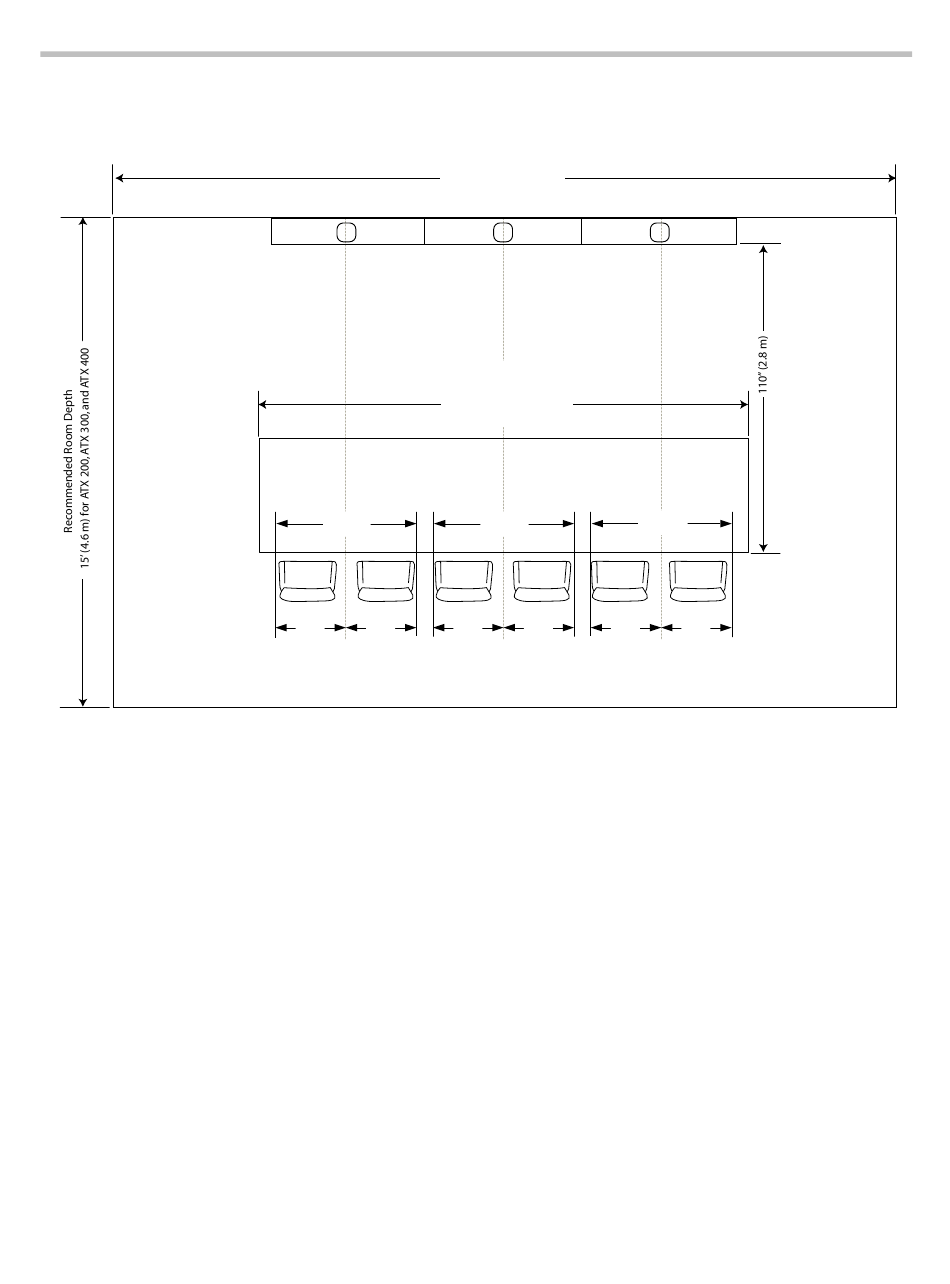

Figure 2-1 shows the width, depth, height, and additional room dimensions.
Recommended Room Width
24' (7.3 m) for ATX 200
29' (8.8 m) for ATX 300
34' (10.4 m) for ATX 400
Cam-3
(B3)
Left Display
Minimum Table Width
115" (2.9 m) for ATX 200
171" (4.3 m) for ATX 300
227" (5.7 m) for ATX 400
53"
(134.6 cm)
2
1
26.5" 26.5"
6"
(67.3 cm) (67.3 cm) (67.3 cm)
(15.2 cm) -
12" (30.4 cm)
The list below provides the basic information you need when choosing your
displays and table for the ATX 300 system. Following these guidelines will
enable you to create a lifelike immersive telepresence experience. However,
you may decide to make changes depending on your particular situation.
For ATX SDK systems, you should adjust these recommendations as needed
to fit your room size, table shape, and seating arrangement.
• The displays should be between 58" (147.3 cm) to 65" (165.1 cm) in
diagonal size.
• Each display must have an HDMI input.
• Each display must be able to go into Sleep or Standby mode when no
video is received. Additionally, each display must be able to wake up from
Sleep or Standby mode when video is received.
• The displays must be able to support 1920 x 1080 resolution @ 60Hz
without overscan or underscan.
Installing the Displays, Table, Cameras, and Chairs
Cam-1
(B1)
Center Display Right Display
53"
(134.6 cm)
3 4 5
26.5" 26.5" 26.5"
6"
(67.3 cm) (67.3 cm)
(15.2 cm) -
12" (30.4 cm)
Figure 2-1 ATX Room Dimensions
Cam-2
(B2)
53"
(134.6 cm)
6
26.5"
(67.3 cm)
2 - 3
