General installation information

CDC4 housing

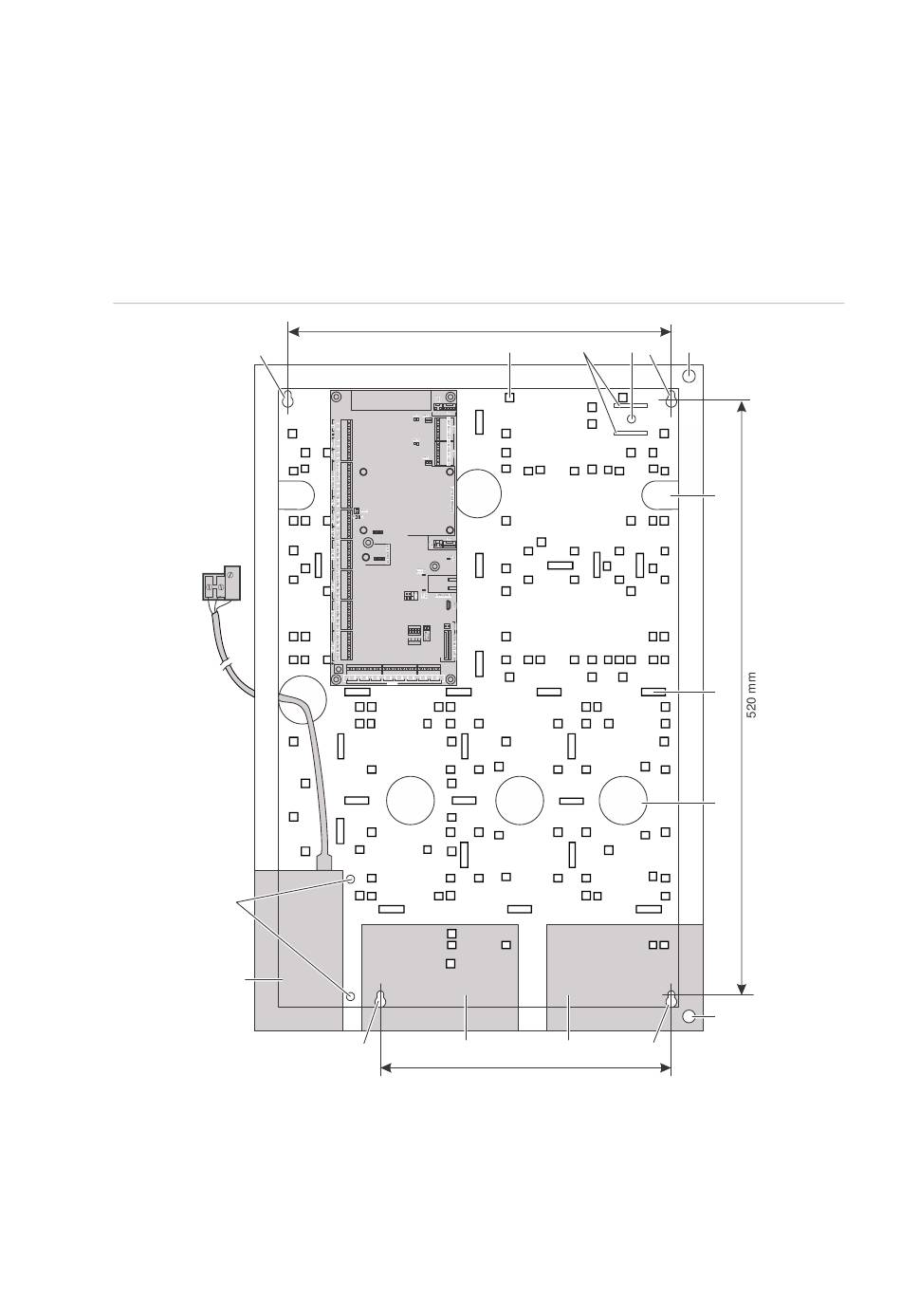

The housing with mounting holes (items 1) is shown in Figure 1 below.
All dimensions are given in mm.
Figure 1: CDC4 housing
(1)
(7)
(9)
(10)
(1) Enclosure wall mounting points
(2) Board mounting points (x178)
(3) Tamper switch bracket slots
(4) Tamper switch bracket mounting point
(5) Door close points
(6) Rear cable entry holes (x7)
CDC4 Door Controller Installation and Programming Manual
340 mm
(2)
1 C 2 C 3 C 4 C 5 C 6 C 7 C 8 C
INPUTS
(1)
(11)
258 mm
(7) Mains terminal position (optional)
(8) Cable tie points (x34)
(9) Transformer bracket mounting points
(10) Transformer position
(11) Battery positions
Chapter 1: Installation
(3) (4) (1) (5)
(6)
(8)
(6)
(5)
(11) (1)
