ROPS (Roll Over Protection System) Removal (continued)
ROPS (Roll Over Protection System) Installation

Throttle Cable Assembly Replacement

Throttle Cable Assembly Removal
Chassis: Service and Repairs
4. Lift the ROPS assembly off of the machine.
1. Lift the ROPS assembly into position on the rear side of the mounting support.
2. Install the 4 mounting bolts.

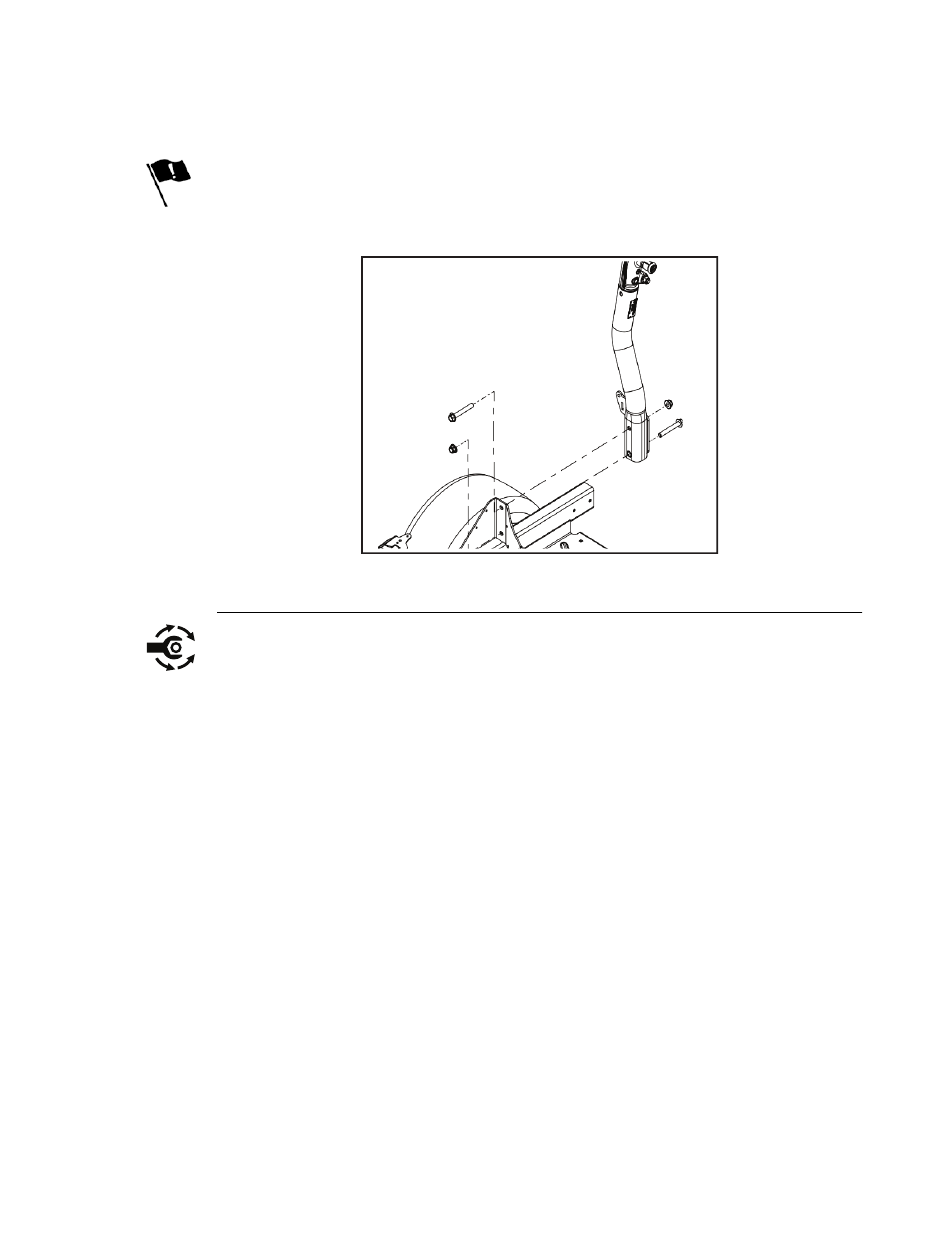

Note: Orientation of the ROPS hardware is critical. Make sure that the bolts
are orientated
g336054
3. Torque the ROPS connecting hardware to 122–135 N •m (95 ± 5 ft-lb).
4. Install the right and left consoles.
Left Console Replacement (page 5–11)
1. Park the machine on a level surface and disengage the PTO. Stop the
engine, wait for all moving parts to stop, and remove the key. Engage the
parking brake.
2. Disconnect the battery by removing the negative cable first, then the positive
cable from the battery.
3. Remove the control panel assembly from the right console.
4. Remove the knob from the throttle lever.
Figure 38
Right Console Replacement (page 5–13)
Page 5–20 2000 Series Z MASTER® Service Manual
3438-778 Rev A
