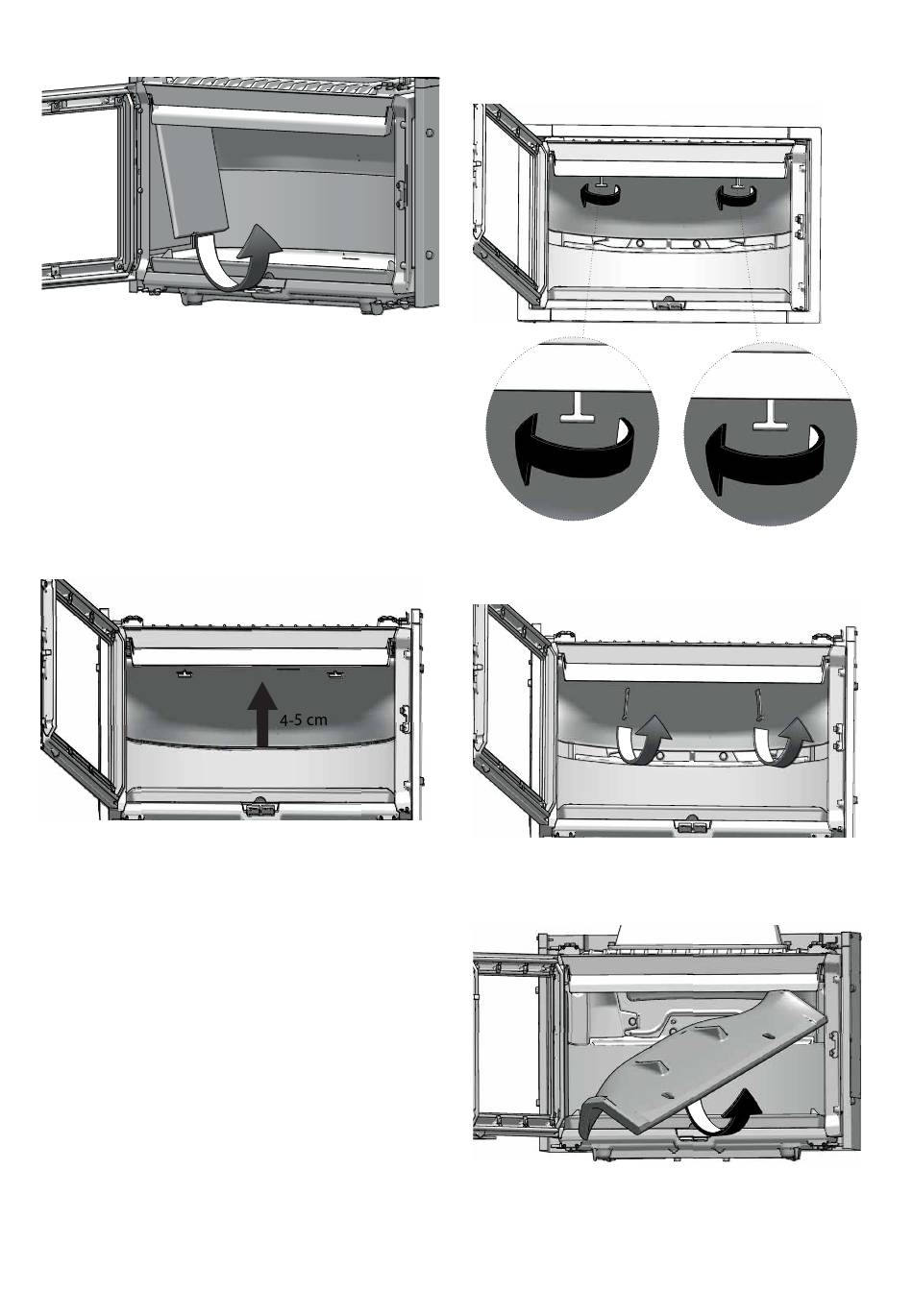

Fig. 37b
1. Remove the side burn plates on both sides by lifting them
slightly and pulling out at the bottom.
2. To install the burn plates, follow the same procedure in
reverse order
7.2 Replacing the baffl e plate
First remove the side burn plates (Fig.36). It is not necessary
to remove the back burn plate .
Fig 38a
1. Lift the baffl e plate.
20
Fig 38b
Fig 38c
2. Turn the keys to remove them.
Fig 38d
3. Tilt out the baffl e plate.
4. When refi tting, follow the same procedure in reverse order.
