ENGLISH
Outside air connection - rear outlet

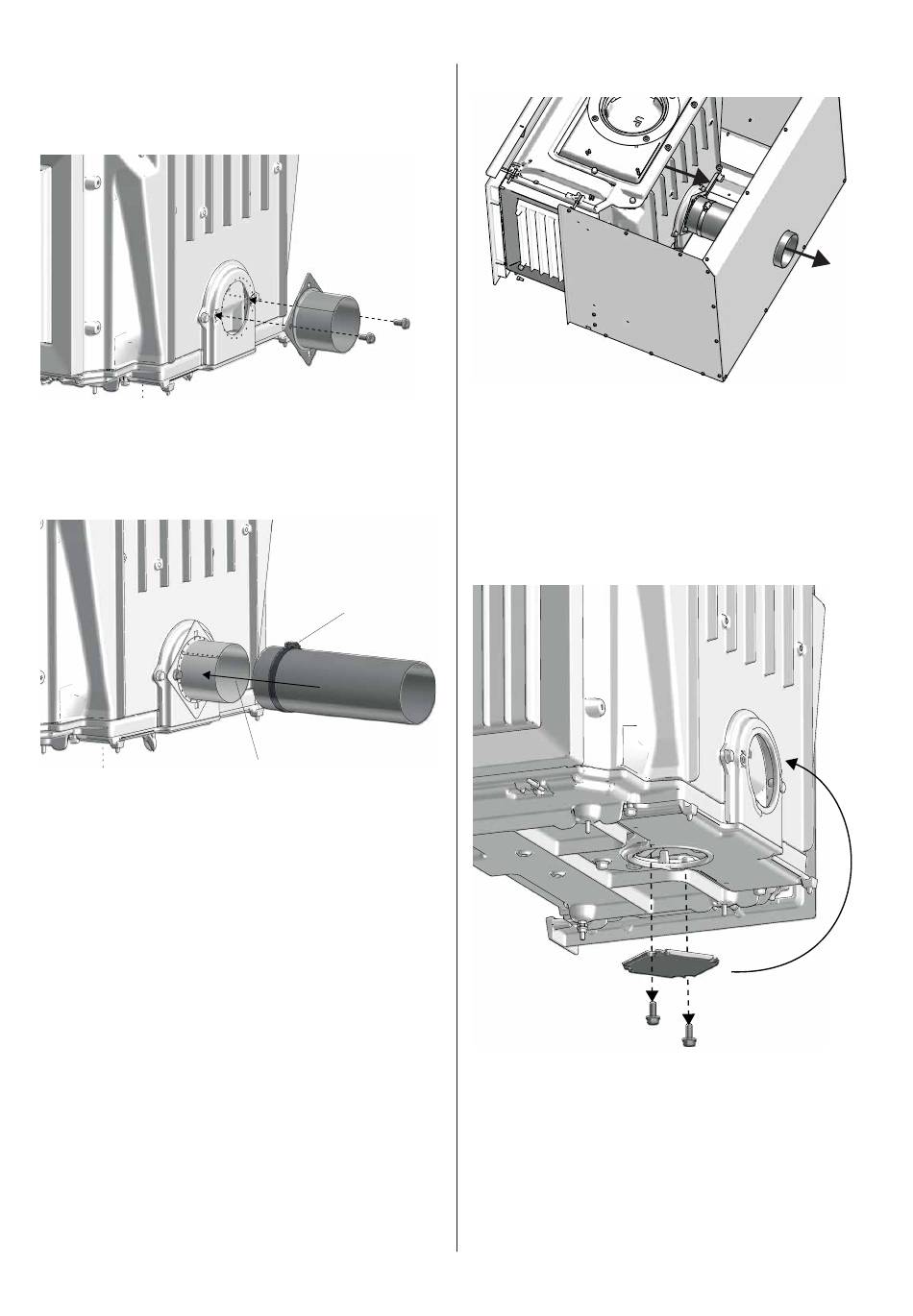

Fig. 22
1. Mount the outside air adaptor at the rear outlet with the
screws included in the bag of screws (use a 13 mm
wrench).
Fig. 23
1. Place a fl exible pipe on the outside of the outside air
adaptor.
2. Tighten hose clamp with screwdriver or 7 mm socket
wrench.
14
2
1
Fig. 24
1. Place the insert back in the convection chamber, with the
pipe through the rear outlet. The fl exible pipe can also
be installed from the outside of the convection chamber.
The front bracket can now be reattached (see fi g.17).
Outside air connection - bottom outlet
Fig. 25
1. Move the outside air cover from the bottom outlet to the
rear outlet.
