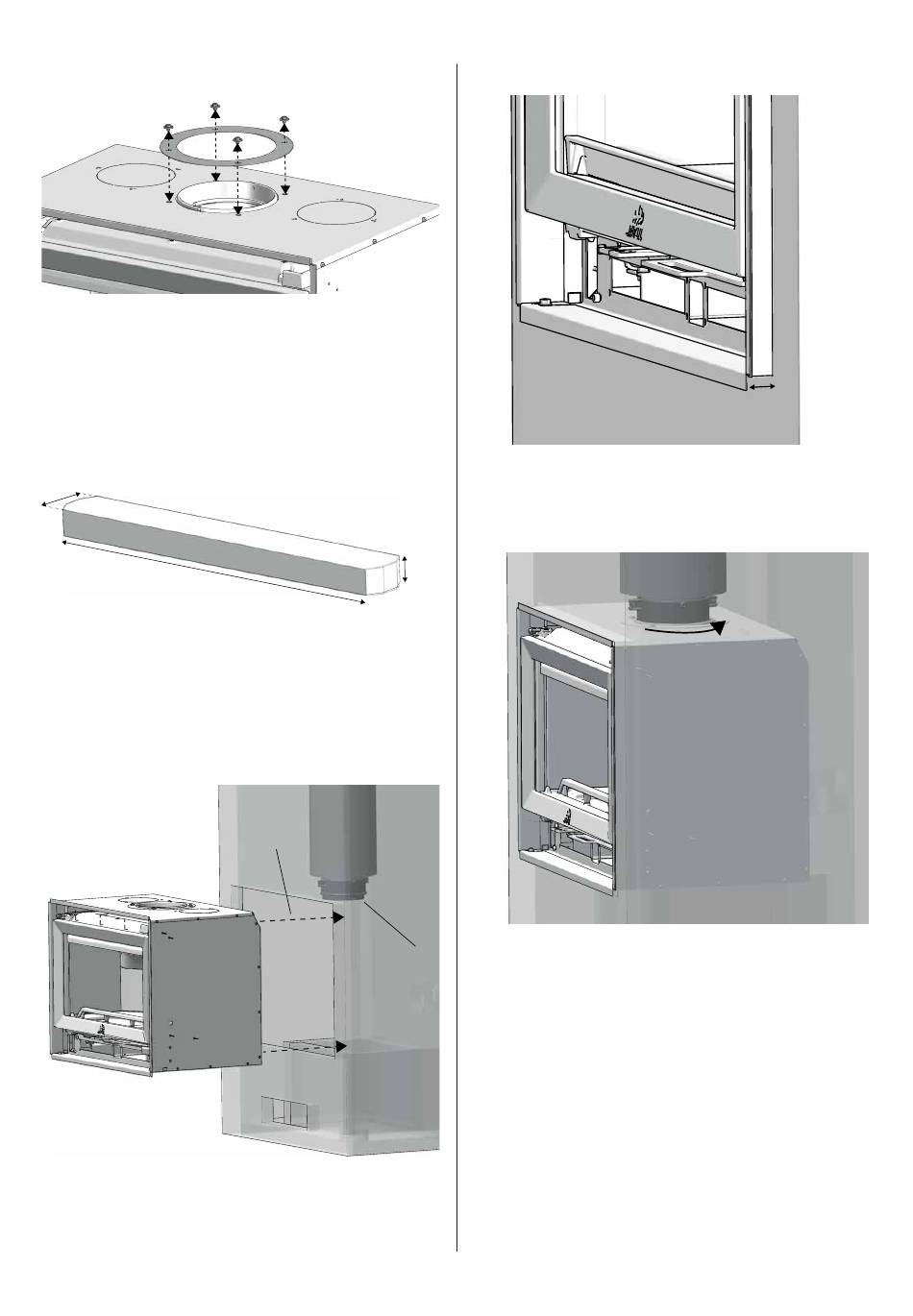

Fig. 11
1. Unscrew the 4 screws and washers from the top plate of
the cassette.
2. Put the metal ring found in the box supplied with the stove,
around the smoke outlet and secure with the screws and
washers. Do not tighten the screws intirely, until you know
that no more adjusting is necessary.
Fig. 12
20 mm
150 mm
1. Cut out a small piece of wood, with the dimensions in the
fi g above. This will be used as a tool, to secure the adaptor
to the smoke outlet from inside the burn chamber.
The adaptor must be connected to the fl ue pipe before the
cassette is placed in the surround. See fi g 5a, and steps 3-5
in fi g 5b.
Fig. 13a
1. Fasten the piece of wood into the adaptor, by putting it in
tension.
2. Place the cassette into the surround in the right position
10 mm
2
1
Fig. 13b
3. Make sure there is a 7 mm gap between the edge of the
cassette, to the surround.
Fig. 14
1. Secure the adaptor from the inside by turning it, using the
wooden piece. Remove the wooden piece when assembled
Reinstall the upper exhaust defl ector (fi g 6), exhaust defl ector
(fi g 39) and baffl e plate (fi g 38). Reattach the top plate of the
cassette (fi g 7).
ENGLISH
7mm
