40”
Traditional Lattice
1016 mm
Clean Face

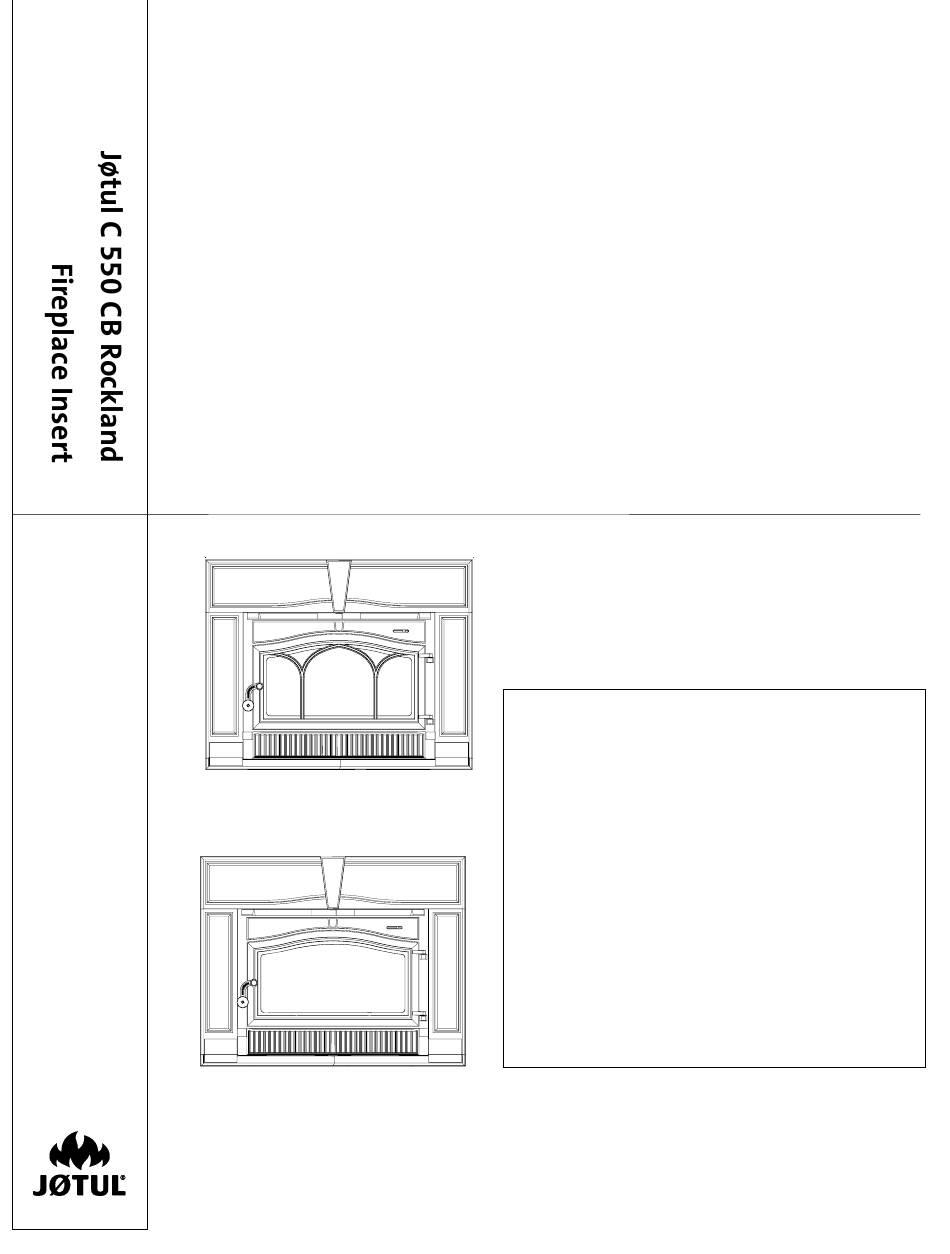

Jøtul C 550 CB Rockland 139656_09 10/18
Fireplace Insert
Installation and Operating Instructions
for the United States & Canada
31 5/8”
803 mm
„ The Jøtul C 550 Rockland fireplace insert is
listed to burn solid wood only. Do not burn
any other fuels.
„ Read this entire manual before you install
and use this appliance.
„ Save these instructions for future reference
and make them available to anyone using or
servicing the fireplace insert.
„ This wood heater requires periodic inspection
and repair for proper operation. See this
manual for specific maintenance information.
It is against federal regulations to operate
this wood heater in a manner inconsistent
with the operating instructions in this
owner's manual.

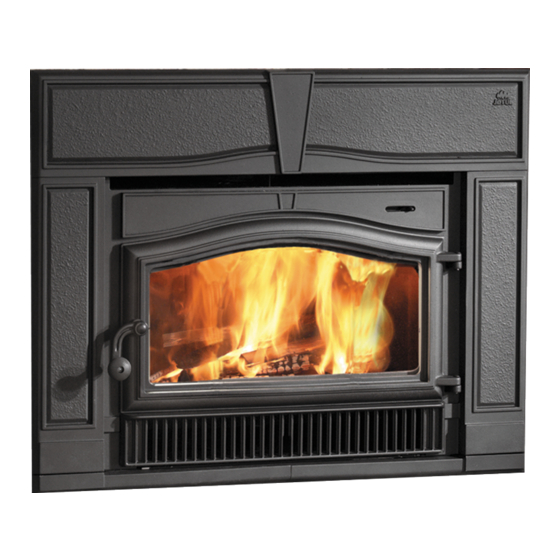

Jøtul C 550 CB
Rockland
V2
1
Advertisement
Table of Contents
Related Manuals for Jøtul C550 CB
Summary of Contents for Jøtul C550 CB
- Page 1 Jøtul C 550 CB Rockland 139656_09 10/18 Jøtul C 550 CB Rockland Fireplace Insert 40” Installation and Operating Instructions Traditional Lattice 1016 mm for the United States & Canada 31 5/8” 803 mm „ The Jøtul C 550 Rockland fireplace insert is listed to burn solid wood only.
-
Page 2: Table Of Contents
Jøtul C 550 CB Rockland 139656_09 10/18 For Your Records... Table of Contents Record the following information to help your dealer determine what you will need should Standards and Safety Notices your fireplace ever require parts or service. Standards / Codes ............3 The serial number and manufacturing date are Combustion Specifications ........ -
Page 3: Standards / Codes
Jøtul C 550 CB Rockland 139656_09 10/18 Standards WARNING ! The Jøtul C 550 CB Rockland fireplace insert has been THIS WOOD HEATER HAS A MANUFACTURER- tested and listed to the following standards: SET MINIMUM LOW BURN RATE THAT MUST U.S: ANSI/UL 1482-2011 NOT BE ALTERED. -
Page 4: Safety Notices
Jøtul C 550 CB Rockland 139656_09 10/18 Preparation We strongly urge you to have your authorized Jøtul Safety Notices dealer install your new Jøtul C 550 CB Fireplace Insert. • Check with local building officials to determine what • BURN SOLID WOOD FUEL ONLY. DO NOT BURN permits may be required before installation. -
Page 5: Specifications
Jøtul C 550 CB Rockland 139656_09 10/18 Specifications Flue Collar: 6” (152 mm) Firebox Capacity: 2.08 cu. ft. Weight: 550 lbs. (249.5 kg) Optional Surrounds and Accessories Steel Wide Surround, 44”x 34” / Matte Black 156432 Trimable Surround, 40”x 32” / 157324 for Z-C fireplaces Stove Gloves... -
Page 6: Installation
Jøtul C 550 CB Rockland 139656_09 10/18 Installation Factory-Built Fireplace Requirements Masonry Fireplace Requirements The Jøtul C 550 CB is approved for installation into a The Jøtul C 550 CB is approved for installation into factory-built fireplace meeting the following conditions: a structurally sound, code-approved, solid masonry fireplace meeting the following conditions: •... -
Page 7: Hearth Protection
Jøtul C 550 CB Rockland 139656_09 10/18 Hearth Protection Requirements Factory-Built Fireplace Requirements, cont’d. The floor area in front of fireplace insert must be pro- • The convection chamber/louvers of the zero- tected from live sparks and radiant heat. clearance fireplace MUST NOT be blocked off. The use of the cast iron surround panels may not be possible •... -
Page 8: Clearance To Combustibles
Jøtul C 550 CB Rockland 139656_09 10/18 Clearance to Combustible Materials • There may be no combustible materials located • Specific clearance (open space) must be anywhere within 36” (914 mm) of the front of maintained between the fireplace insert and the fireplace insert. - Page 9 Jøtul C 550 CB Rockland 139656_09 10/18 Minimum Clearances for units with serial numbers before 11903 Serialized labels are located on the shipping crate, firebox floor, and firebox shroud. These older units may be updated for installation at the reduced clearances on the preceding page with installation of Jøtul C 550 CB Clearance Reduction Kit 157705.
-
Page 10: Chimney Connection
Jøtul C 550 CB Rockland 139656_09 10/18 Chimney Connection Requirements 5. For external chimneys, (one or more sides are exposed to the outside below the roof line, including garages), a positive connection to the first flue tile is The insert must be connected to a code-approved acceptable provided the tile is no larger than 8”... - Page 11 Jøtul C 550 CB Rockland 139656_09 10/18 Fireplace Chimney Preparation 1. Remove the existing damper and linkage components from the fireplace. Alternatively, you can wire the damper plate to lock it in the open position. Thoroughly clean the firebox and smokeshelf area with a wire brush.
-
Page 12: Firebox Installation
Jøtul C 550 CB Rockland 139656_09 10/18 Installing the Fireplace Insert Quik-connectors Inner Shroud Power Cord Orientation If the optional Flex Conduit Kit 158002 will be installed, use the instructions included with that kit in conjunction with those below. See also Appendix, Phillips page 25. -
Page 13: Surround Assembly
Jøtul C 550 CB Rockland 139656_09 10/18 Figure 13. Left Breastplate Right Breastplate Surround Panel assembly viewed from backside. Tools Required: • 10 mm socket or wrench Alignment Set Screw ENAMEL CAUTION NOTE: The assembled surround is very heavy. Enamel All fasteners are M6 x 10 mm hex Right Leg head bolts, pre-installed. -
Page 14: Operation
Jøtul C 550 CB Rockland 139656_09 10/18 Operation A seasoned log will have check marks on the ends and be lighter than an unseasoned log which will show little or no check marks. We recommend using a moisture meter to determine Read the following section carefully before building a fire the moisture content of your wood. -
Page 15: Break-In Procedure
Jøtul C 550 CB Rockland 139656_09 10/18 Blower Settings / Air Control effectiveness of the air wash over the glass; the more open the setting, the cleaner the glass will remain. Additional Use the following guide for best performance. air is separately directed into the top of the fire chamber Burn Rate Air Control Setting Blower Speed... -
Page 16: Starting / Maintaining The Fire
Jøtul C 550 CB Rockland 139656_09 10/18 Starting and Maintaining a Fire Adding Fuel to the Fire Burn only solid wood directly on the bottom grate of the stove. When reloading the stove while a bed of hot embers still Do not elevate the fire in any way. -
Page 17: Blower Operation
Jøtul C 550 CB Rockland 139656_09 10/18 Clean the chimney whenever creosote accumulation WARNING ! of 1/4” or more is evident. A qualified chimney sweep or other authorized service person can provide this service. „ THIS BLOWER MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL It is also important to remember that chimney size, CODES OR, IN THE ABSENCE OF LOCAL... -
Page 18: Maintenance
Jøtul C 550 CB Rockland 139656_09 10/18 Maintenance Glass Replacement Always operate the doors slowly and cautiously to avoid cracking or breaking the glass. Never use the door to Ash Removal push wood into the firebox. If the glass becomes cracked or broken follow the replacement procedure below. -
Page 19: Chimney System
Jøtul C 550 CB Rockland 139656_09 10/18 General Maintenance Canada Installations (Full Reline): Chimney System The chimney liner can be swept directly into a bucket The Jøtul F is designed to burn cleanly and efficiently placed under the flue outlet, with removal of the two when used according to the guidelines in this manual. - Page 20 Jøtul C 550 CB Rockland 139656_09 10/18 Replacement Gaskets Glass LD .250 Fiberglass Rope 66” 200024 Door LD2 .350 Fiberglass Rope 70” 100038 Front LD2 .360 Fiberglass Rope 90.5” 117587 Air Manifold, Outer LD2 .250 SA Fiberglass Rope 30” 129644 Air Manifold, Inner .125 x 8 mm Flat SA 24”...
- Page 21 Jøtul C 550 CB Rockland 139656_09 10/18 This page is intentionally blank.
-
Page 22: Exploded View
Jøtul C 550 CB Rockland 139656_09 10/18 Jøtul C 550 CB Rockland Illustrated Parts Diagram Use only genuine Jøtul replacement parts. Do not substitute parts from any other manufacturer. See your local Authorized Jøtul Dealer or contact us directly: Jøtul North America 55 Hutcherson Dr. -
Page 23: Parts Listing
Jøtul C 550 CB Rockland 139656_09 10/18 Jøtul C 550 CB Rockland Parts List Description Part Number Description Part Number Rear Shroud 22202792 Cast Iron Door Handle 103712 Screw, #8 x 1/2” Hex Slt 117917 Roll Pin, 5 mm x 24 mm 117733 Nut, M6 Flange 117968... -
Page 24: Alternate Hearth Protection
Jøtul C 550 CB Rockland 139656_09 10/18 Appendix A Alternate Hearth Protection Leg Leveler Installation Two leg leveler bolts are contained within the All hearth protection materials must be noncombustible; i.e: Miscellaneous Kit included inside the firebox. The bolts metal, brick, stone, or mineral fiber boards. Any combustible are intended to help level and plumb the firebox if material may not be used. -
Page 25: Blower Flex Conduit Kit Installation
Jøtul C 550 CB Rockland 139656_09 10/18 Kit Contents: Tools Required: • Flex Conduit Wire Assembly • 1.4” socket driver • Harness Bracket, C350 - small • phillips screwdriver • Harness Bracket, C550 - large • Firebox Riser Bar READ THESE INSTRUCTIONS BEFORE BEGINNING THE INSTALLATION. The blowers must be electrically grounded in accordance with local codes or, in the absence of local codes, with the current ANSI/NFPA 70, National Electrical Code or CSA C22.1-Canadian Electrical Code. - Page 26 Jøtul C 550 CB Rockland 139656_09 10/18 Jøtul C 550 CB Rockland EXCLUSIONS AND LIMITATIONS Limited Warranty NOTICE: This warranty is void if installation or service is performed by someone other than an authorized installer or service agency, or if Effective January 1, 2013.
- Page 27 Jøtul C 550 CB Rockland 139656_09 10/18 Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the length of implied war- ranties. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
- Page 28 Jøtul C 550 CB Rockland 139656_09 10/18 Jøtul North America, Inc. 55 Hutcherson Dr. Gorham, Maine 04038 Jøtul AS P.O. Box 1411 N-1602 Fredrikstad, Norway www.jotul.us...
