4.8 Installing outside air
connection
There are two ways of installing the outside air connection;
rear or bottom. Both options requires removing the insert
from the cassette during installation.
Start by removing the top of the cassette, as shown in
fi g. 7.

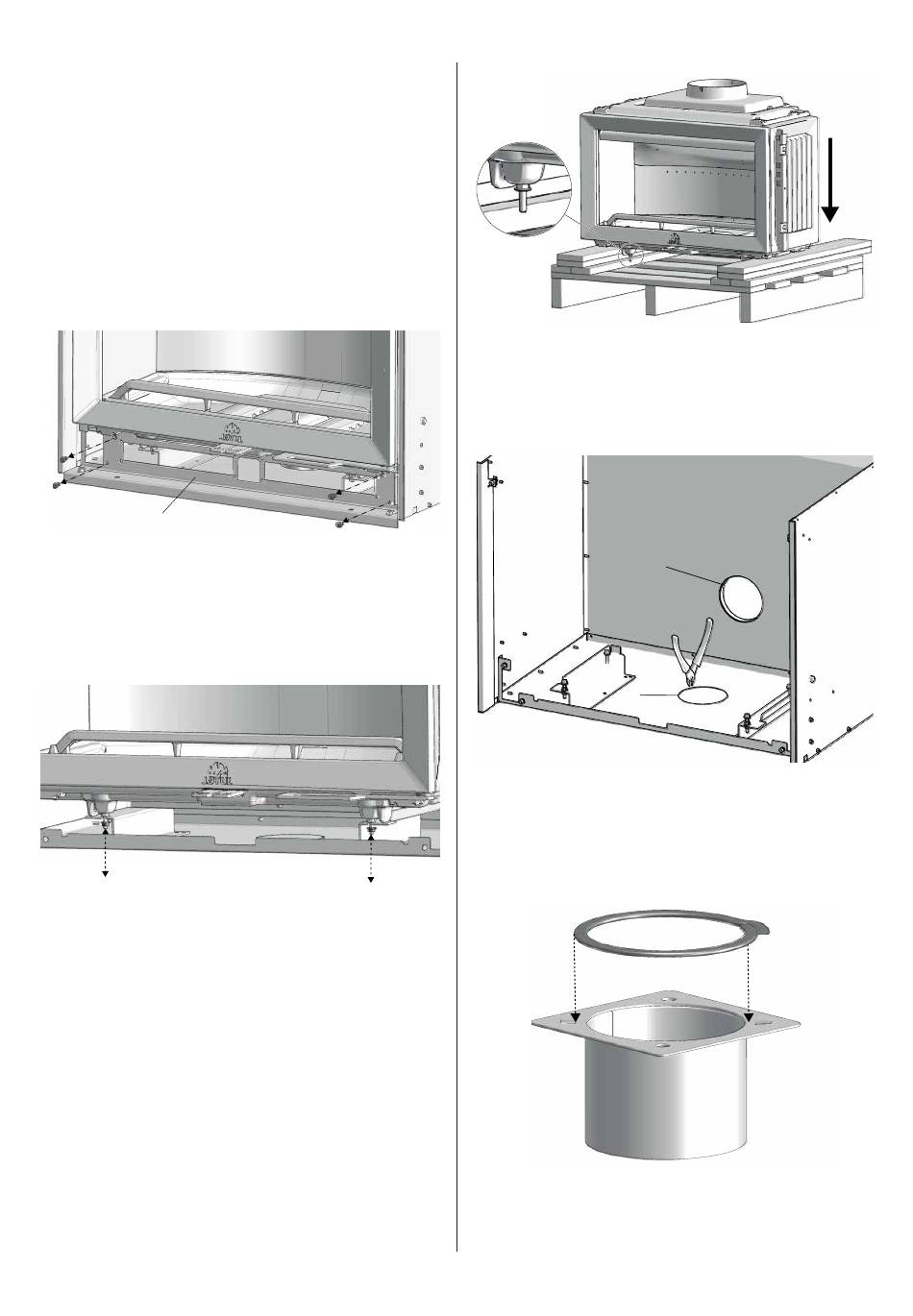

Fig. 17
A
1. Unscrew the 4 screws securing the front bracket (A) with
a 5 mm Allen key.
2. Tilt out the front bracket (A).
Fig. 18
1. Loosen the two nuts on the bottom of the burn chamber, to
free the burn chamber from the cassette..
Carefully lift the insert out of the cassette, and place in on
a suitable surface (see fi g 19).
Fig. 19
1. Place the insert on a suitable surface, making sure the
weight is not resting on the bolts at the bottom of the burn
chamber. This can be done by using the pallet and wooden
materials that came with the product.
Fig. 20
B
1. Remove the outside air supply cover (either rear (A) or
bottom (B)) with pliers.
Fig. 21
1. Remove the protective paper from the supplied gasket and
place the gasket on the outside air adaptor.
ENGLISH
A
13
