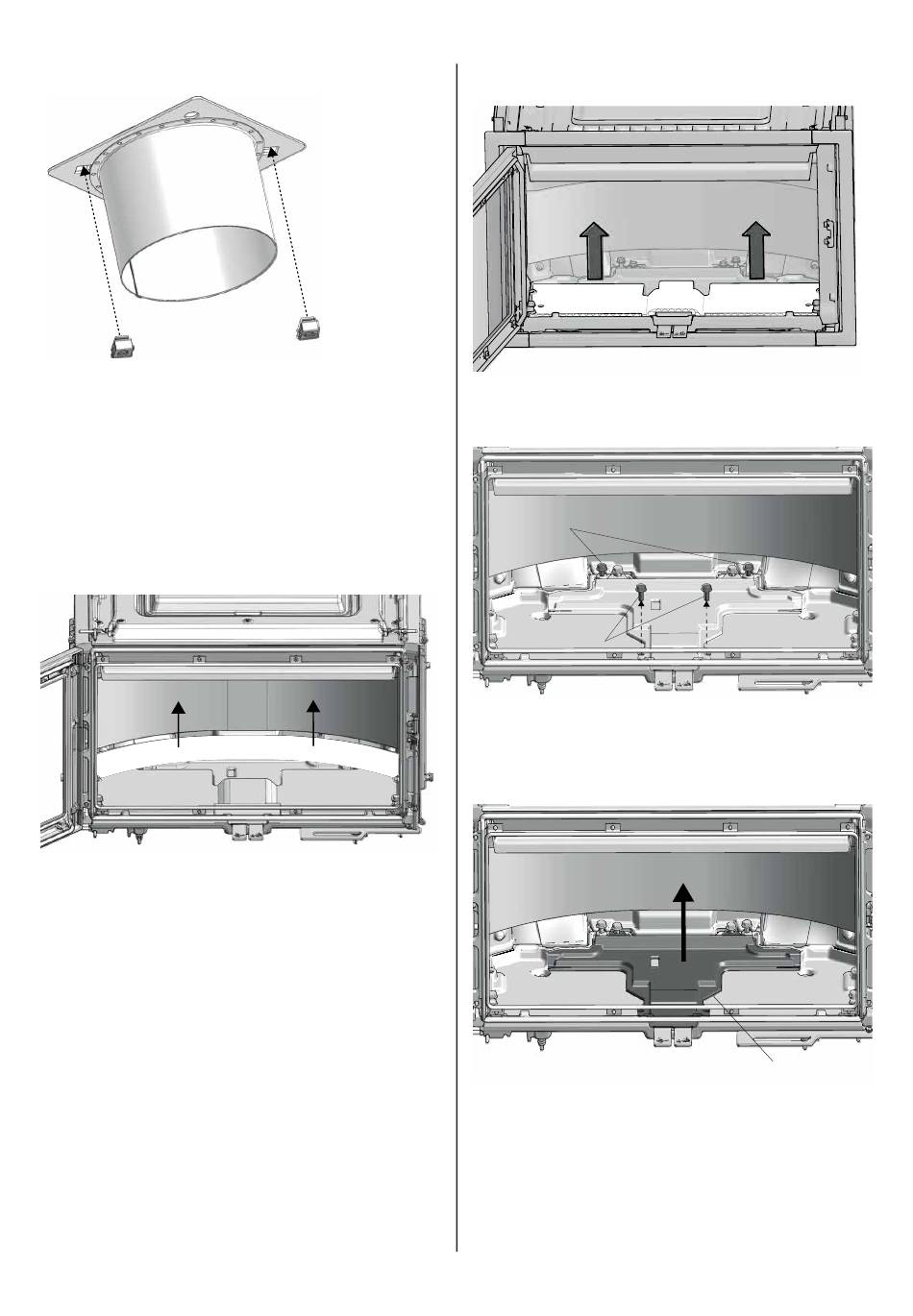

Fig. 26
1. Attach the square nuts found in the bag of screws, to the
outside air adaptor.
The outside air adaptor must be secured from the inside
of the burn chamber. To access the bottom of the burn
chamber, a number of parts need to be removed. First
remove the log retainer (fi g 36), the burn plates (fi g 37)
the ventilation cover (fi g 40a) and the inner bottom (fi g
40b).
Fig. 27a Removing insulation mats
Fig. 27b
Fig. 28a
A
B
1. Loosen the two back screws (A), do not remove them.
2. Unscrew the two front screws (B).
Fig. 28b
3. Lift and tilt out the outside air bottom (A).
ENGLISH
A
