ENGLISH

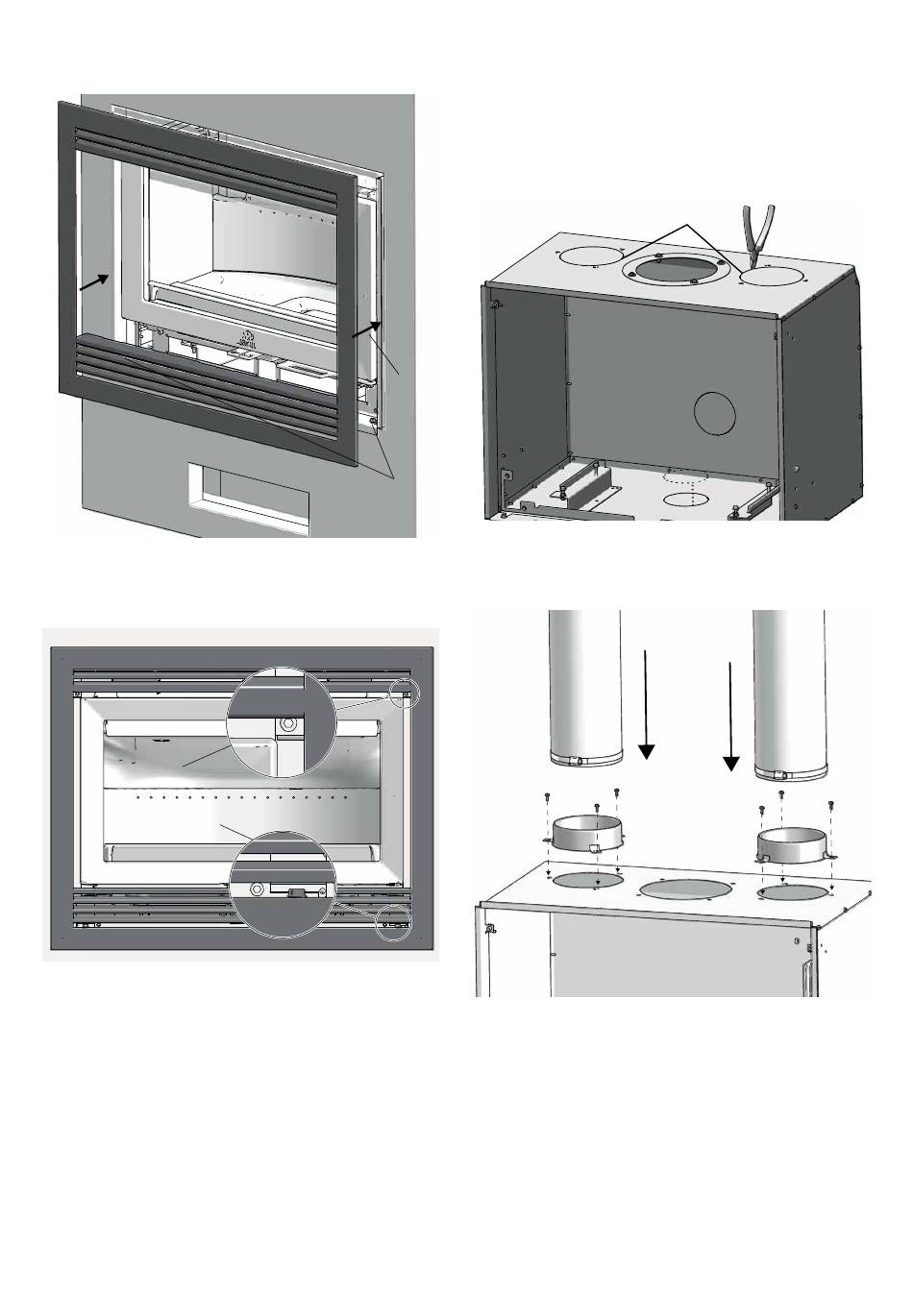

Fig. 15a
1. Loosen the two nuts at the front bottom of the cassette.
2. Push the frame into place.
Fig. 15b
1
2
3. Secure the top of the frame into place using two 20 mm
long screws from the bag of screws (identical on both sides
of the frame), with a 5 mm Allen key.
4. Tighten the two nuts at the front bottom of the cassette
(identical on both sides of the frame), with a 10 mm wrench.
12
Hot air distribution - optional
See chapter 4.4 for information about convection air / hot air
distribution. If necessary, take the insert out of the cassette when
connecting hot air distribution (see fi g 7 and 17-19).
Fig. 16a
2
1
1. Use pliers to remove the lids for hot air ducts.
Fig. 16b
2. Attach the hot air outlets to the cassette, with screws from
the bag of screws.
3. Place fl exible pipes on the outside of the outlets, and
tighten clamp with screwdriver or 7 mm socket wrench.
The screws can also be fi tted from the inside.
1
