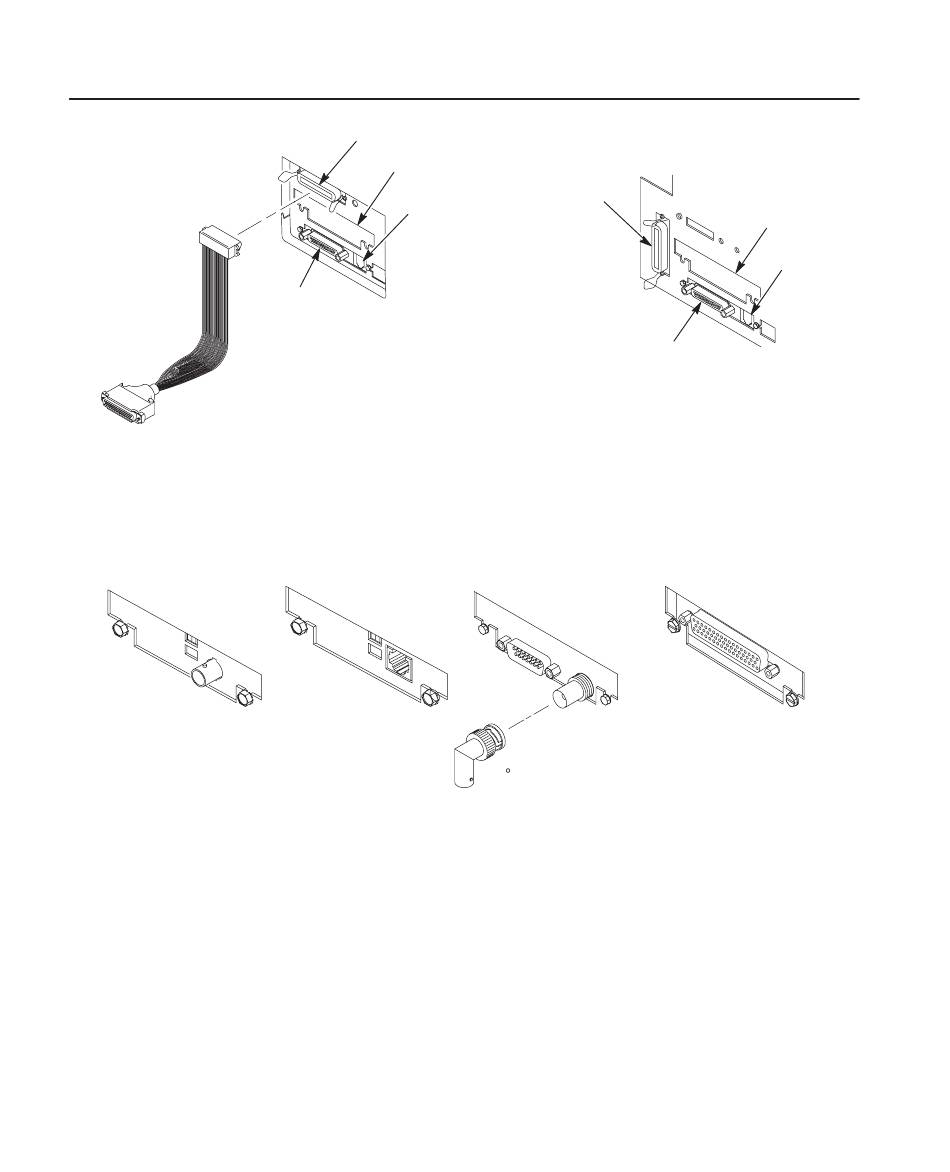

Interface Connections

Data Products Standard Adapter
Network 10Base2
1
Not present on Network models
1. Remove the cover from the I/O connector you have selected.
2. Attach the I/O cable connector to the printer interface connector.
2–16
1
Centronics
Auxiliary I/O
Diagnostic
Serial
RS232/RS422
Pedestal Model
Optional Interfaces for Auxiliary I/O
Network 10BaseT
1
Centronics
Serial
RS232/RS422
Cabinet Model
Coax / Twinax
90 BNC connector required for Coax
connection with the Power Stacker.
Setting Up the Printer
Auxiliary I/O
Diagnostic
Data Products Longlines
