3. Locate the paper slot inside the cabinet and feed the paper up through the slot. It
may be easier to feed one corner of the new paper up through the slot first.
When this corner can be grasped from the top, rotate the paper back to the
normal position. If necessary, gently press the existing paper back.
NOTE: If you are unable to load the new paper over the existing paper in
step 3, this procedure will not work. Unload paper completely
perform the normal load paper procedure on
4. Hold the paper to prevent it from slipping down and through the paper slot.
5. Pull the new paper above and behind the ribbon mask, but in front of the
existing paper. The ribbon mask location is shown on the ribbon path
diagram. If necessary, gently press the existing paper back.
6. Align the top edge of the new paper with the top perforation of the existing paper.
Operating the Printer
Paper Slot

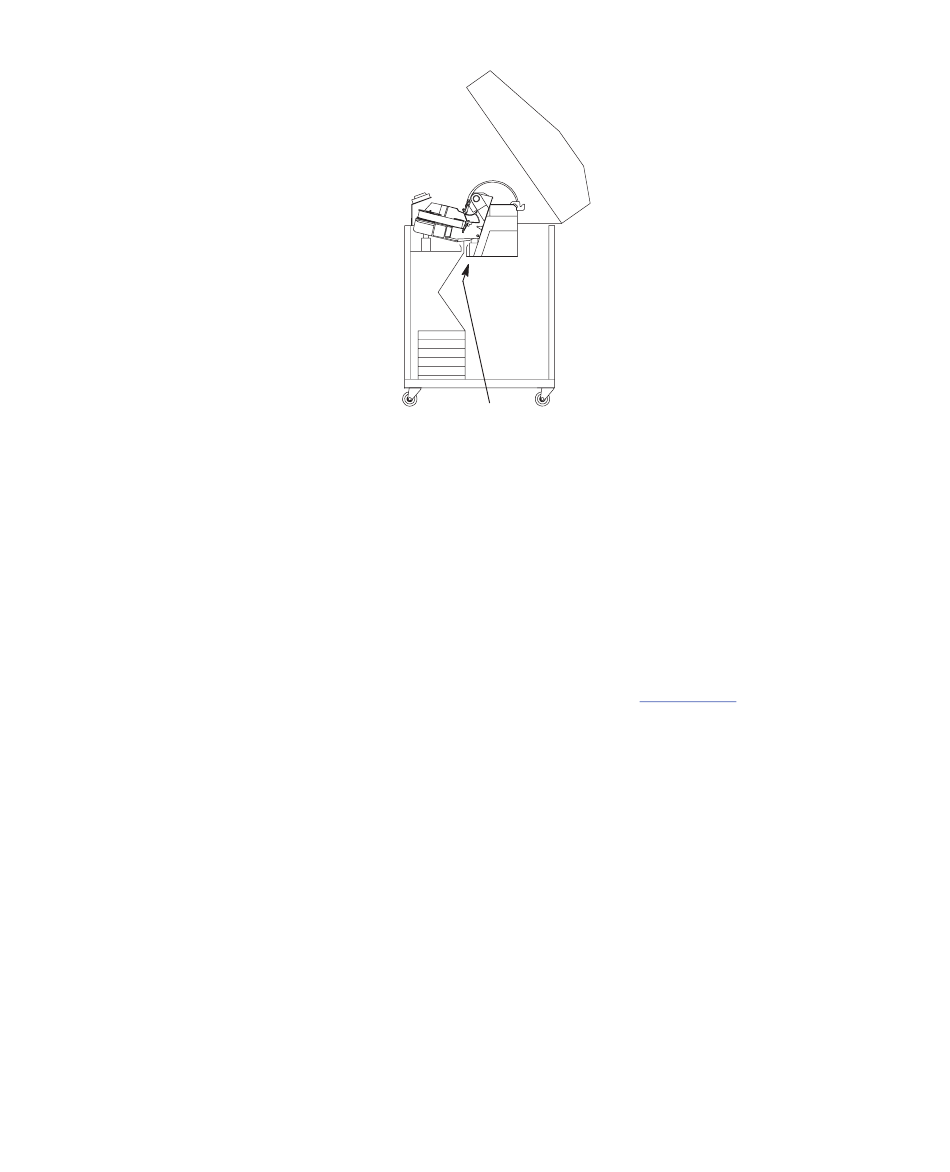

Figure 3–2. Paper Slot Location
page 2–19.
3–9
