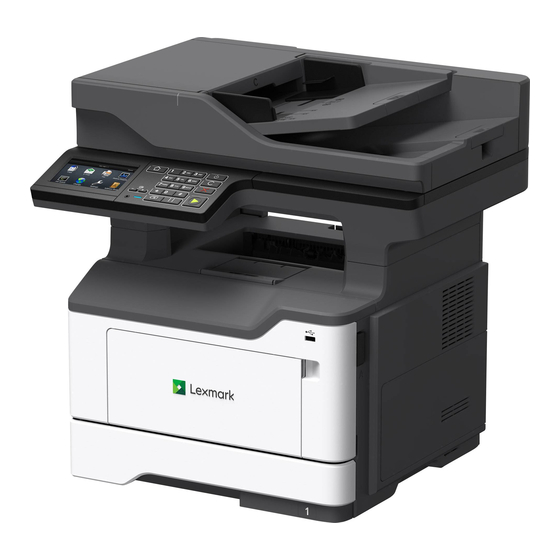

Page 1 MB2338, MB2442, MB2546, MX321, MX421, MX52x, XM1242, and XM1246 MFPs 7017-2xx, -4xx, -6xx Service Manual • Start diagnostics • Maintenance • Safety and notices • Trademarks • Index October 24, 2018 www.lexmark.com...
Page 2: Product Information
Trademarks Lexmark and the Lexmark logo are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands (language) and functions included in its printer products.
Page 3: Table Of Contents
7017-2xx, -4xx, -6xx Table of contents Product information..................2 Edition notice....................2 Notices, conventions, and safety information......... 11 Laser notice................................11 Conventions.................................14 Safety information.............................. 15 General caution statements........................... 20 Change history.....................21 Change history..............................21 General information................... 23 Printer model conﬁgurations.......................... 23 Finding the serial number..........................24 Supported paper sizes, types, and weights....................
Page 4 7017-2xx, -4xx, -6xx Horizontal light bands check............................ 54 Vertical light bands check ............................55 Vertical dark bands check............................56 Vertical dark streaks with print missing check ....................58 White streaks and voided areas check ......................... 60 Fine lines are not printed correctly (speciﬁcally Chinese characters) check ..........63 Clipped pages or images check..........................
Page 5 7017-2xx, -4xx, -6xx 16y errors ..................................142 171 errors ..................................146 6yy errors..................................147 Procedure before starting the 9yy service checks ...................149 900 errors ..................................151 ADF/Scanner hardware errors........................156 84y errors ..................................156 Other symptoms...............................158 Fax symptoms ................................158 Service menus................... 169 Understanding the printer control panel....................169 Using the printer control panel..........................169 Understanding the status of the power button and indicator light ...............170 Using the home screen..............................
Page 6 7017-2xx, -4xx, -6xx Disconnecting ribbon cables...........................193 Ribbon cable connectors ............................193 Zero Insertion Force (ZIF) connectors......................193 Horizontal top contact connector ........................194 Horizontal bottom contact connector ......................197 Vertical mount contact connector ........................200 Horizontal sliding contact connector ......................203 Low Insertion Force (LIF) connector ....................... 206 Printhead assembly adjustment ..........................207 Removal procedures............................209 Left side removals............................
Page 7 7017-2xx, -4xx, -6xx MPF with front access cover removal ........................256 Sensor (MPF paper present) removal ........................257 Front input guide removal............................258 Front USB port removal ............................258 Bottom removals.............................260 Power supply removal............................. 260 Duplex assembly removal............................262 Sensors (duplex and input) removal........................264 Sensor (toner density) removal..........................265 Sensor (trailing edge) removal..........................267 Pick roller assembly removal..........................268 Rear side removals............................
Page 8 7017-2xx, -4xx, -6xx Maintenance....................315 Inspection guide...............................315 Scheduled maintenance..........................315 Maintenance kits.................................315 Resetting the maintenance counter ........................316 Lubrication speciﬁcation..........................316 Cleaning the printer............................317 Cleaning the printer ..............................317 Cleaning the scanner ..............................317 Cleaning the printhead lenses..........................320 Parts catalog..................... 322 Legend................................322 Assembly 1: Covers............................323 Assembly 2: Control panel (MX421, MX521, and MX522)..............325...
Page 9 7017-2xx, -4xx, -6xx Selecting a location for the printer......................364 Noise emission levels............................ 365 Temperature information..........................366 Options and features................367 Available internal options..........................367 Input/output conﬁgurations and capacities....................367 Theory of operation................. 369 POR sequence..............................369 Printer control..............................369 Print cycle operation............................369 Print engine layout ..............................369 Print cycle ..................................370 Printer operation..............................376...
Page 10 7017-2xx, -4xx, -6xx Table of contents...
Page 11: Notices, Conventions, And Safety Information
7017-2xx, -4xx, -6xx Notices, conventions, and safety information Laser notice The printer is certiﬁed in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for Class I (1) laser products, and elsewhere is certiﬁed as a Class I laser product conforming to the requirements of IEC 60825-1: 2014.
Page 12 7017-2xx, -4xx, -6xx Aviso sobre laser Esta impressora foi certiﬁcada nos EUA por estar em conformidade com os requisitos do DHHS 21 CFR capítulo I, subcapítulo J, para produtos a laser de Classe I (1) e, nos demais países, foi certiﬁcada como um produto a laser de Classe I em conformidade com os requisitos da IEC 60825-1: 2014.
Page 13 7017-2xx, -4xx, -6xx Laser-Hinweis Der Drucker wurde in den USA zertiﬁziert und entspricht den Anforderungen der Vorschriften DHHS 21 CFR Kapitel I für Laserprodukte der Klasse I (1), andernorts ist er als Laserprodukt der Klasse I zertiﬁziert, das den Anforderungen von IEC 60825-1: 2014 entspricht. Laserprodukte der Klasse I werden nicht als gefährlich betrachtet.
Page 14: Conventions
7017-2xx, -4xx, -6xx 通常の操作、ユーザーによるメンテナンス、または所定のサービス条件の下で、ユーザーがクラス I レベルを超えるレーザー放射に絶対にさらされないように設計されています。 레이저 고지사항 프린터는 미국에서 레이저 제품용 DHHS 21 CFR Chapter I, Subchapter J의 요구 사항을 준수하며 이외 지역에 서 IEC 60825-1: 2014의 요구 사항을 준수하는 클래스 I(1) 레이저 제품으로 승인되었습니다. Class I 레이저 제품은 위험한 제품으로 간주되지 않습니다. 프린터에는 650~670 나노미터 범위의 파장 영역 에서...
Page 15: Safety Information
7017-2xx, -4xx, -6xx Safety information • The safety of this product is based on testing and approvals of the original design and speciﬁc components. The manufacturer is not responsible for safety in the event of use of unauthorized replacement parts. •...
Page 16 7017-2xx, -4xx, -6xx PRECAUCIÓ. POSSIBLES DANYS: La bateria de liti d'aquest producte no ha estat dissenyada perquè se substitueixi. Hi ha perill d’explosió si no es substitueix correctament la bateria de liti. No recarregueu, desmunteu o incinereu una bateria de liti. Desfeu-vos de les bateries de liti usades d’acord amb les instruccions del fabricant i les regulacions locals.
Page 17 7017-2xx, -4xx, -6xx • È possibile che vi sia un maggior rischio di scosse elettriche e lesioni personali durante lo smontaggio e la manutenzione di questo prodotto. Il personale dell'assistenza deve comprendere questo rischio e prendere le precauzioni necessarie. ATTENZIONE - PERICOLO DI SCOSSE ELETTRICHE: Questo simbolo indica la presenza di un rischio per tensioni pericolose nell'area del prodotto in cui si lavora.
Page 18 7017-2xx, -4xx, -6xx Sicherheitshinweise • Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des Originaldesigns und der speziﬁschen Komponenten. Sofern nicht autorisierte Ersatzteile eingesetzt werden, übernimmt der Hersteller keinerlei Verantwortung in Bezug auf die Sicherheit dieses Produkts. • Die Wartungsinformationen für dieses Produkt wurden für ausgebildete Servicemitarbeiter zusammengestellt und dürfen nicht von anderen verwendet werden.
Page 19 7017-2xx, -4xx, -6xx FORSIKTIG – POTENSIELLE SKADER: Litiumbatteriet i dette produktet er ikke beregnet for å byttes. Det er fare for eksplosjon hvis litiumbatteriet skiftes ut på feil måte. Ikke lad opp, demonter eller destruer et litiumbatteri. Kast brukte litiumbatterier i henhold til produsentens instruksjoner og lokale regelverk.
Page 20: General Caution Statements
CAUTION—POTENTIAL INJURY: Only a Lexmark Inline Surge Protector that is properly connected between the printer and the power cord provided with the printer may be used with this product. The use of non-Lexmark surge protection devices may result in a risk of ﬁre, property damage, or poor printer performance.
Page 21: Change History
7017-2xx, -4xx, -6xx Change history Change history October 24, 2018 • New FRUs (41X2513, 41X2514, and 41X2518) were added to the Electronics 1 Parts catalog. Notes regarding compatibility were also added. • The Control panel (MX421, MX521, and MX522) Parts catalog was revised. FRU PN 41X2231 was changed to 41X2524.
Page 22 7017-2xx, -4xx, -6xx...
Page 23: General Information
7017-2xx, -4xx, -6xx General information Printer model conﬁgurations The Lexmark MX522adhe, MX521ade, MX521de, MX421ade, MX321adn, MX321adw, MB2546ade, MB2422adwe, MB2338adw, XM1246, XM1242, and XM1238 printers are network‑capable, multifunction laser printers. The printers support monochrome printing and are embedded with home screen solutions and applications.
Page 24: Finding The Serial Number
7017-2xx, -4xx, -6xx Model Conﬁgurations Machine type/model XM1238 Network-ready monochrome laser 4‑in‑1 MFP with 2.4" 7017‑296 color display, fax, and internal duplex for small workgroups Finding the serial number Open door A, and then ﬁnd the serial number at the right side of the printer. Supported paper sizes, types, and weights The following tables provide information on standard and optional paper sources and the sizes, types, and weights of paper they support.
Page 25 7017-2xx, -4xx, -6xx Paper size Tray Multipurpose Two‑sided Scanner glass feeder printing A5 LEF 148 x 210 mm (5.8 x 8.3 in.) 105 x 148 mm (4.1 x 5.8 in.) JIS B5 182 x 257 mm (7.2 x 10.1 in.) Oﬁcio (Mexico) 216 x 340 mm (8.5 x 13.4 in.)
Page 26: Supported Paper Types
7017-2xx, -4xx, -6xx Paper size Tray Multipurpose Two‑sided Scanner glass feeder printing 7 3/4 Envelope (Monarch) 98 x 191 mm (3.9 x 7.5 in.) 9 Envelope 98 x 225 mm (3.9 x 8.9 in.) 10 Envelope 105 x 241 mm (4.1 x 9.5 in.) DL Envelope 110 x 220 mm...
Page 27: Supported Paper Weights
7017-2xx, -4xx, -6xx Paper type Tray Multipurpose Two‑sided Scanner glass feeder printing Paper labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Envelope Rough envelope One‑sided paper labels designed for laser printers are supported for occasional use. It is recommended to print 20 or fewer pages of paper labels per month.
Page 28 7017-2xx, -4xx, -6xx • Spring hook • Feeler gauges • Analog or digital multimeter • 3‑mm ball hex wrench • Toner vacuum • Flashlight General information...
Page 29: Diagnostics And Troubleshooting
Before you start the troubleshooting procedures, perform the following checks: • Use genuine Lexmark supplies and parts for the best results. Third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. •...
Page 30: Fixing Print Quality Issues
7017-2xx, -4xx, -6xx Warning—Potential Damage: Safe Mode is intended as a short‑term workaround and should be used only in the case of a non‑critical error when a print job must be completed before service can be arranged to repair the printer. The printer must be returned to standard operating mode before diagnostics can be run or full‑function printing can continue.
Page 31: Initial Print Quality Check
7017-2xx, -4xx, -6xx • “Vertical light bands check” on page 55 • “Vertical dark bands check” on page 56 • “Vertical dark streaks with print missing check” on page 58 • “White streaks and voided areas check” on page 60 •...
Page 32 Step 2 Go to step 4. Go to step 3. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 33 7017-2xx, -4xx, -6xx Actions Step 4 Go to step 5. Go to step 6. Remove any packing material left on the imaging unit, including the red separator plastic (A). Note: You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit.
Page 34: Blank Pages Check
7017-2xx, -4xx, -6xx Actions Step 8 Go to step 9. The problem is solved. Reseat the connections. Does the problem remain? Step 9 Go to step 10. The problem is solved. Note: Poor electrical contact to the photoconductor is the most likely source of a full page background defect.
Page 35 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 36 7017-2xx, -4xx, -6xx Actions Step 5 Go to step 6. Go to step 7. Check the coupler to make sure that it is not stuck in the retracted position. While slowly closing the door, observe the coupler to see if it moves inward. Note: With the imaging unit removed, the coupler should retract with the door open and move inward when the front door is closed.
Page 37 7017-2xx, -4xx, -6xx Actions Step 6 Go to step 7. The problem is solved. Reach inside the printer and manually reposition the coupler in the direction of the red arrow as shown. Does the problem remain? Step 7 Go to step 8. Contact the next level of support.
Page 38 7017-2xx, -4xx, -6xx Actions Step 10 Go to step 11. The problem is solved. Replace the cable. Does the problem remain? Step 11 Go to step 13. Go to step 12. Check the transfer roller for proper installation. If necessary, remove and then reinstall the transfer roller.
Page 39 7017-2xx, -4xx, -6xx Actions Step 15 Go to step 16. The problem is solved. Check the coupler for signs of damage. The coupler is located on the main drive motor. • Good condition • Bad condition If the coupler is damaged, then replace the main drive motor. Does the problem remain? Step 16 Go to step 17.
Page 40: Print Is Too Dark Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 41 7017-2xx, -4xx, -6xx Actions Step 6 Go to step 7. The problem is solved. Check if the paper loaded has texture or rough ﬁnishes. From the control panel, set the paper texture in the Paper menu to match the texture of the paper loaded. Does the problem remain? Step 7 Go to step 8.
Page 42: Print Is Too Light Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 43 7017-2xx, -4xx, -6xx Actions Step 4 Go to step 5. The problem is solved. Remove the toner cartridge and imaging unit. Push either side of the transfer roller , located below the imaging unit, to check if it depresses and bounces back into place.
Page 44 7017-2xx, -4xx, -6xx Actions Step 9 Go to step 10. The problem is solved. Clean the printhead lens. See “Cleaning the printhead lenses” on page 320. Note: This is applicable only to models installed with a galvo LSU. To determine whether the LSU is galvo, check the serial number of the printer.
Page 45: Paper Curl Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 46: Folded Or Wrinkled Paper Check
Go to step 2. The problem is solved. Check if the printer is using a non-Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then do not replace the imaging unit. Refer the users to their cartridge supplier.
Page 47: Solid Black Pages Check
7017-2xx, -4xx, -6xx Actions Step 2 Go to step 3. The problem is solved. Check if the paper loaded is from a fresh package. Note: The amount of moisture in paper affects both print quality and printer ability to feed paper correctly. Make sure that the printer supports the paper loaded.
Page 48 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 49 7017-2xx, -4xx, -6xx Actions Step 5 Go to step 6. The problem is solved. Replace the imaging unit. Does the problem remain? Step 6 Go to step 7. Go to step 8. Check if the imaging unit contact (C) is contaminated, broken, or bent out of proper position.
Page 50: Repeating Defects Check
7017-2xx, -4xx, -6xx Repeating defects check Note: Before performing this print quality check, go to the control panel home screen and navigate to Settings > Troubleshooting > Print Quality Test Pages, and then perform the Initial print quality check. See “Initial print quality check”...
Page 51: Skewed Print Check
7017-2xx, -4xx, -6xx Skewed print check Note: Before performing this print quality check, go to the control panel home screen and navigate to Settings > Troubleshooting > Print Quality Test Pages, and then perform the Initial print quality check. “Initial print quality check” on page Actions Step 1 Go to step 3.
Page 52 7017-2xx, -4xx, -6xx Actions Step 7 Go to step 8. The problem is solved. Perform a print test. From the Diagnostics menu, select PRINT TESTS > Tray [x]. Note: [x] refers to the tray where the skewed prints are sourced from.
Page 53: Streaked Vertical Lines Appear On Prints Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 54: Horizontal Light Bands Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 55: Vertical Light Bands Check
7017-2xx, -4xx, -6xx Actions Step 4 Go to step 5. Contact the next level of support. Check the imaging unit contact block (A), including the white and red wires, for damage or improper installation. Is the imaging unit contact block free of damage and properly installed? Step 5 Contact the next...
Page 56: Vertical Dark Bands Check
Actions Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, refer the users to their cartridge supplier.
Page 57 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 58: Vertical Dark Streaks With Print Missing Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 59 7017-2xx, -4xx, -6xx Actions Step 3 Go to step 4. Go to step 5. Remove any packing material left on the imaging unit, including the red separator plastic (A). Note: You may need a pair of pliers to remove a piece of broken plastic inside the imaging unit.
Page 60: White Streaks And Voided Areas Check
7017-2xx, -4xx, -6xx Actions Step 6 Go to step 7. Go to step 8. Check if the imaging unit contacts (C) are contaminated or bent out of proper position. Are the contacts contaminated and bent out of proper position? Step 7 Go to step 8.
Page 61 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, do not replace the imaging unit. Refer the users to their cartridge supplier.
Page 62 7017-2xx, -4xx, -6xx Actions Step 5 Go to step 6. Go to step 7. Check the shutter tab (A) on the toner cartridge for signs of damage. Is the shutter tab damaged? Step 6 Go to step 7. The problem is solved.
Page 63: Fine Lines Are Not Printed Correctly (Speciﬁcally Chinese Characters) Check
7017-2xx, -4xx, -6xx Actions Step 9 Contact the next The problem is level of support. solved. Clean or repair the imaging unit contacts. Does the problem remain? Step 10 Go to step 12. Go to step 11. Check connection JPS1 on the controller board and all the connections on the power supply.
Page 64: Clipped Pages Or Images Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 65 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 66: Compressed Images Appear On Prints Check
7017-2xx, -4xx, -6xx Actions Step 7 Go to step 8. Contact the next level of support. Check the imaging unit contact block (B) for damage or improper installation. Is the imaging unit contact block damaged or improperly installed? Step 8 Contact the next The problem is level of support.
Page 67: Incorrect Margins On Prints Check
7017-2xx, -4xx, -6xx Actions Step 1 Go to step 2. Go to step 3. Remove the imaging unit, and then inspect the white photoconductor coupler (A). The coupler should be ﬁrmly connected to the imaging unit and should not freely rotate. Does the coupler move freely or appear damaged? Step 2 Go to step 3.
Page 68: Toner Rubs Off Check
7017-2xx, -4xx, -6xx Actions Step 1 Go to step 2. The problem is solved. Adjust the guides in the tray according to the size of the paper loaded. Does the problem remain? Step 2 Go to step 3. The problem is solved.
Page 69: Toner Specks Appear On Prints Check
Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 70 Step 1 Go to step 3. Go to step 2. Check if the printer is using a genuine and supported Lexmark toner cartridge. Note: If the printer is using a third‑party cartridge, then refer the users to their cartridge supplier.
Page 71: Paper Jams
7017-2xx, -4xx, -6xx Actions Step 8 Contact the next The problem is level of support. solved. Using an approved toner vaccum cleaner, completely clean the printer, toner cartridge, and imaging unit of toner contamination. Does the problem remain? Paper jams Avoiding jams Load paper properly •...
Page 72: Identifying Jam Locations
7017-2xx, -4xx, -6xx • Make sure that the paper guides are positioned correctly and are not pressing tightly against the paper or envelopes. • Push the tray ﬁrmly into the printer after loading paper. Use recommended paper • Use only recommended paper or specialty media. •...
Page 73: Paper Jam In Door A
7017-2xx, -4xx, -6xx Jam location Multipurpose feeder Door A Paper jam in door A Remove the tray. Open door A. Diagnostics and troubleshooting...
Page 74 7017-2xx, -4xx, -6xx Remove the toner cartridge. Remove the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems. Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the quality of future print jobs.
Page 75 7017-2xx, -4xx, -6xx Remove the jammed paper. CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it. Note: Make sure that all paper fragments are removed. Diagnostics and troubleshooting...
Page 76 7017-2xx, -4xx, -6xx Insert the imaging unit. Note: Use the arrows inside the printer as guides. Diagnostics and troubleshooting...
Page 77: Paper Jam In The Rear Door
7017-2xx, -4xx, -6xx Insert the toner cartridge. Note: Use the arrows inside the printer as guides. Close door A. Insert the tray. Paper jam in the rear door Open the rear door. CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.
Page 78: Paper Jam In The Standard Bin
7017-2xx, -4xx, -6xx Close the rear door. Paper jam in the standard bin Remove the jammed paper. Note: Make sure that all paper fragments are removed. Diagnostics and troubleshooting...
Page 79: Paper Jam In The Duplex Unit
7017-2xx, -4xx, -6xx Paper jam in the duplex unit Remove the tray. Remove the jammed paper. Note: Make sure that all paper fragments are removed. Insert the tray. Diagnostics and troubleshooting...
Page 80: Paper Jam In Trays
7017-2xx, -4xx, -6xx Paper jam in trays Remove the tray. Remove the jammed paper. Note: Make sure that all paper fragments are removed. Insert the tray. Paper jam in the multipurpose feeder Remove paper from the multipurpose feeder. Remove the jammed paper. Note: Make sure that all paper fragments are removed.
Page 81: Paper Jam In The Automatic Document Feeder
7017-2xx, -4xx, -6xx Flex, fan, and align the paper edges before loading. Reload paper, and then adjust the paper guide. Paper jam in the automatic document feeder Remove all original documents from the ADF tray. Open the ADF cover. Remove the jammed paper. Note: Make sure that all paper fragments are removed.
Page 82: 200 Paper Jams
7017-2xx, -4xx, -6xx Close the ADF cover. 200 paper jams 200 paper jam messages Error code Description Action 200.02 Paper fed from the MPF was detected earlier “MPF to sensor (input) jam at leading edge than expected at the sensor (input). service check”...
Page 83 7017-2xx, -4xx, -6xx Error code Description Action 200.32 Paper fed from tray 3 was detected earlier than “Optional tray to sensor (input) jam at leading expected at the sensor (input). edge service check” on page 200.33 Paper fed from tray 3 was detected later than expected or was never detected at the sensor (input).
Page 84 7017-2xx, -4xx, -6xx Action Step 4 Go to step 5. The problem is solved. Replace the MPF pick roller and separator pad. See “MPF pick roller and separator pad removal” on page 253. Does the problem remain? Step 5 Go to step 7. Go to step 6.
Page 85 7017-2xx, -4xx, -6xx Action Step 12 Go to step 13. The problem is solved. Replace the sensor. See “Sensors (duplex and input) removal” on page 264. Does the problem remain? Step 13 Contact the next The problem is level of support. solved.
Page 86 7017-2xx, -4xx, -6xx Action Step 5 Go to step 8. Go to step 6. Enter the Diagnostics menu, and then navigate to: Printer diagnostics and adjustments > Motor tests Select the solenoid (MPF pick), and then touch Start. Does the solenoid run? Step 6 Go to step 8.
Page 87 7017-2xx, -4xx, -6xx Tray 1 to sensor (input) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 7.
Page 88 7017-2xx, -4xx, -6xx Action Step 9 Contact the next The problem is level of support. solved. Replace the pick roller clutch. See “Pick roller clutch removal” on page 221. Does the problem remain? Tray 1 to sensor (input) jam at trailing edge service check Action Step 1 Go to step 2.
Page 89 7017-2xx, -4xx, -6xx Action Step 8 Go to step 9. The problem is solved. Replace the fuser cam. See “Fuser actuator removal” on page 215. Does the problem remain? Step 9 Contact the next Go to step 10. level of support. Enter the Diagnostics menu, and then navigate to: Printer diagnostics and adjustments >...
Page 90 7017-2xx, -4xx, -6xx Action Step 4 Go to step 5. The problem is solved. Replace the pick roller. Does the problem remain? Step 5 Go to step 7. Go to step 6. Check the optional tray separator roller assembly for wear and damage.
Page 91 7017-2xx, -4xx, -6xx Optional tray to sensor (input) jam at trailing edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 5.
Page 92 7017-2xx, -4xx, -6xx Action Step 9 Contact the next Go to step 10. level of support. Enter the Diagnostics menu, and then navigate to: Printer diagnostics and adjustments > Sensor tests Find the sensor (Input). Does the sensor status change while toggling the sensor? Step 10 Contact the next Go to step 11.
Page 93: 202-221 Paper Jams
7017-2xx, -4xx, -6xx 202-221 paper jams 202 paper jam messages Error code Description Action 202.03 Paper fed from the MPF never reached the sensor “Sensor (fuser exit) jam at leading edge (fuser exit). service check” on page 202.05 Paper fed from the MPF never cleared the sensor “Sensor (fuser exit) jam at trailing edge (fuser exit).
Page 94 7017-2xx, -4xx, -6xx Sensor (fuser exit) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 3.
Page 95 7017-2xx, -4xx, -6xx Sensor (fuser exit) jam at trailing edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 4.
Page 96 7017-2xx, -4xx, -6xx Action Step 3 Go to step 5. Go to step 4. Check if the fuser cam is functional and free of damage. Is the fuser cam functional and free of damage? Step 4 Go to step 5. The problem is solved.
Page 97: 230 Paper Jams
7017-2xx, -4xx, -6xx Action Step 3 Contact the next Go to step 4. level of support. Reseat the sensor cable on the controller board. Check the sensor and its actuator for damage. Are the sensor and its actuator free of damage? Step 4 Contact the next The problem is...
Page 98 7017-2xx, -4xx, -6xx Sensor (duplex) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 3.
Page 99 7017-2xx, -4xx, -6xx Action Step 8 Go to step 9. The problem is solved. Replace the sensor. See “Sensors (duplex and input) removal” on page 264. Does the problem remain? Step 9 Contact the next Go to step 10. level of support. Remove tray 1 to access the parts under the printer.
Page 100 7017-2xx, -4xx, -6xx Action Step 5 Contact the next Go to step 6. level of support. Remove tray 1 to access the parts under the printer. Check the duplex assembly and its gears, belt, and gear links for wear and damage. Are the duplex assembly and its components free of wear and damage? Step 6...
Page 101: 240-241 Paper Jams
7017-2xx, -4xx, -6xx 240-241 paper jams 240‑241 paper jam messages Error code Description Action 240.06 Paper fed from the MPF was picked but it never “MPF pick failure service check” on reached the sensor (input). page 101. 240.91 Paper remains detected at the sensor (MPF “Sensor (MPF paper present) static jam paper present) after the printer is turned on.
Page 102 7017-2xx, -4xx, -6xx Action Step 6 Go to step 7. The problem is solved. Replace the MPF pick roller and separator pad. See “MPF pick roller and separator pad removal” on page 253. Does the problem remain? Step 7 Go to step 10. Go to step 8.
Page 103: 242-244 Paper Jams
7017-2xx, -4xx, -6xx Action Step 14 Contact the next The problem is level of support. solved. Replace the MPF gearbox. See “MPF gearbox removal” on page 212. Does the problem remain? Sensor (MPF paper present) static jam service check Action Step 1 Go to step 2.
Page 104 7017-2xx, -4xx, -6xx Error code Description Action 242.33 Paper fed from tray 3 never reached the sensor “Optional tray sensor (tray x pass-through) (tray 2 pass-through). jam at leading edge service check” on page 107. 242.35 Paper fed from tray 3 cleared the sensor (tray 2 “Optional tray sensor (tray x pass-through) pass-through) later than expected.
Page 105 7017-2xx, -4xx, -6xx 243 paper jam messages Error code Description Action 243.36 Paper fed from tray 3 was picked but it never “Optional tray sensor (tray x pass-through) reached the sensor (tray 2 pass‑through). jam at leading edge service check” on page 107.
Page 106 7017-2xx, -4xx, -6xx 244 paper jam messages Error code Description Action 244.46 Paper fed from tray 4 was picked but it never “Optional tray sensor (tray x pass-through) reached the sensor (tray 3 pass‑through). jam at leading edge service check” on page 107.
Page 107 7017-2xx, -4xx, -6xx Optional tray sensor (tray x pass-through) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 3.
Page 108 7017-2xx, -4xx, -6xx Optional tray sensor (tray x pass-through) jam at trailing edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. See “Avoiding jams” on page Does the problem remain? Step 2 Go to step 4.
Page 109: 280 Paper Jams
7017-2xx, -4xx, -6xx Action Step 3 Go to step 4. Go to step 7. Reseat the source tray pick motor cable from the optional tray controller board. Check if the motor (pick) of the source tray is functional and free of damage.
Page 110 7017-2xx, -4xx, -6xx Sensor (ADF 1st scan) static jam service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 3.
Page 111 7017-2xx, -4xx, -6xx Sensor (ADF 1st scan) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 5.
Page 112 7017-2xx, -4xx, -6xx Sensor (ADF 1st scan) jam at trailing edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 4.
Page 113: 281 Paper Jams
7017-2xx, -4xx, -6xx 281 paper jams 281 paper jam messages Error Description Action code 281.11 Paper remains detected at the sensor “Sensor (ADF pick) static jam service check” on (ADF pick) after the printer is turned on. page 113. 281.15 Paper never cleared the sensor (ADF “Sensor (ADF pick) jam at trailing edge service check”...
Page 114 7017-2xx, -4xx, -6xx Action Step 6 Contact the next Go to step 7. level of support. Reseat the sensor cable from the ADF controller board. Check the sensor and its actuator for improper installation and damage. Is the sensor properly installed and free of damage? Step 7 Contact the next The problem is...
Page 115 7017-2xx, -4xx, -6xx Action Step 6 Go to step 8. Go to step 7. Check the ADF separator roller for improper installation, wear, and damage. Is the ADF roller properly installed and free of wear and damage? Step 7 Go to step 8. The problem is solved.
Page 116: 284 Paper Jams
7017-2xx, -4xx, -6xx Action Step 4 Go to step 6. Go to step 5. Enter the Diagnostics menu, and then navigate to: Scanner diagnostics > Feed Test Check the position of the leading edge. Does the leading edge of the paper reach the sensor (ADF scan)? Step 5 Go to step 8.
Page 117 7017-2xx, -4xx, -6xx Sensor (ADF 2nd scan) static jam service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 3.
Page 118 7017-2xx, -4xx, -6xx Sensor (ADF 2nd scan) jam at leading edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 3.
Page 119: 29Y Paper Jams
7017-2xx, -4xx, -6xx Sensor (ADF 2nd scan) jam at trailing edge service check Action Step 1 Go to step 2. The problem is solved. Make sure that the paper is loaded properly. Use the recommended paper. Does the problem remain? Step 2 Go to step 4.
Page 120 7017-2xx, -4xx, -6xx ADF scanner cover jam service check Action Step 1 Contact the next Go to step 2. level of support. Enter the Diagnostics menu, and then navigate to: Scanner diagnostics > Sensor tests Find the sensor (ADF closed). Does the sensor status change while toggling the sensor? Step 2 Contact the next...
Page 121: User Attendance Messages (0-99.99)
7017-2xx, -4xx, -6xx Action Step 5 Go to step 7. Go to step 6. Check the ADF separator roller for improper installation, wear, and damage. Is the ADF roller properly installed and free of wear and damage? Step 6 Go to step 7. The problem is solved.
Page 122: Unsupported Or Unresponsive Toner Cartridge Service Check
Action Step 1 Go to step 3. Go to step 2. Check whether the toner cartridge installed is genuine. Is the cartridge a genuine and supported Lexmark unit? Step 2 Go to step 3. The problem is solved. Install a genuine and supported Lexmark toner cartridge.
Page 123 7017-2xx, -4xx, -6xx Action Step 4 Go to step 5. The problem is solved. Clean or replace the toner cartridge. Does the problem remain? Step 5 Go to step 7. Go to step 6. Check the toner cartridge smart chip contacts for contamination.
Page 124: Unsupported Or Unresponsive Imaging Unit Service Check
Action Step 1 Go to step 3. Go to step 2. Check whether the imaging unit installed is genuine. Is the imaging unit a genuine and supported Lexmark unit? Step 2 Go to step 3. The problem is solved. Install a genuine and supported Lexmark imaging unit.
Page 125: Mismatched Supplies Error Service Check
Action Step 1 Go to step 3. Go to step 2. Check whether the supplies installed are genuine. Are the supplies genuine and supported Lexmark units? Step 2 Go to step 3. The problem is solved. Install genuine and supported Lexmark units.
Page 126: Printer Hardware Errors
7017-2xx, -4xx, -6xx Action Step 4 Go to step 5. The problem is solved. Resolve the feed problem. Note: If a transfer roller was replaced, then make sure that the maintenance kit count is reset. Does the problem remain? Step 5 Contact the next The problem is level of support.
Page 127: Errors
7017-2xx, -4xx, -6xx Printhead error service check Action Step 1 Go to step 2. The problem is solved. Remove the top cover. See “Top cover removal” on page 276. Remove the right cover. See “Right cover removal” on page 223. Reseat the printhead cable from the printhead and the controller board.
Page 128 7017-2xx, -4xx, -6xx Error code Description Action 121.09 Fuser did not reach the required temperature for “Fuser low temperature error service motors. check” on page 131. Note: Error is not applicable to standby mode. 121.10 Fuser did not reach the required temperature (during start of EWC/line voltage detection).
Page 129 7017-2xx, -4xx, -6xx Fuser error service check Action Step 1 Go to step 2. The problem is solved. Turn off the printer, and then unplug the power cord. Remove the rear door and cover. See “Rear door and cover removal” on page 273.
Page 130 7017-2xx, -4xx, -6xx Fuser high temperature error service check Action Step 1 Go to step 3. Go to step 2. Remove the right cover. See “Right cover removal” on page 223. Reseat the cooling fan cable on the controller board. Check the cooling fan for damage.
Page 131 7017-2xx, -4xx, -6xx Action Step 6 Go to step 8. Go to step 7. Turn off the printer, and then unplug the power cord. Remove the power supply. See “Power supply removal” on page 260. Check the power supply, including its fuse and capacitors, for damage.
Page 132 7017-2xx, -4xx, -6xx Action Step 3 Go to step 4. Go to step 5. Disconnect the fuser cable from the power supply, and then turn on the printer. Check if the voltage output of the fuser cable socket on the power supply is normal (100V, 110V, or 220V).
Page 133: 126 Errors
7017-2xx, -4xx, -6xx 126 errors 126 error messages Error code Description Action 126.05 The LVPS power dropped but the printer was not “LVPS service check” on page 133. in sleep mode. 126.06 LVPS 25V line error was detected. 126.07 LVPS 5V rail was down during power‑on. 126.10 No line frequency was detected.
Page 134 7017-2xx, -4xx, -6xx Action Step 3 Go to step 4. Go to step 5. Disconnect the fuser cable from the power supply, and then turn on the printer. Check if the voltage output of the fuser cable socket on the power supply is normal (100V, 110V, or 220V).
Page 135: 128 Errors
7017-2xx, -4xx, -6xx Action Step 2 Contact the next Go to step 3. level of support. Check the power rating label of the printer. Check the LVPS part number. Check if the power rating of this speciﬁc LVPS matches with the printer power rating. Do the printer and LVPS have matching power ratings? Step 3 Contact the next...
Page 136 7017-2xx, -4xx, -6xx Toner density error service check Action Step 1 Go to step 2. The problem is solved. Reseat the toner density sensor cable. Does the problem remain? Step 2 Go to step 3. Replace the affected toner cartridge and Remove the toner cartridge and imaging unit.
Page 137 Does the problem remain? Step 6 Go to step 8. Go to step 7. Check whether the imaging unit installed is genuine. Is the imaging unit a genuine and supported Lexmark unit? Step 7 Go to step 8. The problem is solved.
Page 138: 133 Errors
7017-2xx, -4xx, -6xx Action Step 9 Contact the next The problem is level of support. solved. Clean or replace the imaging unit. Does the problem remain? 133 errors 133 error messages Error code Description Action 133.04 CTLS timeout was detected at the imaging unit. “Imaging unit CTLS error service check”...
Page 139: 140 Errors
7017-2xx, -4xx, -6xx 140 errors 140 error messages Error code Description Action 140.81 Motor (main) does not turn off. “Main drive failure service check” on page 139. 140.82 Motor (main) speed did not ramp up to the required level. 140.83 Motor (main) stalled.
Page 140: 155 Errors
7017-2xx, -4xx, -6xx 155 errors 155 error messages Error code Description Action 155.80 Motor (cartridge) does not turn on. “Cartridge drive failure service check” on page 140. 155.81 Motor (cartridge) does not turn off. 155.82 Motor (cartridge) speed did not ramp up to the required level.
Page 141 7017-2xx, -4xx, -6xx Action Step 5 Go to step 6. The problem is solved. Remove the left cover. See “Left cover removal” on page 209. Remove the right cover. See “Right cover removal” on page 223. Reseat the cable from the motor (cartridge) and the controller board.
Page 142: 16Y Errors
7017-2xx, -4xx, -6xx 16y errors 162‑164 error messages Error code Description Action 162.80 The motor (tray 2 pick) does not turn on. “Optional tray pick drive failure service check” on page 144. 162.81 The motor (tray 2 pick) does not turn off. 162.82 The motor (tray 2 pick) speed did not ramp up to the required level.
Page 143 7017-2xx, -4xx, -6xx 166‑168 error messages Error code Description Action 166.80 The motor (tray 2 transport) does not turn on. “Optional tray pass‑through drive failure service check” on page 145. 166.81 The motor (tray 2 transport) does not turn off. 166.82 The motor (tray 2 transport) speed did not ramp up to the required level.
Page 144 7017-2xx, -4xx, -6xx Optional tray pick drive failure service check Action Step 1 Go to step 3. Go to step 2. Check if the optional tray motor (pick) runs. Does the motor run? Step 2 Go to step 3. The problem is solved.
Page 145 7017-2xx, -4xx, -6xx Optional tray pass‑through drive failure service check Action Step 1 Go to step 3. Go to step 2. Enter the Diagnostics menu, and then navigate to: Printer diagnostics and adjustments > Motor tests > Pass‑through (tray [x]) Touch Start.
Page 146: 171 Errors
7017-2xx, -4xx, -6xx 171 errors 171 error messages Error code Description Action 171.82 Cooling fan error. “Cooling fan failure service check” on page 146. 171.83 Cooling fan error. 171.84 Cooling fan error. 171.85 Cooling fan error. Cooling fan failure service check Action Step 1 Contact the next...
Page 147: 6Yy Errors
7017-2xx, -4xx, -6xx 6yy errors 600‑680 error messages Error code Description Action 600.01 Toner tally from the RIP was not received. “Engine error service check” on page 147. 600.02 Video did not start. 600.04 Duplex page was not picked. 600.05 Invalid PH NVRAM Type error was detected.
Page 148 7017-2xx, -4xx, -6xx Action Step 3 Contact the next The problem is level of support. solved. Replace the controller board. See “Controller board removal” on page 230. Does the problem remain? Printhead communication error service check Action Step 1 Go to step 2. The problem is solved.
Page 149: Procedure Before Starting The 9Yy Service Checks
7017-2xx, -4xx, -6xx ADF cover error service check Action Step 1 Contact the next Go to step 2. level of support. Enter the Diagnostics menu, and then navigate to: Scanner diagnostics > Sensor tests Find the sensor (ADF top door interlock). Does the sensor status change while toggling the sensor? Step 2 Contact the next...
Page 150 7017-2xx, -4xx, -6xx B. Collecting the ﬁrmware logs (Fwdebug and logs.tar.gz) from the SE menu Notes: • Make sure that your printer is connected to a network or to a print server. • Some printers are designed to restart automatically after a 9yy error. On these printers, you can retrieve the secondary crash code information using the SE menu.
Page 151: 900 Errors
149. Determine the operating system used when the error occurred. If possible determine whether a PostScript or PCL ﬁle was sent to the device when the error occurred. Ask the customer which Lexmark Solutions applications are installed on the device.
Page 152 7017-2xx, -4xx, -6xx Action Step 4 Go to step 5. Go to step 6. Properly connect the cables to the controller board. POR the printer into the Diagnostics menu. Does the error remain during startup? Step 5 Go to step 31. The problem is solved.
Page 153 Does the error remain? Step 15 Go to step 31. The problem is solved. Install a Lexmark recommended memory option. Send a print job to the printer. Does the error remain? Step 16 Go to step 17. Go to step 21.
Page 154 7017-2xx, -4xx, -6xx Action Step 18 Go to step 19. The problem is solved. Upgrade the ﬁrmware if it was not upgraded in a previous step. Note: Contact your next level of support for the correct ﬁrmware level to use. POR the printer.
Page 155 7017-2xx, -4xx, -6xx Action Step 26 Go to step 27. The problem is solved. Are there any more ISP options to install? Step 27 Go to step 29. Go to step 28. Install the next ISP option. POR the printer. Does the error remain? Step 28 Go to step 29.
Page 156: Adf/Scanner Hardware Errors
7017-2xx, -4xx, -6xx ADF/Scanner hardware errors 84y errors 840‑843 error messages Error code Description Action 840.01 The scanner was manually disabled by the Admin “Scanner disabled error service check” on or user. page 156. 840.02 The scanner was automatically disabled by the printer due to too many errors.
Page 157 7017-2xx, -4xx, -6xx Flatbed scanner failure service check Action Step 1 Go to step 2. The problem is solved. Restart the printer. Does the problem remain? Step 2 Go to step 3. Contact the next level of support. Remove the right cover. See “Right cover removal”...
Page 158: Other Symptoms
7017-2xx, -4xx, -6xx Other symptoms Fax symptoms Fax symptoms Symptom Action No dial tone. “Modem/fax card service check” on page 158. The printer does not connect to a fax machine. The fax machine is turned off. Ask the fax recipient to check the machine.
Page 159 7017-2xx, -4xx, -6xx Action Step 5 Go to step 6. The problem is solved. Make sure that the modem cable is properly connected to the modem card and to the JFAX2 connector on the controller board. Does the problem remain? Step 6 Go to step 7.
Page 160 7017-2xx, -4xx, -6xx Actions Step 4 Contact the next The problem is level of support. solved. Install a new toner cartridge. Does the problem remain? Stretched words on incoming fax service check Actions Receive fax from another machine. Contact the next The problem is level of support.
Page 161 7017-2xx, -4xx, -6xx Actions Step 7 Go to step 8. The problem is solved. From the home screen, navigate to Settings > Fax > Analog Fax Setup > Fax Receive Settings > Admin Controls > Answer Select a ring pattern. Does the problem remain? Step 8 Go to step 11.
Page 162 7017-2xx, -4xx, -6xx Actions Step 15 Go to step 16. The problem is solved. Remove the remote device number from the list. Does the problem remain? Step 16 Go to step 17. The problem is solved. Enter the Service Engineer menu, and then navigate to: Fax SE >...
Page 163 7017-2xx, -4xx, -6xx Actions Step 5 Go to step 6. Go to step 7. Check if the telephone line is a VOIP line. Is the line VOIP? Step 6 Go to step 7. Contact the next level of support. Ask the system administrator to verify if the VOIP server is conﬁgured to receive faxes.
Page 164 7017-2xx, -4xx, -6xx Actions Step 13 Go to step 14. The problem is solved. Enter the Service Engineer menu, and then navigate to: Fax SE > Fax Settings > AutoPrint T30 Logs Check the reported error code. See “Fax error log codes” on page 164.
Page 165 7017-2xx, -4xx, -6xx Error code Description Action An EOT was unexpectedly received from If the error persists, then disable the V34 the modem in V34 mode. modulation scheme. Too many time‑outs occurred during ECM If the error persists, then disable the reception.
Page 166 7017-2xx, -4xx, -6xx Error code Description Action Timeout occurred after waiting too long to Adjust the Receive Threshold setting. receive a good frame. Tried too many times at selected speed • Adjust the Transmit Level setting. using V34 modulation scheme. •...
Page 167 7017-2xx, -4xx, -6xx Error code Description Action Failure to transmit training successfully in • Decrease the Max Speed setting V27 terminal modulation scheme. under Fax Send settings. • Adjust the Transmit Level setting. • Check line quality. Failure to transmit training successfully at •...
Page 168 7017-2xx, -4xx, -6xx Error code Description Action Unknown error occurred. No action needed. Diagnostics and troubleshooting...
Page 169: Service Menus
7017-2xx, -4xx, -6xx Service menus Understanding the printer control panel Using the printer control panel MX321, MB2338, and XM1238 Use the Display View printing options, printer status, and error messages. Arrow buttons Scroll through the menus or move between screens and menu options.
Page 170: Understanding The Status Of The Power Button And Indicator Light
7017-2xx, -4xx, -6xx MX421, MX521, MX522, MB2422, MB2546, XM1238, XM1242, and XM1246 Use the Display • View the printer messages and supply status. • Set up and operate the printer. Home button Go to the home screen. Numeric keypad Enter numbers or symbols in an input ﬁeld. Power button Turn on or turn off the printer.
Page 171: Using The Home Screen
7017-2xx, -4xx, -6xx Using the home screen Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions. Touch Status/Supplies • Show a warning or error message whenever the printer requires intervention to continue processing.
Page 172: Diagnostics Menu
7017-2xx, -4xx, -6xx Diagnostics menu Entering the Diagnostics menu The Diagnostics menu contains tests that are used to help isolate issues with the printer. To access some of these tests, avoid POST tests that run at POR. Some POST tests can generate errors that prevent a diagnostic test from running.
Page 173: Format Fax Storage
7017-2xx, -4xx, -6xx Format Fax Storage This setting deletes stored fax jobs. Enter the Diagnostics menu, and then navigate to: Format Fax Storage > Format Fax Storage For non-touch-screen printer models, press to navigate through the settings. Press or touch Start. Event log Display Log This setting displays the panel text that appears when the event occurs.
Page 174: Input Tray Quick Print
7017-2xx, -4xx, -6xx Input tray quick print This setting lets you print a single or continuous Quick Test page in either duplex or simplex mode. Enter the Diagnostics menu, and then touch Input tray quick print. Select where you want to print the pages from. Select whether to print a single or continuous test page, and then touch Start.
Page 175 7017-2xx, -4xx, -6xx Enable edge-to-edge (copy) This setting determines whether the printer accepts the ADF or ﬂatbed edge erase value when performing an ADF or ﬂatbed copy. Enter the Diagnostics menu, and then navigate to: Printer Setup > Enable edge‑to‑edge (copy) Select a setting to adjust.
Page 176: Printer Diagnostics And Adjustments
7017-2xx, -4xx, -6xx This setting allows you to adjust the EP setup of the printer. Enter the Diagnostics menu, and then navigate to: Printer Setup > EP setup Select a setting. Printer diagnostics and adjustments Sensor tests Enter the Diagnostics menu, and then touch Printer diagnostics & adjustments. From the Sensor tests section, touch Start.
Page 177: Scanner Diagnostics
7017-2xx, -4xx, -6xx Memory tests This setting lets you test or ﬂash the printer memory or test or format the printer hard disk. Enter the Diagnostics menu, and then navigate to: Printer diagnostics & adjustments > Memory tests Select a setting. Add-on cards tests This setting allows you to test the add-on cards installed on the printer.
Page 178 7017-2xx, -4xx, -6xx Notes: • The sensor status on the screen toggles between 1 and 0 when the sensor is properly working. • If a sensor test fails, the test failure may not indicate a failed sensor. Further troubleshooting may be required.
Page 179: Additional Input Tray Diagnostics
7017-2xx, -4xx, -6xx Scanner Calibration Reset Before starting the test, make sure that the scanner glass and backing material are clean. For more information, go to “Cleaning the scanner” on page 317. Enter the Diagnostics menu, and then touch Scanner diagnostics. From the Sensor Calibration Test section, touch Start.
Page 180: Conﬁguration Menu
7017-2xx, -4xx, -6xx Motor tests For non-touch-screen printer models, press to navigate through the settings. Enter the Diagnostics menu, and then navigate to: Additional input tray diagnostics > Motor tests Select a motor, and then press or touch Start. Notes: •...
Page 181 7017-2xx, -4xx, -6xx Menu item Description Tray Conﬁguration Specify the page orientation when loading A5‑size paper. A5 Loading Short Edge* Long Edge Tray Conﬁguration Set the paper source that the user ﬁlls when a prompt to load paper or envelope appears. Paper Prompts Auto* Note: For Multipurpose Feeder to appear, set Conﬁgure MP...
Page 182 7017-2xx, -4xx, -6xx Menu item Description Print Conﬁguration Adjust the toner density when printing or copying documents. Print Density 1–5 (3*) Copy Density 1–5 (3*) Device Operations Set the printer to operate in Quiet Mode. Quiet Mode Off* Device Operations Enable access to the control panel menus.
Page 183: Service Engineer Menu
7017-2xx, -4xx, -6xx Menu item Description Scanner Conﬁguration Manually register the ﬂatbed and ADF after replacing the ADF, scanner glass, or controller board. Scanner Manual Registration Front ADF Registration Rear ADF Registration Flatbed Registration Scanner Conﬁguration Set the size, in millimeters, of the no‑print area around an ADF or ﬂatbed scan job.
Page 184: Entering The Service Engineer (Se) Menu
7017-2xx, -4xx, -6xx Entering the Service Engineer (SE) menu To access the Service Engineer (SE) menu: Turn on the printer. When the home screen appears, press * * 411 on the control panel. For 2‑line control panels, press the right arrow button twice, press OK, and then press the left arrow button. General SE This setting allows you to save a log ﬁle to a USB drive.
Page 185: Parts Removal
7017-2xx, -4xx, -6xx Parts removal Removal precautions CAUTION—SHOCK HAZARD: This product uses a soft power switch. It does not physically disconnect the input AC voltage. To avoid the risk of electrical shock, always remove the power cord from the printer when removal of the input AC voltage is required. CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock and to prevent damage to the printer, remove the power cord from the electrical outlet and disconnect all connections to any external devices before you connect or disconnect any cable, electronic board, or assembly.
Page 186: Handling Esd-Sensitive Parts
Request the customer to sign the Customer Retention form. Note: You can get printed copies of the form from your Lexmark partner manager. Take a photo of the signed form, and then upload it to the Service Request debrief tool.
Page 187: Controller Board/Control Panel Replacement
Note: The software bundle contains the latest version of the ﬁrmware, applications, and software licenses from the Lexmark Virtual Solutions Center (VSC). The printer ﬁrmware may be at a different level from what was used before replacing the controller board.
Page 188 7017-2xx, -4xx, -6xx Enter the printer serial number, and then submit the information. Note: Make sure that the serial number that appears on the veriﬁcation screen is correct. Save the zip ﬁle. Note: Make sure that the serial number in the zip ﬁle matches the serial number of the printer being restored.
Page 189 7017-2xx, -4xx, -6xx Extract the contents of the zip ﬁle, open the Readme ﬁle, and then follow the instructions in the ﬁle. Notes: • Perform the install instructions on the Readme ﬁle in the exact order shown. Only restart the printer when instructed to in the ﬁle.
Page 190: Restoring Solutions, Licenses, And Conﬁguration Settings
7017-2xx, -4xx, -6xx Restoring solutions, licenses, and conﬁguration settings To load the zip ﬁles that are extracted from the Service Restore Tool, do the following: Open a web browser, and then type the printer IP address. Click Import Conﬁguration, and then click Browse. Parts removal...
Page 191: Updating The Printer Firmware
7017-2xx, -4xx, -6xx Navigate to the folder where the zip ﬁles are extracted from the Service Restore Tool. Select the ﬁle to import, and then click Import. Repeat step 2 through to step 4 for the other ﬁles that are included in the extracted zip ﬁle. Updating the printer ﬁrmware Warning—Potential Damage: Before updating the printer ﬁrmware, ask the next level of support for the correct code.
Page 192: Backing Up Esf Solutions And Settings
7017-2xx, -4xx, -6xx Using a network computer Using the File Transfer Protocol (FTP) Make sure that the printer is in ready state before ﬂashing the printer. Turn on the printer. Obtain the IP address: • From the home screen • From the TCP/IP section of the Network/Ports menu From the command prompt of a network computer, open an FTP session to the printer IP address.
Page 193: Disconnecting Ribbon Cables
7017-2xx, -4xx, -6xx Importing eSF solutions and settings ﬁle After replacing the controller board, import back to the printer the eSF solutions and settings that were exported. Reset the printer into Invalid engine mode. See “Entering Invalid engine mode” on page 183.
Page 194: Horizontal Top Contact Connector
7017-2xx, -4xx, -6xx Warning—Potential Damage: Do not insert the cable so that the contacts are facing the locking actuator. The contacts always face away from the actuator. Warning—Potential Damage: Do not insert the cable diagonally into the ZIF socket. This can cause damage to the contacts on the cable.
Page 195 7017-2xx, -4xx, -6xx Inserting a cable into the horizontal top contact connector When installing the cable, check the locking actuator to ensure it is in the unlocked position. The tabs on the ends of the actuator are vertical when the actuator is unlocked. Insert the cable with the contacts on the cable facing up.
Page 196 7017-2xx, -4xx, -6xx Rotate the locking actuator to the locked position. The cable should not move while this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position. Parts removal...
Page 197: Horizontal Bottom Contact Connector
7017-2xx, -4xx, -6xx Horizontal bottom contact connector This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding. The horizontal bottom contact connector uses a ﬂip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator using your ﬁnger.
Page 198 7017-2xx, -4xx, -6xx Inserting a cable into the horizontal bottom contact connector Check the actuator to verify it is in the open position. Insert the cable into the ZIF connector with the contacts facing downward and away from the locking actuator.
Page 199 7017-2xx, -4xx, -6xx Place your ﬁnger in the middle of the actuator, and then rotate the locking actuator to the locked position. Parts removal...
Page 200: Vertical Mount Contact Connector
7017-2xx, -4xx, -6xx Vertical mount contact connector This FRU contains a vertical mount contact connector. Read the instructions before proceeding. The vertical mount contact connector uses a back ﬂip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted vertically into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator using your ﬁnger.
Page 201 7017-2xx, -4xx, -6xx Inserting a cable into the vertical mount contact connector When installing the cable, check the locking actuator to verify it is in the open position. Insert the cable with the contacts on the cable away from the locking actuator. Insert the cable on top of the actuator.
Page 202 7017-2xx, -4xx, -6xx Rotate the locking actuator to the locked position by pressing down on both ends of the actuator. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.
Page 203: Horizontal Sliding Contact Connector
7017-2xx, -4xx, -6xx Horizontal sliding contact connector This FRU contains a horizontal sliding contact connector. Read the instructions before proceeding. The horizontal sliding contact connector uses a slide locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently push or pull the two tabs located on each end of the actuator.
Page 204 7017-2xx, -4xx, -6xx Inserting a cable into the horizontal sliding contact connector When installing the cable, check the locking actuator to verify it is in the open position. If you are opening the connector, pull back on both end tabs using equal force to avoid breaking the connector. Insert the cable with the contacts on the cable facing away from the locking actuator.
Page 205 7017-2xx, -4xx, -6xx Slide the locking actuator towards the connector, locking the cable into place. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position. Parts removal...
Page 206: Low Insertion Force (Lif) Connector
7017-2xx, -4xx, -6xx Low Insertion Force (LIF) connector This FRU contains a Low Insertion Force (LIF) connector. Read the instructions before proceeding. Warning—Potential Damage: When installing a cable into an LIF connector, care must be taken to avoid bending the edges of the cables and damaging the contacts on the cables. Inserting a cable into the LIF connector Looking at the connector, take note on which side the contacts are located.
Page 207: Printhead Assembly Adjustment
7017-2xx, -4xx, -6xx Printhead assembly adjustment A printhead needs to be correctly positioned after it has been removed. Use a sharp pencil or a small, ﬂat-blade screwdriver to mark the location of the old printhead on the printer frame. Align the new printhead relative to the location of the old printhead.
Page 208 7017-2xx, -4xx, -6xx Fold a second vertical fold near the center so that the left side top edge aligns with the right side top edge. If the grid lines of the right ﬂap align below the corresponding lines on the left ﬂap, then adjust the printhead clockwise relative to the printer, and recheck.
Page 209: Removal Procedures
7017-2xx, -4xx, -6xx Removal procedures Keep the following tips in mind as you replace parts: • Some removal procedures require removing cable ties. You must replace cable ties during reassembly to avoid pinching wires, obstructing the paper path, or restricting mechanical movement. •...
Page 210 7017-2xx, -4xx, -6xx Remove the cover. Parts removal...
Page 211: Main Drive Gearbox Removal
7017-2xx, -4xx, -6xx Main drive gearbox removal Remove the left cover. See “Left cover removal” on page 209. Release the latch (A), and then detach the link. Remove the four screws (B). Disconnect the cable from the main drive gearbox. Remove the gearbox.
Page 212: Mpf Gearbox Removal
7017-2xx, -4xx, -6xx MPF gearbox removal Remove the front door. See “MPF with front access cover removal” on page 256. Remove the left cover. See “Left cover removal” on page 209. Remove the main drive gearbox. See “Main drive gearbox removal” on page 211.
Page 213 7017-2xx, -4xx, -6xx Remove the three screws (B). Remove the three screws (C). Remove the E-clip (D), and then remove the gear. Note: The solenoid hinders the removal. Parts removal...
Page 214 7017-2xx, -4xx, -6xx Release the two latches (E), and then remove the gears (F). Parts removal...
Page 215: Fuser Actuator Removal
7017-2xx, -4xx, -6xx Fuser actuator removal Remove the left cover. See “Left cover removal” on page 209. Release the latch (A), and then detach the link. Remove the four screws (B). Parts removal...
Page 216: Reverse Solenoid Removal
7017-2xx, -4xx, -6xx Remove the screw (C). Remove the fuser actuator. Installation note: To test if the actuator is properly installed, push, and then release the actuator (A). The actuator should bounce back. Reverse solenoid removal Remove the left cover. See “Left cover removal”...
Page 217 7017-2xx, -4xx, -6xx Remove the scanner rear covers. See “Scanner rear covers removal” on page 272. Remove the redrive assembly. See “Redrive assembly removal” on page 274. Remove the two screws (A), and then cut the cable. Disconnect connector JDUPSOL1 from the controller board, and then pull the cable out of the printer. Installation notes: Screw in place the replacement solenoid.
Page 218 7017-2xx, -4xx, -6xx Install the redrive assembly. Route the cable onto the redrive assembly. Make sure that the cable properly sits on the clamps. Parts removal...
Page 219: Mpf Solenoid Removal
7017-2xx, -4xx, -6xx MPF solenoid removal Remove the left cover. See “Left cover removal” on page 209. Remove the screw (A). Cut the cable, and then remove the solenoid. Remove the rear cover. See “Rear door and cover removal” on page 273.
Page 220: Cartridge Gearbox Removal
7017-2xx, -4xx, -6xx Cartridge gearbox removal Remove the left cover. See “Left cover removal” on page 209. Remove the four screws (A). Remove the screw (B). Lift the top cover enough to remove the cartridge gearbox. While lifting the cover, disconnect the cable from the gearbox, and then remove the gearbox. Parts removal...
Page 221: Pick Roller Clutch Removal
7017-2xx, -4xx, -6xx Pick roller clutch removal Remove the left cover. See “Left cover removal” on page 209. Remove the main drive gearbox. See “Main drive gearbox removal” on page 211. Remove the rear cover. See “Rear door and cover removal” on page 273.
Page 222 7017-2xx, -4xx, -6xx Parts removal...
Page 223: Right Side Removals
7017-2xx, -4xx, -6xx Right side removals Right cover removal Using a ﬂat-head screwdriver, open the controller board access cover. Parts removal...
Page 224 7017-2xx, -4xx, -6xx Remove the screw (A). Remove the two screws (B). Parts removal...
Page 225: Interconnect Cable Removal
7017-2xx, -4xx, -6xx Close the access cover, and then open the front door. Release the two latches (C), and then disengage the middle front part (D) of the cover from the front door. Warning—Potential Damage: The ADF might swing open while you position the printer on its side. Remove the cover.
Page 226 7017-2xx, -4xx, -6xx Detach the right foot (B). Release the two latches (C). Remove the interconnect cable. Parts removal...
Page 227: Sensor (Tray Present) Removal
7017-2xx, -4xx, -6xx Sensor (tray present) removal Remove the right cover. See “Right cover removal” on page 223. Disconnect the cable (A). Release the three latches (B), and then pry to remove the sensor. Cooling fan removal MX321 cooling fan Remove the right cover.
Page 228 7017-2xx, -4xx, -6xx Remove the three screws (A), and then remove the fan duct. Remove the screw (B), and then remove the fan bracket. Parts removal...
Page 229 7017-2xx, -4xx, -6xx Remove the two screws (C), and then remove the fan. MX421, MX521, and MX522 cooling fan Remove the right cover. See “Right cover removal” on page 223. Disconnect the cable JFAN1 from the controller board. Remove the three screws (A), and then remove the fan duct. Parts removal...
Page 230: Controller Board Removal
7017-2xx, -4xx, -6xx Remove the two screws (B), and then remove the fan. Controller board removal MX421, MX521, and MX522 controller board Remove the right cover. See “Right cover removal” on page 223. Remove the scanner rear covers. See “Scanner rear covers removal” on page 272.
Page 231 7017-2xx, -4xx, -6xx Remove the ﬁve screws (A), and then remove the metal plate. Disconnect all the cables. Parts removal...
Page 232 7017-2xx, -4xx, -6xx Remove the seven screws (B). Remove the controller board. MX321 controller board Remove the right cover. See “Right cover removal” on page 223. Disconnect all the cables. Parts removal...
Page 233: Toner Cartridge Smart Chip Contact Removal
7017-2xx, -4xx, -6xx Remove the ground screw (A) and the four screws (B). Remove the screw (C). Remove the controller board. Toner cartridge smart chip contact removal Remove the right cover. See “Right cover removal” on page 223. Remove the controller board. See “Controller board removal”...
Page 234 7017-2xx, -4xx, -6xx Remove the screw (A). Remove the two screws (B), and then lower the right cartridge guide. Slightly pull the right cartridge guide to detach it. Warning—Potential Damage: To avoid damaging the right cartridge guide, do not cut or disconnect the cable at the rear of the cartridge guide.
Page 235 7017-2xx, -4xx, -6xx Release the four latches (C). Remove the toner cartridge smart chip contact. Note: Note the original position of the spring (D), actuator (E), and lock (F). Installation note: To test if the spring and actuator are properly installed, press the actuator (A). The lock (B) should move up.
Page 236: Cartridge Barrel Shutter Sensor Kit Removal
7017-2xx, -4xx, -6xx Cartridge barrel shutter sensor kit removal Remove the top cover. See “Top cover removal” on page 276. Remove the right cover. See “Right cover removal” on page 223. Disconnect the cable JCVR1 from the controller board. Remove the screw (A), and then remove the bracket, actuator, spring, and sensor. Parts removal...
Page 237 7017-2xx, -4xx, -6xx Installation notes: Install the sensor (cartridge barrel shutter) actuator (A) as shown. Note: Make sure that the spring (B) is behind the boss (C). Parts removal...
Page 238 7017-2xx, -4xx, -6xx Install the bracket (D) to the sensor (E) as shown. Install the sensor and bracket as shown. Note: Make sure that sensor is aligned with the actuator. Parts removal...
Page 239: Front Removals
7017-2xx, -4xx, -6xx Front removals Nameplate removal Open the front door. Push the latch to the left, and then remove the screw (A). Remove the four screws (B). Remove the nameplate. Note: The MPF hinders the removal. Warning—Potential Damage: Avoid damaging the cable (C) when removing the nameplate. Parts removal...
Page 240: Top Access Cover Removal
7017-2xx, -4xx, -6xx Top access cover removal Remove the nameplate. See “Nameplate removal” on page 239. Remove the three screws (A), and then remove the cover (B). Parts removal...
Page 241: Bezel (Mx321) Removal
7017-2xx, -4xx, -6xx Bezel (MX321) removal Pry the bezel to release. Remove the bezel. Numeric keypad cover (MX321) removal Open the ADF. Remove the cover. Note: Detach the lower right corner of the cover ﬁrst. Installation note: When installing the cover, put in place the two latches (A) ﬁrst. Parts removal...
Page 242: Numeric Keypad Cover (Mx421, Mx521, And Mx522) Removal
7017-2xx, -4xx, -6xx Numeric keypad cover (MX421, MX521, and MX522) removal Open the ADF. Remove the cover. Speaker (MX321) removal Open the ADF. Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241. Parts removal...
Page 243: Speaker (Mx421, Mx521, And Mx522) Removal
7017-2xx, -4xx, -6xx Remove the two screws (A). Carefully disengage the control panel assembly from the rear cover, and then set it aside. Remove the screw (B), and then disconnect the speaker cable (C). Remove the speaker. Speaker (MX421, MX521, and MX522) removal Open the ADF.
Page 244 7017-2xx, -4xx, -6xx Remove the two screws (A). Set aside the control panel assembly. Remove the screw (B), and then disconnect the speaker cable (C). Remove the speaker. Parts removal...
Page 245: Control Panel Assembly (Mx321) Removal
7017-2xx, -4xx, -6xx Control panel assembly (MX321) removal Open the ADF. Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241. Remove the two screws (A). Carefully disengage the assembly from the rear cover. Parts removal...
Page 246: Control Panel Assembly (Mx421, Mx521, And Mx522) Removal
7017-2xx, -4xx, -6xx Remove the screw (B), and then disconnect the cable (C). Remove the assembly. Control panel assembly (MX421, MX521, and MX522) removal Remove the numeric keypad cover. See “Numeric keypad cover (MX421, MX521, and MX522) removal” on page 242.
Page 247: Control Panel (Mx321) Cover And Board Removal
7017-2xx, -4xx, -6xx Disconnect the cable (B), and then remove the six screws (C). Remove the control panel assembly. Control panel (MX321) cover and board removal Open the ADF. Remove the bezel. Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241.
Page 248: Control Panel (Mx421, Mx521, And Mx522) Cover And Board Removal
7017-2xx, -4xx, -6xx Control panel (MX421, MX521, and MX522) cover and board removal Remove the numeric keypad cover. See “Numeric keypad cover (MX421, MX521, and MX522) removal” on page 242. Remove the two screws (A). Disconnect the cable (B), and then remove the six screws (C). Remove the board from the cover.
Page 249: Scanner Front Cover Removal
7017-2xx, -4xx, -6xx Scanner front cover removal Open the ADF. Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241 “Numeric keypad cover (MX421, MX521, and MX522) removal” on page 242. Remove the control panel assembly. See “Control panel assembly (MX321) removal”...
Page 250: Transfer Roller Removal
7017-2xx, -4xx, -6xx Transfer roller removal Open the front door. CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it. Release the two latches (A) on each end of the transfer roller. Remove the roller.
Page 251: Sensor (Front Door) Removal
7017-2xx, -4xx, -6xx Remove the clip (D). Remove the cover. Sensor (front door) removal Remove the nameplate. See “Nameplate removal” on page 239. Remove the right cover. See “Right cover removal” on page 223. Disconnect the JCVR1 and control panel cables from the controller board. Parts removal...
Page 252 7017-2xx, -4xx, -6xx Remove the four screws (A). Parts removal...
Page 253: Mpf Pick Roller And Separator Pad Removal
7017-2xx, -4xx, -6xx Using a #1 Phillips screwdriver, remove the screw (B). Remove the sensor. MPF pick roller and separator pad removal Open the front door. Press the latches (A), and then open the cover. Warning—Potential Damage: Avoid damaging the MPF sensor ﬂag (B) when removing the cover. Using a #1 Phillips screwdriver, remove the two screws (C).
Page 254 7017-2xx, -4xx, -6xx Hold the end of the shaft (D), and then pull out the roller to remove it. Remove the two E‑clips (A). Move the roller (B) to the left, and then remove the pin (C). Parts removal...
Page 255 7017-2xx, -4xx, -6xx Move the hub (D) and roller (E) to the right. Push the separator pad (F) to the right. Push down the pad to remove it. Warning—Potential Damage: Do not lose the spring (G). Parts removal...
Page 256: Mpf With Front Access Cover Removal
7017-2xx, -4xx, -6xx MPF with front access cover removal Remove the right cover. See “Right cover removal” on page 223. Disconnect the USB cable from the controller board. Remove the front cover. See “Nameplate removal” on page 239. Release the latch (A), and then detach the link. Parts removal...
Page 257: Sensor (Mpf Paper Present) Removal
7017-2xx, -4xx, -6xx Push the MPF with front access cover to the right, and then remove it. Sensor (MPF paper present) removal Open the front door. Remove the screw (A). Open the controller board access cover, disconnect the cable JMPFPP1, and then release the cable. Remove the sensor.
Page 258: Front Input Guide Removal
7017-2xx, -4xx, -6xx Front input guide removal Remove the MPF with front access cover. See “MPF with front access cover removal” on page 256. Remove the MPF pick roller and separator pad. See “MPF pick roller and separator pad removal” on page 253.
Page 259 7017-2xx, -4xx, -6xx Remove the screw (B). Disconnect the cable JPHONE2 from the controller board. Lift the stopper (C), and then remove the front USB port. Parts removal...
Page 260: Bottom Removals
7017-2xx, -4xx, -6xx Bottom removals Power supply removal CAUTION—SHOCK HAZARD: The low-voltage power supply (LVPS) may have residual voltage present. To avoid the risk of electrical shock, do not touch its circuit components. Only handle it by its metal housing. Remove the rear cover.
Page 261 7017-2xx, -4xx, -6xx Disconnect the cable (C), and then remove the two screws (D). Parts removal...
Page 262: Duplex Assembly Removal
7017-2xx, -4xx, -6xx Disconnect the three cables (E). Remove the power supply. Duplex assembly removal Remove the rear cover. See “Rear door and cover removal” on page 273. Remove the power supply. See “Power supply removal” on page 260. Position the printer on its right side. Warning—Potential Damage: The ADF might swing open while you position the printer on its side.
Page 263 7017-2xx, -4xx, -6xx Remove the two screws (A) and the screw (B) on the left side of the printer. Remove the power supply shield. Remove the four screws (C). Remove the duplex. Note: Make sure that the duplex link (D) stays attached to the duplex assembly. Parts removal...
Page 264: Sensors (Duplex And Input) Removal
7017-2xx, -4xx, -6xx Sensors (duplex and input) removal Remove the rear cover. See “Rear door and cover removal” on page 273. Remove the power supply. See “Power supply removal” on page 260. Remove the duplex. See “Duplex assembly removal” on page 262.
Page 265: Sensor (Toner Density) Removal
7017-2xx, -4xx, -6xx Remove the two screws (A), cut the cable near the frame, and then remove the sensors. Open the controller board access cover, and then disconnect the cable JDUPPI1. Remove the cables. Installation note: Route the sensor (input) cable (A) and sensor (duplex) cable (B) as shown. Sensor (toner density) removal Remove the rear cover.
Page 266 7017-2xx, -4xx, -6xx Position the printer on its left side. Warning—Potential Damage: The ADF might swing open while you position the printer on its side. Remove the spring (A) and the two screws (B). Disconnect the cable, and then remove the sensor. Installation notes: Apply RheoGel 793 to the top and bottom of the shutter blade extension.
Page 267: Sensor (Trailing Edge) Removal
7017-2xx, -4xx, -6xx Apply RheoGel 793 to the point of contact between the bracket (A) and cam. Apply RheoGel 793 to the point of contact to the lower edge (B), where the wiper bracket glides. Sensor (trailing edge) removal Remove the left cover. See “Left cover removal”...
Page 268: Pick Roller Assembly Removal
7017-2xx, -4xx, -6xx Remove the screw (A) and the sensor. Remove the cable JACM1. Pick roller assembly removal Remove the left cover. See “Left cover removal” on page 209. Remove the main drive gearbox. See “Main drive gearbox removal” on page 211.
Page 269 7017-2xx, -4xx, -6xx While blocking the roller, remove the screw (B). Release the pick roller clutch cable. Pull out the clutch, and then leave it hanging. Parts removal...
Page 270 7017-2xx, -4xx, -6xx Pry, rotate, and then remove the bushing (C). Remove the two screws (D), and then detach the sensors. Parts removal...
Page 271 7017-2xx, -4xx, -6xx Disconnect the two springs (E). Parts removal...
Page 272: Rear Side Removals
7017-2xx, -4xx, -6xx Pry, rotate, and then remove the bushing (F). Pull out the shaft, and then remove the pick roller assembly. Rear side removals Scanner rear covers removal Pull the covers to release. Remove the covers. Parts removal...
Page 273: Rear Door And Cover Removal
7017-2xx, -4xx, -6xx Installation note: Install the scanner rear covers ﬁrst, and then the printer rear cover. Rear door and cover removal CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.
Page 274: Redrive Assembly Removal
7017-2xx, -4xx, -6xx Remove the top cover. See “Top cover removal” on page 276. Remove the redrive assembly. See “Redrive assembly removal” on page 274. Remove the two screws (A), and then remove the plate. Remove the sensor. Redrive assembly removal Remove the rear cover.
Page 275: Fuser Removal
7017-2xx, -4xx, -6xx Fuser removal CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it. Remove the right cover. See “Right cover removal” on page 223.
Page 276: Top Side Removals
7017-2xx, -4xx, -6xx Remove the fuser. See “Fuser removal” on page 275. Remove the two screws (B). Remove the redrive gear assembly. Top side removals Top cover removal Remove the left cover. See “Left cover removal” on page 209. Remove the right cover. See “Right cover removal”...
Page 277 7017-2xx, -4xx, -6xx Remove the scanner rear covers. See “Scanner rear covers removal” on page 272. Remove the two screws (A). Remove the scanner assembly. See “Scanner assembly removal” on page 283. Remove the four screws (B). Parts removal...
Page 278 7017-2xx, -4xx, -6xx Release the latch on the left and right sides of the cover. Parts removal...
Page 279: Printhead Removal
7017-2xx, -4xx, -6xx Slide the cover to the front, and then pull up to remove. Printhead removal Remove the right cover. See “Right cover removal” on page 223. Remove the left cover. See “Left cover removal” on page 209. Remove the rear cover. See “Rear door and cover removal”...
Page 280 7017-2xx, -4xx, -6xx Using a small, ﬂat-blade screwdriver or a sharp pencil, mark the location of the printhead on the printer frame. Disconnect the printhead cable from the controller board. Parts removal...
Page 281 7017-2xx, -4xx, -6xx Remove the three screws (A). Remove the printhead. Installation note: Perform all the mechanical and electronic adjustments to the printhead after replacing it. “Printhead assembly adjustment” on page 207. Parts removal...
Page 282: Adf/Scanner Removals
7017-2xx, -4xx, -6xx ADF/scanner removals ADF restraint pad removal Open the ADF top cover. Remove the restraint pad. Parts removal...
Page 283: Adf Tray Removal
7017-2xx, -4xx, -6xx ADF tray removal Open the ADF top cover. Release the left latch, and then remove the tray. Scanner assembly removal Note: This part is not a FRU. Remove the right cover. See “Right cover removal” on page 223.
Page 284 7017-2xx, -4xx, -6xx Remove the two screws (A). From the controller board, remove the screw (B), and then disconnect the following cables: • Control panel cable • Headphone jack cable Note: This is applicable only to the MX321 models. • Speaker cable •...
Page 285: Adf Assembly Removal
7017-2xx, -4xx, -6xx Remove the scanner assembly. ADF assembly removal Remove the ADF tray. See “ADF tray removal” on page 283. Open the ADF. Using a ﬂat‑blade screwdriver, remove the ADF controller board access cover. Disconnect the two cables (A). Note: To disconnect the grounding cable, press the tab ﬁrst and then pull.
Page 286: Adf Hinge Removal
7017-2xx, -4xx, -6xx Release the cables off the assembly, and then remove the ADF. Installation note: Pay attention to the routing of the cables. ADF hinge removal Remove the ADF assembly. See “ADF assembly removal” on page 285. Remove the ﬁve screws (A). Note: The hinges are two separate FRUs.
Page 287 7017-2xx, -4xx, -6xx Installation note: When installing the left hinge, make sure that the extension (A) is facing to the left. Parts removal...
Page 288: Adf Access Door Removal
7017-2xx, -4xx, -6xx ADF access door removal Open the ADF access door. Pull and then release the latch on the right side of the door. Do the same to release the latch on the other side. Remove the door. Parts removal...
Page 289: Adf Roller Removal
7017-2xx, -4xx, -6xx ADF roller removal Remove the ADF access door. See “ADF access door removal” on page 288. Release the latch (A) on both sides of the door. Parts removal...
Page 290 7017-2xx, -4xx, -6xx Rotate the latches as shown, and then pull up to remove the roller. Installation note: The roller is properly installed if the following parts are positioned as shown. Parts removal...
Page 291: Flatbed Scanner Removal
7017-2xx, -4xx, -6xx Rollers Guides Flags Flatbed scanner removal Remove the ADF assembly. See “ADF assembly removal” on page 285. Remove the right cover. See “Right cover removal” on page 223. From the controller board, remove the screw (A), and then disconnect the following cables: •...
Page 292 7017-2xx, -4xx, -6xx Remove the scanner rear covers. See “Scanner rear covers removal” on page 272. Remove the two screws (B). Remove the ﬂatbed scanner assembly. Parts removal...
Page 293: Adf Flat Cable Removal
7017-2xx, -4xx, -6xx Remove the ADF controller board cover (C) and the holder (D), and then remove the scanner cable cover (E). Route the cables through the ﬂatbed assembly, and then remove them. Note: Pay attention to the routing of the ADF scanner cable and of double‑sided part of the cable. Remove the control panel from the ﬂatbed scanner.
Page 294 7017-2xx, -4xx, -6xx Remove the scanner rear covers. See “Scanner rear covers removal” on page 272. Remove the two screws (B). Remove the ﬂatbed scanner assembly. Remove the ADF controller board cover (C) and the holder (D), and then remove the cable cover (E). Route the ﬂat cable (F) off the ﬂatbed assembly, and then remove.
Page 295 7017-2xx, -4xx, -6xx Parts removal...
Page 296: Adf Cable Removal
7017-2xx, -4xx, -6xx ADF cable removal Open the ADF. Using a ﬂat‑blade screwdriver, remove the ADF controller board access cover. Disconnect the two cables (A). Note: To disconnect the grounding cable, press the tab ﬁrst and then pull. Parts removal...
Page 297 7017-2xx, -4xx, -6xx Close the ADF, and then remove the scanner assembly. See “Scanner assembly removal” on page 283. Parts removal...
Page 298 7017-2xx, -4xx, -6xx Remove the screw (B). Parts removal...
Page 299 7017-2xx, -4xx, -6xx Release the cable from the clamps, and then remove it. Installation note: Pay attention to where the white marking (A) on the cable is positioned. Parts removal...
Page 300: Optional 250/550-Sheet Tray Removals
7017-2xx, -4xx, -6xx Optional 250/550-sheet tray removals Separator roller assembly removal Remove the tray insert. Under the tray, remove the screw (A). Parts removal...
Page 301 7017-2xx, -4xx, -6xx Remove the screw (B) on the left side. Do the same for the screw (C) on the opposite side. Remove the roller assembly. Parts removal...
Page 302 7017-2xx, -4xx, -6xx...
Page 303: Component Locations
CAUTION—TIPPING HAZARD: Installing one or more options on your printer or MFP may require a caster base, furniture, or other feature to prevent instability causing possible injury. For more information on supported conﬁgurations, see www.lexmark.com/multifunctionprinters. CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately.
Page 304: Attaching Cables
7017-2xx, -4xx, -6xx Multipurpose feeder Door A MX421, MX52x Control panel Automatic document feeder (ADF) Standard bin Controller board access cover Standard 250‑sheet tray Optional 250‑ or 550‑sheet tray Multipurpose feeder Door A Attaching cables CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock, do not set up this product or make any electrical or cabling connections, such as the power cord, fax feature, or telephone, during a lightning storm.
Page 305 7017-2xx, -4xx, -6xx CAUTION—POTENTIAL INJURY: To avoid the risk of ﬁre or electrical shock, connect the power cord to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible. CAUTION—POTENTIAL INJURY: To avoid the risk of ﬁre or electrical shock, use only the power cord provided with this product or the manufacturer's authorized replacement.
Page 306 7017-2xx, -4xx, -6xx MX421, MX52x Use the Power cord socket Connect the printer to an electrical outlet. Ethernet port Connect the printer to an Ethernet network. LINE port Connect the printer to an active telephone line through a standard wall jack (RJ‑11), DSL ﬁlter, or VoIP adapter, or any other adapter that allows you to access the telephone line to send and receive faxes.
Page 307: Printer Roller Locations
7017-2xx, -4xx, -6xx Printer roller locations Standard path rollers Photoconductor drum First input roller MPF pick roller Second input roller Pick roller Separator roller Transfer roller Fuser roller Fuser exit roller Paper exit roller Component locations...
Page 308 7017-2xx, -4xx, -6xx Duplex path rollers Duplex rear roller Duplex front roller Component locations...
Page 309: Printer Sensor Locations
7017-2xx, -4xx, -6xx Printer sensor locations Sensor Sensor (input) Sensor (MPF paper present) Sensor (duplex) Sensor (index) Sensor (trailing edge) Sensor (pass-through) Sensor (media present) Sensor (fuser exit) Sensor (narrow media/bin full) Component locations...
Page 310: Controller Board Connectors
7017-2xx, -4xx, -6xx Controller board connectors Connector Connects to Pin no. Signal JDRC1 Cartridge smart chip contact +3.3V DAT_SC_CN1 CLK_SC_CN1 Ground JDRC2 Imaging unit smart chip contact 3.3V I2C_DAT_SC_CN2 I2C_CLK_SC_CN2 Ground JCART1 Motor (toner cartridge) V_5CART_1 +5V S_CART_ENC_CN Ground JBARR1 Sensor (cartridge barrel) V_5V_BARR +5V S_TONER_LOW...
Page 311 7017-2xx, -4xx, -6xx Connector Connects to Pin no. Signal JTHM1 Belt fuser A_FUSER_TH_C +2V_ADC Ground JFAN1 Cooling fan V_MAIN_FAN24V Ground MAIN_FAN_ENC_R JEXIT1 Sensor (exit) V_5V_PAPER_OUT S_PAPER_OUT_C Ground JUSBD1 USB connector with ﬂange V_USBD_5V USB_DEV_N USB_DEV_N USB_DEV_GND JRIP1 Debug port Ground RXD0_RIP_CN TXD0_RIP_CN JRIP_100_+5V...
Page 312 7017-2xx, -4xx, -6xx Connector Connects to Pin no. Signal JP_PRE1 Sensor (paper present) V_5V_PAPER_P S_PAPER_P_C Ground JMPFPP1 Sensor (MPF) V_3.3V_MPF_PP S_MPF_SNS_R Ground JMPFSOL1 MPF solenoid V_MPFSOL +24V_MSF V_MPFSOL- JPSU1 Power supply NC_JPSU1 PSU_DET_CN CHARGE_C SERVO_OUT_C DEV_C TXENABLE_C TX_C FUSER_RELAY TAR_C FUSER_ON_C ZEROX_C SHUTOFF_24V...
Page 313 7017-2xx, -4xx, -6xx Connector Connects to Pin no. Signal JMTR1 Motor (main) MAIN_HALL_U_CN MAIN_HALL_V_CN MAIN_HALL_W_CN MAIN_FG_CN Ground 5V_ENG V_MAINC1_U V_MAINC1_V V_MAINC1_W ‑‑ JRESET1 not used not used JCVR1 Cover open V_5V_INDEX S_INDEX_C Ground JFUSB1 Thumb drive V_FUSB_L USB_FRONT_N USB_FRONT_P NC_JFUSB_P4 Ground JSPKR1 External speaker...
Page 314 7017-2xx, -4xx, -6xx Connector Connects to Pin no. Signal JADF1 ADF FFC Security jumper +3.3V Ground Ground JBINS1 Sensor (bin full) V_3.3V_BINS PAPER_FULL_S_R Ground Ground JT_PRE1 Sensor (tray present) V_3.3V_TRAY1 S_TRAY1_C Ground JACM1 Sensor (ACM) +5V_ENG S_ACM_SEN_C Ground JUICC43 Control panel FFC (MX421 only) ‑‑...
Page 315: Maintenance
• Damaged, missing, or altered covers, especially in the area of the top cover and the power supply cover • Possible safety exposure from any non-Lexmark attachments Use the following table to determine when speciﬁed parts should be inspected: PART...
Page 316: Resetting The Maintenance Counter
7017-2xx, -4xx, -6xx Part number and kit Contents 41X1229—Maintenance Kit (220 V) • 41X1179—Fuser (220 V) • 41X1197—MPF pick roller and separator pad • 41X0918—Pick tires • 40X8393—Transfer roller When performing the 200K scheduled maintenance procedure, the following areas should be cleaned of media dust and toner contamination: •...
Page 317: Cleaning The Printer
7017-2xx, -4xx, -6xx Cleaning the printer Cleaning the printer CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.
Page 318 7017-2xx, -4xx, -6xx Using a damp, soft, lint-free cloth, wipe the following areas: • ADF glass • ADF glass pad • Scanner glass Maintenance...
Page 319 7017-2xx, -4xx, -6xx • Scanner glass pad Close the scanner cover. When using the MX521 and MX421 printers, do the following to clean the ADF: Open the ADF cover. Using a damp, soft, lint-free cloth, wipe the following areas: • ADF glass pad in the ADF cover Maintenance...
Page 320: Cleaning The Printhead Lenses
7017-2xx, -4xx, -6xx • ADF glass in the ADF cover Close the ADF cover. Cleaning the printhead lenses Open the front door. Remove the toner cartridge and imaging unit. From the printhead access opening (A) in the top of the frame at the front of the printer, ﬁnd the printhead lens.
Page 321 7017-2xx, -4xx, -6xx...
Page 322: Parts Catalog
7017-2xx, -4xx, -6xx Parts catalog Legend The following column headings are used in the parts catalog: • ASM‑index—Identiﬁes the assembly and the item in the diagram. For example, 3‑1 indicates Assembly 3 and item 1 in the table. • Part number—Identiﬁes the unique number that correlates with the part. •...
Page 323: Assembly 1: Covers
7017-2xx, -4xx, -6xx Assembly 1: Covers Parts catalog...
Page 324 7017-2xx, -4xx, -6xx Assembly 1: Covers Asm-index Units/mach Units/FRU Description Removal procedure 41X1341 Top cover (MX321 and “Top cover removal” on page 276 MX421) 41X1342 Top cover (MX521 and “Top cover removal” on page 276 MX522) 40X9075 Output extender 41X1169 Rear door and cover 41X2263 Rear access door...
Page 325: Assembly 2: Control Panel (Mx421, Mx521, And Mx522)
7017-2xx, -4xx, -6xx Assembly 2: Control panel (MX421, MX521, and MX522) Parts catalog...
Page 326 7017-2xx, -4xx, -6xx Assembly 2: Control panel (MX421, MX521, and MX522) Asm-index Units/mach Units/FRU Description Removal procedure 41X2540 Bezel (MX421) 41X2500 Bezel (MX521) 41X2445 Bezel (MX522) 41X1353 Control panel cover (MX421, “Control panel (MX421, MX521, MX521, and MX522) and MX522) cover and board removal”...
Page 327: Assembly 3: Control Panel (Mx321)
7017-2xx, -4xx, -6xx Assembly 3: Control panel (MX321) Parts catalog...
Page 328 7017-2xx, -4xx, -6xx Assembly 3: Control panel (MX321) Asm-index Units/mach Units/FRU Description Removal procedure 41X1346 Bezel (MX321) “Bezel (MX321) removal” on page 41X1352 Control panel cover “Control panel (MX321) cover and (MX321) board removal” on page 247 41X1368 Control panel (MX321) 41X2524 Control panel ﬂat cable (MX321)
Page 329: Assembly 4: Electronics 1
7017-2xx, -4xx, -6xx Assembly 4: Electronics 1 Parts catalog...
Page 330 7017-2xx, -4xx, -6xx Assembly 4: Electronics 1 Asm-index Units/mach Units/FRU Description Removal procedure 41X1185 Printhead “Printhead removal” on page 279 41X1178 Fuser, 110V “Fuser removal” on page 275 41X1179 Fuser, 220V “Fuser removal” on page 275 41X1180 Fuser, 100V “Fuser removal” on page 275 41X1360 Controller board (MX321)
Page 331 7017-2xx, -4xx, -6xx Asm-index Units/mach Units/FRU Description Removal procedure 41X1370 Controller board (MX522) “Controller board removal” on page 230 41X1201 Power supply, 100V/110V “Power supply removal” on page 260 41X1202 Power supply, 220V “Power supply removal” on page 260 41X1224 Main drive gearbox “Main drive gearbox removal”...
Page 332 7017-2xx, -4xx, -6xx Parts catalog...
Page 333: Assembly 5: Electronics 2
7017-2xx, -4xx, -6xx Assembly 5: Electronics 2 Parts catalog...
Page 334 7017-2xx, -4xx, -6xx Assembly 5: Electronics 2 Asm-index Units/mach Units/FRU Description Removal procedure 41X2259 Cooling fan “Cooling fan removal” on page 227 41X1213 MPF solenoid “MPF solenoid removal” on page 219 41X2391 Pick roller clutch “Pick roller clutch removal” on page 221 41X1237 Motor (cartridge) “Cartridge gearbox removal”...
Page 335: Assembly 6: Electronics 3
7017-2xx, -4xx, -6xx Assembly 6: Electronics 3 Parts catalog...
Page 336 7017-2xx, -4xx, -6xx Assembly 6: Electronics 3 Asm-index Units/mach Units/FRU Description Removal procedure 41X1988 Sensor (cartridge “Cartridge barrel shutter sensor kit barrel) removal” on page 236 41X1162 Toner cartridge smart “Toner cartridge smart chip contact chip contact removal” on page 233 41X2260 Sensor (bin full) 41X1209...
Page 337: Assembly 7: Electronics 4
7017-2xx, -4xx, -6xx Assembly 7: Electronics 4 Parts catalog...
Page 338 7017-2xx, -4xx, -6xx Assembly 7: Electronics 4 Asm-index Units/mach Units/FRU Description Removal procedure 41X1206 Sensor (duplex and input) “Sensors (duplex and input) removal” on page 264 41X1240 Sensor (trailing edge) “Sensor (trailing edge) removal” on page 267 40X8046 Sensor (toner density) “Sensor (toner density) removal”...
Page 339: Assembly 8: Paper Transport 1
7017-2xx, -4xx, -6xx Assembly 8: Paper transport 1 Parts catalog...
Page 340 7017-2xx, -4xx, -6xx Assembly 8: Paper transport 1 Asm-index Units/mach Units/FRU Description Removal procedure 41X1183 Jam access cover 41X1184 Front input guide “Front input guide removal” on page 258 41X1176 Duplex assembly “Duplex assembly removal” on page 262 41X1182 MPF gearbox (MX521 and “MPF gearbox removal”...
Page 341: Assembly 9: Paper Transport 2
7017-2xx, -4xx, -6xx Assembly 9: Paper transport 2 Parts catalog...
Page 342 7017-2xx, -4xx, -6xx Assembly 9: Paper transport 2 Asm-index Units/mach Units/FRU Description Removal procedure 40X8393 Transfer roller “Transfer roller removal” on page 41X1197 MPF pick roller and “MPF pick roller and separator pad separator pad removal” on page 253 41X1223 Pick roller assembly “Pick roller assembly removal”...
Page 343: Assembly 10: Mpf And Standard Tray
7017-2xx, -4xx, -6xx Assembly 10: MPF and standard tray Parts catalog...
Page 344 7017-2xx, -4xx, -6xx Assembly 10: MPF and standard tray Asm-index Units/mach Units/FRU Description Removal procedure 41X1218 MPF with front access cover “MPF with front access cover (MX321 and MX522) removal” on page 256 41X1366 MPF with front access cover “MPF with front access cover (MX421 and MX521) removal”...
Page 345: Assembly 11: Optional Trays
7017-2xx, -4xx, -6xx Assembly 11: Optional trays Parts catalog...
Page 346 7017-2xx, -4xx, -6xx Assembly 11: Optional trays Asm-index Units/opt Units/FRU Description Removal procedure 41X1216 Optional 550-sheet tray 41X1217 Optional 250-sheet tray 41X1239 Pick roller 41X1222 550-sheet tray insert (optional tray) -- 41X1221 250-sheet tray insert (optional tray) -- 41X1212 Separator roller assembly “Separator roller assembly removal”...
Page 347: Assembly 12: Imaging (Mx321, Mx421, And Mx521) 1
7017-2xx, -4xx, -6xx Assembly 12: Imaging (MX321, MX421, and MX521) 1 Parts catalog...
Page 348 7017-2xx, -4xx, -6xx Assembly 12: Imaging (MX321, MX421, and MX521) 1 Asm-index Units/mach Units/FRU Description Removal procedure 41X1327 ADF assembly (MX321) “ADF assembly removal” on page 285 • This part is the original ADF for old printers (8th digit of printer serial number=0, or 1).
Page 349 7017-2xx, -4xx, -6xx Asm-index Units/mach Units/FRU Description Removal procedure 41X1321 ADF right hinge (MX521) “ADF hinge removal” on page 286 41X1323 ADF cushion (MX321 and MX421) 41X1324 ADF cushion (MX521) 40X8735 ADF left hinge (MX321, MX421, and “ADF hinge removal” on MX521) page 286 Parts catalog...
Page 350 7017-2xx, -4xx, -6xx Parts catalog...
Page 351: Assembly 13: Imaging (Mx321, Mx421, And Mx521) 2
7017-2xx, -4xx, -6xx Assembly 13: Imaging (MX321, MX421, and MX521) 2 Parts catalog...
Page 352 7017-2xx, -4xx, -6xx Assembly 13: Imaging (MX321, MX421, and MX521) 2 Asm-index Units/mach Units/FRU Description Removal procedure 41X2222 ADF access door (MX321) “ADF access door removal” on page 288 41X1317 ADF access door (MX421) “ADF access door removal” on page 288 41X2228 ADF access door (MX521) “ADF access door...
Page 353 7017-2xx, -4xx, -6xx Asm-index Units/mach Units/FRU Description Removal procedure 41X2523 Flatbed scanner (MX521) “Flatbed scanner removal” on page 291 • This part is the original ﬂatbed for new printers (8th digit of printer serial number>2). • This part can be installed on old printers (8th digit of printer serial number=0, or 1).
Page 354 7017-2xx, -4xx, -6xx Parts catalog...
Page 355: Assembly 14: Imaging (Mx522)
7017-2xx, -4xx, -6xx Assembly 14: Imaging (MX522) Parts catalog...
Page 356 7017-2xx, -4xx, -6xx Assembly 14: Imaging (MX522) Asm-index Units/mach Units/FRU Description Removal procedure 41X1328 ADF assembly (MX522) “ADF assembly removal” on page 285 41X1334 ADF tray (MX522) “ADF tray removal” on page 283 41X2221 ADF cable cover (MX522) -- 41X1321 ADF right hinge (MX522) “ADF hinge removal”...
Page 357: Assembly 15: Fax Card And Hard Disk
7017-2xx, -4xx, -6xx Assembly 15: Fax card and hard disk Parts catalog...
Page 358 7017-2xx, -4xx, -6xx Assembly 15: Fax card and hard disk Asm-index Units/mach Units/FRU Description Removal procedure ‑‑ 41X1374 Fax card (MX522) ‑‑ 40X9934 Printer hard disk (MX522), 500GB Parts catalog...
Page 359: Assembly 16: Maintenance Kits (Mx522, Mx521, And Mb2546)
7017-2xx, -4xx, -6xx Assembly 16: Maintenance kits (MX522, MX521, and MB2546) Asm-index Units/mach Units/FRU Description Removal procedure 41X1230 Maintenance Kit (100 V) • Fuser (100 V) • MPF pick roller and separator pad • Pick tires • Transfer roller 41X1228 Maintenance Kit (110 V) •...
Page 360 7017-2xx, -4xx, -6xx Parts catalog...
Page 361: Assembly 17: Miscellaneous
7017-2xx, -4xx, -6xx Assembly 17: Miscellaneous Asm-index Units/mach Units/FRU Description Removal procedure 41X1010 User Flash Memory, 256MB 41X1002 Forms and Bar Code card 41X1004 IPDS card 41X1006 PRESCRIBE card 41X1014 Font card, Traditional Chinese 41X1013 Font card, Simpliﬁed Chinese 41X1015 Font card, Korean 41X1016 Font card, Japanese...
Page 362 7017-2xx, -4xx, -6xx...
Page 363: Printer Speciﬁcations
(MX421, MB2442, XM1242), 10.5 (MX321, MB2338) Sleep Mode The product is in a high‑level energy‑saving mode. 2.6 (MX522, MX521, MB2546, XM1246), 2.1 (MX421, MB2442, XM1242), 2.1 (MX321, MB2338) Hibernate The product is in a low‑level energy‑saving mode. 0.1 The product is plugged into an electrical outlet, but the power switch is turned off.
Page 364: Hibernate Mode
7017-2xx, -4xx, -6xx Hibernate Mode This product is designed with an ultra‑low power operating mode called Hibernate mode. When operating in Hibernate Mode, all other systems and devices are powered down safely. The Hibernate mode can be entered in any of the following methods: •...
Page 365: Noise Emission Levels
Note: Some modes may not apply to your product. 1-meter average sound pressure, dBA Printing 55 (MX522, MX521, MX421, MB2546, MB2422, XM1246, XM1242), 54 (MX321, MB2338) Scanning 53 (MX522, MX521, MX421, MB2546, MB2422, XM1246, XM1242), 54 (MX321, MB2338) Printer speciﬁcations...
Page 366: Temperature Information
7017-2xx, -4xx, -6xx 1-meter average sound pressure, dBA Copying 53 (MX522, MX521, MX421, MB2546, MB2422, XM1246, XM1242), 54 (MX321, MB2338) Ready 15 (MX522, MX521, MX421, MB2546, MB2422, XM1246, XM1242), 0 (MX321, MB2338) Values are subject to change. See www.lexmark.com for current values.
Page 367: Options And Features
Maximum Maximum standard trays number of number of trays optional trays MX321, MB2338, and XM1238 MX421 and MB2422 MX521 and MB2546 MX522 and XM1246 * The printer can support a maximum of three optional trays in one conﬁguration. Options and features...
Page 368 2000 Paper capacity means 20‑lb xerographic paper at ambient environment per sheet. Output destinations Printer model Number of standard destinations MX321, MB2338, and XM1238 MX421 and MB2422 MX521 and MB2546 MX522 and XM1246 Output capacities Printer model Standard output capacity...
Page 369: Theory Of Operation
7017-2xx, -4xx, -6xx Theory of operation POR sequence As the printer turns on, the engine code goes through a series of tests to verify hardware integrity. If a hardware failure is detected, then it is reported to the printer. If the POR sequence cannot be completed successfully, then the printer may post an error message.
Page 370: Print Cycle
7017-2xx, -4xx, -6xx Print cycle Flowchart EXPOSE DEVELOP IMAGING UNIT CHARGE TRANSFER CLEAN PAPER FUSE Theory of operation...
Page 371 7017-2xx, -4xx, -6xx Charge Charge roller Photoconductor drum A uniform negative electrical charge is applied by the charge roller to the surface of the photoconductor drum. The photoconductive properties of the surface material allow it to hold the charge as long as it is not exposed to light.
Page 372 7017-2xx, -4xx, -6xx Expose Photoconductor drum Printhead The printhead emits the light that contacts the surface of the photoconductor drum. The light turns on or off coinciding with the digital latent image. The light causes areas of the photoconductor drum surface to lose charge, resulting in a relative opposite polarity.
Page 373 7017-2xx, -4xx, -6xx Develop Developer roller Toner cartridge Photoconductor drum The developer unit applies the toner from the toner cartridge to the photoconductor drum. The difference in charge causes the toner particles to attract to the photoconductor drum areas which are exposed to light. Theory of operation...
Page 374 7017-2xx, -4xx, -6xx Transfer Charge roller Transfer roller Paper The transfer roller applies a positive charge to the paper, which is pressed between the transfer roller and the photoconductor drum. Due to relative opposite polarities between the paper, from the transfer roller, and the photoconductor drum, from the charge roller, the charge attracts the toner onto the paper.
Page 375 7017-2xx, -4xx, -6xx Fuse Fuser Paper Even if the toner image is already on the paper, the toner particles are not yet permanently bonded to the surface. For the ﬁnal part of printing, the paper is transported to the fuser where heat and pressure are applied to it.
Page 376: Printer Operation
7017-2xx, -4xx, -6xx Printer operation Printer sections Printhead Imaging unit Toner cartridge Tray Transfer roller Paper paths Fuser Theory of operation...
Page 377: Printer Paper Path
7017-2xx, -4xx, -6xx Printer paper path One‑sided print job Photoconductor drum First input roller MPF pick roller Second input roller Pick roller Separator roller Transfer roller Fuser Fuser exit roller Paper exit roller The pick roller picks and feeds the paper to the separator roller. The separator roller feeds the paper to the second input roller, which feeds it to the ﬁrst input roller.
Page 378 7017-2xx, -4xx, -6xx The deskew shutter along the ﬁrst input roller corrects the skew on the paper. The ﬁrst input roller feeds the paper to the transfer roller. At the transfer roller, the photoconductor drum transfers the developed image to the paper to create the printed image. As the paper passes the fuser, heat and pressure are applied to permanently bond the toner to the paper.
Page 379: Printer Paper Path Sensors
7017-2xx, -4xx, -6xx Printer paper path sensors Sensor Function Sensor (input) Detects the paper traveling between the ﬁrst input roller and the transfer roller Sensor (MPF paper Detects if paper is in the MPF tray present) Sensor (duplex) Detects the paper traveling along the duplex path Sensor (index) Detects if the pick roller is at the correct height to pick paper from the tray Note: The sensor in the standard tray is supported only in some printer...
Page 380: Main Drive
7017-2xx, -4xx, -6xx Main drive Paper input Main drive gearbox motor Transfer roller Photoconductor Fuser Paper exit Duplex The gearbox provides mechanical power to the printer. Its motor transfer power through a number of gears to the following parts: MPF, paper input, transfer roll, photoconductor drum, fuser, paper exit, and duplex. Theory of operation...
Page 381: Tray Drive
7017-2xx, -4xx, -6xx Tray drive Pick roller Separator roller To prepare for feeding, the lift plate raises to push the paper against the pick roller. The lift plate stops pushing at the point where the pick roller is at the proper height for picking. After the pick roller is in position, it feeds the topmost paper to the separator roller.
Page 382: Adf And Scanner Operation
7017-2xx, -4xx, -6xx ADF and scanner operation Flatbed scanner drive Scanner glass Motor (FB scanner) Sensor (FB CIS home) The ﬂatbed scanner has a scanner lamp that is used to illuminate the surface of the document. The reﬂections produced are processed to create the scan image. For ﬂatbed scan jobs, the ﬂatbed scanner moves across the scanner glass area to scan the front side of the document (facedown).
Page 383: Adf Paper Path
7017-2xx, -4xx, -6xx ADF paper path ADF tray Pick roller Feed roller Separator roller Deskew roller Transport roller Scan area Exit roller 1 Exit roller 2 ADF bin After the sensor (ADF paper present) detects paper in the ADF tray, the pick roller drops and advances the paper into the ADF.
Page 384: Adf Paper Path Sensors
7017-2xx, -4xx, -6xx The paper then actuates the sensors (pick and deskew). The sensor (pick) detects the leading edge of the paper and adjusts the pick/feed timings while the sensor (deskew) detects the paper for any skews. The deskew roller slows down the paper to perform the skew correction.
Page 385 7017-2xx, -4xx, -6xx Sensor Function Sensor (ADF paper present) • Detects paper presence in the ADF tray • Raises the pick arm after the last sheet to prepare for the next batch of scanning Sensor (ADF pick) Detects the leading edge of the incoming sheet and adjusts pick/feed timings Sensor (ADF deskew) Detects skew of the incoming sheet and applies necessary deskew algorithm Sensor (ADF 1st scan)
Page 386 7017-2xx, -4xx, -6xx...
Page 387: Acronyms
7017-2xx, -4xx, -6xx Acronyms Acronyms ASIC Application-Speciﬁc Integrated Circuit BLDC Brushless DC Motor Black Only Retract Cyan Charge Coupled Device Carbonless Copy Paper Contact Image Sensors Cyclic Redundancy Check Customer Setup CTLS Capacitance Toner Level Sensing DIMM Dual Inline Memory Module DRAM Dynamic Random Access Memory Enhanced Data Out...
Page 388 7017-2xx, -4xx, -6xx Microswitch Non-volatile Memory NVRAM Non-volatile Random Access Memory Original Equipment Manufacturer Optical Sensor Photoconductor pel, pixel Picture element Power-On Reset POST Power-On Self Test Position Sensing Device Pulse Width Modulation Raster Imaging Processor Read Only Memory SDRAM Synchronous Dual Random Access Memory SIMM Single Inline Memory Module...
Page 389: Index
7017-2xx, -4xx, -6xx Index diagnostics menu accessing 172 acronyms 387 controller calibration 179 additional input tray diagnostics feed test 177 motor tests 180 scanner calibration reset 179 sensor tests 179 ADF theory paper path 383 electrostatic‑sensitive parts 186 paper path sensors 384 embedded solutions 192 advanced print quality samples 172 emission notices 365...
Page 390 7017-2xx, -4xx, -6xx lubrication guidelines 316 fax error log codes 164 fax port 304 ﬁnding maintenance counter 316 serial number 24 maintenance kit ﬁne lines are not printed correctly 63 resetting the counter 316 folded or wrinkled paper 46 maintenance kits 315 format fax storage 173 menu fuse 375...
Page 391 7017-2xx, -4xx, -6xx develop 373 printer sections 376 expose 372 printer setup ﬂowchart 370 enable edge‑to‑edge (copy) 175 fuse 375 enable edge‑to‑edge (printing) 174 engine setting [x] 175 transfer 374 EP setup 175 print engine layout 369 model name 175 print is too dark 40 permanent page count 174 print is too light 42...
Page 392 7017-2xx, -4xx, -6xx MPF pick roller and separator pad 253 scheduled maintenance 315 MPF solenoid 219 selecting a location for the printer 364 MPF with front access cover 256 sensor locations 309 nameplate 239 sensors, paper path 379 service engineer (SE) menu numeric keypad cover (MX421, XM1242) 242 accessing 184 pick roller assembly 268...
Page 393 7017-2xx, -4xx, -6xx solid black pages 47 streaked vertical lines appear on prints 53 toner rubs off 68 toner specks appear on prints 69 vertical dark bands 56 vertical dark streaks with print missing 58 vertical light bands 55 white streaks and voided areas 60 understanding the status of the power button and indicator light 170 updating the printer ﬁrmware...
Page 394 7017-2xx, -4xx, -6xx Index...
Page 395: Part Number Index
7017-2xx, -4xx, -6xx Part number index Part name Page 3086579 Software CD..............................361 40X1367 Parallel cable, 10 feet (MX52x)........................361 40X1368 USB 2.0 cable, 2 meters..........................361 40X6247 ADF separator roller (MX321)........................352 40X8046 Sensor (toner density)..........................338 40X8393 Transfer roller..............................342 40X8520 Dust cover............................... 324 40X8523 RS‑232C Serial Interface card (MX52x)....................
Page 396 7017-2xx, -4xx, -6xx Part name Page 41X1182 MPF gearbox (MX521 and MX522)......................340 41X1183 Jam access cover............................340 41X1184 Front input guide............................340 41X1185 Printhead................................. 330 41X1197 MPF pick roller and separator pad......................342 41X1201 Power supply, 100V/110V..........................331 41X1202 Power supply, 220V............................331 41X1206 Sensor (duplex and input)...........................
Page 397 7017-2xx, -4xx, -6xx Part name Page 41X1318 ADF access door (MX522)..........................356 41X1320 ADF right hinge (MX321 and MX421)....................... 348 41X1321 ADF right hinge (MX521)..........................349 41X1321 ADF right hinge (MX522)..........................356 41X1322 ADF restraint pad (MX522).........................356 41X1323 ADF cushion (MX321 and MX421)......................349 41X1324 ADF cushion (MX521)...........................
Page 398 7017-2xx, -4xx, -6xx Part name Page 41X1988 Sensor (cartridge barrel)..........................336 41X2055 Smart card................................ 361 41X2125 Standard 250-sheet tray insert (MX321 and MX421)................344 41X2218 ADF assembly (MX421)..........................348 41X2219 ADF assembly (MX521)..........................348 41X2220 ADF cable cover (MX321, MX421, and MX521)..................348 41X2221 ADF cable cover (MX522)...........................356 41X2222...
Page 399 7017-2xx, -4xx, -6xx Part name Page 41X2525 Control panel ﬂat cable (MX521 and MX522)..................326 41X2528 ADF cable (MX321 and MX421)......................... 353 41X2529 Speaker..............................326, 328 41X2530 Flatbed home sensor extension cable....................353 41X2540 Bezel (MX421)..............................326 Part number index...
Page 400 7017-2xx, -4xx, -6xx Part number index...
Page 401: Part Name Index
7017-2xx, -4xx, -6xx Part name index Part name Page 41X1221 250-sheet tray insert (optional tray)......................346 41X1222 550-sheet tray insert (optional tray)......................346 41X2222 ADF access door (MX321)...........................352 41X1317 ADF access door (MX421)...........................352 41X2228 ADF access door (MX521)...........................352 41X1318 ADF access door (MX522)..........................356 41X1327 ADF assembly (MX321)..........................
Page 402 7017-2xx, -4xx, -6xx Part name Page 41X1325 ADF separator roller (MX522)........................356 41X1333 ADF tray (MX321, MX421, and MX521).....................348 41X1334 ADF tray (MX522)............................356 41X1346 Bezel (MX321)..............................328 41X2540 Bezel (MX421)..............................326 41X2500 Bezel (MX521)..............................326 41X2445 Bezel (MX522)............................... 326 41X2518 Cable conversion kit............................331 41X1368 Control panel (MX321)..........................328 41X1359 Control panel (MX421, MX521, and MX522)..................
Page 403 7017-2xx, -4xx, -6xx Part name Page 41X1002 Forms and Bar Code card..........................361 41X1184 Front input guide............................340 41X2255 Fuser actuator..............................340 41X1180 Fuser, 100V..............................330 41X1178 Fuser, 110V...............................330 41X1179 Fuser, 220V..............................330 41X1236 Interconnect cable............................336 41X1004 IPDS card................................361 41X1183 Jam access cover............................340 41X1167 Left cover.................................324 41X1224...
Page 404 7017-2xx, -4xx, -6xx Part name Page 41X0918 Pick tire................................342 41X1201 Power supply, 100V/110V..........................331 41X1202 Power supply, 220V............................331 41X1006 PRESCRIBE card............................. 361 40X9934 Printer hard disk (MX522), 500GB......................358 41X1185 Printhead................................. 330 41X2263 Rear access door............................324 41X1169 Rear door and cover.............................324 41X1349 Redrive assembly............................
Page 405 7017-2xx, -4xx, -6xx Part name Page 40X8393 Transfer roller..............................342 40X1368 USB 2.0 cable, 2 meters..........................361 41X1010 User Flash Memory, 256MB........................361 41X1873 Wireless module............................338 41X2270 Wireless module cable..........................338 Part name index...
Page 406 7017-2xx, -4xx, -6xx Part name index...
Page 407 SPRING JOPT1 JP_PRE1 JMPFPP1 JFEED1 JT_PRE1 JDUPPI1 JTDS1 SOLENOID TRAY OPTIONS (MPF) AUTOCONNECT SENSOR SENSOR (TRAY PRESENT) (TONER DENSITY) SENSOR SENSOR (MPF) (DUPLEX) SENSOR SENSOR (PAPER PRESENT) (INPUT) SOLENOID (FEED) Connector for MX421, MB2442, MX421, MB2546 Connector for MX321, MB2338...
