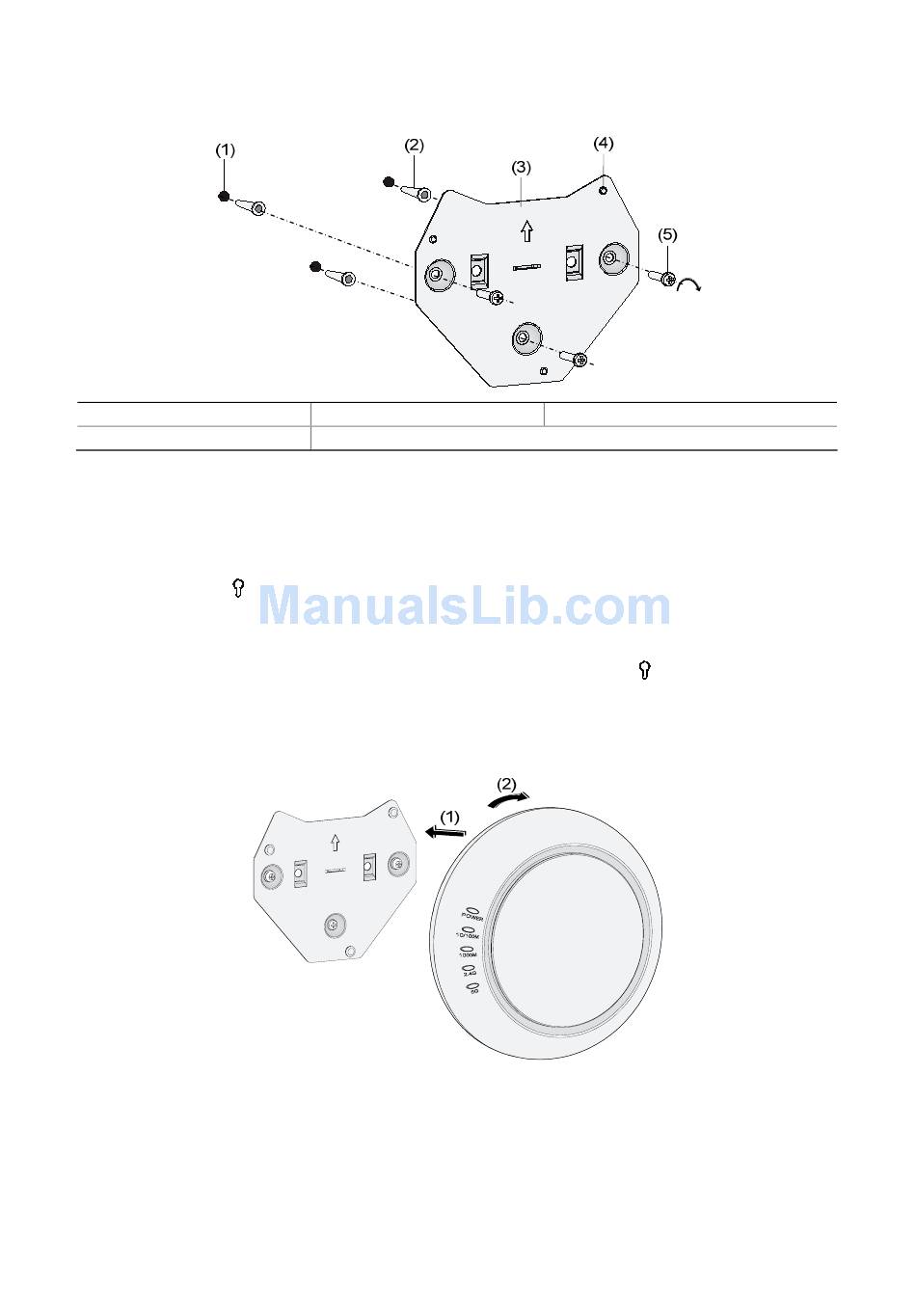

Figure2 Install the wall-mounting bracket of the AP9152
(1) Drilled hole
(4) Key-hole clip
Step4 Adjust the position of the wall-mounting bracket and tighten the screws.
Note: Install the wall-mounting bracket with the arrow on the bracket pointing upwards.
Installing the AP on the wall-mounting bracket
Step1 Align the -shaped holes on the AP's rear panel with the key-hole clips on the
wall-mounting bracket and hang the AP on the bracket. See callout 1 in
Figure3.
Step2 Rotate the AP to fix it. See callout 2 in Figure3. Fix the -shaped holes on the
AP's rear panel to the key-hole clips on the wall-mounting bracket.
Figure3 Fix the AP9152 onto the wall-mounting bracket
Note: Rotating the AP9152 clockwise installs the device, while rotating it
counterclockwise uninstalls it.
Locking the AP onto the wall-mounting bracket (optional)
The AP9152 has a security slot on the upper left side, which can be used to lock the AP
(2) Wall anchor
(5) Screw
5
(3) Wall-mounting bracket
