3Com AP9152 Hardware Installation Manual page 10

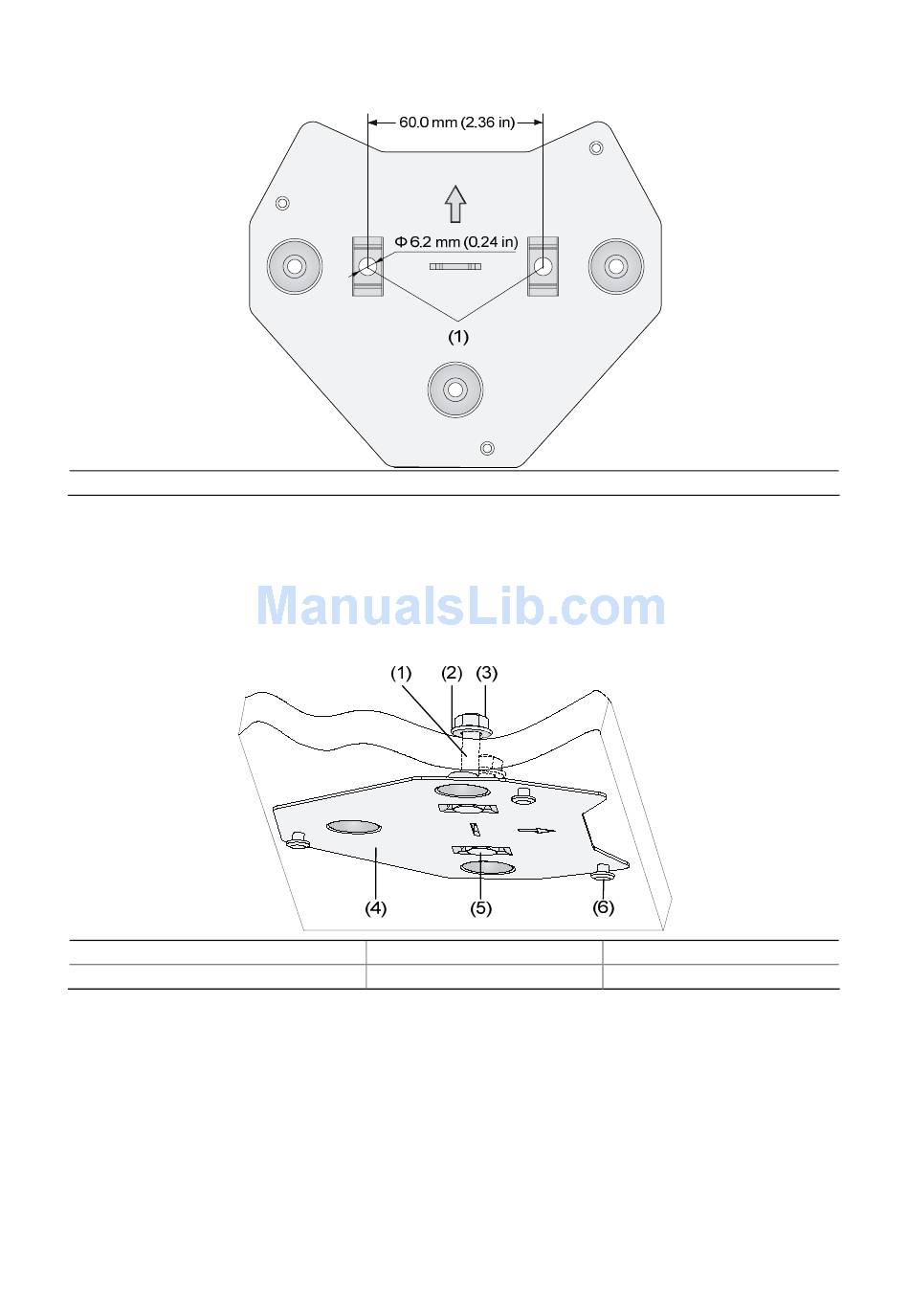

Figure5 Mounting holes on the wall-mounting bracket
(1) Mounting holes for mounting the AP on a ceiling
Step2 Insert the bolts through the mounting holes of the wall-mounting bracket and
the drilled holes on the ceiling, and then tighten the nuts on the other side of the
ceiling to secure the wall-mounting bracket as shown in Figure6.
Figure6 Mount the wall-mounting bracket on the ceiling
(1) Bolt inside the ceiling
(4) Wall-mounting bracket
Step3 Mount the AP9152 to the wall-mounting bracket. For details, refer to Installing
the AP on the wall-mounting bracket.
Mounting the AP to a T-Rail
Note: The width of the T-rail must be in the range of 14 mm (0.55 in.) to 24 mm (0.94
in.).
Follow these steps to mount the AP to a T-rail:
Step1 Loosen the two M3 × 6 screws on each clip holder until the screw heads are
(2) Washer
(5) Bolt cap
7
(3) Nut
(6) Key-hole clip
