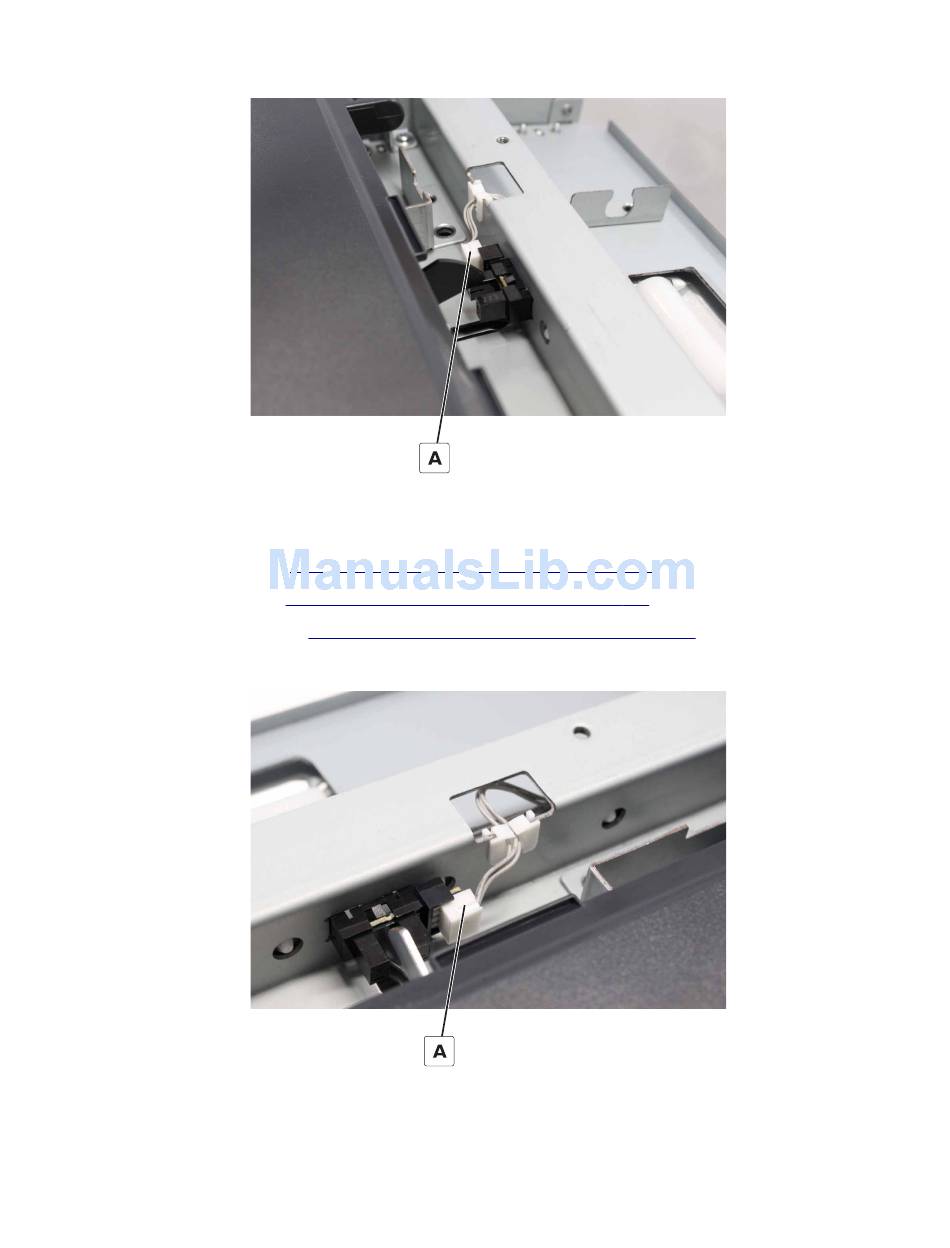

Disconnect the cable (A), and then remove the sensor.
Sensor (3000-sheet tray elevator level) removal
1
Remove the right cover. See
2
Remove the rear cover. See
3
Remove the left top cover. See
4
Disconnect the cable (A), and then remove the sensor.
"3000-sheet tray right cover removal" on page
"3000-sheet tray rear cover removal" on page
"3000-sheet tray left top cover removal" on page
