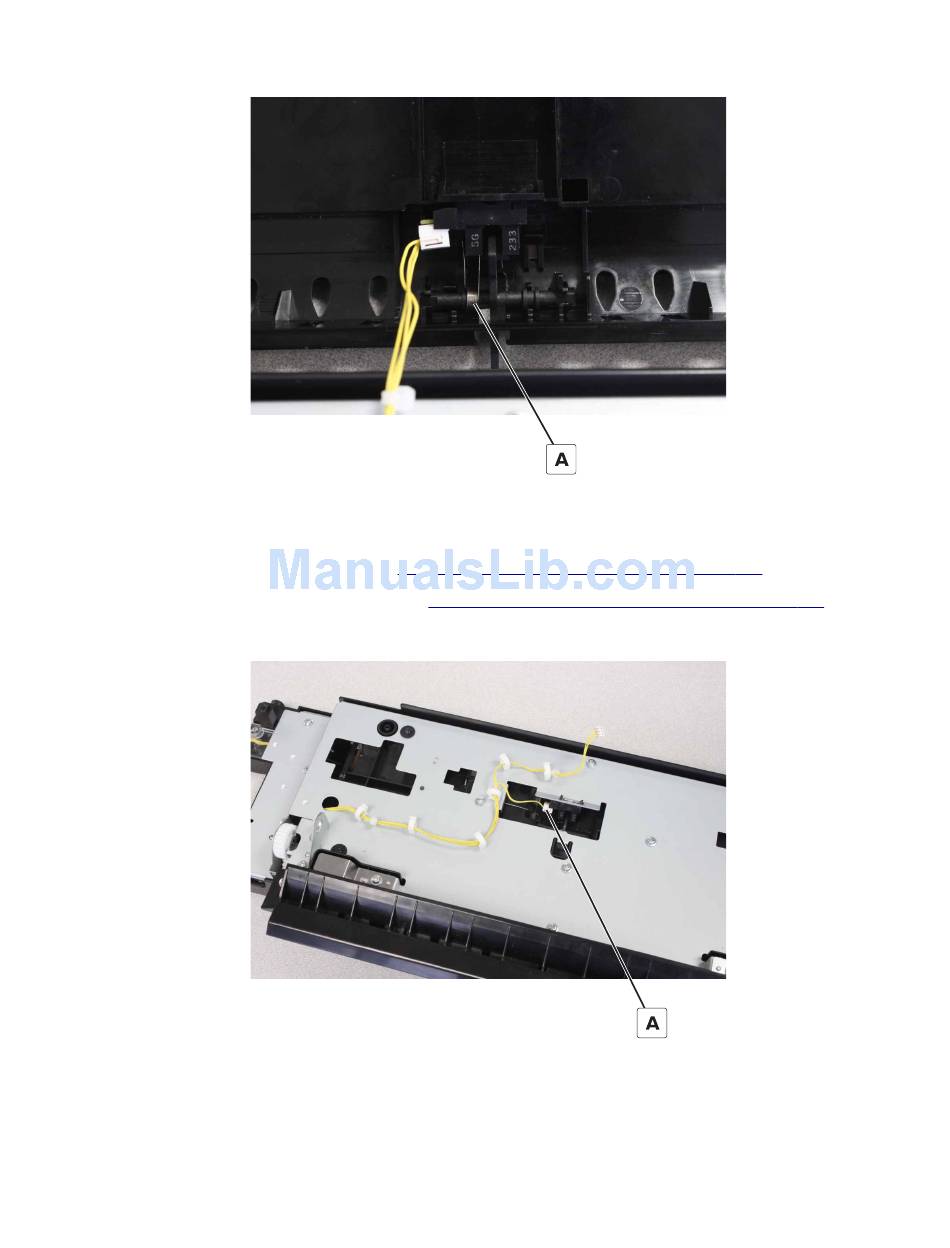

Installation note: Make sure that the spring (A) is correctly positioned on the actuator base.

Sensor (duplex pass through 2) removal

1
Remove the registration unit assembly. See
2
Remove the registration unit sub-assembly. See
3
Disconnect the cable (A), and then remove the sensor.
"Registration unit assembly removal" on page
"Registration unit sub-assembly removal" on page
Repair information
268
4021
263.
265.
