Intel ® Server System R1000WT Product Family System Integration and Service Guide
2.7.1

Riser Card Assembly Removal

•
Disconnect any cables attached to any add-in cards. Grasp the riser assembly with both hands and pull up to
remove from the system.
2.7.2

Mounting a Riser Card to the Riser Bracket

Depending on the system model, your server may or may not have riser cards installed. This section describes
the process of adding a riser card to the riser bracket.
•
Remove the riser bracket from the chassis (see section 2.7.1).
•
Remove the two fastener screws from the riser bracket (see letter "B").
•
Locate and remove the riser card from its packaging.
• Place the riser card option onto the riser bracket (see letter "A").
• Secure the riser card option using the two screws (see letter "B")
30

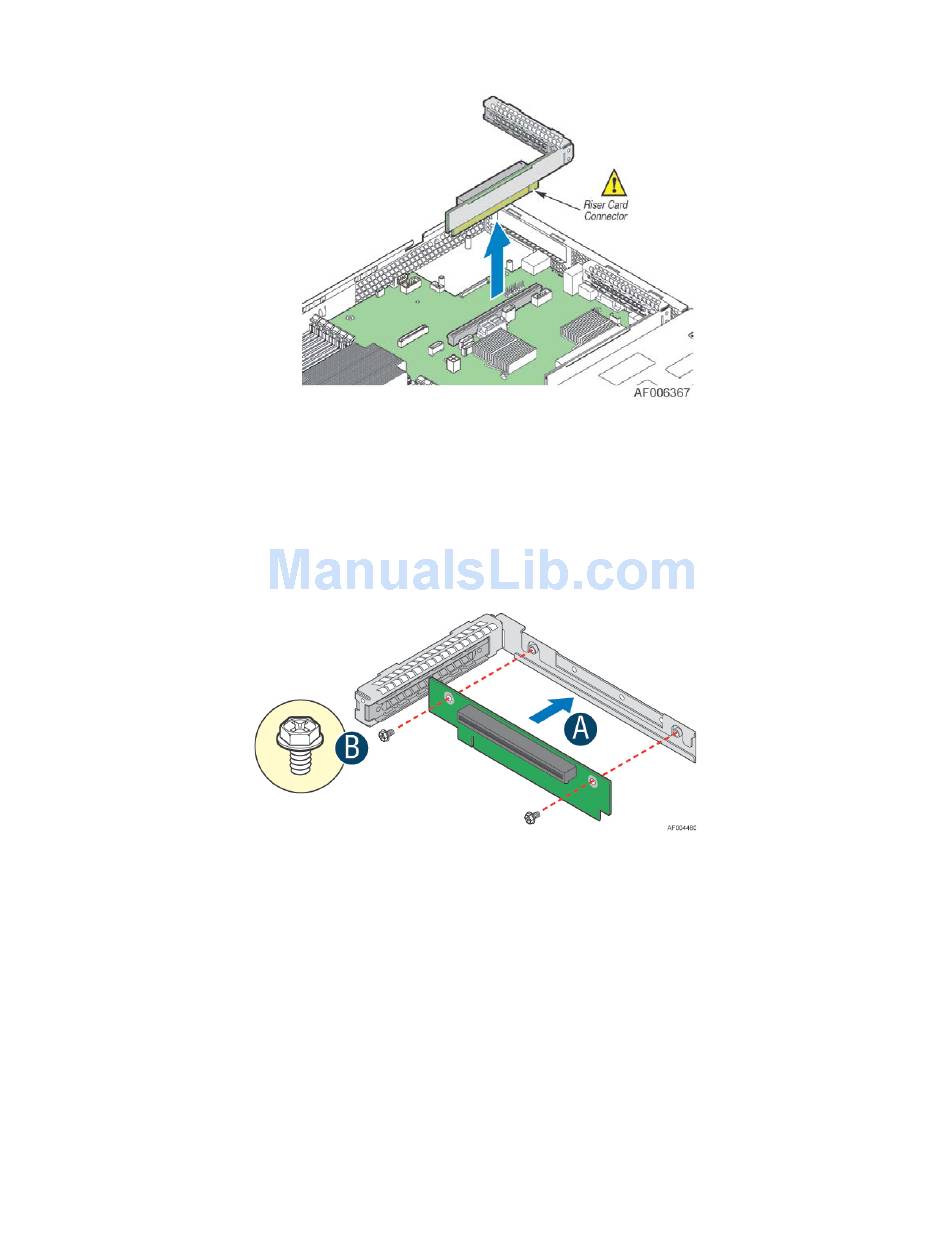

Figure 45. PCI Riser Assembly Removal

Figure 46. Riser Card Installation to Riser Bracket

Rev 2.2
