Intel ® Server System R1000WT Product Family System Integration and Service Guide
•
Remove the 8 fastener screws used to secure the server board to the chassis (see letter "C")
•
Carefully lift server board from the chassis (see letter "D") and place into anti-static bag
Rev 2.2

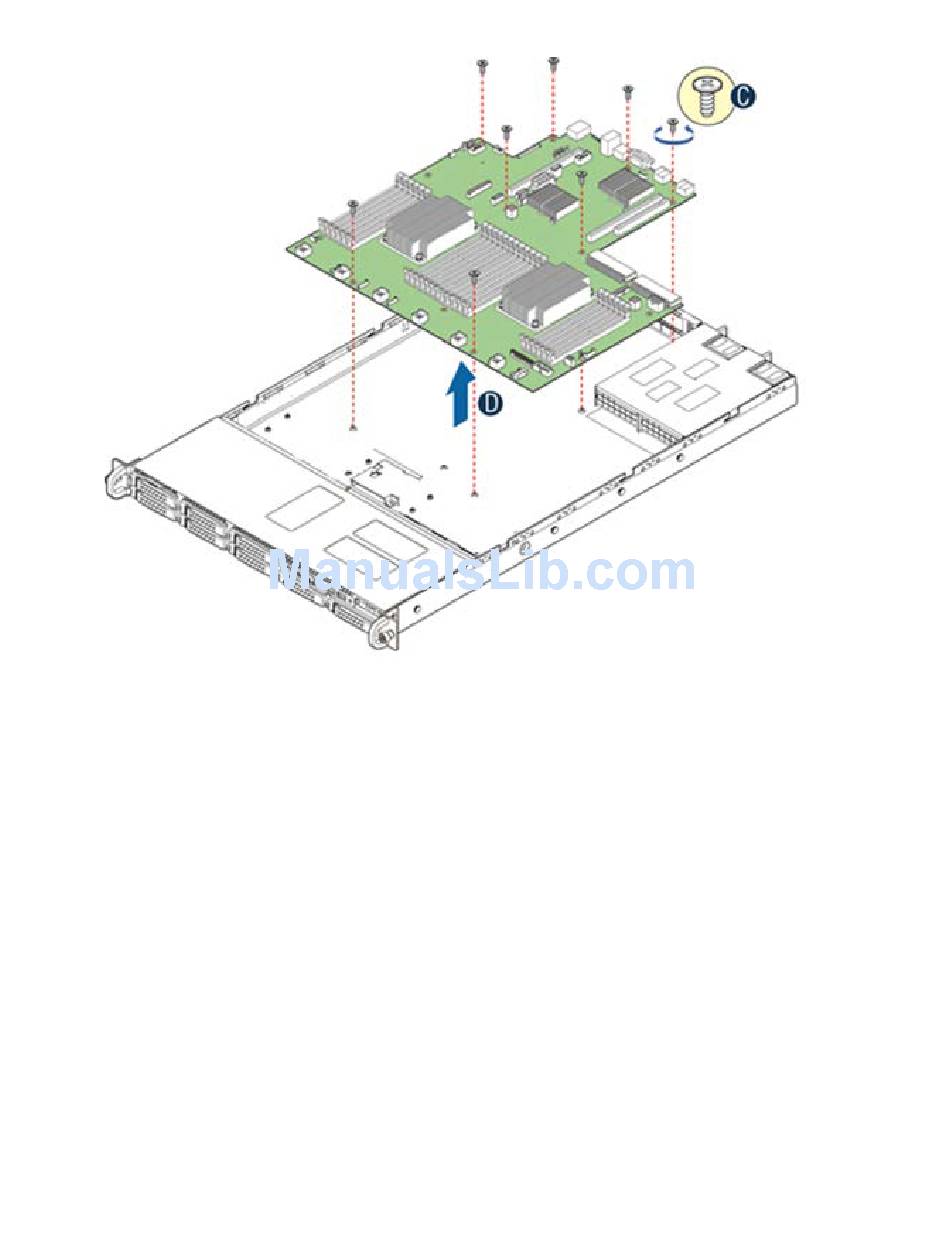

Figure 99. Server Board Removal

77
