Optional Equipment Set-up

Network Interface Modules

ViewStation EX,
ViewStation FX,
or VS4000
2-10
This section describes how to connect optional components to theViewStation EX,
ViewStation FX, or VS4000 system.
This section gives procedures for installing the following network interface
modules:
!
Quad BRI — Allows you to connect to an ISDN network using up to four BRI
lines.
!
PRI — Allows you to connect to an ISDN network using a PRI line. This option
is available for the ViewStation FX and VS4000.
!
V.35/RS-449/RS-530 — Allows you to connect to third-party network
equipment, including encryption equipment and RS-366 dialers.

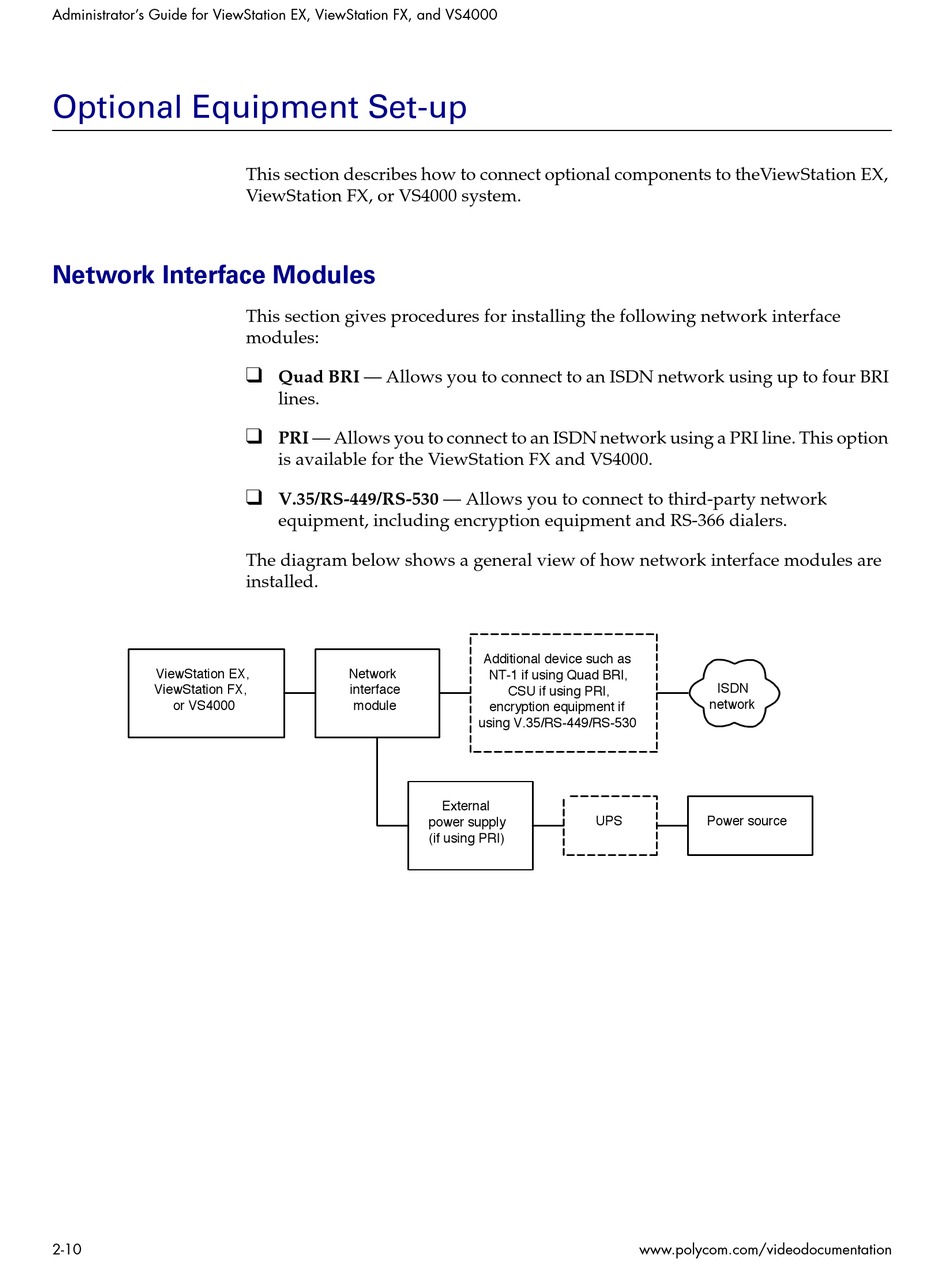

The diagram below shows a general view of how network interface modules are
installed.
Network
interface
module
Additional device such as
NT-1 if using Quad BRI,
CSU if using PRI,
encryption equipment if
using V.35/RS-449/RS-530
External
UPS
power supply
(if using PRI)
ISDN
network
Power source
