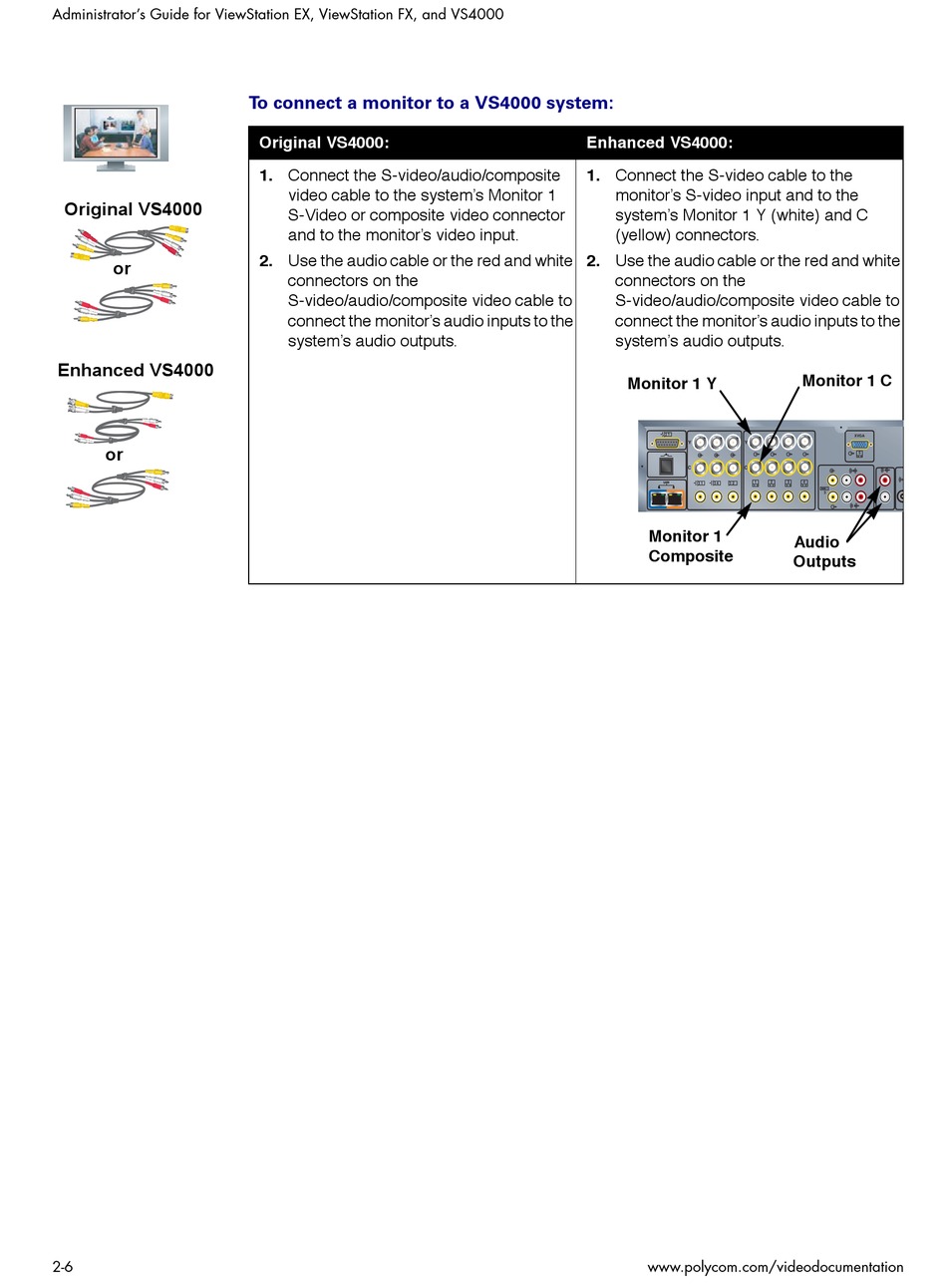

To connect a monitor to a VS4000 system:
Original VS4000:
1. Connect the S-video/audio/composite
video cable to the system's Monitor 1
S-Video or composite video connector
and to the monitor's video input.
2. Use the audio cable or the red and white
connectors on the
S-video/audio/composite video cable to
connect the monitor's audio inputs to the
system's audio outputs.
Enhanced VS4000:
1. Connect the S-video cable to the
monitor's S-video input and to the
system's Monitor 1 Y (white) and C
(yellow) connectors.
2. Use the audio cable or the red and white
connectors on the
S-video/audio/composite video cable to
connect the monitor's audio inputs to the
system's audio outputs.
Monitor 1 Y
1
Y Y
C C
1
1 4 2
Monitor 1
Composite
www.polycom.com/videodocumentation
Monitor 1 C
XVGA
5
2 3 4
3
Audio
Outputs
