VCR/DVD
2-24

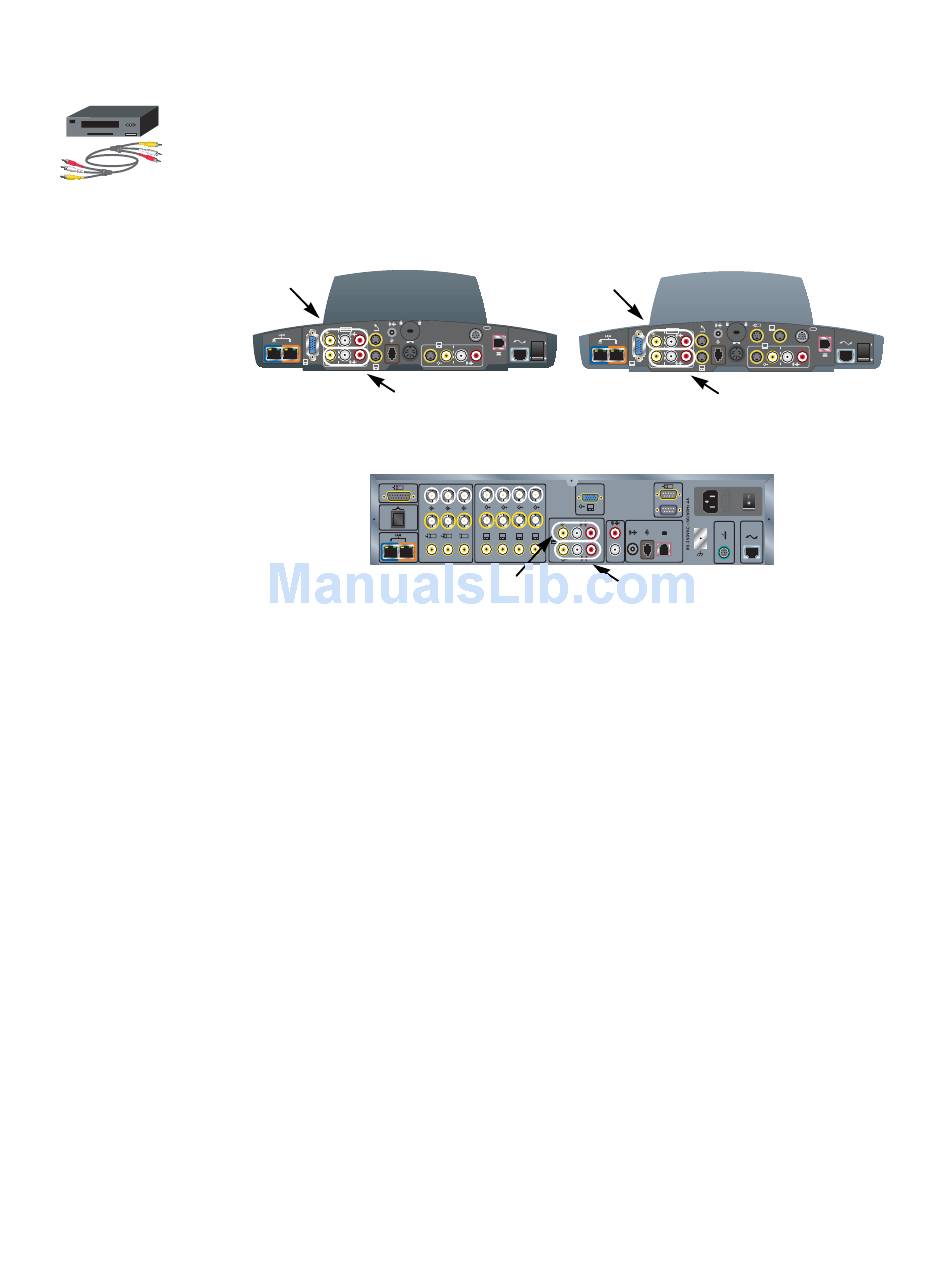

To connect a VCR to play:
1. Connect the yellow, red, and white VCR audio and video line out cables to the
VCR inputs on the rear panel of the system.
2. Refer to the manufacturer's instructions for configuring the VCR.
ViewStation EX
VCR
Inputs
2
3.3V 7A
12V 3A
XVGA
4
2
VCR
Outputs
1
Y
C
To connect a VCR to record:
1. Connect the yellow, red, and white VCR audio and video line in cables to the
VCR outputs on the rear panel of the system.
2. Refer to the manufacturer's instructions for configuring the VCR.
For more information about how to connect a VCR, refer to the setup sheet that
came with your system.
VCR
Inputs
0101
1
VS4000
XVGA
Y
5
C
1 2 3 4
1 4 2
3
VCR
Inputs
ViewStation FX
4
3
#
$%$& ('
"#& $'
1
XVGA
4
2
VCR
Outputs
4
0101
VCR
Outputs
