Additional Microphone Pod

Visual Concert FX

2-16
• If you have only one cable, connect it to port 1 of the network interface
module and to the lowest-numbered port of the data communications
equipment.
• If the data communications equipment does not use dialing, do not
connect the cable connector marked RS366 Interface.

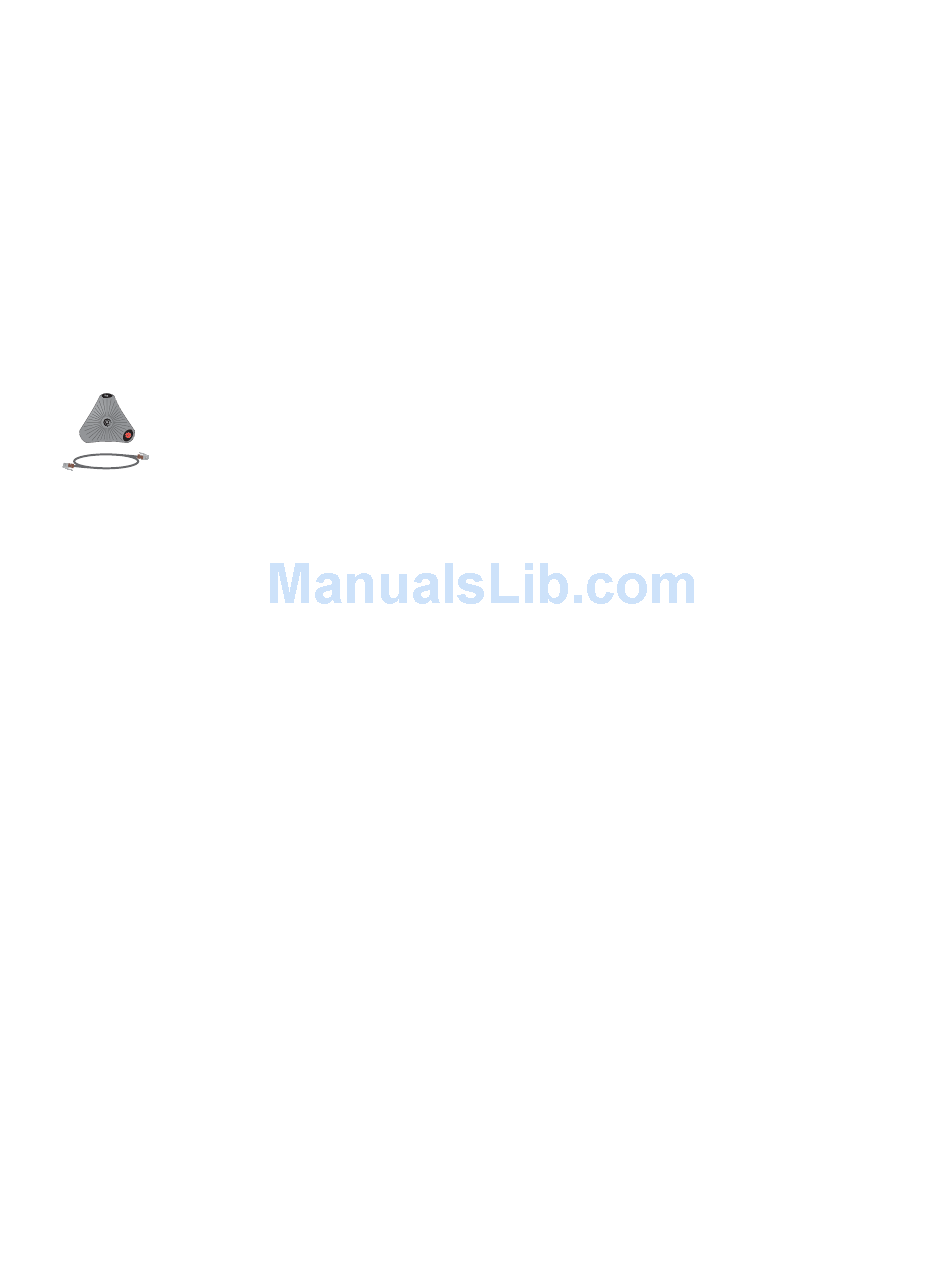

You can connect an additional microphone pod to the system.
To connect an additional microphone pod:
1. Use the brown RJ-9 microphone cable to connect the additional microphone
pod to the available connector on the microphone pod already installed.
2. Place the microphone pods at least 6 ft (1.8 m) apart.
For more information about how to connect microphone pods, refer to the setup
sheet that came with your system.
The Visual Concert FX uses the same connector on the system's back panel as the
microphone pod. If you install aVisual Concert FX, you must use the connectors it
provides for the microphone pod or pods.
For more information about connecting the Visual Concert FX, refer to the Visual
Concert FX QuickStart card that came with your Visual Concert FX.
