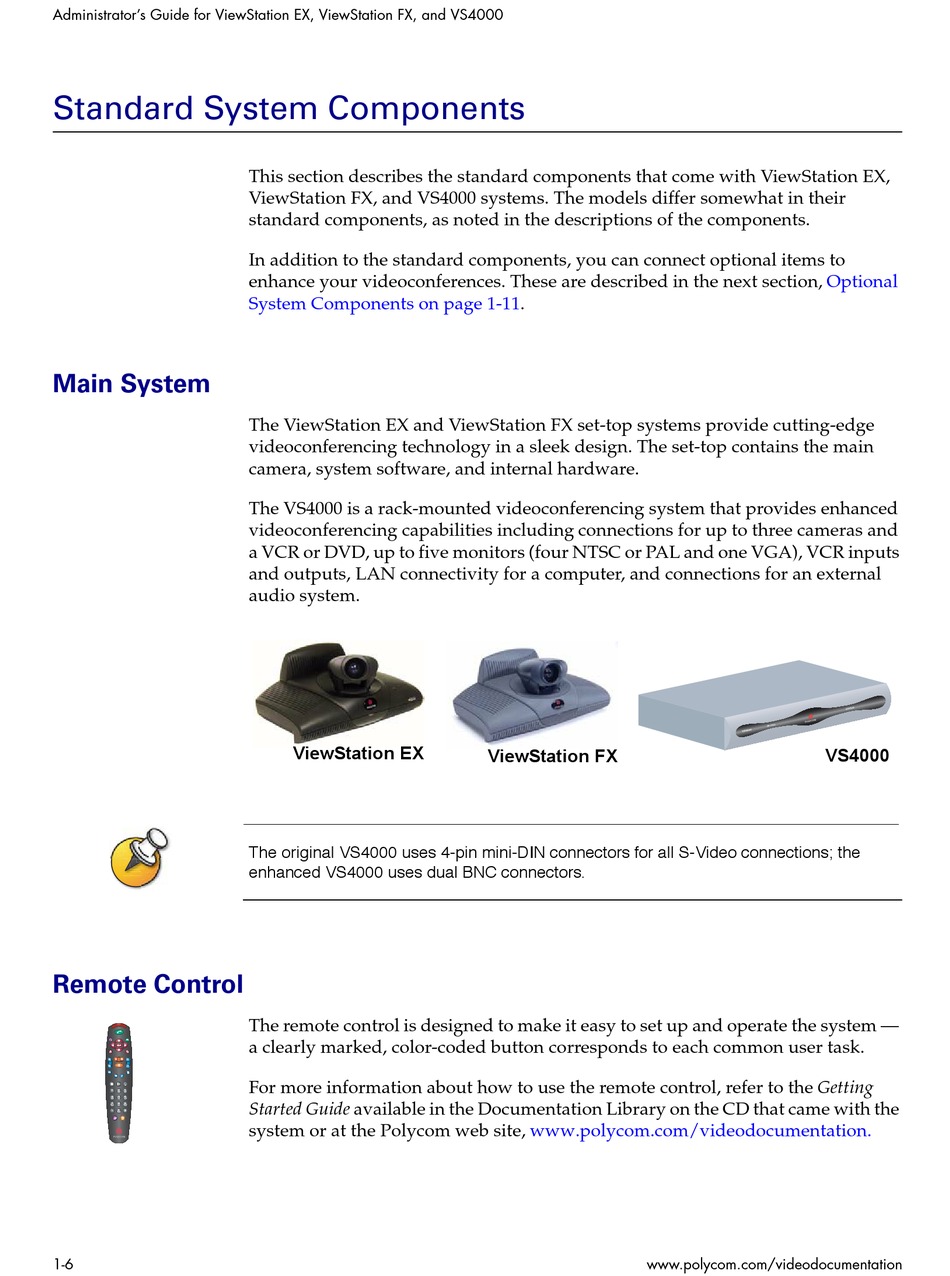

Standard System Components

Main System

Remote Control

1-6
This section describes the standard components that come with ViewStation EX,
ViewStation FX, and VS4000 systems. The models differ somewhat in their
standard components, as noted in the descriptions of the components.
In addition to the standard components, you can connect optional items to
enhance your videoconferences. These are described in the next section,
System Components on page
The ViewStation EX and ViewStation FX set-top systems provide cutting-edge
videoconferencing technology in a sleek design. The set-top contains the main
camera, system software, and internal hardware.
The VS4000 is a rack-mounted videoconferencing system that provides enhanced
videoconferencing capabilities including connections for up to three cameras and
a VCR or DVD, up to five monitors (four NTSC or PAL and one VGA), VCR inputs
and outputs, LAN connectivity for a computer, and connections for an external
audio system.
!"#$%&'&"()*+,
The original VS4000 uses 4-pin mini-DIN connectors for all S-Video connections; the
enhanced VS4000 uses dual BNC connectors.
The remote control is designed to make it easy to set up and operate the system —
a clearly marked, color-coded button corresponds to each common user task.
For more information about how to use the remote control, refer to the Getting
Started Guide available in the Documentation Library on the CD that came with the
system or at the Polycom web site,
1-11.
!"#$%&'&"()*-,
www.polycom.com/videodocumentation.
www.polycom.com/videodocumentation
