Magnum 6K32F/FR/FC/FRC Managed Switch Installation and User Guide (07/10)
3.6 Connecting the Console Terminal to Magnum 6K32F Series
(Management)
Use a DB-9 "null modem" cable to connect the Magnum 6K32F Series
Console Port (the RS-232 port on the 6K32F Switch) to the your PC, so that
your PC becomes the 6K32F's Console Terminal.
Note: The DB-9 cable does is not included with the 6K32F Series
package.
Note: For detail description of Managed Network Software (MNS-6K) and Magnum
6K32F Series Switch configuration for Network Management, please refer to Magnum
6K Software Manual available on GarrettCom's FTP site. Detail info. about the MNS
is available on 2.2.9 ( see page no. 19) of this manual.
3.6.1 RS-232 (DB-9) Console Com port (Serial port) pin assignments.
Pin
1
2
3
4
5
6-9
The above provided information enables a managed station (a PC or Console terminal) to
connect directly to the switch using a straight through cable.
www GarrettCom com .

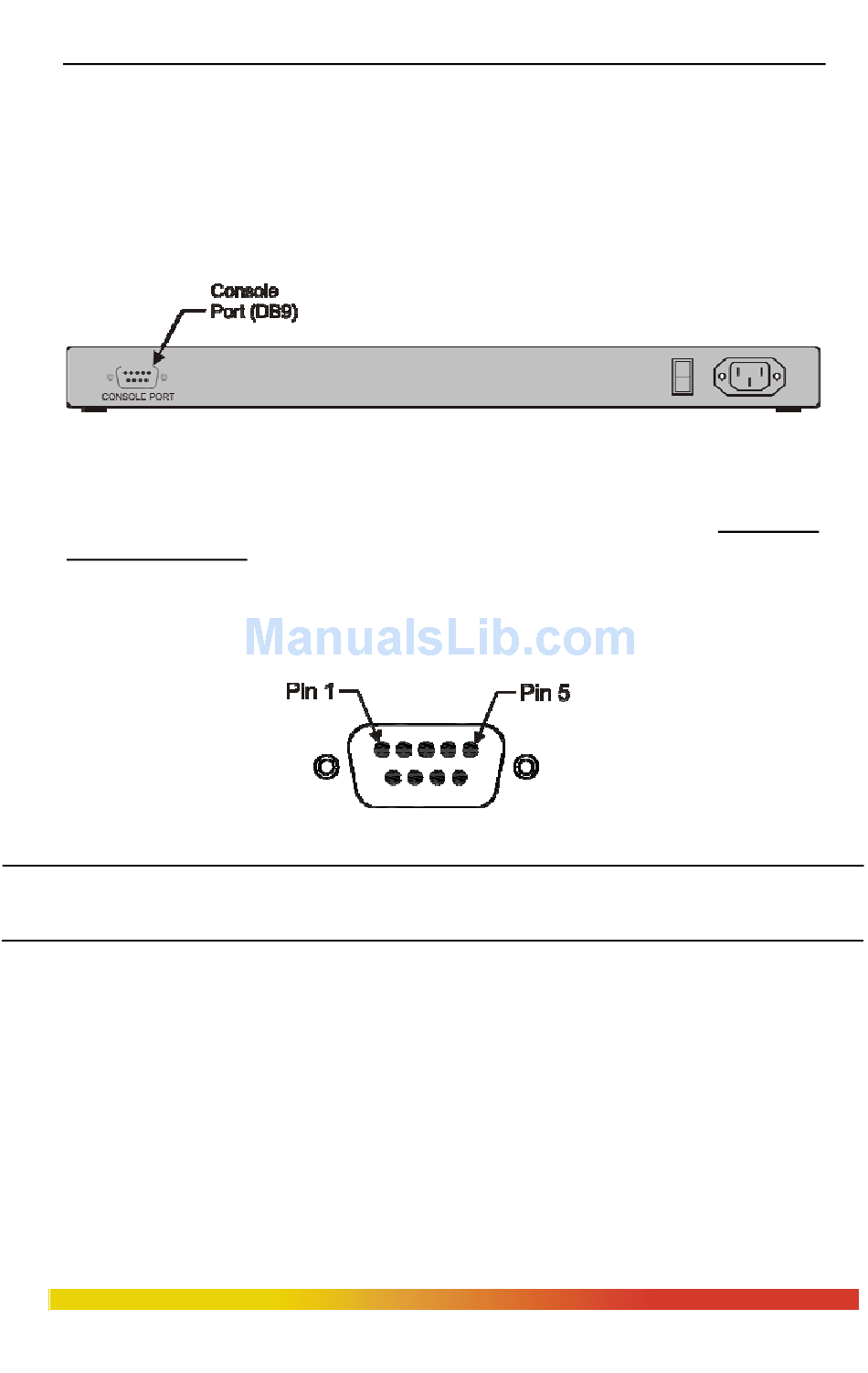

Rear View of Magnum 6K32F Series
DB-9 (Console port connector)
Signal
CD
RXD
TXD
open
GND
open
.
Description
Carrier detect (not used)
Receive Data (input)
Transmit Data (output)
not used
Signal Ground
not used
