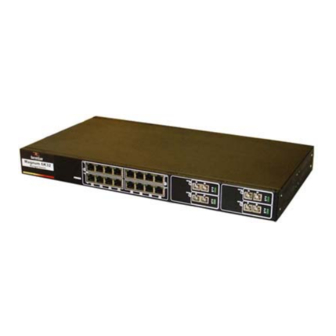

Magnum 6K32T

Managed Switch

Installation and User Guide
Hardware User Manual
www GarrettCom com
.
.
i

Advertisement

Table of Contents
loading

Related Manuals for GarrettCom Magnum 6K32T

Summary of Contents for GarrettCom Magnum 6K32T

  • Page 1: Managed Switch

    Magnum 6K32T Managed Switch Installation and User Guide Hardware User Manual www GarrettCom com...
  • Page 2 If problems are experienced with Magnum 6K32T Switch products, consult Section 6, Troubleshooting, of this User Guide. Copyright © 2005 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
  • Page 3 Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed GarrettCom, Inc. below: 47823Westinghouse Dr. Fremont, CA 94539-7437 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...

  • Page 4: Table Of Contents

    6K32T Port Module (6KPM) Installation ........30 3.5.1 Preparation for Installing and Removing 6KPMs ....... 30 3.5.2 Installing 6KPM Cards in the Magnum 6K32T & 6K32 ..32 3.5.3 Removing 6KPM Cards ............. 35 Connecting the Console Terminal to Magnum 6K32T & 6K32 ..36 3.6.1...
  • Page 5 Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05) Flow-control, IEEE 802.3x standard..........41 Power Budget Calculations for Magnum 6K32T PM’sError! Bookmark n MAGNUM 6K32T MANAGED SWITCH PORT MODULES ..41 Inspecting the Package and Product........... 41 6KPM Module Description ..............42 5.2.1...
  • Page 6 ETHERNET CONNECTIVITY PRODUCTS "DESIGNED AND MANUFACTURED IN THE USA" OVERVIEW GarrettCom, Inc. offers the premium-quality Magnum™ line of Ethernet LAN connectivity products with industry-standard functionality and built-in fiber configurability. Magnum products are designed for use in demanding Carrier Class, Industrial Grade and OEM applications where reliability is a primary consideration.

  • Page 7: Specifications

    - 40.0 km (122K ft) Maximum Standard Gigabit Ethernet Segment Lengths: 1000BASE-T (CAT5E or higher is recommended) - 100 m 1000BASE-SX, full-duplex, multi-mode(62.5µm cable) - 220m 1000BASE-SX, full-duplex, multi-mode(50µm cable) - 550m 1000BASE-LX, full-duplex, single-mode(62.5µm cable) -5Km www GarrettCom com...
  • Page 8 125VDC Power and 100VDC Input Voltage : 88 to 300VDC Fuse Required – 1Amps Std. Terminal Block : “ -, GND, + ” Power Consumption: same as for AC models, see above Warning- All the fuse replacment must be replaced with same value. www GarrettCom com...
  • Page 9 IEEE P1613 Environmental Standard for Electric Power Substations. IEC61850 EMC and Operating Conditions Class C for Power Substations Warranty: Three years, return to factory Made in USA For a Configuration Guide, see the GarrettCom web site at http://www.garrettcom.com/techsupport/insertion_guides/6K32Tcg.pdf mktg@GarrettCom.com Email for additional details.

  • Page 10: Ordering Information

    Magnum Managed Switch MODEL DESCRIPTION Magnum 6K32T 24 10/100 RJ-45 ports and either two optional port modules (6K32T) or one optional port module slot (6K32), which may be configured with a selection of 10/100/1000Mb fiber and copper connector types, 8 ports max.
  • Page 11 GBIC transceiver module for use in GBPM-xOTX. One 802.3ab 1000BASE-T port with RJ-45 connector 6KM-BLNK Blank cover for one 6K32T module slot opening in a Magnum 6K32T chassis CONSOLE CBL Industry standard serial cable, DB-9 connectors for RS-232 “ null- modem “...

  • Page 12: Introduction

    Inspect the contents of this package for any signs of damage and ensure that the items listed below are included. This package should contain: Magnum 6K32T Managed Switch, base unit (configured with user-selected port module option in modular slot) AC Power Cord (U.S. and other 115 VAC only) Set of metal “Ears”...

  • Page 13: Product Description - Magnum 6K32T Managed Switch

    Ethernet media requirements. Evolving mixed-media requirements for 10Mb and 100Mb fiber, copper, and Gigabit ports can be easily handled by the Magnum 6K32T product reliably The packaging and power-input options target the Magnum 6K32T for heavy- duty applications.

  • Page 14: Magnum 6K32T Chassis

    6K32T to efficiently serve a large variety of applications, even those using some fiber media. The Magnum 6K32T port modules are normally factory installed, but may be changed or added in the field. (See Section 5) Status LEDs are part of each port module and are viewable when connecting the Ethernet media.

  • Page 15: Eight-Port Sff Fiber Modules 100Mb Fiber

    Ethernet requirement with cost-effective secure solutions. The Magnum 6K32T is also available in a Reverse model option, where the LEDs are on the front and the available ports along with the power supply area found on the rear side.
  • Page 16 Using the 6K32T’s MNS software, the user may select full- or half-duplex mode per-port through the set-up of the software (See the Magnum 6K32T MNS Software Manual for the flexibility to adapt to any FDX or HDX type of Fast Ethernet devices).
  • Page 17 Using the 6K8-Series (MNS-6K) management software, the user may disable auto-negotiation and fix the desired operation of each RJ-45 port. User may select 10Mb or 100Mb speed and full- or half-duplex mode per-port as per user requirement. (See Magnum MNS-6K Software Manual for details info.). www GarrettCom com...

  • Page 18: Four-Port 10 Mb Mm Fiber St Modules

    SFF fiber and the RJ-45 half of the module is as described for those port types above. For detailed information about 10Mb mm ST fiber half of the module, see Section 2.2.5. 2.2.5 Four-Port 10 Mb mm Fiber ST Modules www GarrettCom com...
  • Page 19 3, 4. 7, 8 are not present. The default setup on the 10Mb fiber module is half- duplex, which allows the Magnum 6K32T Switch to connect to any 10Mb hub or media converter or almost any other device with a 10Mb fiber Ethernet port. User mode control per port through the MNS software is the same as the other 6K32T modules.

  • Page 20: Packet Prioritization, 802.1P Qos

    When the Magnum 6K32T Switch detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the...

  • Page 21: Managed Network Software (Mns-6K) For Magnum 6K32T & 6K32

    For further information, please email: For upgrading the Magnum 6K32T Switch to its latest Magnum 6K- Firmware, follow the steps and instruction provided on - http://www.garrettcom.com/techsupport/software/upgrade_mns6k.pdf www GarrettCom com...

  • Page 22: Features And Benefits

    Modular design for port flexibility, in a 1U space-saving rack-mount package The 1U Magnum 6K32T chassis has 1 slot for port configurations. A family of 2, 4, 6 or 8 port modules allows the user to select the desired mix of port types and speeds.

  • Page 23: Applications

    The network administrator determines which ports and nodes are in which broadcast domains by setting membership profiles for each of them. The Magnum 6K32T’s VLAN capability can be configured in two types of virtual LANs; Port-based VLANs and Tag-based VLANs.
  • Page 24 Full-duplex future proof fiber media can easily connect long distance subnets and provide a stable secure network to all applications. The SNMP management capability of the Magnum 6K32T Switch helps create a database of all the network subnets to easily manage the network. Secure web-based management is also included, with authentication and encryption to keep out even determined trouble-makers.
  • Page 25 48VDC input power option with Dual Source is especially useful in telecom central offices. The Magnum 6K32T with two Gigabit ports in the modular slot allows it to connect into a Gigabit mesh structure with an RSTP and S-Ring combination used in a no-single-point-of-failure self-healing LAN topology along with a ring of multiple 6K25s at the edge to allow the system to efficiently recover from a fault in the network.
  • Page 26 AC/DC option will be an additional feature to take care of temperature and power option issue. Equipped with all this above features allow the Magnum 6K32T to meet the fastest growing application of video monitoring or video surveillance demand of industry and provide an economical and effective solution to meet that expectation.
  • Page 27 Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05) Figure 4: A multicast traffic through a 6K32T Switches with Gigabit redundancy www GarrettCom com...

  • Page 28: Installation

    Ethernet media types. Locating Magnum 6K32T Switches The location of a Magnum 6K32T Switch is dependent on the physical layout of the network. Typically the Switch is placed in a central wiring location where groups of network devices need to be connected in order to communicate with each other. These Switches are typically rack mounted in a wiring closet see Section 3.3.2 below), but...

  • Page 29: Connecting Ethernet Media

    Installation and User Guide (12/05) Connecting Ethernet Media The Magnum 6K32T Switches are specifically designed to support all standard Ethernet media types within a single Switch unit. This is accomplished by using a family of different port Modules which can be individually selected and configured per-port.

  • Page 30: Connecting Fiber Optic Sc-Type, "Snap-In

    3.2.4 Connecting Twisted Pair (RJ-45,CAT3, CAT5, Unshielded or Shielded) The RJ-45 ports of the Magnum 6K32T can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used.

  • Page 31: Connecting Twisted Pair

    3.2.5 Connecting Twisted Pair (CAT-5e or better, Unshielded or Shielded) The RJ-45 1000BASE-TX Gigabit ports of the Magnum 6K32T can be connected via copper media with the following minimum specifications; 1000BASE-T, CAT-5e, or for better results, 100-ohm UTP shielded twisted pair (STP) balanced cable.
  • Page 32 (factory default) setting for 100Mbps fiber ports must be used, • The worst-case OPB of the fiber link must be greater than the fiber cable’s passive Attenuation. (Attenuation = Cable loss + LED aging loss + Insertion loss + safety factor) www GarrettCom com...

  • Page 33: Rack-Mounting Regular Magnum 6K32T & 6K32S

    3.3.1 Rack-mounting (for 19” RETMA racks), Magnum 6K32T’s Installation of a Magnum 6K32T Fiber Switch in a 19” rack is a simple procedure. The units are 1U (1.70”) high. When properly installed, the front-mounted LED status indicators should be in plain view and easy to read.

  • Page 34: Rack-Mounting, Reverse Version Of The Magnum 6K32

    These brackets are rack-mounted in a frame typically accessed in operation from both sides. The bracket mounting holes in the sides of the Magnum 6K32T permits it to be mounted in various ways. The same holes fit all three types (19”, ETSI, and 23”) of brackets.

  • Page 35: Powering The Magnum 6K32T Managed Switch

    When this option is present, the terminal block for Alarm Contacts is part of the Power Input panel in the Magnum 6K32T case. The AC or DC power input connection is in the same panel. A manual On-Off Switch for power to the unit is not available on 6K32T units with the Alarm Contacts option, as these two features occupy the same space in the case.

  • Page 36: 6K32T Port Module (6Kpm) Installation

    Magnum MNS-6K Software User Manual. (Chapter 19th). 6K32T Port Module (6KPM) Installation The Magnum 6K32T Switches are normally received from the factory with 24 ports fixed and one required 6KPM module installed. There may be situations where 6KPM cards need to be added or replaced. In cases where a 6KPM module needs to be added in the modular slot, the faceplate for an available front-mounted slot must be removed.
  • Page 37 Step 2. Remove Chassis Cover The Magnum 6K32T chassis are combined with top, bottom and front panel parts and assembled together with the help of 17 Philips-head screws. There are 5 screws located on the front-bottom and 3 at rear-top of the unit and one each on the front and rear sides.

  • Page 38: Installing 6Kpm Cards In The Magnum 6K32T & 6K32

    6KPM card position. (See Figure 3.5.1c). Figure 3.5.1c: Magnum 6K32T modular slot side (front-right side), without chassis cover Step 3. Remove front panel face plate retaining screws There are one PM slot located on the front-right side of the chassis cover.
  • Page 39 Fig 3.5.2d: Daughter Board shown upside down with two male latch connectors Fig 3.5.2e Daughter Bd. Being placed over the Grand daughter Bd. and the mating connector being matched to lockup properly www GarrettCom com...
  • Page 40 (as shown below in Fig. 3.5.2f) on the top of the latching connectors until the connectors latched Fig.3.5.2f: Securely latching up 6KPM Cards into a Magnum 6K32T & 6K32 NOTE:. When leaving 6KPM slots empty, always use a face plate (Magnum 6K8- BLNK) to cover the slot opening in the front panel.

  • Page 41: Removing 6Kpm Cards

    The screen faceplate screws out from the inside front of the chassis cover by loosening the 4 screws and bracket while holding it down firmly. Figure 3.5.3a: Top View - 6 retaining screws shown by arrows www GarrettCom com...

  • Page 42: Connecting The Console Terminal To Magnum 6K32T & 6K32

    Connecting the Console Terminal to Magnum 6K32T (Management) Use a DB-9 “null modem” cable to connect the Magnum 6K32T Console Port (the RS-232 port on the 6K32T Switch) to the your PC, so that your PC becomes the 6K32T’s Console Terminal.

  • Page 43: Rs-232 (Db-9) Console Com Port

    Switching Functionality A Magnum 6K32T provides switched connectivity at Ethernet wire-speed among all of its ports. The Magnum 6K32T supports10/100Mbs for copper media and 10 or 100Mb separate traffic domains for fiber ports to maximize bandwidth utilization and network performance. All ports can communicate to all other ports in a Magnum...

  • Page 44: Status Leds

    Address Learning All Magnum 6K32T units have address table capacities of 4K node addresses suitable for use in larger networks. They are self-learning, so as nodes are added, removed or moved from one segment to another, the 6K32T Switch automatically keeps up with node locations.

  • Page 45: Up-Link Cross-Over Switch On Rj-45 Port Modules

    Auto-Cross (MDIX)Auto-negotiation, for 10/100Mbps RJ-45 ports The 24 RJ-45 ports on Magnum 6K32T supports auto-cross (MDI or MDIX) in the auto-negotiation mode according to the IEEE 802.3u standard. No crossover cables are needed when connecting the 6K32T’s 10/100 copper ports to other unmanaged...
  • Page 46 The Path Delay Value (PDV) bit-times must account for all devices and cable lengths within that domain. For Magnum 6K32T Fast Ethernet switched ports operating at 100Mb half-duplex, the bit time delay is 50BT.

  • Page 47: Magnum 6K32 & 6K32T Managed Switch

    Installation and User Guide (12/05) Flow-control, IEEE 802.3x standard Magnum 6K32T Switches incorporate a flow-control mechanism for Full- Duplex mode. The purpose of flow-control is to reduce the risk of data loss if a long burst of activity causes the switch to save frames until its buffer memory is full. This is most likely to occur when data is moving from a 100Mb port to a 10 Mb port and the 10Mb port is unable to keep up.

  • Page 48: 6Kpm Module Description

    Refer to Chapter 5 for specific return procedures. 6KPM Module Description An important feature of the Magnum 6K32T is the use of one Port Modules for flexible mixed-media connectivity to RJ-45 and fiber media in the modular slot. Since the Magnum 6K32T Switches have dual-speed capability for copper ports, the 6 or 8-port interfaces are designed to support all standard Ethernet media types at 10 or 100Mps speed.

  • Page 49: 1A 6Kp6-Rj10St, "Twist Lock" Combo Module

    100Mb combo module with the exception of 10Mb speed at the ST fiber module. The ST-connector functions as a fiber optic transceiver to support 10BASE-FX network segments. When installed in a Magnum 6K32T Managed Switch, the copper port supports the standard distance 100m on each port and the fiber port supports fiber optic cable distances up the IEEE-standard 10Mbps distance limits, i.e., typically 2km at full-...

  • Page 50: 1C 6Kp4-Flstfx, "Twist Lock" Module

    100Mb fiber. The 10Mb ST-fiber ports allow the user to connect their legacy 10Mb network to the Magnum 6K32T switch. They also provide a convenient way for the half duplex hub to connect to the switch through 10Mb fiber ports. Whereas the 100Mb ST module allow to connect the 100Mb demand of Switch devices.

  • Page 51: 6Kp6-Rjmsc "Snap-In" Fiber Connector

    Fiber functions in one module of the 6K32T Switch supporting four Copper and two single-mode fiber network segments. The 6KP6-RJSSC, when installed in a Magnum 6K32T Switch operates on copper at the 100m distance. The Fiber is single-mode and cable lengths can be as much as 25+ Km (see Power Budget, Section 4.5)

  • Page 52: 6Kp6-Rjsscl Single-Mode "Snap-In" Connector

    Fiber functions in one module to the 6K32T Switches, supporting four Copper and two single-mode (Long-Reach) fiber network segments. The 6KP6-RJSSC, when installed in a Magnum 6K32T Switch has copper supporting the 100m distance and Fiber supporting single-mode fiber cable lengths of as much as 40+ Km (see Power Budget, Section 4.5)

  • Page 53: 6Kp8-Mtrj, Mtrj Small-Form-Factor

    100Mb full-duplex, whereas the bottom two ports multi-mode ST-Fiber support 10Mb half-duplex. This combo module provides more flexibility to the user to connect their legacy 10Mb fiber as well as 100Mb to the Magnum 6K32T Switch. When installed in a Magnum 6K32T Switch, the 100Mb MTRJ connector supports fiber optic cable distances up to the IEEE-standard 100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half-duplex.

  • Page 54: 6Kp8-45Mt, Mtrj Small-Form-Factor

    The 6KP8-45MT is equipped with 4 10/100 RJ-45 ports and 4 MTRJ fiber ports. LINK 10/100 When installed in a Magnum 6K32T ACTIVITY FULL/HALF Switch, it supports the standard distances as mentioned on 5.2.3. and the LEDs also act similarly.

  • Page 55: 6Kp8-45Lc, Combo Factor And Rj-45 Connector

    Small form factor) multi-mode ACTIVITY fiber ports. FULL/HALF When installed in a Magnum 6K32T Switch, it supports the standard distances as per mentioned on 5.2.8. and the LEDs also acts similarly as mentioned above. 5.2.9 6KP8-RJ45 (Twisted Pair), 10/100Mb 8-Port The 6KP8-RJ45 module supports Ethernet twisted pair segments of any standard length.

  • Page 56: 6Kp8-Rj45 (Twisted Pair), 10/100Mb 8-Porterror! Bookmark Not 5.2.10 6Kp8-45-2Mt, Multi-Mode Fx , Mtrj Small-Form-Factor

    45SLC eight port Module is a combo 6KP8-45-2SLC module with copper and fiber (Small 10/100 Form Factor) LC type fiber ports. The small size of LC connectors LINK 10/100 give an advantage of placing more ACTIVITY FULL/HALF ports on one module. The 6KP8-45- www GarrettCom com...

  • Page 57: Gbic-Sxsc Gigabit Fiber(1000Mb), Mm Sc Connector

    Installation and User Guide (12/05) 2SLC is equipped with 6 10/100 RJ-45 ports and 2 Single-mode fiber ports. When installed in a Magnum 6K32T Switch, it supports the standard distances as mentioned on 5.2.4. and the LEDs also act similarly.
  • Page 58 Gigabit module comes in flavor of G+4(10/100 RJ-45 ports) or G+2 (100Mb fiber ports) as shown below in the above figure. Each port has an Activity (ACT) LED indicating packets being received and a link (LK) LED indicating proper connectivity with the remote device when lit. www GarrettCom com...

  • Page 59: 6Km-Blnk

    However, if you are unsure of the procedures described in this section or if the Magnum 6K32T Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support.

  • Page 60: When Calling For Assistance

    If the problem continues after completing Step 4 above, contact your supplier of the Magnum 6K32T Switch unit or if unknown, contact GarrettCom, Inc.by fax, phone or email (support@garrettcom.com) for assistance.

  • Page 61: Shipping And Packaging Information

    Testing and repair of product that is not under warranty will result in a customer (user) charge. Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: Package the unit carefully. It is recommended that you use the original container if available.

  • Page 62: Appendix B : Internal Dc Power Supply Options

    GarrettCom. This warranty will not be effective if, in the opinion of GarrettCom, the product has been damaged by misuse, misapplication, or as a result of service or modification other than by GarrettCom.
  • Page 63 -48 VDC, 24VDC and 125VDC power terminal block on the Magnum 6K32T’s. (see figure at right). In this picture, the -48VDC terminal block on the Magnum 6K32T is located on the rear of the unit and is equipped with three (3) screw-down lead posts. It is similar for 24VDC and 125VDC options on Magnum 6K32T.

  • Page 64: Appendix C: Internal Dc Dual-Source Power Option

    48V or –48V supply must be connected to the post labeled “+”. An ON-OFF manual switch is optional for DC power. This can be used to cut off power connections and as a RESET for the Magnum 6K32T Switch. B4.1 UL Requirements for DC-powered units Minimum 18AWG cable for connection to a Centralized DC power source.
  • Page 65 Magnum 6K32T -48VDC, 24VDC and 125VDC models with this Dual-Source option are identical to those listed in the Magnum 6K32T Fiber Switches Installation and User Guide, including Appendix B “Internal DC Power Supply Option”...
  • Page 66 125VDC dual source leads to the -48VDC, 24VDC 7 125VDC power terminal block on the Magnum 6Ks Switch (shown in Figure ) The -48VDC terminal block on the Magnum 6K32T Switch, as shown in Fig C5.0 is located on the right rear of the unit and...
  • Page 67 Dual-Src48V-SWITCH with the ON-OFF manual switch. Similarly, order the “Dual –source 24VDC” or “Dual-source 125VDC” as a separate line item following the product model. Example: Magnum 6K32T & 6K32-24VDC or Magnum 6K32T & 6K32-125VDC Dual-Src24V for regular models with no ON-OFF switch Or Dual-Src125V-Switch for models with the ON-OFF switch C7.0...
