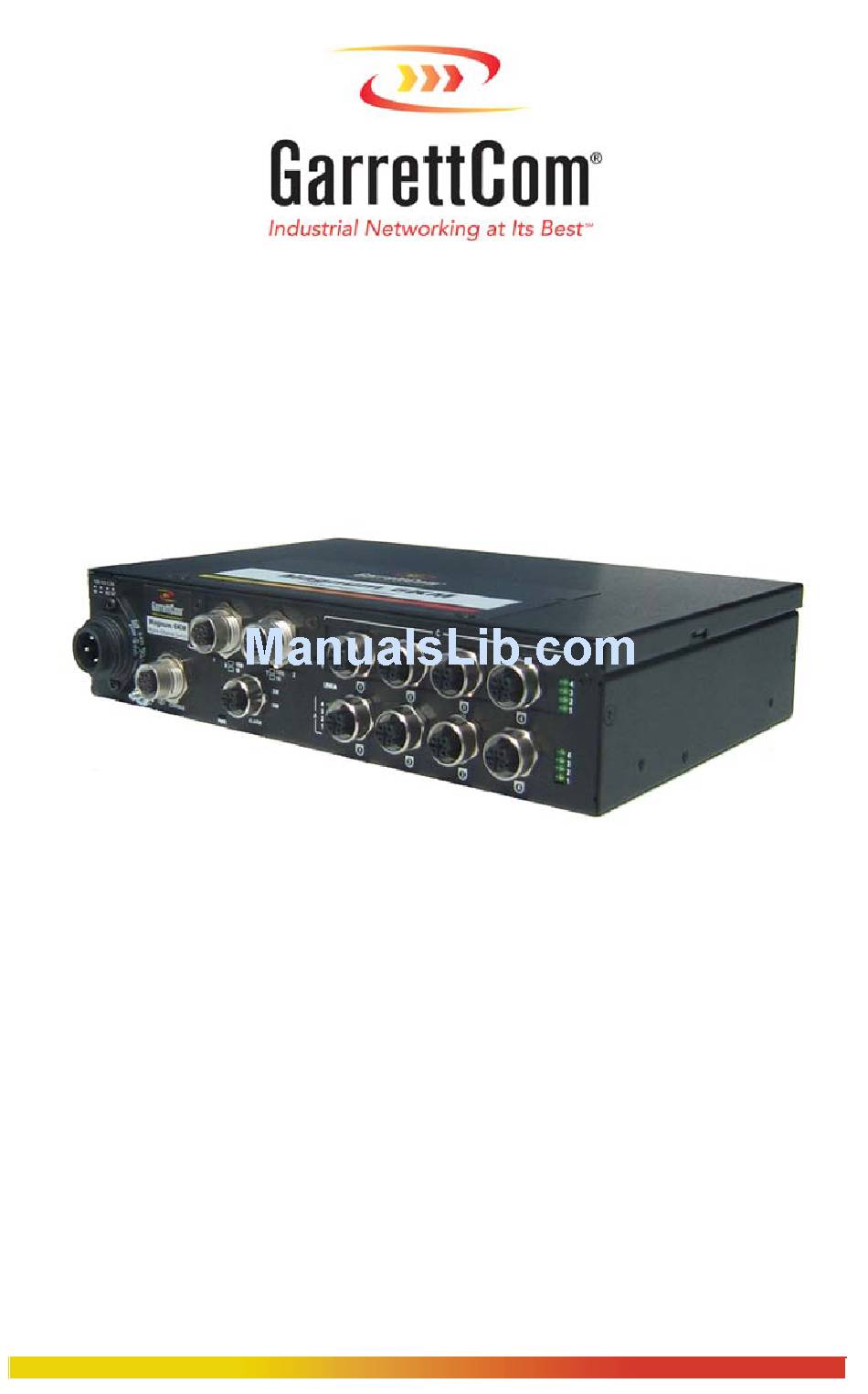

- Page 1 Magnum 6KM Mobile Ethernet Switch Hardware Installation and User Guide www GarrettCom com...
- Page 2 If problems are experienced with Magnum 6KM Switch products, consult Section 6, Troubleshooting. Copyright © 2010 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
- Page 3 (i.e. 24VDC or 48VDC) and suitable rated output current. Product does not contain user replaceable fuses. Any internal fuses can ONLY be replaced by GarrettCom personnel through the RMA process. www GarrettCom com Canadian Emissions Statement é...
-
Page 4: Table Of Contents
Ordering Information ... 4 INTRODUCTION Inspecting the Package and Product ... 6 Product Description - Magnum 6KM Mobile Ethernet Switch ... 7 2.2.1 Packet Prioritization, 802.1p QOS ... 8 2.2.2 Frame Buffering and Flow Control ... 8 ... - Page 5 Magnum 6KM Mobile Ethernet Switch Installation and User Guide APPENDIX A: WARRANTY INFORMATION APPENDIX B: DC Single Source Power Input APPENDIX C: DC Dual Source Power Input APPENDIX D: AC Power Revisions: Rev. A 07/10: Initial Release Rev. B 10/10: Updated Electrical requirements (pg.
-
Page 6: Specifications
Magnum 6KM Mobile Ethernet Switch Installation and User Guide SPECIFICATIONS Technical Specifications Performance Filtering / Forwarding Rate: Ethernet (10Mb): 14,880 pps Fast Ethernet (100Mb): 148,800 pps Gigabit Ethernet (1000Mb): 1,488,000 pps Switching Processing Type: Store and Forward with IEEE 802.3x full-... - Page 7 Magnum 6KM Mobile Ethernet Switch Installation and User Guide 1000BASE-ZX, full duplex, single-mode (9μm cable) - >70km Copper 10/100Mb connector types supported: Copper Port, M12-type (4-pin, D-key coded) Copper 1000Mb connector types supported: Copper Port, M12-type (8-pin, A-key coded) Fiber Multi-mode connector types supported:...
- Page 8 Magnum 6KM Mobile Ethernet Switch Installation and User Guide AC Power Supply (Internal) AC Power Connector: RD24 locking, male 100-240VAC Power Input, 47 to 63 Hz (auto-ranging) Power Consumption: 15 watts Max. (for a fully loaded fiber model with 2Gb) 10 watts Max.
-
Page 9: Ordering Information
Ordering Information MODEL Magnum 6KM-110VDC: Magnum 6KM Mobile Ethernet Switch, base unit with four 10/100 M12 copper ports in slot A. Up to 4 100Mb fiber ports or up to four more 10/100 M12 copper ports (or combinations) may also be configured, and up to two Gb ports. - Page 10 Magnum 6KM Mobile Ethernet Switch Installation and User Guide Following modules can be configured in Slot C only (Slot C is 10/100 M12 or 100Mb Fiber only) Magnum 6KM (Slot C) Port Modules: 6KM4-4M12 adds four 10/100Mb M12 copper ports...
-
Page 11: Introduction
Magnum 6KM Mobile Ethernet Switch Installation and User Guide INTRODUCTION Inspecting the Package and Product Examine the shipping container for obvious damage prior to installing this product; notify the carrier of any damage that you believe occurred during shipment or delivery. -
Page 12: Product Description - Magnum 6Km Mobile Ethernet Switch
The 6KM Mobile Ethernet Switch has the appropriate agency approvals, including EN50155 and EN50121-4 Railway Applications Standards, IEC61373 for shock and vibration, NEMA TS-2 for transportation systems outdoors, and DNV certification for shipboard and other marine applications. -
Page 13: Packet Prioritization, 802.1P Qos
Powered devices. See details for PoE base unit in sec 5.1.11. The Power Sourcing Equipment (PSE) is fully compatible with Powered Devices (PD)(e.g wireless access points, IP phones) that comply with the IEEE 802.3af PoE standard. The PoE switch ports have an auto-sensing algorithm, so that they provide power only to 802.3af, PoE end devices. -
Page 14: Managed Network Software For Magnum 6Km
6K-SECURE software, can be accessed at GarrettCom’s FTP site. Alternatively, for the latest documentation and information, or needed GarrettCom’s MIBs for SNMP, look for the Magnum MNS-6K info at www.GarrettCom.com/techsupport/index.htm#software For interactive training software which shows basic and advanced info about... -
Page 15: Features And Benefits
MNS-6K licensed Management Software Managed Networks Software (MNS) basic version, combined with a Magnum 6K-Series Switch, provides power and efficiency in a managed Ethernet platform. A full range of industry-standard software functions in the MNS-6K software product enables the versatile Magnum 6K Switches to perform efficiently in a wide range of managed LAN applications, including redundant topologies. -
Page 16: Applications
Magnum MNS-6K-SECURE software is designed for those customers demanding extra security in their networks. MNS-6K-SECURE is an optional item--licensed per switch. All of the features in regular MNS-6K are included, plus extra security. S-Ring and Link Loss Learn for economical high availability using ring topology S-Ring combined with the Link-Loss-Learn feature provides reliable fast recovery of a fault in an economical ring topology combining unmanaged and managed switches. -
Page 17: Installation
Magnum 6KM Mobile Ethernet Switch Installation and User Guide INSTALLATION Before installing the equipment, it is necessary to take the following precautions: If the equipment is mounted in an enclosed or multiple rack assembly, the steady-state long-term environmental temperature around the equipment must be less than or equal to 60... -
Page 18: Connecting Ethernet Media
Connecting Ethernet Media The Magnum 6KM Switches are specifically designed to support standard Ethernet media types within a single Switch unit. (See Section 5.1 for a description of the Modules) The various media types supported along with the corresponding IEEE 802.3, 802.3D, 802.3u, 802.3AB and 802.3z standards and connector types are as follows:... -
Page 19: Connecting Twisted Pair For Gigabit (Cat5E Or Better, Utp Or Stp)
Magnum 6KM Mobile Ethernet Switch Installation and User Guide NOTE: for Power Substations: In support of the IEEE 1613 Class 2 standard, GCI advises that, for substation applications, the M12 ports are intended for connectivity to other communication equipment such as routers or telecommunication multiplexers installed in close proximity (i.e., less than 2 meters or 6.5ft) to the... -
Page 20: Connecting Single-Mode Fiber Optic
Magnum 6KM Mobile Ethernet Switch Installation and User Guide Pair 1 Pin 6 = TX+ (MDI3+) Pin 4 = TX- (MDI3-) Pair 2 Pin 1 = TX- (MDI0+) Pin 7 = TX+ (MDI0-) Pair 3 Pin 5 = RX+ (MDI1-) -
Page 21: Din-Rail Mounting The Magnum 6Km
Magnum 6KM Mobile Ethernet Switch Installation and User Guide DIN-Rail Mounting the Magnum 6KM To install the 6KM with the DIN-Rail bracket installed, hold the 6KM in the side vertical position with the bottom out, and with the top moved in toward the DIN- Rail. - Page 22 Magnum 6KM Mobile Ethernet Switch Installation and User Guide 07/10 For best cooling of the 6KM, attach the metal brackets to metal (rather than wood or plastic). Attaching to metal helps conduct heat away from the 6KM through the metal brackets and into the metal support structure.
-
Page 23: Powering The Magnum Dc 6Km Mobile Ethernet Switches
Magnum 6KM Mobile Ethernet Switch Installation and User Guide Powering the Magnum DC 6KM Mobile Ethernet Switches The DC internal power supply supports installation environments where the DC voltage is from 10 to 300 volts, depending on the 6KM model selected. The power consumption will range from about 10 up to 15 watts, depending on the port quantity and types in the configuration. -
Page 24: Alarm Contacts For Monitoring Internal Power, And Software Traps
3. The bottom two pins (3,4) are hardware operated 4. These are both NC (normally closed) relays 5. The switch’s software operation needs to be enabled and set to get the Alarm traps. For detailed information about the Software Alarm and software control of SNMP alarm traps, please reference the Magnum MNS-6K Software User Manual. -
Page 25: Connecting The Console Terminal To Magnum 6Km
The 6KM Console port, used to access the managed switch’s software, has an 8-pin M12 (male) port. A console cable with the mating M12 (female) port and both a DB-9 and / or a USB connector is available for purchase from GarrettCom. The model# is: CONSOLE-CBLM Note: For a detailed description of the 6KM’s Managed Network Software (MNS-6K) -
Page 26: Operation
All Magnum 6KM units have address table capacities of 8K node addresses suitable for use in larger networks. They are self-learning, so as nodes are added, removed or moved from one segment to another, the 6KM Switch automatically keeps up with node locations. -
Page 27: Auto-Cross(Mdix) And Auto-Negotiation, For M12 Ports
One frequently-used application for the Managed Magnum 6KM Switch copper ports is to connect one of them using a fiber media converter to another Switch in the network backbone, or to some other remote 100Mb device. In this case, it is desirable to operate the fiber link at 100Mb speed, and at either half- or full duplex mode depending on the capabilities of the remote device. -
Page 28: Flow-Control, Ieee 802.3X Standard
Duplex mode. The purpose of flow-control is to reduce the risk of data loss if a long burst of activity causes the switch to save frames until its buffer memory is full. This is most likely to occur when data is moving from a 100Mb port to a 10 Mb port and the 10Mb port is unable to keep up. -
Page 29: Magnum 6Km Mobile Ethernet Switch Port Modules
(1,2,3 & 4) of the Magnum 6KM Switches are fixed M12 copper ports with dual-speed 10/100Mbps auto-negotiating capability. Additionally the switch can accept up to two Port Modules to provide the user with up to 6 additional ports (10 total) providing a wide selection of Ethernet copper and fiber media connections with 10, 100 and 1000Mbps capability and up to 70km. -
Page 30: 6Km Module Led Designations
Magnum 6KM Mobile Ethernet Switch Installation and User Guide 5.1.1 6KM Module LED designations PWR LED= ON, when Power is being supplied to the unit. M12 4-pin D-coded (10/100Mb) 1 LED per port Link/A LED: ON (10/100Mb) = LINK established... - Page 31 Magnum 6KM Mobile Ethernet Switch Installation and User Guide LC (100Mb) Fiber port, 2 LED per port L/A LED: ON = LINK established BLINKING = ACTIVITY F/H LED: ON = Full Duplex OFF = Half Duplex LC (1000Mb) Fiber port, 1 LED per port...
-
Page 32: 6Km4-4M12, 4 X 10/100Mb M12 (Slot C)
Magnum 6KM Mobile Ethernet Switch Installation and User Guide 5.1.2 6KM4-4M12, 4 x 10/100Mb M12 (Slot C) The 6KM4-4M12 4-port Copper module provides four 10/100Mb switched M12 ports. The 10/100Mb switched ports normally (as a default setting) are independently N-way auto-negotiating and auto-crossover (MDIX) for operation at 10 or 100Mb speed in full- or half-duplex mode. -
Page 33: P6Km4-4M12, 4 X Poe M12 (Slot C)
The PoE ports in Magnum 6K’s with 48VDC power input act as a pass- through, so the 48VDC power input source to the Magnum 6KM must be strong enough to provide power to the 6K switch and to all 4-M12 ports with PD devices connected (up to 15 watts per PoE port). -
Page 34: 6Km4-4Mlc, 4 X Multimode Lc (Slot C)
The 6KM4-4MLC fiber ports are Small Form Factor (SFF) LC Multimode connectors used primarily in 100Mbps fiber-to-the-desktop links. When installed in a Magnum 6KM Series Switch, it supports fiber optic cable distances up to the IEEE- standard 100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half- duplex. -
Page 35: 6Km4-2Mlc2Rj, 2 X Multimode Lc, 2 X 10/100Mb M12 (Slot C)
The 6KM4-2MLC2RJ fiber ports are Small Form Factor (SFF) LC Multimode connectors used primarily in 100Mbps fiber-to-the-desktop links. When installed in a Magnum 6KM Series Switch, it supports fiber optic cable distances up to the IEEE- standard 100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half- duplex. -
Page 36: 6Km-2Gm12, 2 X Gigabit M12 (Slot B)
Magnum 6KM Mobile Ethernet Switch Installation and User Guide 5.1.8 6KM-2GM12, 2 x Gigabit M12 (Slot B) The 6KM-2GM12 2-port Copper Gigabit module provides two fixed 10/100/1000Mb M12 ports in slot B. There are two LEDs provided for each Gigabit port. Each Copper Gigabit port has LEDs that indicate 10, 100 and 1000Mbps speed (set to AUTO by default). -
Page 37: Troubleshooting
If the problem continues after completing Step 4 above, contact your supplier of the Magnum 6KM Switch unit or if unknown, contact GarrettCom, Inc. by fax, phone or email (support@garrettcom.com) for assistance. When Calling for Assistance Please be prepared to provide the following information. -
Page 38: Return Material Authorization (Rma) Procedure
Date of installation Failure symptoms, including a full description of the problem. GarrettCom will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty-repaired units to the sender with shipping charges prepaid (see Warranty Information, Appendix A, for complete details). -
Page 39: Shipping And Packaging Information
GarrettCom. This warranty will not be effective if, in the opinion of GarrettCom, the product has been damaged by misuse, misapplication, or as a result of service or modification other than by GarrettCom. -
Page 40: Appendix B: Dc Single Source Power Input
Specifications for Magnum 6KM Switches, DC Power at 12, 24, –48, 110, 125 and 250VDC Power input Each Magnum Model 6KM Managed Switch requires DC power input, at 12, 24, 48, 110, 125 and 250VDC nominal. The wide range of DC power input types qualifies this product for use in 12, 24, 48, 110, 125 and 250VDC applications in different industries. - Page 41 It protects the Switch from incorrect DC input connections. An incorrect polarity connection, for example, will neither affect the Switch, its internal power supply, nor will it blow the fuse in the internal power supply. B3.0 6KM DC SINGLE SOURCE INSTALLATION This section describes the proper connection of the 12, 24, –48, 110, 125 and...
- Page 42 Magnum 6KM Mobile Ethernet Switch Installation and User Guide NOTE: The GND should be hooked up first. The 6KM unit has a floating ground, so the user may elect to Ground either + or - terminal to suit the customer’s use.
-
Page 43: Appendix C: Dc Dual Source Power Input
Magnum 6KM Mobile Ethernet Switch Installation and User Guide APPENDIX C: DC Dual Source Power Input (Power Input installation to be performed by a certified electrician) C1.0 SPECIFICATIONS, DUAL SOURCE DC POWER INPUT – FOR MAGNUM 6KM MOBILE ETHERNET SWITCHES Power Supply (Internal, 12VDC Dual-Source, model # Dual-Src-12V) DC Power Connector: First Source: “A+”, “A... - Page 44 DC source with the highest voltage at a given time. The Switch unit will not allow power to flow from a higher voltage input to a lower voltage input, i.e. the two DC power sources are not mixed together by the hub.
- Page 45 Magnum 6KM Mobile Ethernet Switch Installation and User Guide Recommended external power input connector (not supplied with 6KM): Manufacturer: Binder-USA Manufacturer pn: 99-4222-00-04 Safety rating: UL Recognized Standard 6KM (Dual Source) male DC Power Input connector: Pin 1= Pin 2=...
-
Page 46: Appendix D: Ac Power Input
D1.0 Specifications for Magnum 6KM-AC Switches, AC Power input The AC power input connector on the Magnum 6KM Mobile Switch is located on the left front of the unit. The power terminals are connected as shown below. The chassis is “earth” or ground (GND).
