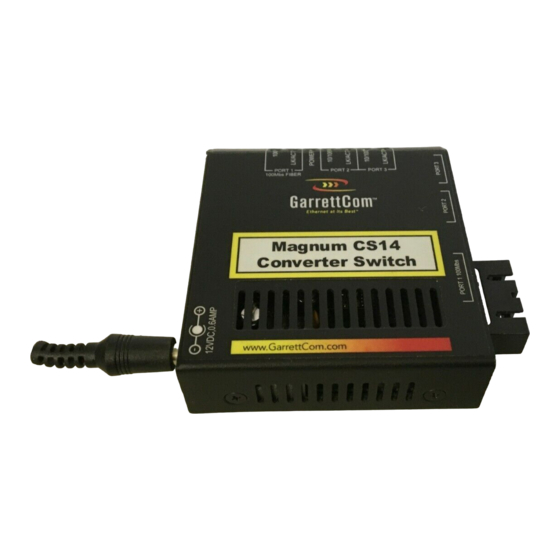

GarrettCom Magnum CS14 Series Installation And User Manual
  1. Manuals
  2. Brands
  3. GarrettCom Manuals
  4. Switch
  5. Magnum CS14 Series
  6. Installation and user manual

GarrettCom Magnum CS14 Series Installation And User Manual

Garrettcom converter switches installation and user guide magnum cs14, csn14
Hide thumbs Also See for Magnum CS14 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
Magnum CS14 & CSN14 Converter Switch
Installation and User Guide
www GarrettCom com
.
.
$5.00 USD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum CS14 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GarrettCom Magnum CS14 Series

Summary of Contents for GarrettCom Magnum CS14 Series

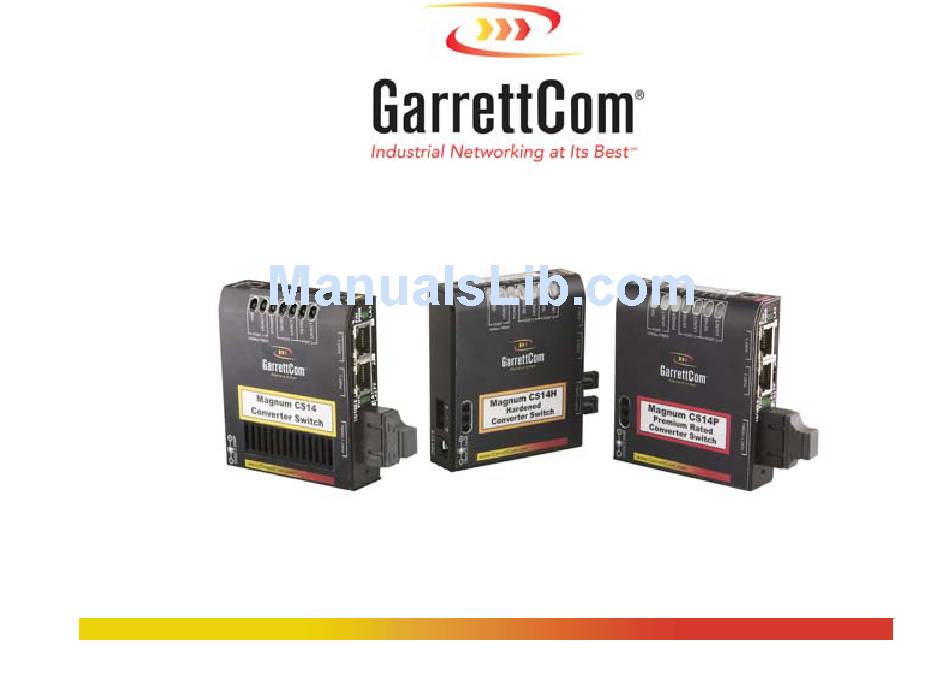

  • Page 1 Magnum CS14 & CSN14 Converter Switch Installation and User Guide www GarrettCom com $5.00 USD...
  • Page 2 Installation and User Guide Part #: 84-00101Z Rev. C Trademarks GarrettCom is a registered trademark and Magnum, Dymec, DynaStar, Personal Switch, Link-Loss-Learn, S-Ring, Convenient Switch and Converter Switch are trademarks of GarrettCom, Inc. Ethernet is a trademark of Xerox Corporation...
  • Page 3 Magnum (CS14, CSN14) 10/100 Mb/s Converter Switches products, consult Section 5, Troubleshooting, of this User Guide. Copyright © 2004 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
  • Page 4 CS14 & CSN14 Series Converter Switch Installation and User Guide (09/09) Federal Communications Commission Radio Frequency Interference Statement This equipment generates, uses and can radiate frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio communication.
  • Page 5 (i.e. 24VDC or 48VDC) and suitable rated output current. Product does not contain user replaceable fuses. Any internal fuses can ONLY be replaced by GarrettCom personnel through the RMA process. www GarrettCom com Installation and User Guide (09/09)
  • Page 6 CS14 & CSN14 Series Converter Switch Installation and User Guide (09/09) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 47823 Westinghouse Dr. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...

  • Page 7: Table Of Contents

      INSTALLATION   Locating the Converter Switch Unit ... 31   MC14-TRAY for Rack Mounting CS14 & CSN14 Series Switches . 33   MC14-TR+PS9 & MC14-TR+PS9X2 for Rack Mounting ... 34 www GarrettCom com Installation and User Guide (09/09) ... 1 ...
  • Page 8 CS14 & CSN14 Series Converter Switch   DIN-Rail mounting option ... 36   Power Requirements for CS14 & CSN14 Series Switches ... 37   Powering the CS14 & CSN14 with 12V, 24V or –48VDC power input ... 39   CS14 Series, DC-powered, -48V, 24V and 12VDC Installation ... 41  ...
  • Page 9 (pg. 32), changed Wavelength to 1310nm (pg. 48), updated Latency spec. (pg. 2), corrected ambient temp. (pg. 3) Rev A 04/04: Initial release of this user manual for CS14 Converter Switch www GarrettCom com Installation and User Guide (09/09) ...

  • Page 10: Specifications

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) SPECIFICATIONS 1.1 Technical Specifications Ports Performance When a port is operating at 100Mbps: Data Rate: 100Mbps When a port is operating at 10 Mbps: Data Rate: 10 Mbps Network Standards 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, 100BASE-FX...
  • Page 11 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Address buffer age-out time: 300 sec. Packet buffers memory: 128KB, dynamically shared on all domains Latency (not including packet time): 100 to 10 Mbps: <5μs 100 to 100Mbps: <4μs...
  • Page 12 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Operating Environment Ambient Temperature Storage Temperature, All models: Cold Start: Ambient Relative Humidity: Altitude (All models): www GarrettCom com CS14, CSN14: 32ºF to 104ºF (0ºC to 40ºC) CS14H, CSN14H: -13ºF to 140ºF (-25ºC to 60ºC)
  • Page 13 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Conformal Coating (optional) for Humidity protection Note: H and P models are designed for NEBS compliance, including, vibration, shock and altitude. Packaging: Enclosure: Rugged sheet metal (Steel). Dimensions, Switch unit: Height x Width x Depth 3.5 in H x 3.0 in W x 1.0 in D (8.9 cm x 7.6 cm x 2.5 cm)

  • Page 14: Power Supply

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) POWER SUPPLY AC POWER SUPPLY (using an external power adapter): All models have a (8-15) VDC output with 6ft long cord and a 2.5mm center +ve jack. The power supplies are temperature rated to match the Converter Switch ratings.
  • Page 15 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) International (-Hi) models. Factory floor temperature rated. Input: IEC 320 connector on the 100-240vac 47-63Hz external power adapter. Requires a user supplied power cord Output: 12vdc, 1.25Amps. Temperature un-controlled Premium (P) Ratings (-40 to 75°C) North America (-Pd) models.
  • Page 16 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Direct DC POWER SUPPLY: built-in terminal block for +, -, ground along with 12VDC jack 12V DC internal (range of 8.0 to 15V DC) 24V DC internal (range of 18 to 36V DC) -48V DC internal (range of 36 to 60V DC), -, ground Power Consumption: 3 watts typical and 4 watts max.
  • Page 17 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Switches Fiber Port # 1 is controlled by an “F – H” switch, provided underneath port “F” enables Full duplex to the fiber port #1 “H” enables Half duplex to the fiber port # 1...
  • Page 18 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Mean Time Between Failure (MTBF Agency Approvals and Standard Compliance: UL Listed (UL 60950), cUL, CE, Emissions meets FCC Part 15 Class A. NEBS L3 and ETSI compliant. H and P models: IEEE P1613 Env. Std for Electric Power Substations...

  • Page 19: Summary Of Models And Descriptions

    MC14-TRAY = 19” Rack-mount tray for 14-series Switch models, up to 16 units DIN-RAIL-MC2 = Metal DIN-Rail mounting bracket for one CS14 & CSN14 Series Switch CS14 models have two 10/100 RJ-45 ports +one 100Mb Fiber ports with connector choices of SC, ST, MTRJ, SSC, SSCL, SST, SLC, & SFC.

  • Page 20: Introduction

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) INTRODUCTION This section describes CS14 & CSN14 Series models, including appearance, features and typical applications. 2.1 Inspecting the Package and the Product Examine the shipping container for obvious damage prior to installing this product;...

  • Page 21: Product Description

    Ethernet Network. Available in two different flavors of fiber speed, 10Mb ST fiber as CSN14 model and 100Mb(SC, MTRJ, LC) fiber as CS14, the CS14 & CSN14 Series are useful Ethernet devices for the edge-of-network application. The plug and play, energy-efficient, and flavor rich fiber features make this sleek multi-purpose Switch convenient and cost-effective for the user.
  • Page 22 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) the combination of media converter with Switch, the CS14 & CSN14 Series is an ideal choice for edge-of–the-network applications. The Yellow label, CS14 & CSN14 models (as shown in Fig 2.2.a with 10Mb ST- fiber in regular-package) units are for office and wiring closet environments and use an external AC power supply.
  • Page 23 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) any additional media converters. The CS14 models provide several options of 100Mb fiber flavor (SC, MTRJ and LC) connectors. The orange-label Magnum CS14H hardened units (as shown in Fig 2.2b...
  • Page 24 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) smoke and insects, and is plenum rated. Choices of models for external AC or internal DC power are available. Ambient operating temperature is –25°C to + 60°C. Storage temperature rating is between –25°C to + 85°C depending on the power source...

  • Page 25: Magnum Cs14 & Csn14 Series Chassis (2+1) With Two 10/100 (Rj-45) Ports + One (10 Or 100)Fiber Port

    +75°C. Storage temperature rating is between –40°C to +85°C depending on the power source used. 2.3 Magnum CS14 & CSN14 Series chassis (2+1) with two 10/100 (RJ-45) ports + one (10 or 100)Fiber port The Magnum CS14 & CSN14 Series chassis house one main PC board. The power supply unit may be external AC as well as Internal DC.

  • Page 26: Frame Buffering And Latency

    (Model CSN14) and as an SC/Small form-factor connector (MTRJ-multi mode and LC- Single mode) for 100 Mb (Model CS14). The “F- H” manual-Switch provided underneath the fiber port, allow the user to fix the fiber port at 10 or 100Mb Half or Full Duplex mode as per the requirement by sliding the manual switch.
  • Page 27 To minimize the possibility of dropping frames on congested ports, each Magnum CS14 & CSN14 Series Converter Switch dynamically allocates buffer space from 128Kb memory pool, ensuring that heavily used ports receive very large buffer space for packet storage.
  • Page 28 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) capability for the maximum resources of the Magnum CS14 & CSN14 Series unit to be applied to all traffic loads, even when the traffic activity is unbalanced across the ports.
  • Page 29 The latency (the time the frame spends in the Switch before it is sent along or forwarded to its destination) of the CS14 & CSN14 Series Converter Switches varies with the port-speed types. The length of the frame is a variable here as it is with all store-and- forward switches.

  • Page 30: Features And Benefits

    100Mb (or 10 Mb) of bandwidth. Reduces Network Costs and provide economical solution Magnum CS14 & CSN14 Series Switches offer the ideal solution to efficiently and inexpensively connect a Twisted Pair and fiber network with 10Mb or 100Mb and help to expand the Ethernet network in a very convenient and economical way.
  • Page 31 (MC14- Tray) or wall- mounted. Rugged metal case, Industrial grade CS14 & CSN14 Series have a robust design and are packaged in a rugged sheet metal enclosure to ensure high reliability and durability even when placed in industrial or outdoor applications.
  • Page 32 Efficient Compact design, for all purpose convenient mounting Featuring a compact steel case with an external AC and internal DC power supply, Magnum CS14 & CSN14 Series units can be installed with minimal space in rack mount cabinets like MC14-TRAY, on table-tops or wall- mounted.

  • Page 33: Applications For Cs14 & Csn14 Series Converter Switches

    The edge-of-the-network connectivity solution offered by GarrettCom, is focused on providing easier, more economical and extra-reliable industrial application products. The compact designed Magnum CS14 & CSN14 Series acts as a very useful tool in the modern life of fast expanding network requirements. The Dual-Speed and Dual- media functions support a mixed environment of 10 Mbps and 100Mbps users with copper and fiber media.
  • Page 34 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Example 1. In this example, the Magnum CS14 & CSN14 Series Converter Switches are being deployed together to serve a secured corporate office, spread out in miles with multi-...
  • Page 35 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Example 1: CS14 www GarrettCom com...
  • Page 36 Built with high-grade components and efficient thermal techniques of cooling, and equipped with wide variety of options of AC and DC power, the CS14 & CSN14 Series Converter Switches provide the efficient solution for this need. The Fiber port option on the converter switches is really suitable for this edge of network requirement, where covered distance is also a primary concern to deal with.
  • Page 37 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Example 2: CS14H www GarrettCom com...
  • Page 38 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Example 3: CS14P or CSN14s The Magnum CS14Ps fits very well in high temperature locations (control rooms) experiencing a need to scale its LAN quickly and cost effectively. With its half / full duplex...
  • Page 39 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) make aware of the importance and multi-purpose use of this small Switch. In the on-going demand of Ethernet at the present time, the converter switch provides a very economical...

  • Page 40: Installation

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) INSTALLATION This section describes the installation of the Magnum CS14 & CSN14 Series Converter Switches, including location, mountings, power supply options and media connection. 3.1 Locating the Converter Switch Unit All the CS14 &...
  • Page 41 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Installation of the Magnum CS14 & CSN14 Series Converter Switches is a simple procedure. The installation location is dependent upon the physical layout of the Ethernet network and associated cabling. Make sure the unit is installed in a location that is...

  • Page 42: Mc14-Tray For Rack Mounting Cs14 & Csn14 Series Switches

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.2 MC14-TRAY for Rack Mounting CS14 & CSN14 Series Switches For 19” rack-mounting of Magnum FT14-series Media Converters, a rack-mount tray is available, MC14-TRAY. The Media Converter units are mounted with their RJ-45 port and DC power jack in the back, with either fiber or BNC cable in the front.

  • Page 43: Mc14-Tr+Ps9 & Mc14-Tr+Ps9X2 For Rack Mounting

    AC power supply rated at 55 watts at 50°C ambient, 12VDC output, and supporting up to 10 Switches for MC14-TR+PS9 and 16 units CS14 & CSN14 Series for MC14-TR+PS9X2. The MC14-TR+PS9X2 Model has two groups of eight units per power supply.
  • Page 44 The side-view picture shown here is an example of an installation of the model MC14-TR+PS9, 19” rack-mount tray, holding a few CS14 & CSN14 Series , 10Mbps FT14’s and 100Mb 14E Media Converters, each with their power input plugged into the...

  • Page 45: Din-Rail Mounting Option

    Model #DIN-RAIL-MC2. It comes with four screws to attach the bracket to the MC unit. The Magnum CS14 Models with “HR” have 24VDC power, and have the DIN- Rail-MC2 bracket included and assembled with the MC unit at the factory.

  • Page 46: Power Requirements For Cs14 & Csn14 Series Switches

    3.5 Power Requirements for CS14 & CSN14 Series Switches INDUSTRIAL Magnum CS14 & CSN14 Series Switches are power-efficient and can work with an external AC power supply. Magnum CS14 & CSN14 Series require a nominal 12VDC input version. The extended temperature –Hd version is used for heavy duty and industrial applications.
  • Page 47 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) higher temperature environments, and provide the DC power choices to the user to deploy in uncontrolled temperature environments. 12VDC 24VDC -48VDC The Internal 12V DC (8 – 15V DC) has a built-in terminal block for +, -, ground. The 9V DC jack is also present.

  • Page 48: Powering The Cs14 & Csn14 With 12V, 24V Or -48Vdc Power Input

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.6 Powering the CS14 & CSN14 with 12V, 24V or –48VDC power input Each Magnum CS14H/CS14P-Series is reliably equipped with an internal DC power supply, and has built-in screw terminals for secure attachment of the power leads.
  • Page 49 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) DC Power Terminals: “+”, “-”, floating GND: Terminal for “earth” or ground wire connection to the CS14H chassis Input Voltage: 8 - 15V DC (12V DC) 18 – 26V DC (24V DC) 30 –...

  • Page 50: Cs14 Series, Dc-Powered, -48V, 24V And 12Vdc Installation

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.7 CS14 Series, DC-powered, -48V, 24V and 12VDC Installation This section describes the proper connection of the -48VDC leads (or 24VDC, 12VDC leads) to the DC power terminal block on the Magnum CS14H hardened media converter (as shown in Figure ).

  • Page 51: Connecting Ethernet Media

    When power is applied, the green PWR LED will illuminate. 3.8 Connecting Ethernet Media The Magnum CS14 & CSN14 Series Converter Switch can be connected to two media types i.e. fiber and copper (RJ-45) types, runt at 100BASE-TX, 10BASE-T and 100BASE-FX, or 10BASE-FL.
  • Page 52 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Media Twisted Pair (CAT 3 or 5) Twisted Pair (CAT 5) Fiber (Multi-mode, Single -mode) Fiber (Multi-mode) Fiber (Single-mode) Fiber (Multi-mode) NOTE : It is recommended that high quality CAT. 5 cables (which work for both 10 Mbps...

  • Page 53: Connecting Twisted Pair (Rj-45, Cat 3 Or Cat 5, Unshielded Or Shielded)

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.8.1 Connecting Twisted Pair (RJ-45, CAT 3 or CAT 5, Unshielded or Shielded) The following procedure describes how to connect a 10BASE-T or 100BASE-TX twisted pair segment to the RJ-45 port. The procedure is the same for both unshielded and shielded twisted pair cables.
  • Page 54 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Before connecting the fiber optic cable, remove the protective dust caps from the tips of the fiber connectors. Save these dust caps for future use. Wipe clean the ends of the dual connectors with a soft cloth or lint-free lens tissue dampened in alcohol.

  • Page 55: Connecting Fiber Optic Sc-Type, "Snap-In

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.8.3 Connecting Fiber Optic SC-type, "Snap-In" The following procedure applies to installations using SC-type fiber connectors, i.e., using multi-mode SC and SC single-mode. While connecting fiber media to SC connectors, simply snap on the two square male connectors into the SC female jacks of the Fiber connector until it clicks and secures.

  • Page 56: Power Budget Calculations For Cs14 & Csn14 Series, Fiber Media

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 3.8.6 Power Budget Calculations for CS14 & CSN14 Series, Fiber Media Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media...
  • Page 57 CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) Fiber Speed, Port Mode Std. Module CS14- Multi- 100Mb mode MST, MSC Single- 100Mb CS14-SSC mode 100Mb Multi- CS14- mode MTRJ 100Mb Single- Long Reach mode CSN14- Multi- 10 Mb...

  • Page 58: Connections To Nics Which Support Auto-Negotiation

    Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to the CS14-Sereis, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T).

  • Page 59: Operation

    100Mbps Ethernet, and can communicate with 10 Mb domain too. Magnum CS14 & CSN14 Series units are plug-and-play devices. There is no software configuring to be done at installation or for maintenance. The only hardware configuration settings is user options for port#2, to configure at FF/AN and can be done through a manual switch accessed from the front side.
  • Page 60 Packets needed for maintaining the operation of the network (such as occasional multi-cast packets) are forwarded to all ports. The Magnum CS14 & CSN14 Series Converter Switches operate in the store-and-forward switching mode, which eliminates bad packets and enables peak performance to be achieved when there is heavy traffic on the network.

  • Page 61: Auto-Cross (Mdix), Auto-Negotiation And Speed-Sensing

    The Magnum CS14 & CSN14 Series units have address table capacity of 2K node addresses, and are suitable for use in large networks. They are self-learning, so that as nodes are added or removed or moved from one segment to another, the CS14 & CSN14 Series automatically keeps up with node locations.

  • Page 62: F-H) Switch, Full-Duplex Or Half-Duplex For Fiber Port# 1

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) When an RJ-45 cable connection is made, and each time LINK is enabled, auto- negotiation takes place (except for legacy products, which do not have auto-negotiation and which go to the default state accordingly). The Magnum Switch advertises its capability for 10 or 100 Mbps speed and F/H duplex mode, and the device at the other end of the cable should similarly advertise / respond.

  • Page 63: Dual Leds, Front-Panel And Side-Panel (Magnum Cs14 & Csn14)

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 4.4 Dual LEDs, Front-panel and side-panel (Magnum CS14 & CSN14) Description Illuminates GREEN to indicate power applied. LK/ ACT Steady ON for LINK w/no traffic, blinking for activity per port. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device.

  • Page 64: Troubleshooting

    However, if you are unsure of the procedures described in this section or if the Magnum CS14 & CSN14 Series 10/100 Mb/s Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support.

  • Page 65: Before Calling For Assistance

    (About 90% of network downtime can be attributed to wiring and connector problems.) Make sure that an AC power cord is properly attached to each Magnum CS14 & CSN14 Series unit. Be certain that each AC power cord is plugged into a functioning electrical outlet.
  • Page 66 If the problem is isolated to a network device other than the Magnum CS14 & CSN14 Series 10/100 Mb/s switch product, it is recommended that the problem device is replaced with a known good device. Verify whether or not the problem is corrected.

  • Page 67: When Calling For Assistance

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 5.2 When Calling for Assistance Please be prepared to provide the following information. A complete description of the problem, including the following points: a. The nature and duration of the problem;...

  • Page 68: Return Material Authorization (Rma) Procedure

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) A record of changes that have been made to your network configuration prior to the occurrence of the problem. Any changes to system administration procedures should all be noted in this record.
  • Page 69 Date of installation Failure symptoms, including a full description of the problem. GarrettCom will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty-repaired units to the sender with shipping charges prepaid (see Warranty Information, Appendix A, for complete details).

  • Page 70: Shipping And Packaging Information

    CS14 & CSN14 Series Converter Switches Installation and User Guide (09/09) 5.4 Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: 1. Package the unit carefully. It is recommended that you use the original container if available.

  • Page 71: Appendix A: Warranty Information

    GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
