Machine configuration menu
Basic machine settings are defined in the machine configuration menu.
5.10.1 Selecting, changing and saving parameters
A
B
B
B
B
B
B
B
B
B
B
B
B
Display
099-00T500-EW501
30.1.2023
A
A
A
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
Setting/selection
Exit the menu
Exit
Switching the machine off and on
Required for applying various configuration parameters
Power source menu
Switch ignition mode
------ HF ignition
------ Liftarc
HF intensity
------ Standard: Maximum value for the high-voltage ignition pulse Up
------ Reduced: Reduced value for the high-voltage ignition pulse Up
Re-ignition after arc interruption > see 5.1.7.3 chapter
------ JOB-dependent time (ex works 5 s).
------ Function disabled or numerical value 0.1–5.0 s.
Functional characteristics
B
A
A
A
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
A

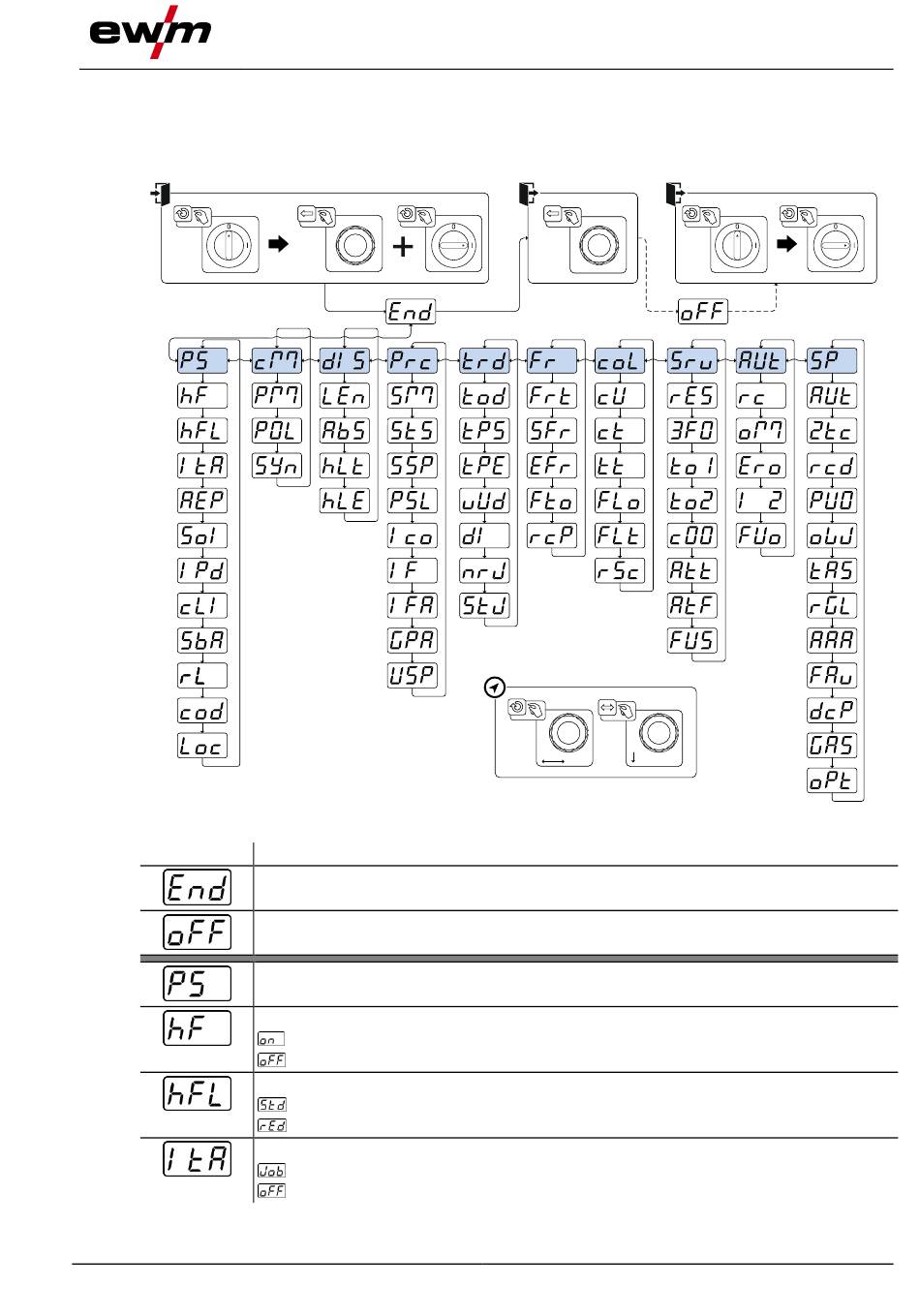

Figure 5-54
