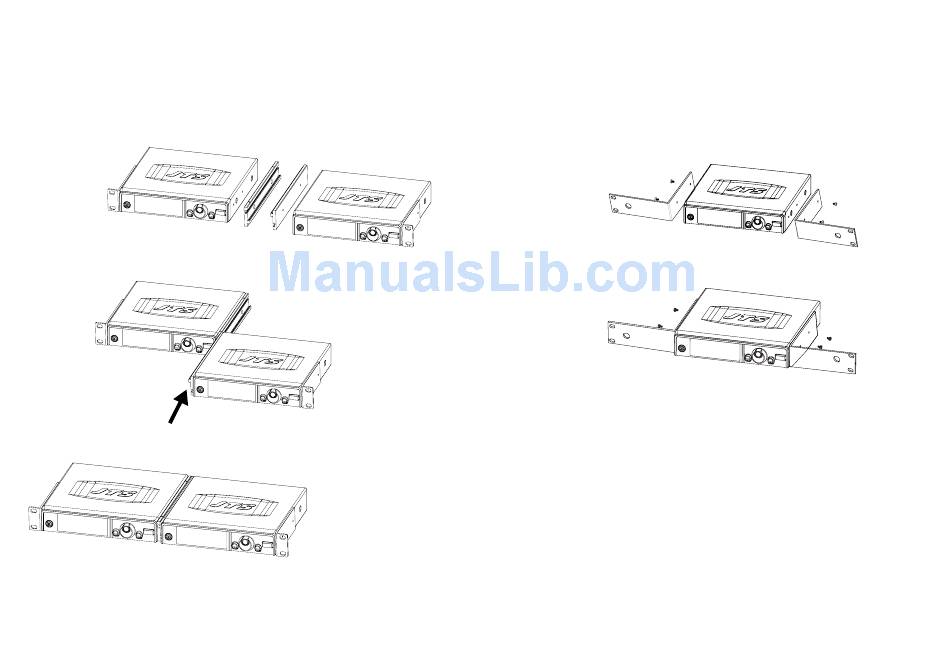

3. Receiver rack mount kit assembly//RM-10 (optional)
(1) Assembly the rack mount kit as the following illustration to mount two UF-10R into one
U rack.
(2) Lock equipment onto a rack
19
Professional Wideband (60~75MHz) True Diversity System
4. Rack Mount Kit RM-901 (optional)
Mount one UF-10R into one U rack.
(1) Screw the rack mount kit on the receiver.
(2) screw the whole set onto a rack.
20
