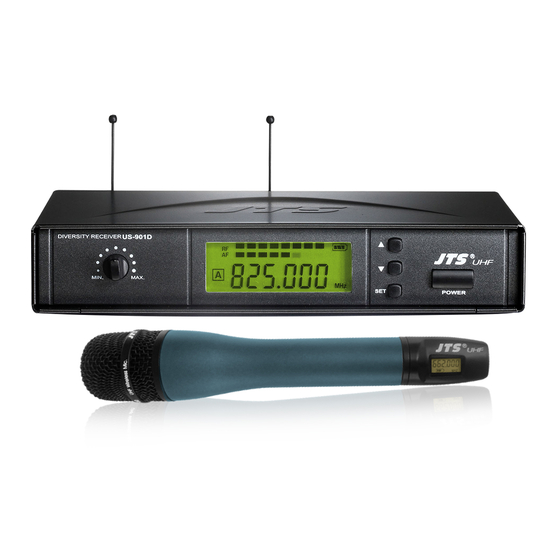

- Page 1 US-9001D US-901D UHF PLL US-901D/US-9001D WIRELESS SYSTEMS Mh-950/Mh-960/Mh-8900(i)/PT-950B(mi) Instruction Manual 59506-048-04...
-
Page 2: Table Of Contents
5-3 Handheld Transmitter // Mh-8900(i) 5-4 Body-pack Transmitter // PT-950B(mi) Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the system, 6. Recommendation you are recommended to take few minutes to read this instruction manual carefully. -
Page 3: Important Caution
Dimension(m/m)....US-901D: 212mm (W)* 40mm (H)* 125mm (D) • Equipped with S.A. W . filter benefits the interference-resistant. US-9001D: 212mm (W)* 40mm (H)* 137mm (D) • Tuned antennas can benefit the stable RF reception. • Built-in Noise Squelch circuity & Mute function are available to restrain the interference for signals. -
Page 4: Handheld Transmitter // Mh-950 Mh-960 Mh-8900(I)
3-2 Handheld Transmitter // Mh-950 Mh-960 3-3 Body-pack Transmitter // PT-950B(mi) Frequency Preparation.... PLL Synthesized Control Frequency Preparation.... PLL Synthesized Control Carrier Frequency Range..502~960 MHz Carrier Frequency Range..502~960 MHz RF Outputs........10mW RF Outputs........10mW Stability..........±10KHz Stability......... ±10KHz Frequency Deviation.... - Page 5 Headset Microphone // CM-214 CM-214U CM-214UL CM-235 CX-504 Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i Model No....... CM-214 CM-214U CM-214UL Connector....... 801C4 4P Mini XLR 801C3 (3P Mini XLR) Model No....... CM-801/CM-804i CM-8015/CM-825i (4P Mini XLR) 801C4 (4P Mini XLR) Connector......
-
Page 6: Part Identification & Accessories
4. Parts Identification & Accessories 4-1 Receiver // US-901D US-9001D 4-2 Handheld Transmitter // Mh-8900(i) Mh-950 Mh-960 Power On/Off switch Interchangeable dynamic capsule Up button (frequency adjustment) LCD display Down button (frequency adjustment) Down button Set button (frequency adjustment) UP button... -
Page 7: Body-Pack Transmitter // Pt-950B(Mi)
4-3 Body-pack Transmitter // PT-950B(mi) 4-4 Optional Condenser Microphone Lavaliere Microphone // CM-501 CM-201 CM-125 Mic. input Power On/off switch Clip Antenna 4 Pin Mini XLR LCD display Windscreen Set button Up button Down button Battery tray button AF level control Belt clip Battery tray Attenuation pad(PT-950Bmi) - Page 8 Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i Headset Microphone // CM-214 CM-214U CM-214UL CM-235 CX-504 Boom Gooseneck Adjustable Headband Adjustable headband Adjustable ear hook Headband Detchable Cable 4 Pin Mini XLR Cable Clip CM-801 Windscreen Windscreen 4 Pin Mini XLR Option 3 Pin Mini XLR 3.5 Stereo Plug...
-
Page 9: Accessories
4-5 Accessories Compatible Instrument Microphone // CX-500 / CX-500F / CX-520 / CX-508W / CX-516W AC/DC adaptor Switching Power Supply(100V~240V , 50~60Hz) Linear Power Supply (220V , 50Hz) Option Linear Power Supply (220V , 60Hz) Option Gooseneck Screwdriver Clip DR-900 Dual Rack Adaptor Option Bracket RP-900 Panel Cover... -
Page 10: Preparing Procedures & Basic Operation
5. Preparing Procedures & Basic Operation 5-1 Receiver // US-901D US-9001D (3) LCD panel AF signal RF signal (1) Power output connector Display for SCAN mode Plug in one end of AC/DC adaptor cable to DC input socket in the rear panel of receiver, and Display for set FREQ. -
Page 11: Handheld Transmitter // Mh-950 Mh-960
5-2 Handheld Transmitter // Mh-950 Mh-960 (1) Turning the transmitter on/off (8) Turning the receiver on/off DIVERSITY RECEIVER US-901D The on/off switch is located on the bottom of the microphone. Turn the receiver on by pressing the MIN. MAX. POWER (POWER) button. -
Page 12: Handheld Transmitter // Mh-8900(I)
5-3 Handheld Transmitter // Mh-8900(i) (4) Mh-950 Press the SET button to select between frequency and sensitivity. 1. Frequency adjusting Press the UP or DOWN button to adjust the setting of a menu. (1) Insert 2 pcs 1.5V batteries into the battery tray. 1-1 Hold SET button for 3 seconds to activate frequency. -
Page 13: Body-Pack Transmitter // Pt-950B(Mi)
5-4 Body-pack Transmitter // PT-950B(mi) 2-2 Sensitivity adjusting 1. Press the SET button twice to select sensitivity. Lasting for 3 seconds at the first press, then 1 second for the second press, and the display appears“ ” . (1) Turning the transmitter on/off 2. - Page 14 Attach the detachable cable to a suitable place by a cable clip. MIC IN (5) Instrument Microphones The system is compatible with JTS various instrument microphones. For detail please refer to user’ s manuals of these microphones. 2. Lightweight Single Ear Hook Microphone Try on whether the original curve is tight or loose.
-
Page 15: Recommendation
6. Recommendation (7) Basic operation 1. Frequency adjusting 1-1 Hold SET button for 3 seconds to activate frequency. (1) In order to achieve the optimum reception condition and also extend the operating distance, 1-2 Once you see “MHz” blanking, you are ready to select your desired frequency by please leave a “open space”... -
Page 16: Important Notice
7. Important Notice (1) JTS offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or geographic regions. These regulations help limit radio frequency (RF) interference among different wireless devices and prevent interference with local public communications channels, such as television and emergency broadcasts.
